Description
Key Features:
Strut Top Spacer – Not Strut Disassembly Required
3″ Rear Coil Springs or 2″ Coil Spacers
Factory Like Ride And Handling Characteristics
Differential Skid Plate Included
CNC Machined Steering Knuckles
2009 Dodge/Ram Ram 1500 4WD
2010 Dodge/Ram Ram 1500 4WD
2011 Dodge/Ram Ram 1500 4WD
Important Notes!
Not recommended for AWD models.
TRX models require removal of the lower skid plate but it is replaces in our lift system.
These trucks vary 1″ to 3″ tail high from the factory. Measure your truck and order the appropriate rear lift height.
Specs
Front Lift Height: 4″
Front Lift Method: Upper Strut Mounts
Rear Lift Height: 3″
Rear Lift Method: Coil Springs
Install Time Hrs: 8-10
Difficulty Level 1-5: 3
Wheel Size: 17 x 9
Back Spacing: 4.5″
Max Tire Size: 35 x 12.50
Wheel Size: 18 x 9
Back Spacing: 5″
Max Tire Size: 35 x 12.50
Wheel Size: 20 x 9
Back Spacing: 5″
Max Tire Size: 35 x 12.50

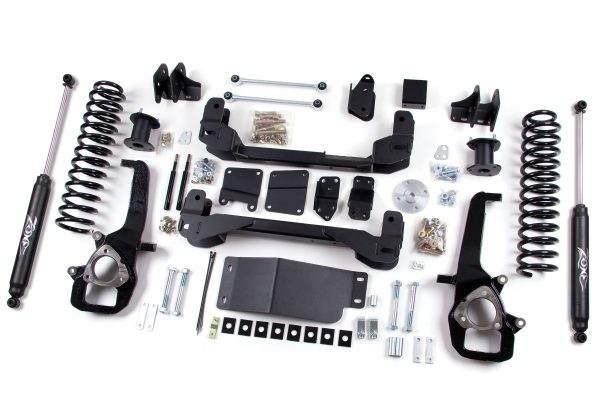

The Zone Dodge 4″ Suspension System is centered around two main crossmembers that are locked together with a substantial differential skid plate. CNC machined steering knuckles correct steering geometry while reducing installation time. Strut top spacers are used to maintain factory ride and no strut disassembly is required. Due to factory ride height variances, Zone Offroad offers rear 3″ coil springs or 2″ coil spring spacers so you can achieve your desired stance. Completeing the rear, the kit includes hydraulic or nitro shocks as well as a track bar relocation bracket and four link relocation system. Buy from Zone Offroad and be glad you did.
2009, 2010, 2011
D1N, D23N
