Description
Key Features:
Strut Top Spacer with optional pre-load spacer
Factory Like Ride And Handling Characteristics
Differential Skid Plate Included
CNC Machined Steering Knuckles
Rear Shocks Included
2009 Dodge/Ram Ram 1500 4WD
2010 Dodge/Ram Ram 1500 4WD
2011 Dodge/Ram Ram 1500 4WD
Important Notes!
Not recommended for AWD models.
These trucks are typically between 1″ and 3″ tail high. Please measure your truck and order the appropriate rear lift height.
TRX models will achieve aproximately 1″ of additional lift. This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. Instead, consider our 4″ lift system for about 5″ of lift or replace the TRX struts with standard struts for use with this system.
Specs
Front Lift Height: 6″
Front Lift Method: Upper Strut Mounts
Rear Lift Height: 3 or 5″
Rear Lift Method: Coil Springs
Install Time Hrs: 8-10
Difficulty Level 1-5: 3
Wheel Size: 17 x 9
Back Spacing: 4.5″
Max Tire Size: 37 x 13.50
Wheel Size: 18 x 9
Back Spacing: 5″
Max Tire Size: 37 x 13.50
Wheel Size: 20 x 9
Back Spacing: 5″
Max Tire Size: 37 x 13.50

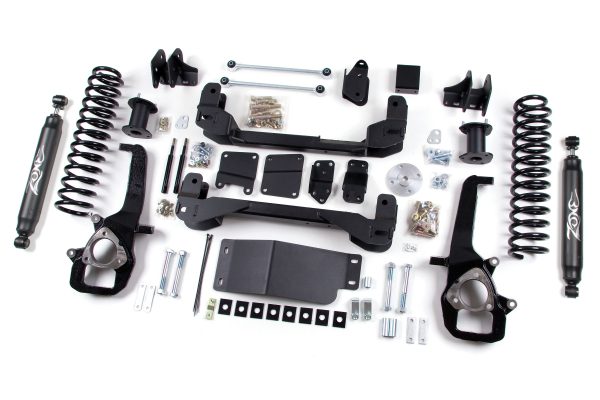

The Zone Dodge Ram 1500 pickup 6″ Suspension Kit System for 2009-2011 models is centered around two main crossmembers that are locked together with a substantial differential skid plate. CNC machined steering knuckle correct steering geometry while reducing installation time. Strut top spacers are used to lift the vehicle and maintain the factory ride. Strut dissaseembly is only required if the optional preload spacers included in the kit are used. The rear is lifted with new Zone coil springs, track bar relocation and a rear four link relocation system.
Two rear lift height options are available and when combined with the included optional front pre-load spacers, really allows you to fine tune the stance of your truck.
D2N Lift Kit 2009, 2010, 2011
