Description
Key Features:
- No track width change
- Factory like ride and handling
- CNC Machined knuckles for reduced installation time
2004, 2005, 2006, 2007, 2008 Ford F150 4WD Trucks
Specs
Front Lift Height: 6″
Front Lift Method: IFS System w/Upper Strut Mounts
Rear Lift Height: 5″
Rear Lift Method: Block & U-bolt Kit
Install Time Hrs: 8
Difficulty Level 1-5: 3
Wheel Size: 17 X 9
Back Spacing: 4.5
Max Tire Size: 35 X 12.50
Wheel Size: 18 X9
Back Spacing: 4.5-5
Max Tire Size: 35 x 12.50
Wheel Size: 20 X 9
Back Spacing: 4.5-5.5
Max Tire Size: 35 X 12.50
Important Notes!
AWD models will require front driveshaft modification.
Will not fit HD models with 7 Lug wheels.
Although rare, some models may require rear driveshaft spacer (F5601) with the 6″ system.

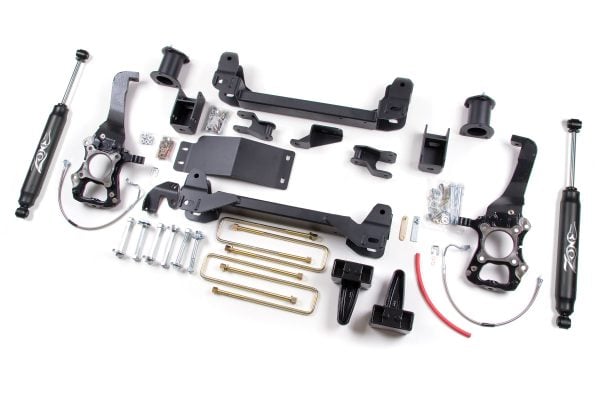

Finally, performance and quality at a price you can afford! The upper strut spacer, and the rear block kit, not only make for an easy install, but ensure factory ride quality. Combine these factors with the massive crossmembers, CNC machined steering knuckles and differential skid plate and you have a suspension system that can’t be beat. A rear add-a-leaf is available for a tail high stance.
