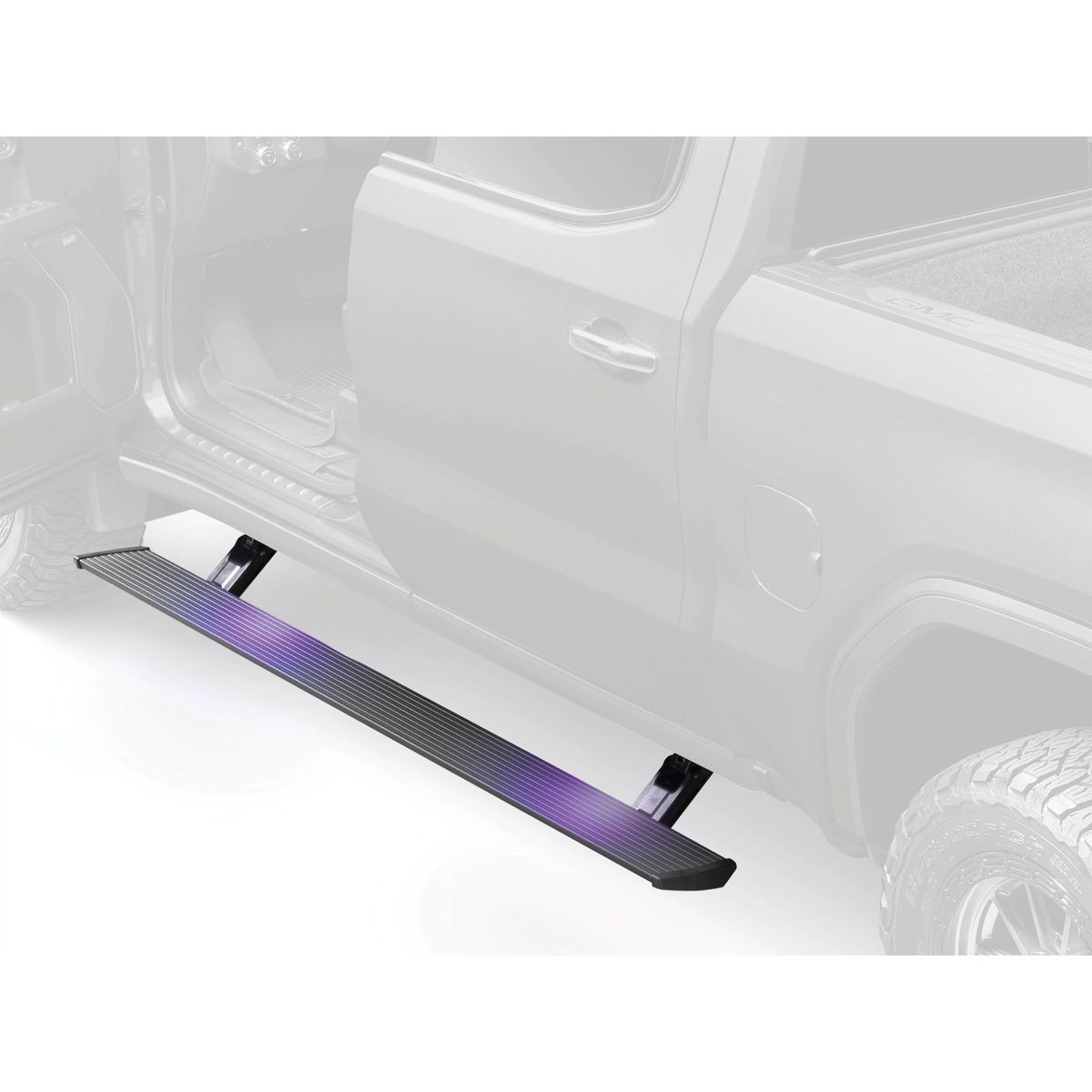

AMP Research® PowerStep™ Plug-N-Play Automatic Running Boards fits 2025-2026 RAM 1500 (Gas) 76364-01A
$1,899.99
- Plug-N-Play power running boards for 2025-2026 RAM 1500 (gas engines, incl. RHO)

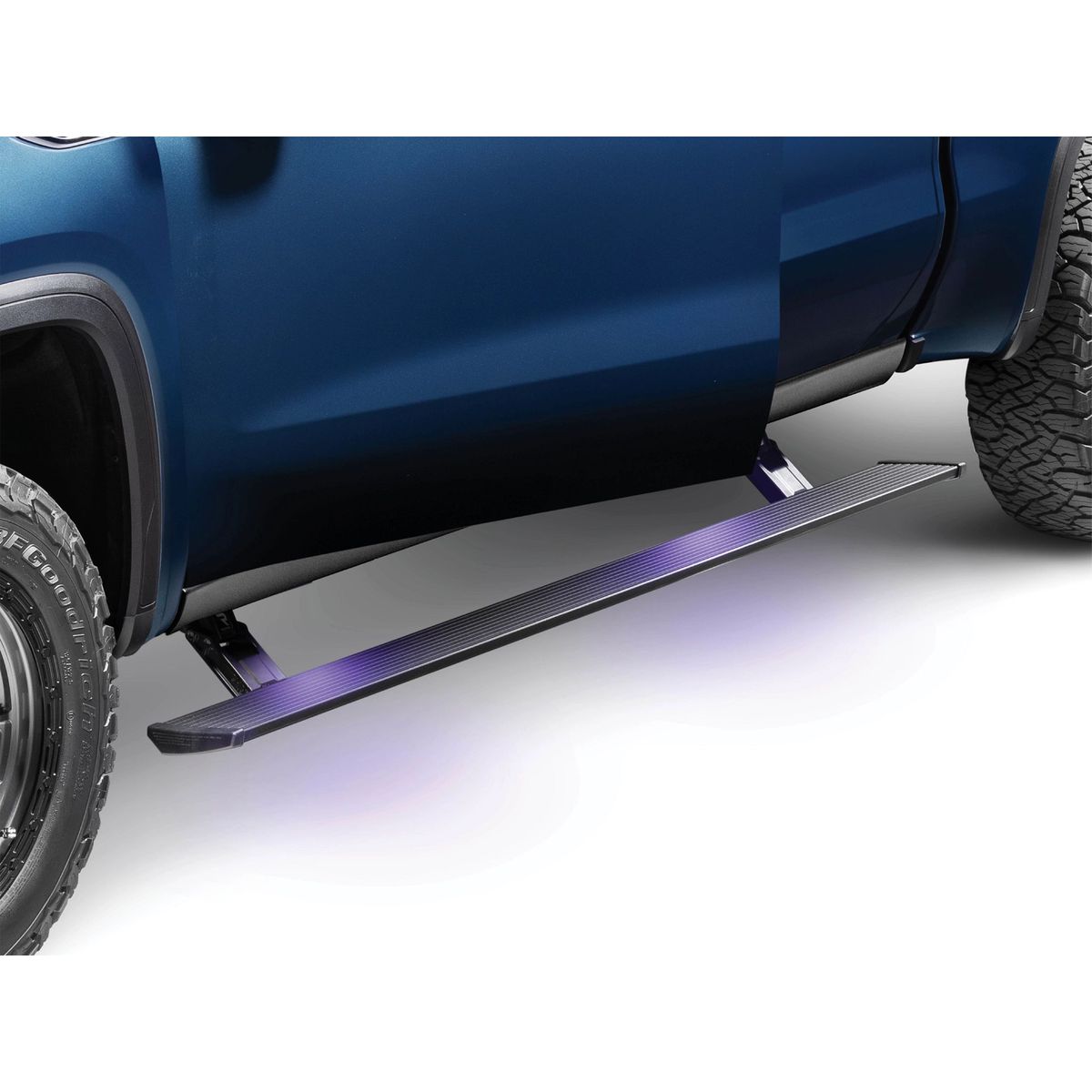

- Deploy automatically when a door opens and tuck away when it closes
- 6-in. wide aluminum steps rated to 600 lbs with built-in LED lighting
In stock
The 2025 RAM 1500 refresh changed the truck’s electronics, so earlier PowerStep kits will not trigger correctly on it. AMP Research built the 76364-01A specifically for the updated truck. Here at TotalZParts we recommend it to RAM owners who want an easy step in without a fixed board hanging below the rocker panels all the time.

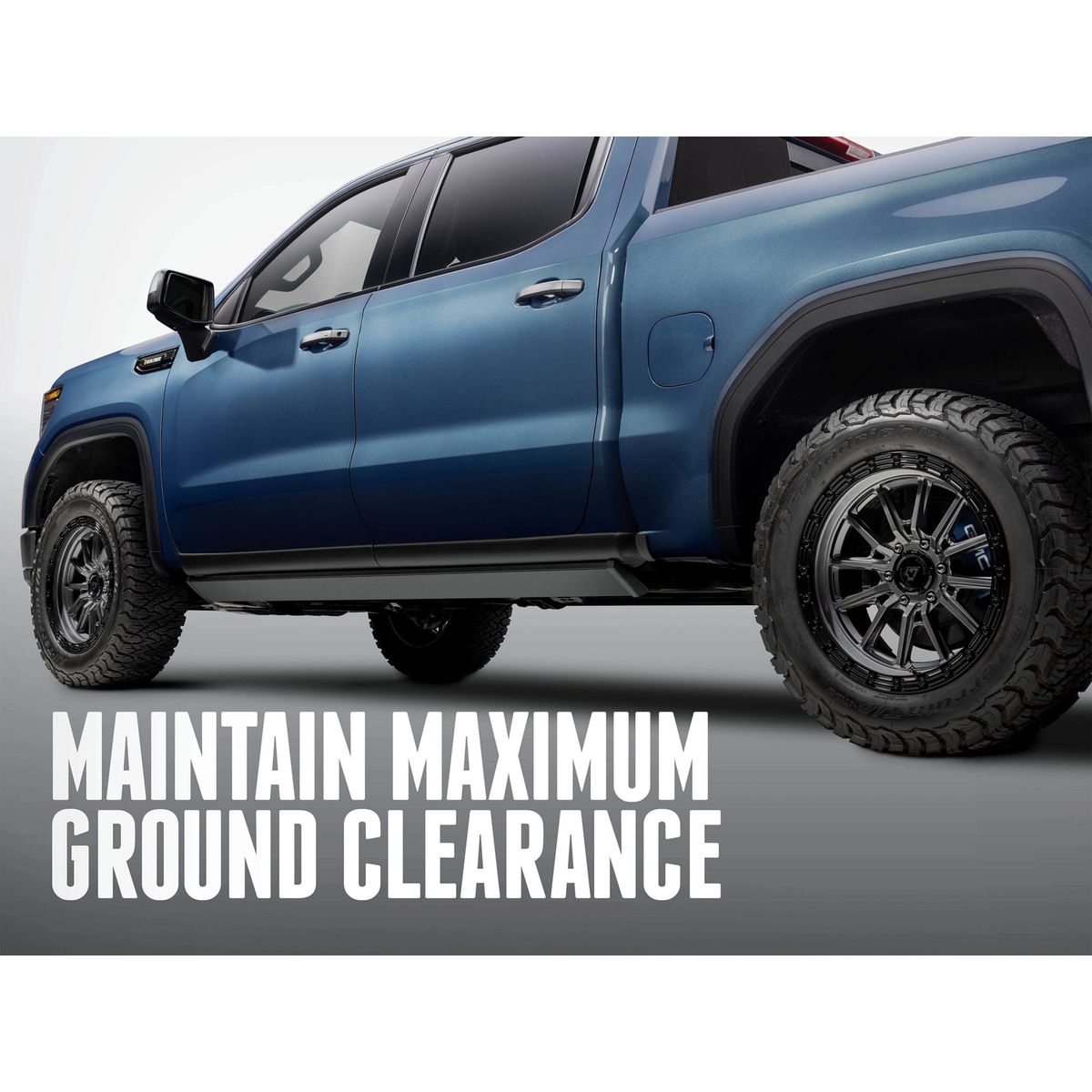

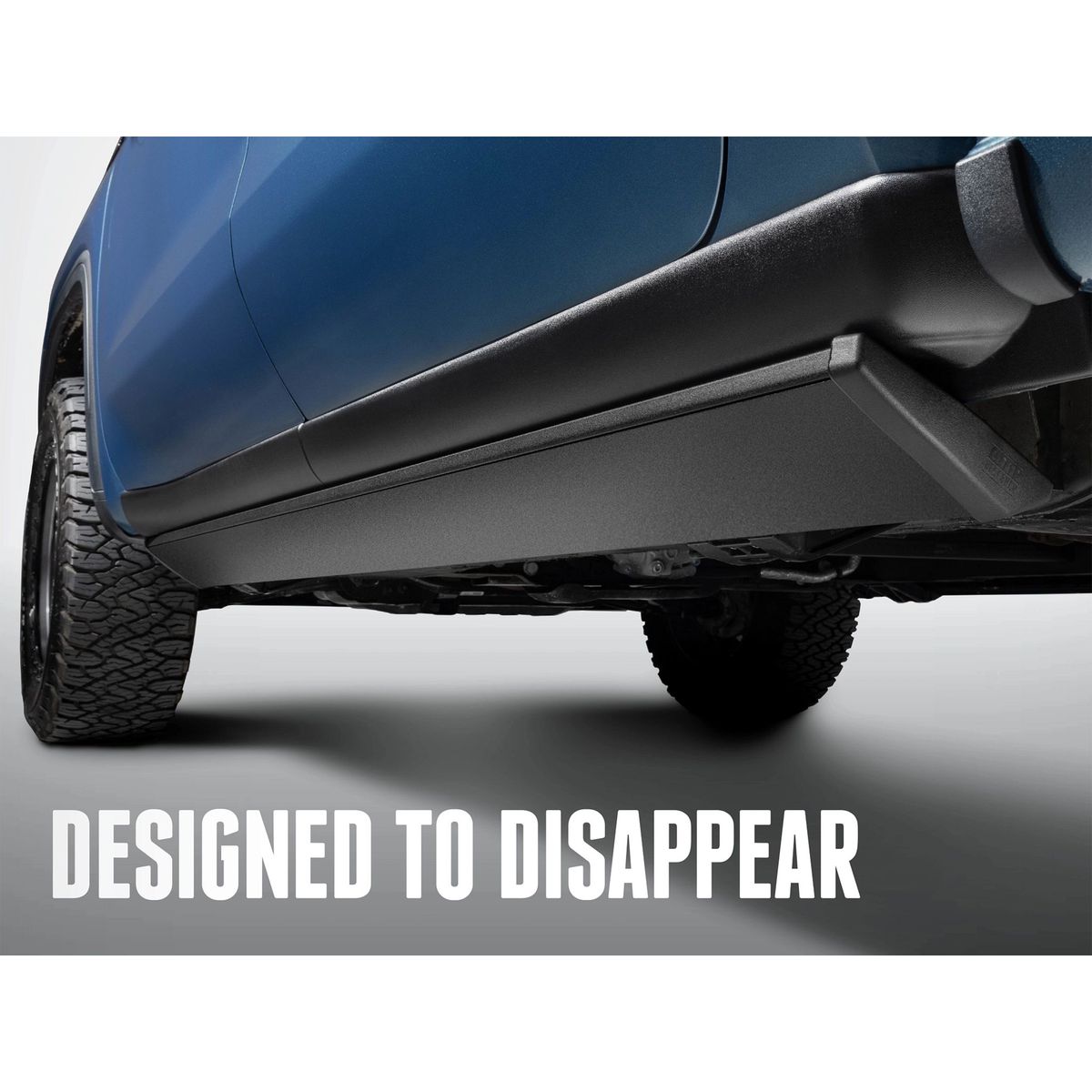

Open any door and the PowerStep drops into place in about a second. Close the doors and it folds back up under the body, keeping your ground clearance and the clean factory look. That’s handy whether you are loading kids into the back seat or reaching gear in the bed rails.
Why It Stands Out

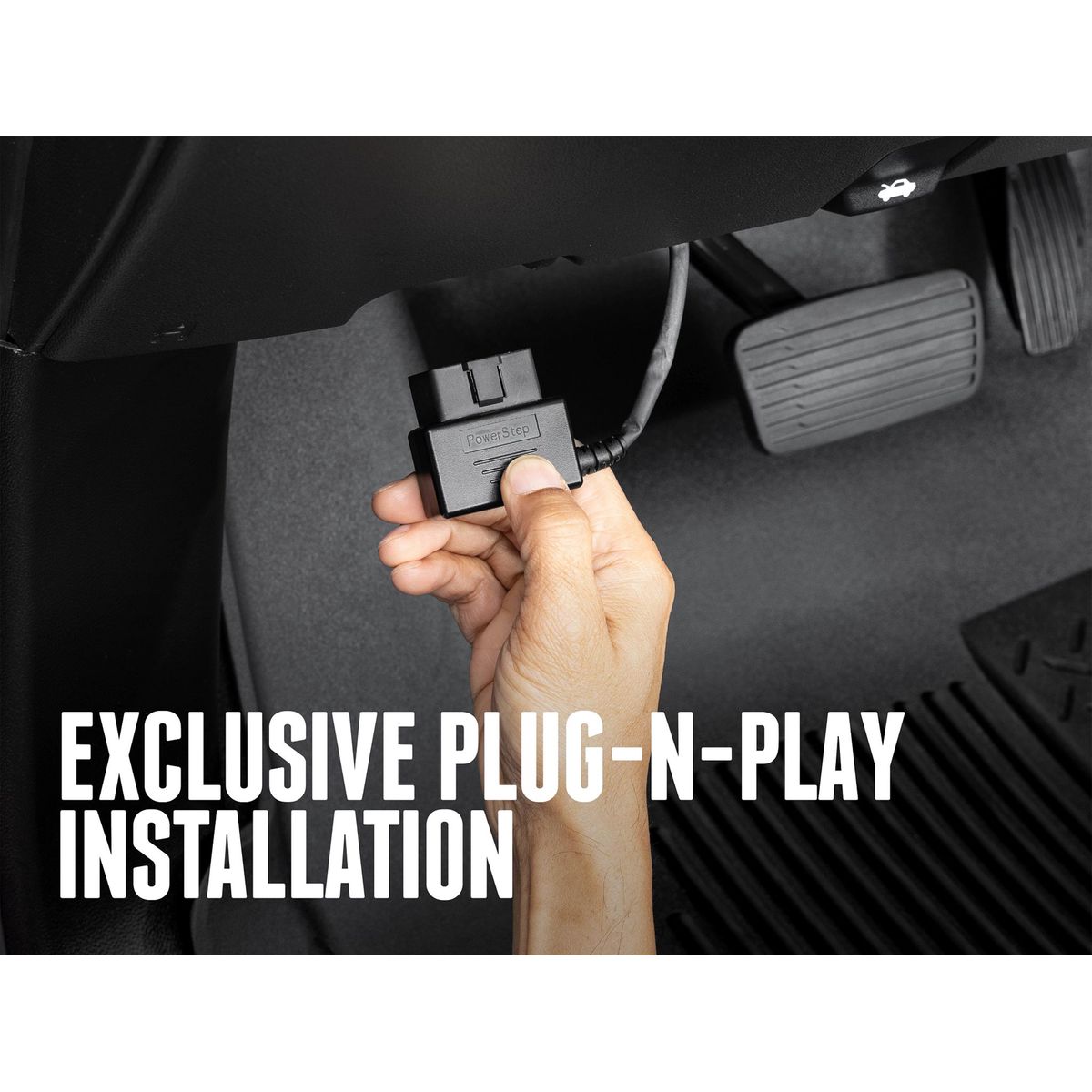

- Plug-N-Play activation: The included module plugs into the OBD-II port and reads door signals from the truck, so you don’t need to mount separate door switches. The kit includes a harness made for the 2025+ RAM 1500, plus the mounting hardware and zip ties.
- Built to last: The steps use die-cast aluminum with an anodized, PTFE-coated military-spec finish that resists corrosion. Self-lubricating bushings and stainless steel pivot pins keep them moving smoothly through mud, salt and snow.

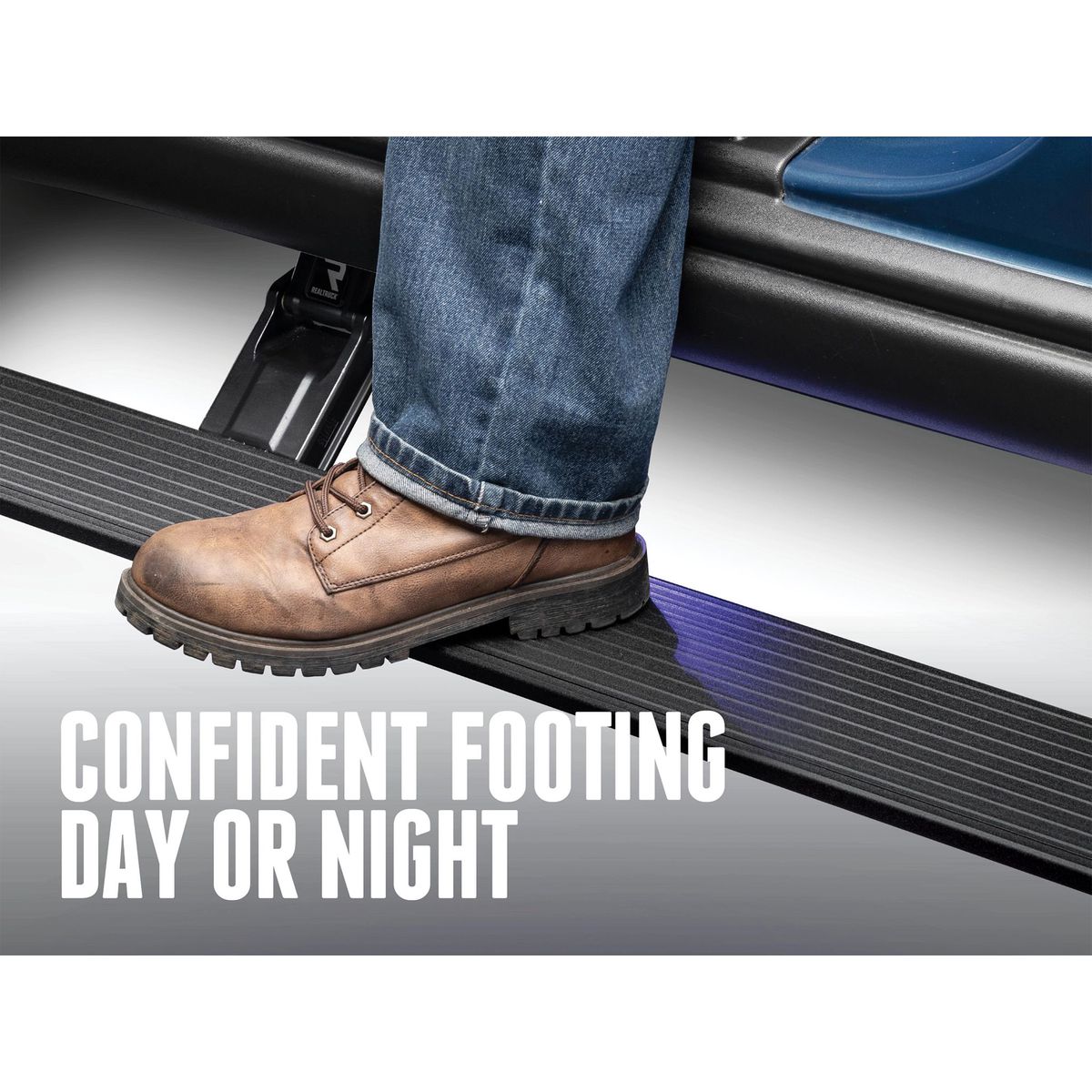

- Solid footing: Each 6-inch wide, cab-length step has a textured, slip-resistant surface, and the system supports up to 600 lbs.

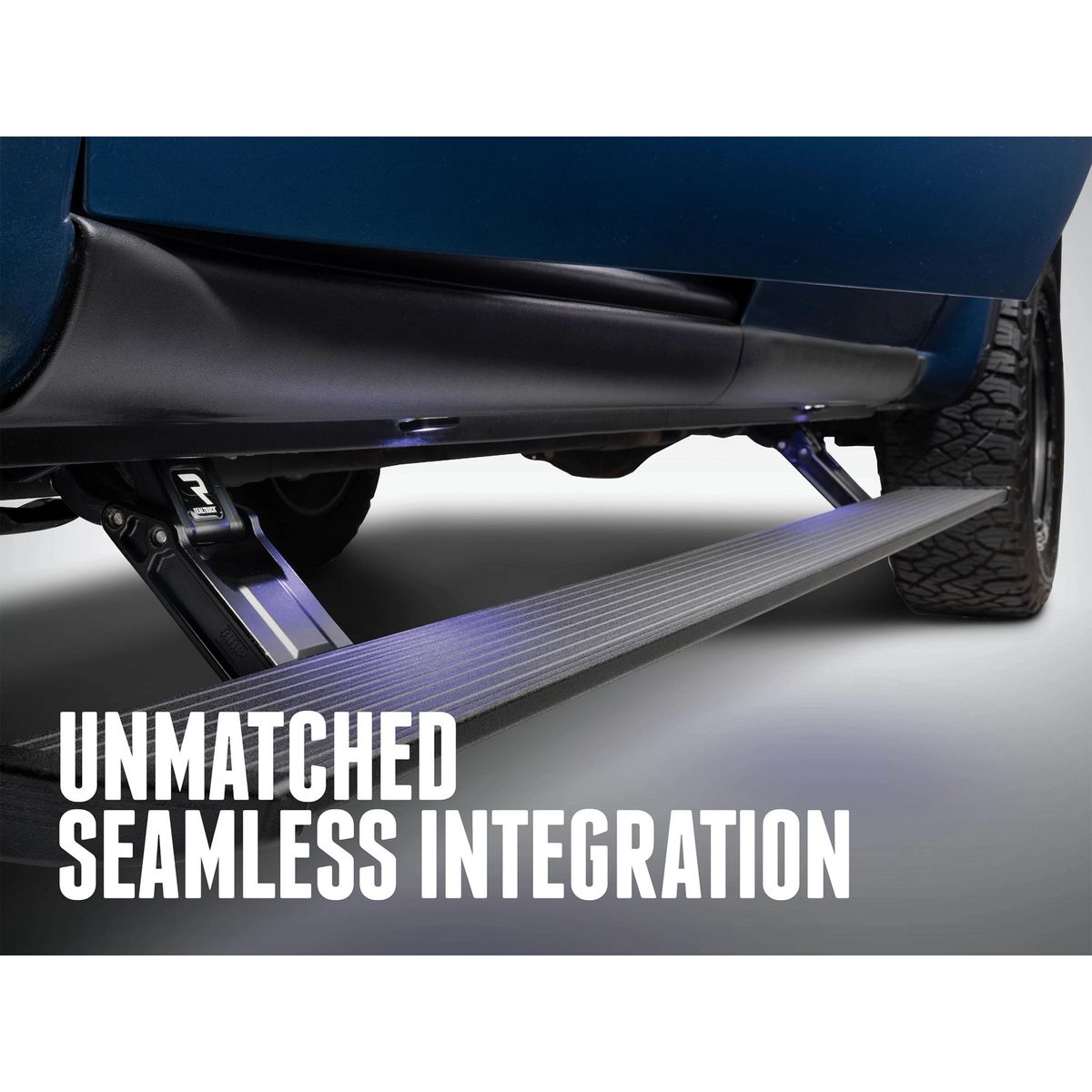

- Lit up at night: Low-profile LEDs light the step area so you can see where you’re stepping after dark.
Wiring Note
A Plug-N-Play OBD-II module is included, but a few manual wire connections are still required. The loose wires on the OBD-II module are joined to the matching-colored wires of the main PowerStep wiring harness under the dash, using the included Posi-Lock / Posi-Twist connectors for a clean, secure connection.
Fitment
Fits 2025-2026 RAM 1500 trucks with gas engines, including the RHO. It is not compatible with 2024 and older RAM 1500 trucks. For those, see our listing for AMP part 76240-01A.
Specifications
- Manufacturer: AMP Research
- Part Number: 76364-01A
- UPC: 810150196696
- Finish: Black
- Material: Aluminum
- Load Capacity: 600 lbs
- Package Dimensions: 88 x 13 x 8 in.
- Shipping Weight: 54 lbs
- Warranty: 5-year limited
We recommend professional installation, though an experienced DIYer can complete it with the included vehicle-specific instructions.
| Manufacturer | AMP Research |
|---|---|
| condition | New |
