The ARB® CKBLP12 is a brushless single motor portable 12V air compressor delivering 4.59 CFM at 0 PSI and 3.10 CFM at 29 PSI, with a 90% duty cycle, 150 PSI maximum output, and an IP67 water-resistant rating — compatible with ARB® Air Lockers and ARB®’s full range of air accessories and hose kits.
IMPORTANT: The CKBLP12 is a portable compressor powered via alligator clamps to a 12V vehicle battery (maximum 45 amps draw). It is not an onboard compressor and does not hard-wire to the vehicle. For a hard-wired single motor brushless option, see the ARB® CKBLA12. For a twin motor portable brushless option, see the ARB® CKBLTP12.

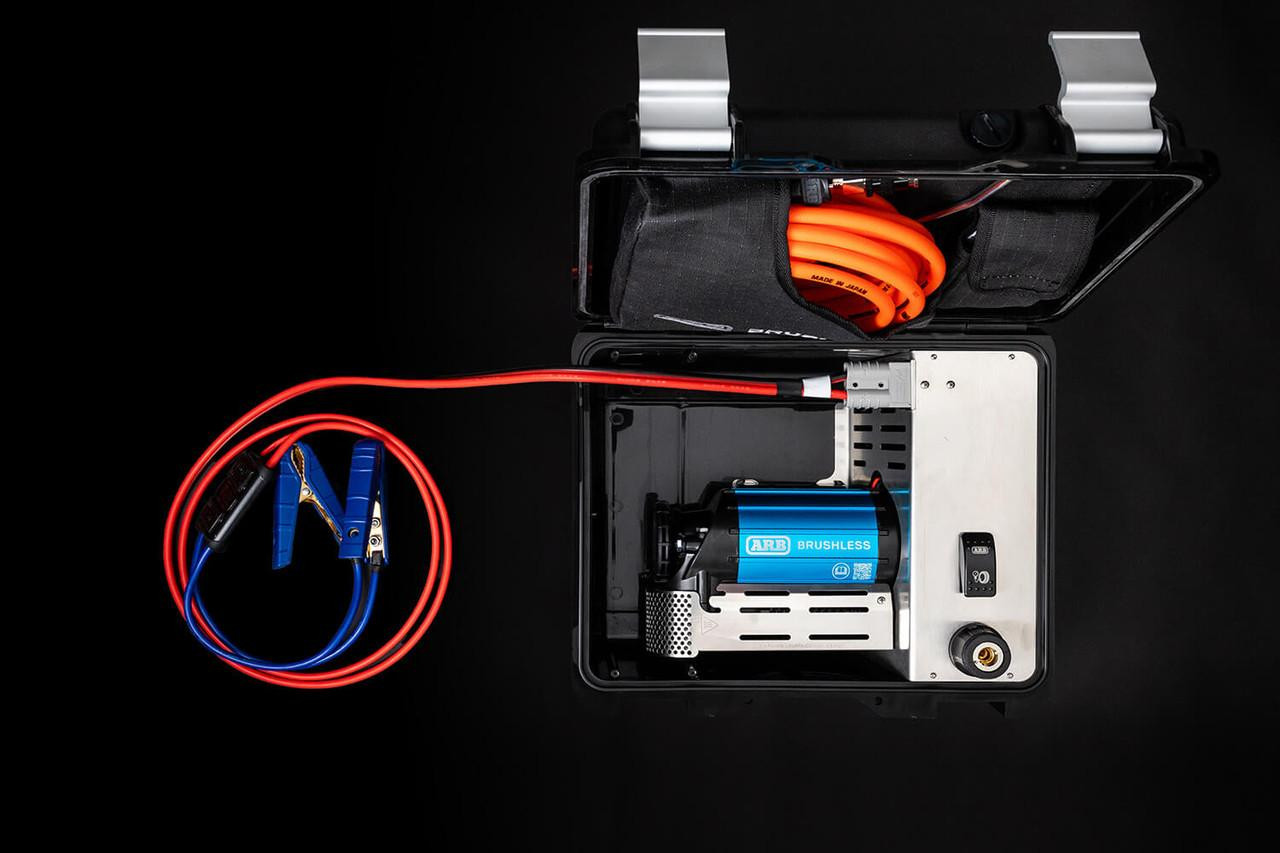

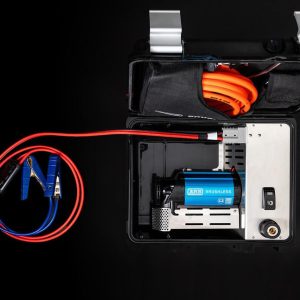

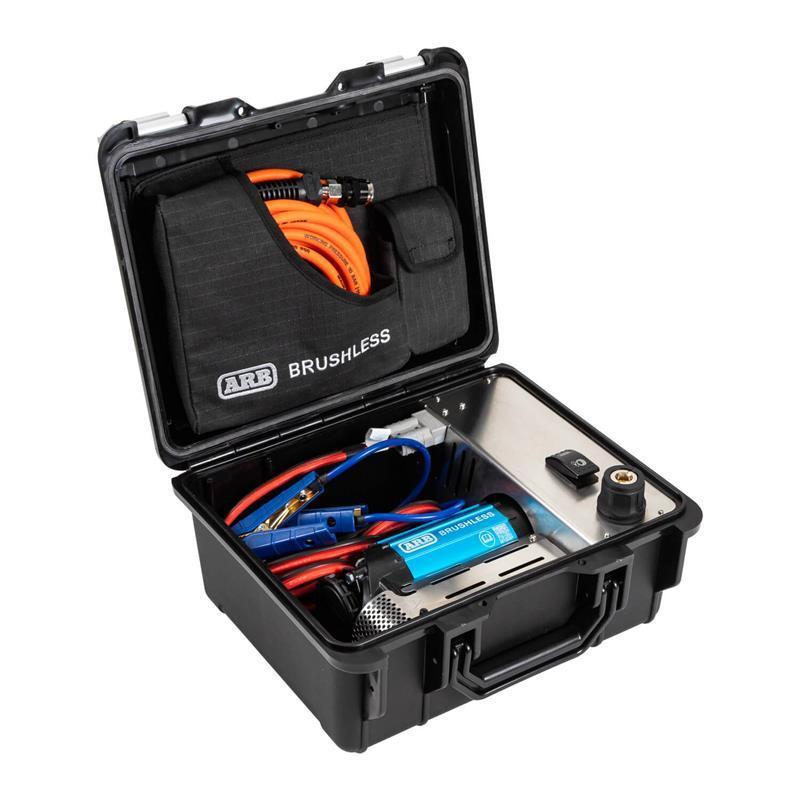

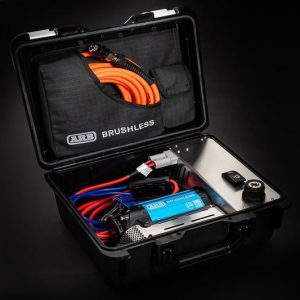

ARB® has long been a leader in portable and onboard air solutions, and the new Brushless series marks a significant step forward in performance. The CKBLP12 delivers 50% more air output than ARB®’s previous market-leading brushed portable compressors, translating directly to faster tire inflation and reduced time at the trailhead. It runs on a 12V vehicle battery via alligator clamps and includes a 20-foot air hose and tire inflation chuck, making it ready to use straight out of the case.
The brushless electric motor at the heart of the CKBLP12 eliminates the brush wear and heat buildup that limits conventional compressor longevity. Each motor-compressor assembly incorporates a dedicated active cooling fan that maintains performance during extended duty cycles. Electronic speed control continuously adjusts motor output to maintain optimum performance across varying pressure demands and ambient temperature conditions — the compressor actively monitors itself and compensates for factors such as temperature fluctuation and variations in vehicle charging systems.
The CKBLP12 includes built-in voltage and overload protection, guarding against damage from voltage spikes, drops, fluctuations, overcurrent, and motor stalls. A polarity correction harness eliminates the risk of incorrect battery connection — either alligator clamp can connect to either battery terminal without risk of damage. Live status reporting via audio and visual alerts keeps the operator informed of compressor state during operation.
The CKBLP12 carries a 3-year warranty and is fully compatible with ARB®’s existing range of air accessories, hose kits, and Air Lockers — making it a direct upgrade path for existing ARB® air system users.
- ARB® Brushless Single Motor Portable 12V Air Compressor — universal 12V application; compatible with ARB® Air Lockers and ARB® air accessories and hose kits
- 50% increase in air output versus ARB®’s previous market-leading brushed portable compressor
- Brushless electric motor — eliminates brush wear for extended service life and reduced maintenance
- Active cooling — dedicated fan in each motor/compressor assembly for higher performance and longevity
- Electronic speed control — maintains optimum performance across all pressure and ambient temperature conditions
- Voltage and overload protection — guards against voltage spikes, drops, fluctuations, overcurrent, and motor stalls
- Polarity correction harness — either alligator clamp connects to either battery terminal without risk of damage
- Live status reporting via audio and visual alerts
- IP67 water-resistant rating
- 90% duty cycle

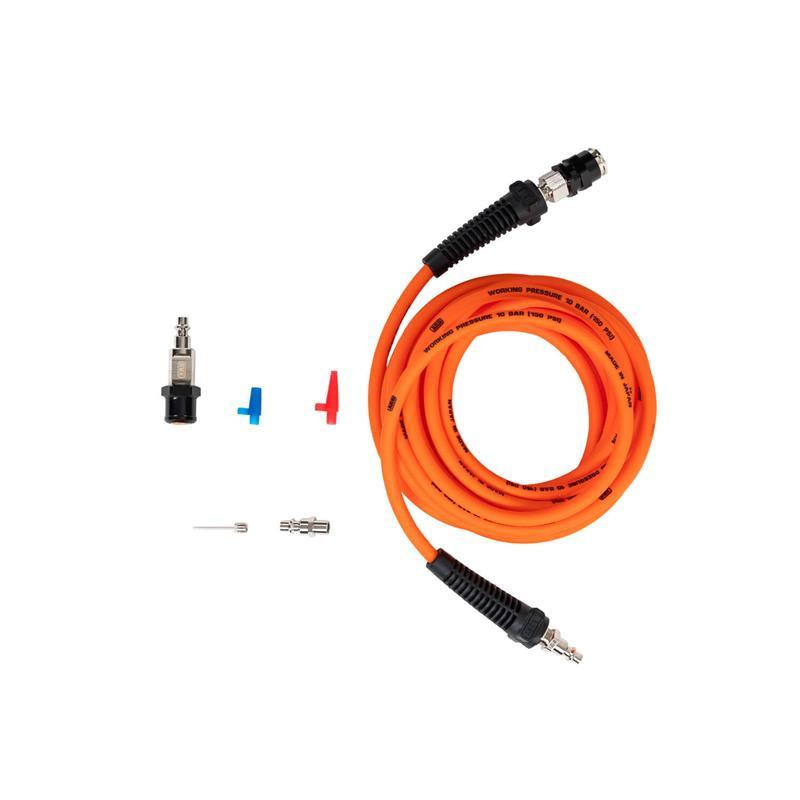

- Includes 20-foot air hose and tire inflation chuck
- 3-year warranty
- Sold individually
| Part Number | CKBLP12 |
| Voltage | 12V |
| Design | Brushless, Portable |
| Max PSI | 150 PSI |
| Max Amps | 45 Amps |
| Air Flow at 0 PSI | 4.59 CFM |
| Air Flow at 29 PSI | 3.10 CFM |
| Duty Cycle | 90% |
| IP Rating | IP67 Water Resistant |
| Length | 14 in |
| Width | 12.1 in |
| Height | 7.2 in |
| Weight | 17.4 lb |
| Included Accessories | 20 ft air hose, tire inflation chuck |
| Warranty | 3 Years |
The CKBLP12 is a universal 12V portable compressor compatible with any vehicle equipped with a 12V battery. It is compatible with all ARB® Air Lockers and ARB®’s full range of air accessories and hose kits. No specific vehicle-fitment restrictions apply — this compressor is suitable for use with any 4WD, truck, SUV, or off-road vehicle. Note: The CKBLP12 is a portable (alligator clamp) unit. For a hard-wired single motor brushless compressor, see the CKBLA12. For a portable twin motor brushless unit, see the CKBLTP12.
