Description

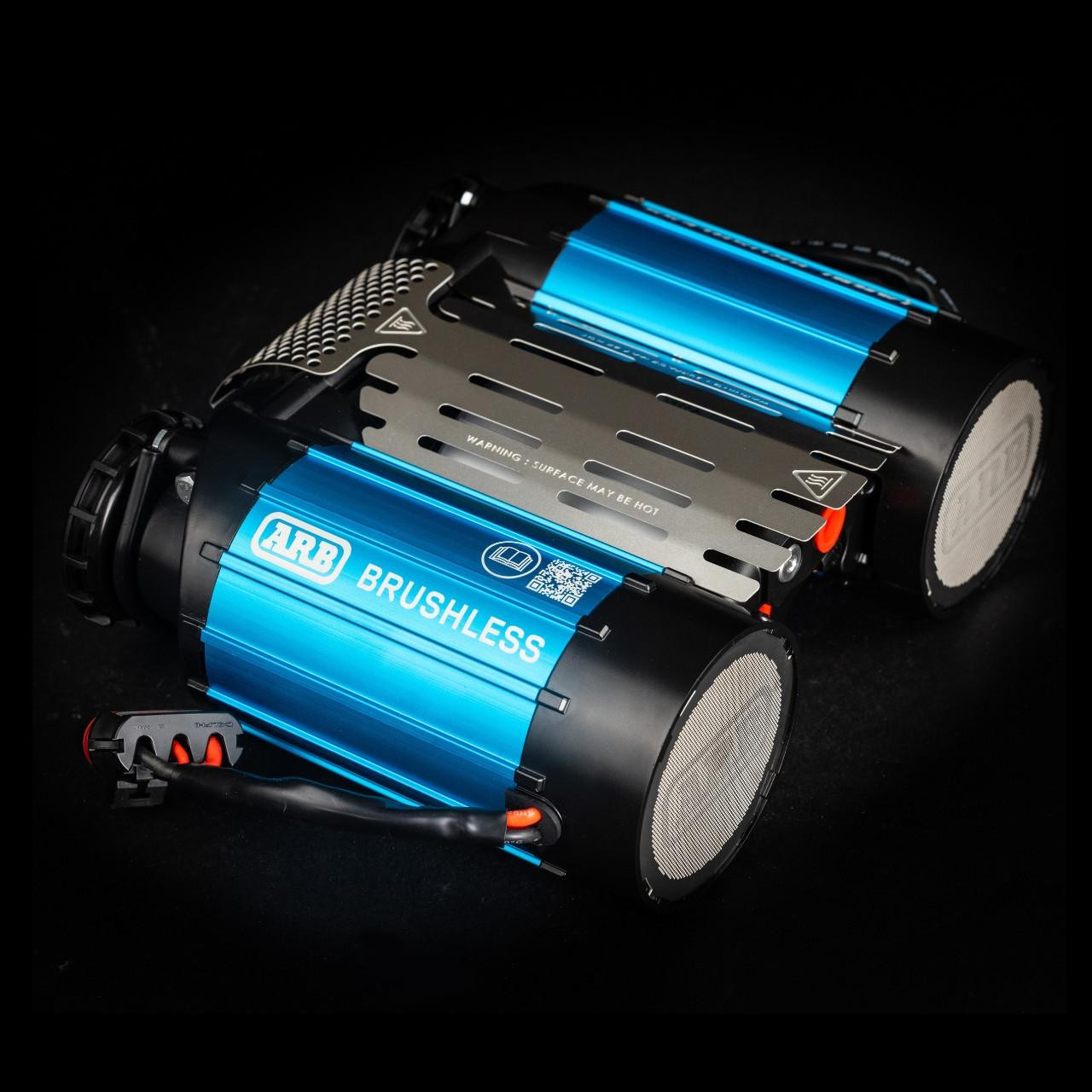

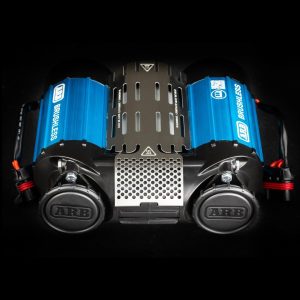

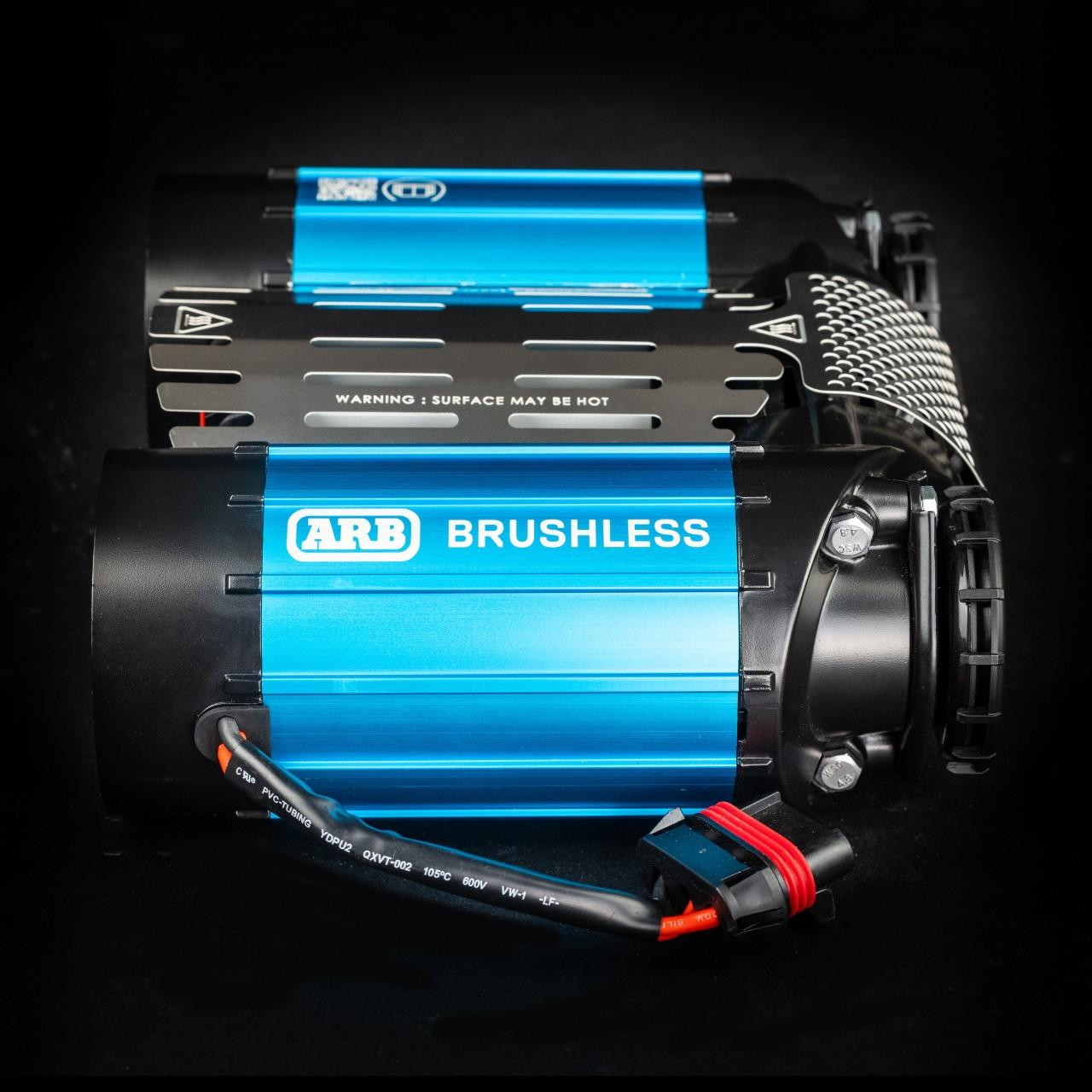

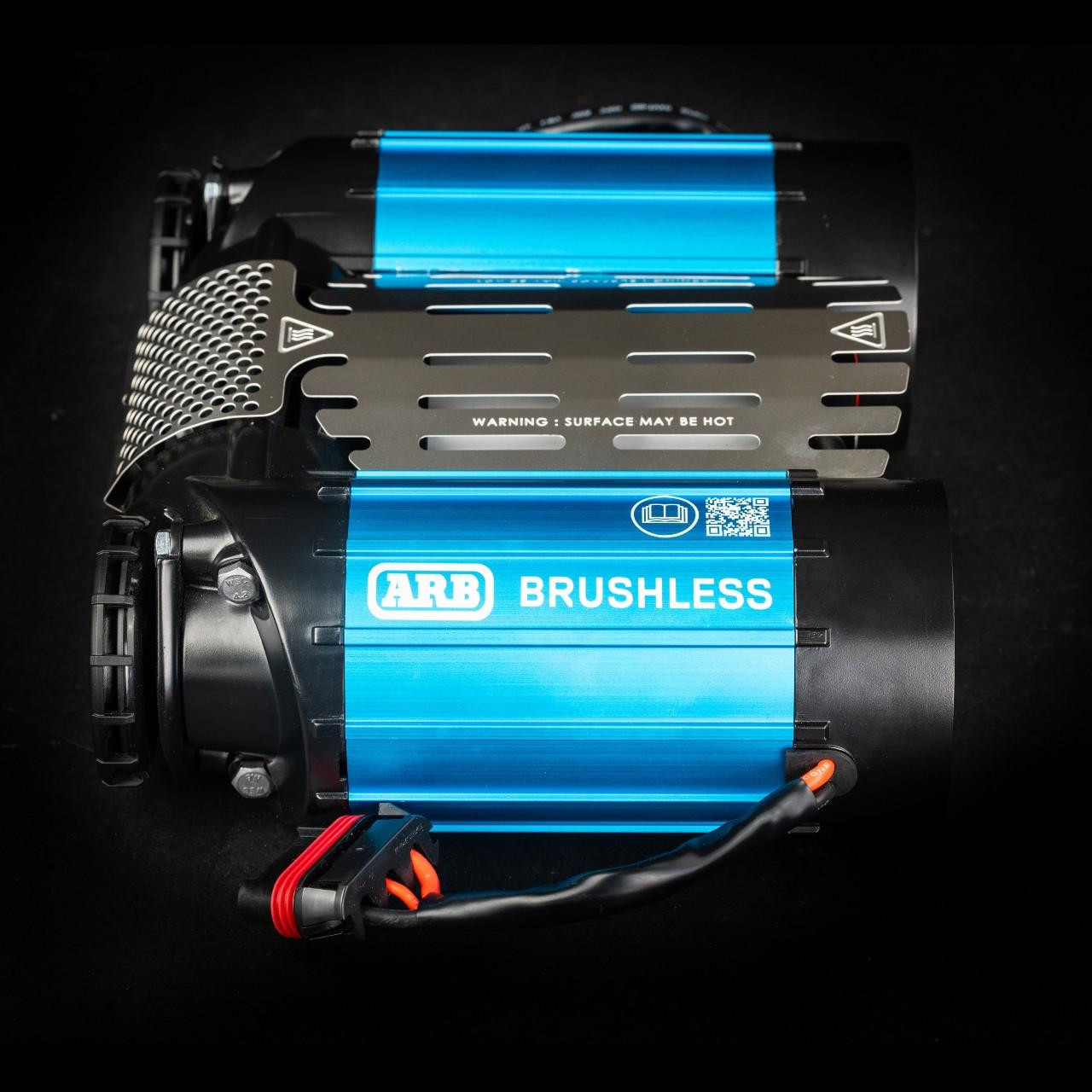

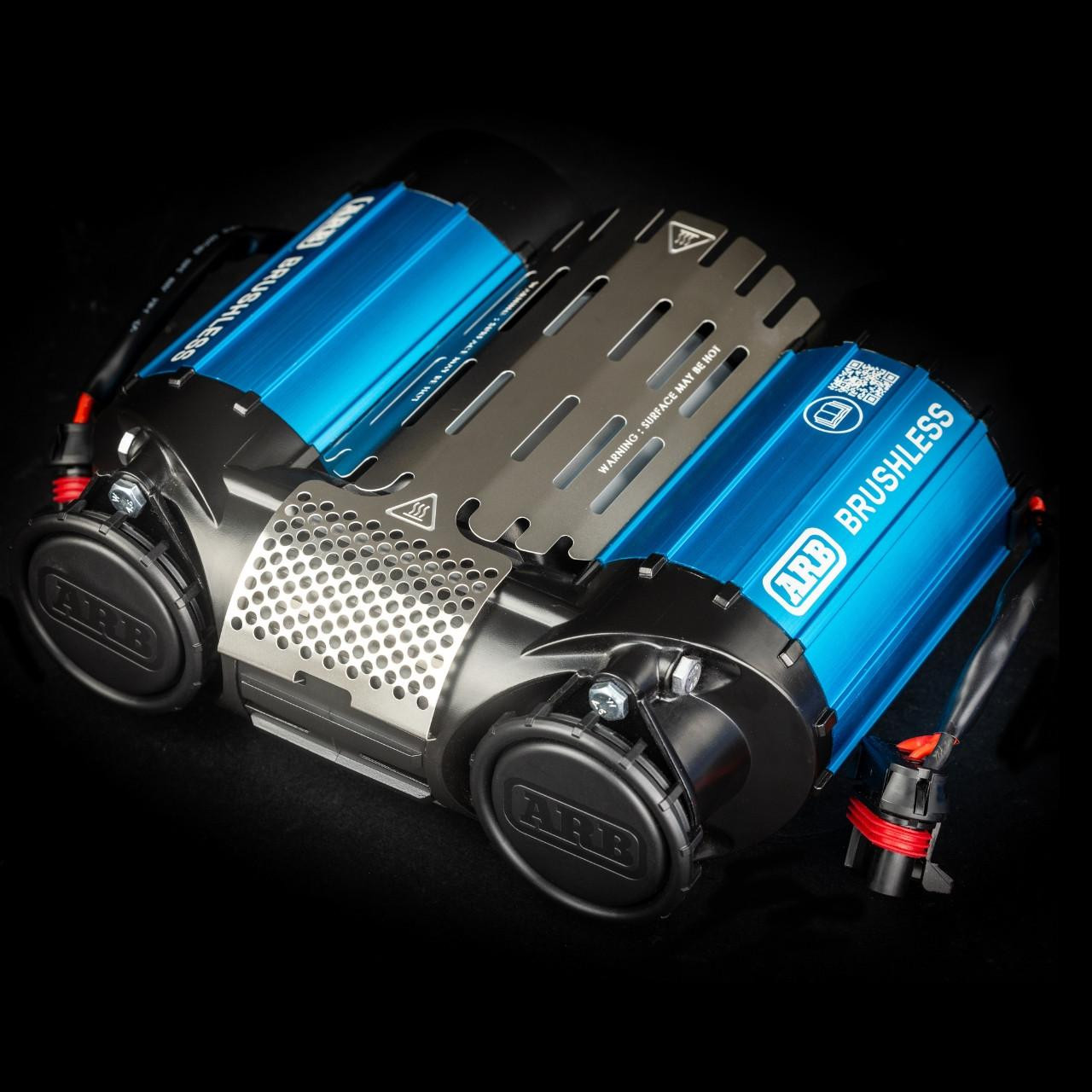

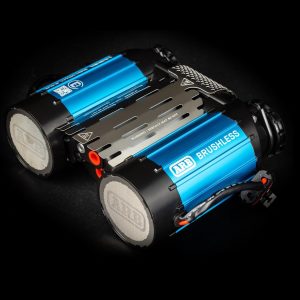

The ARB® CKBLTA12 Brushless Twin Motor Onboard 12V Air Compressor is a dual-motor, 100% duty cycle onboard air source rated at 9.18 CFM at 0 PSI and 6.20 CFM at 29 PSI, with a maximum output pressure of 150 PSI — fully compatible with ARB® Air Lockers and the complete ARB® air accessories ecosystem.
IMPORTANT: The CKBLTA12 requires a continuous 90-amp power supply at a minimum of 12.5 volts (vehicle running) — verify your charging system and wiring can sustain this draw before installation. A minimum of 50 mm (2 inches) of ventilation clearance must be maintained around the rear cooling fan screens. High-temperature connections made directly at the compressor output must be rated to at least 150°C (300°F); standard valves and couplings should be connected after an air tank, external manifold, or a minimum 1.2 m (47 in.) length of high-temperature hose. The CKBLTA12 Brushless Twin has a different mounting bolt pattern than ARB’s existing brushed compressor lineup — existing CKMTA12 brackets are not compatible. For the single-motor onboard brushless variant, see CKBLA12.
ARB® has built its reputation on onboard air systems, and the Brushless series represents the next generation of that platform. The CKBLTA12 delivers 50% more air output than ARB’s previous market-leading brushed twin compressor, driven by two brushless electric motors — each paired with its own dedicated active cooling fan. The result is a compressor capable of sustained, high-volume output without thermal throttling or mandatory cool-down periods, rated at a true 100% duty cycle.
The CKBLTA12 incorporates ARB’s Electronic Speed Control, which continuously adjusts motor speed to maintain consistent output across varying ambient temperatures and vehicle charging system conditions. Onboard Status Reporting delivers live diagnostics through both audio and visual alerts, giving the operator real-time feedback on compressor health. Voltage and Overload Protection guards against power spikes, voltage drops, overcurrent events, and motor stalls, protecting both the compressor and the vehicle’s electrical system.
The twin-motor configuration includes Smart Start — a staggered power-on sequence that staggers motor activation at startup to reduce the inrush current spike. This allows the CKBLTA12 to start cleanly on vehicles with smaller alternators or tighter charging margins. If the charging system becomes too strained during operation, the compressor will automatically shed one motor rather than shutting down entirely, keeping air flowing in adverse conditions. Relays are eliminated from the system entirely, simplifying installation wiring.
The CKBLTA12 ships with a cam-lock quick-release mounting bracket, allowing the compressor to be removed from its mount without tools for service or repositioning. The unit is rated IP67 for water and dust resistance. ARB backs the CKBLTA12 with a 3-year warranty. Installation is compatible with the full ARB® air accessories range, including existing hose kits, fittings, inflators, and ARB® Air Locker solenoid systems.
- Compatible with: ARB® Air Lockers, ARB® air accessories, hose kits, fittings, and inflators — direct replacement upgrade path from ARB’s existing brushed compressor lineup (note: new mounting bracket required)
- 50% more output than ARB’s previous market-leading brushed twin compressor — 9.18 CFM at 0 PSI / 6.20 CFM at 29 PSI

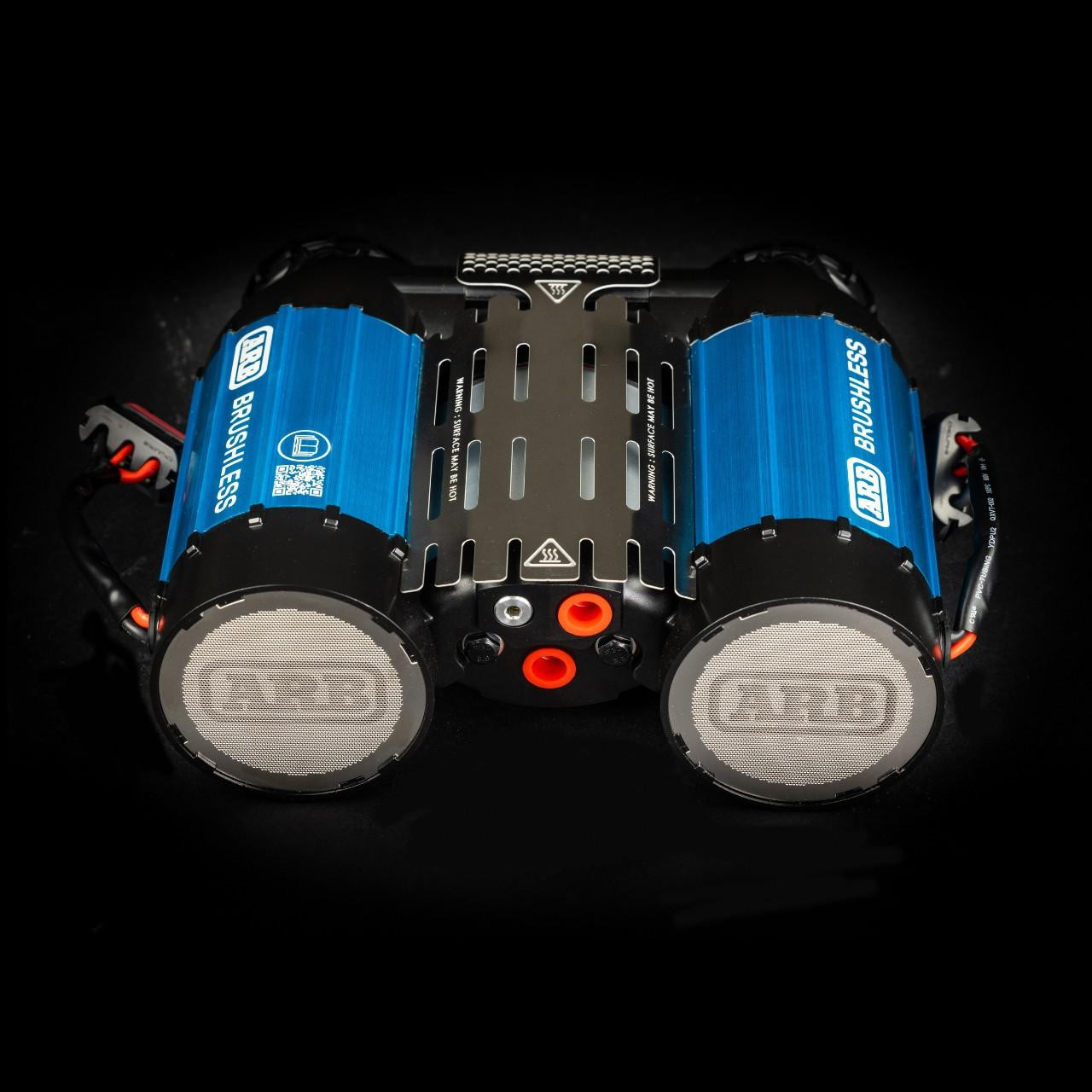

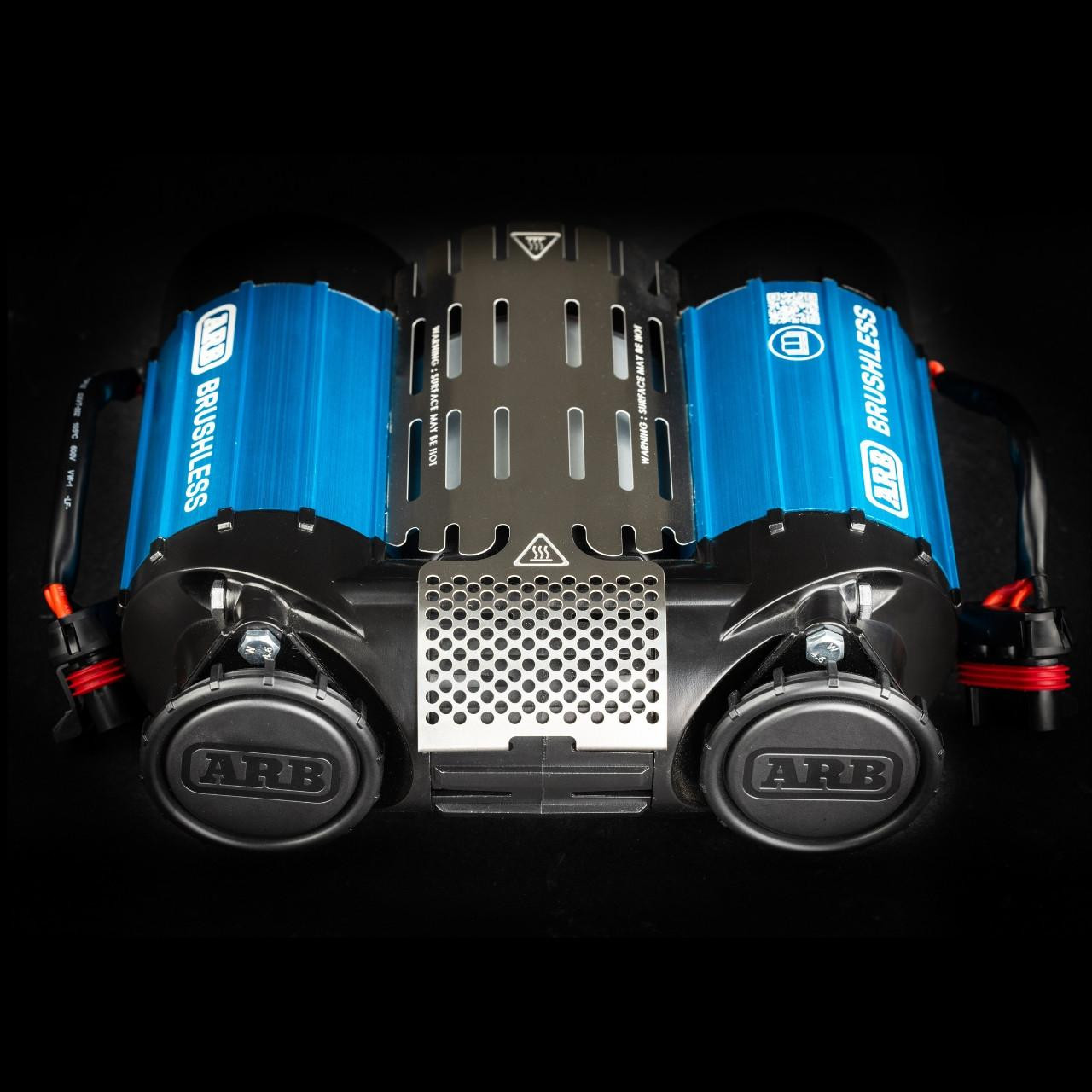

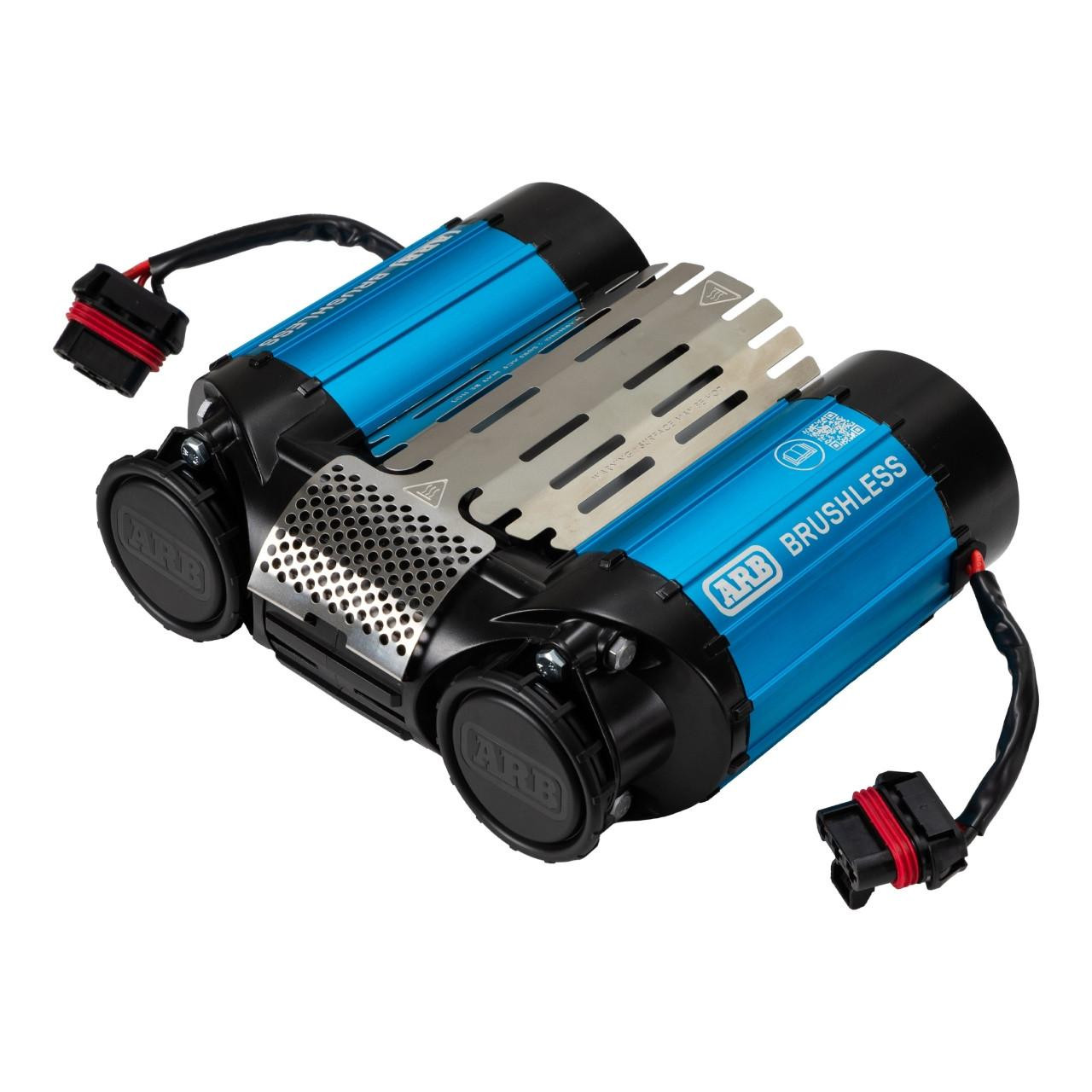

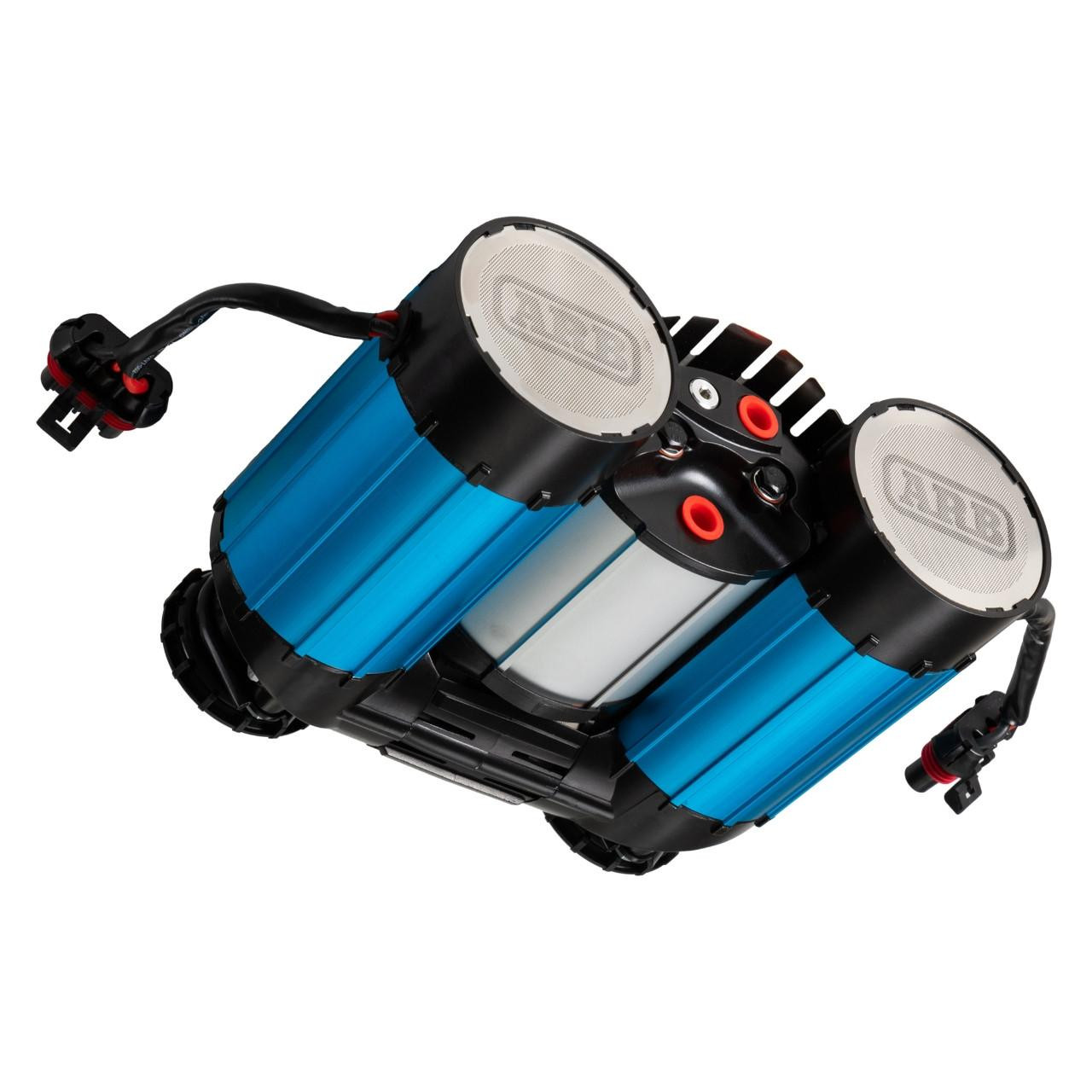

- Brushless twin motors with dedicated per-motor active cooling fans for sustained high-output performance
- 100% duty cycle — no mandatory cool-down periods under normal operating conditions
- Electronic Speed Control — maintains optimum output across all pressure and temperature conditions
- Smart Start — staggered motor power-on reduces startup current spike; auto single-motor fallback if charging system is stressed
- Voltage and Overload Protection — protects against voltage spikes, drops, overcurrent, and motor stalls
- Live Status Reporting — audio and visual diagnostic alerts
- Cam-lock quick-release mounts — tool-free compressor removal from bracket
- Relays eliminated — brushless motor design removes relay requirement, simplifying install
- IP67 rated — water and dust resistant
- Max pressure: 150 PSI | Max current draw: 90 amps continuous (requires 12.5V minimum at vehicle running)

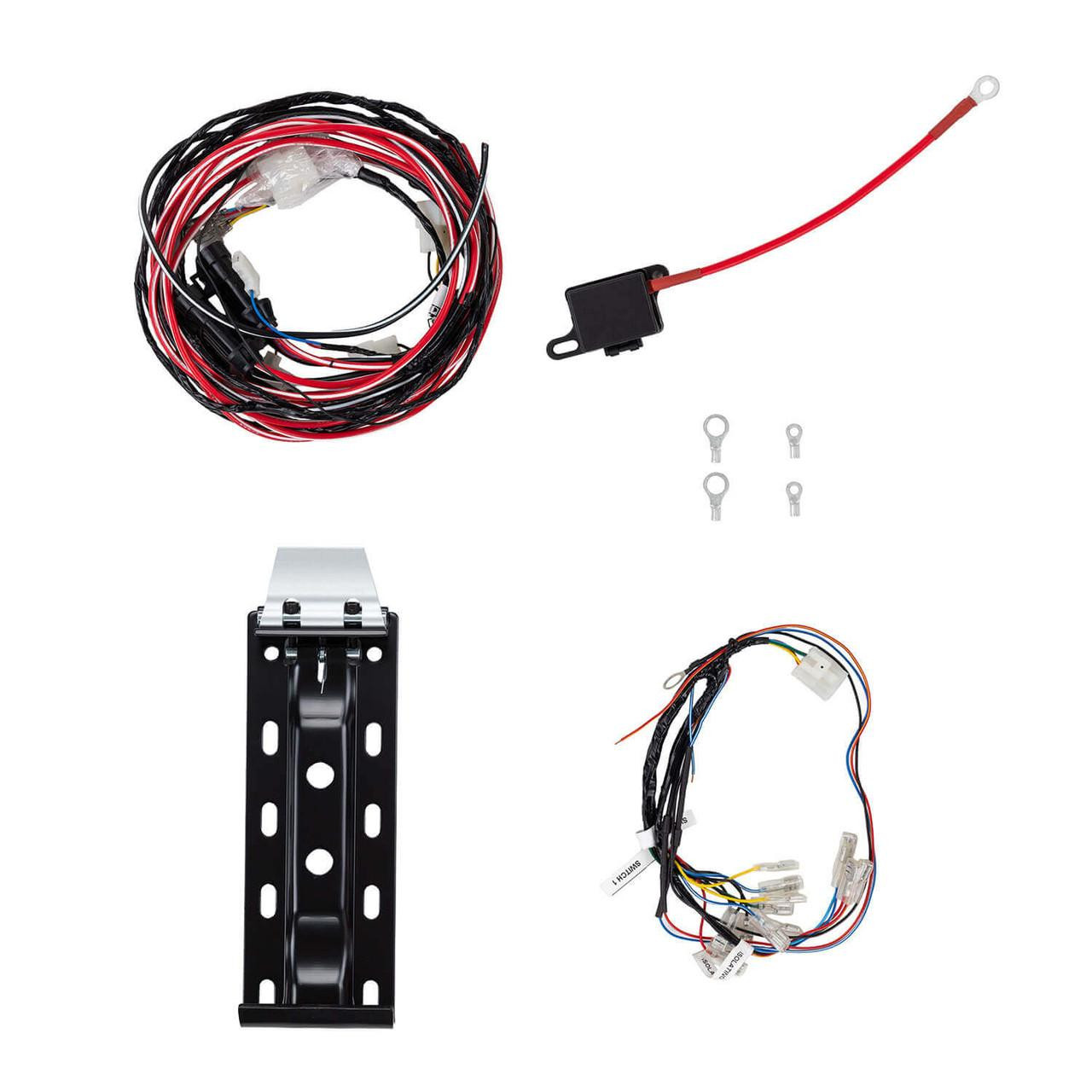

- Includes: CKBLTA12 twin-motor onboard compressor, main wiring harness, actuator/switch wiring loom (Air Locker compatible), inline fuse holder, ring terminal connectors, cam-lock quick-release mounting bracket with base plate, pressure switch, JIC-4 male output fitting, air filter assemblies, and installation guide
- Warranty: 3 years
- Sold individually as a complete onboard twin compressor kit
| Part Number | CKBLTA12 |
| Brand | ARB® |
| Product Name | Brushless Twin Motor Onboard Air Compressor |
| Voltage | 12V |
| Max Pressure | 150 PSI |
| Max Current Draw | 90 Amps |
| Air Flow at 0 PSI | 9.18 CFM |
| Air Flow at 29 PSI | 6.20 CFM |
| Duty Cycle | 100% |
| IP Rating | IP67 (Water Resistant) |
| Motor Type | Brushless |
| Motor Count | Twin |
| Cooling | Active — dedicated fan per motor assembly |
| Mounting | Cam-lock quick-release bracket (included) |
| Length | 14.49 in. |
| Width | 13.31 in. |
| Height | 6.69 in. |
| Weight | 15.8 lb |
| Warranty | 3 Years (ARB) |
| What’s Included | CKBLTA12 twin-motor onboard compressor, main wiring harness, actuator/switch wiring loom (Air Locker compatible), inline fuse holder, ring terminal connectors, cam-lock quick-release mounting bracket with base plate, pressure switch, JIC-4 male output fitting, air filter assemblies, installation guide |

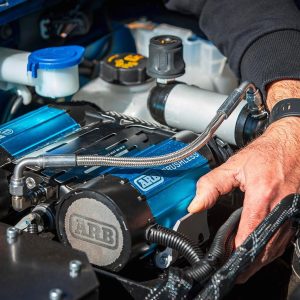

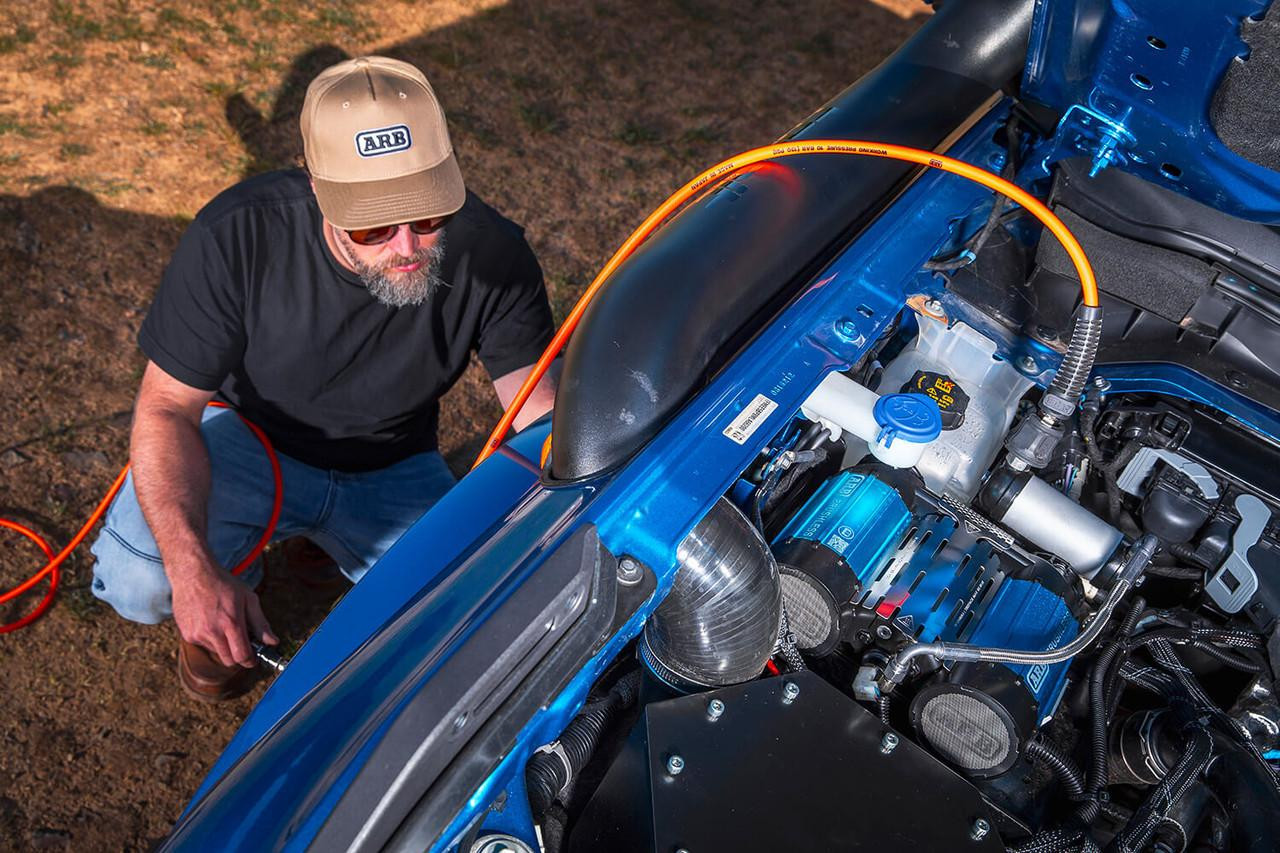

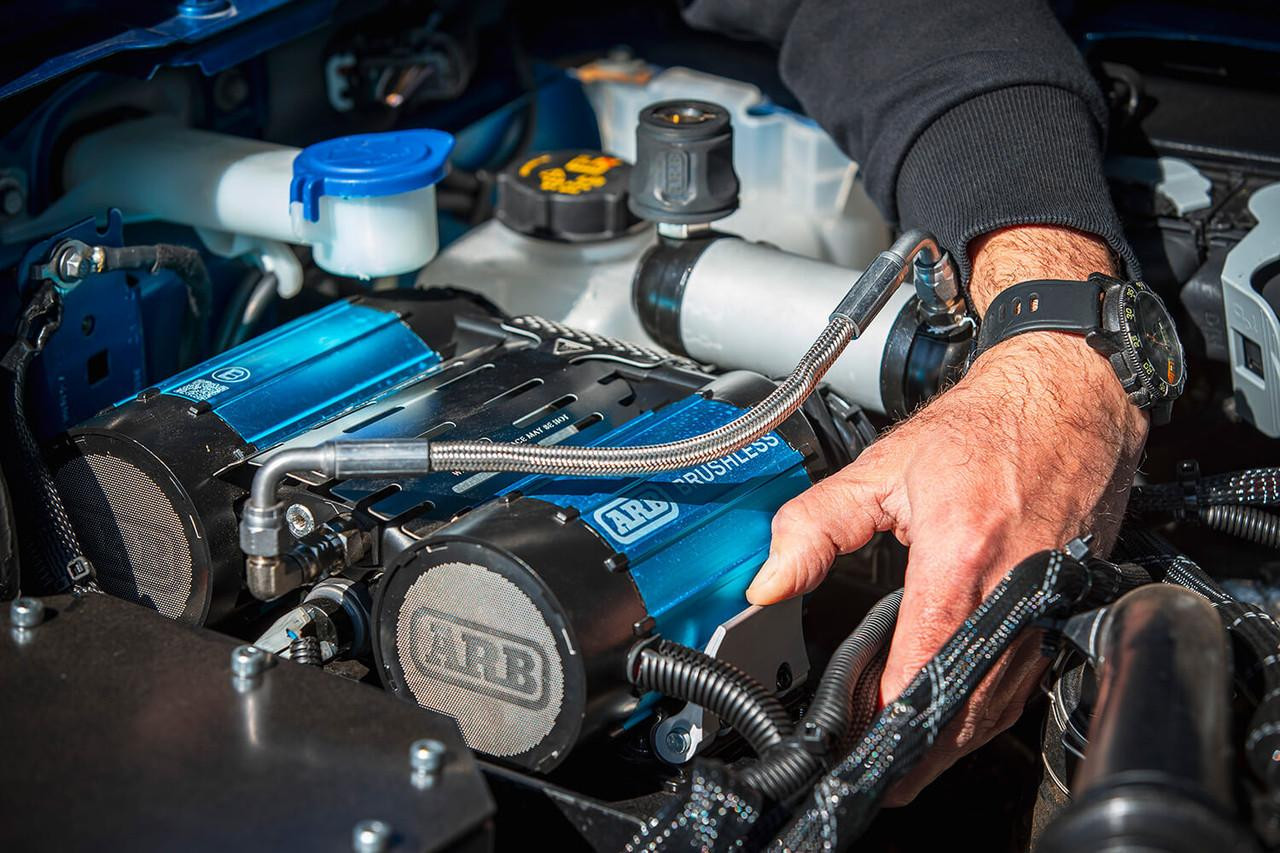

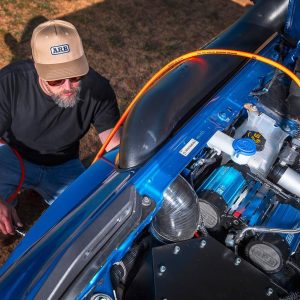

The CKBLTA12 is a universal onboard air compressor with no vehicle-specific fitment restrictions — it is designed for permanent onboard installation and is compatible with ARB® Air Lockers, all ARB® air accessories, and standard pneumatic connections across any 12V vehicle platform. Note: The CKBLTA12 uses a different mounting bolt pattern than ARB’s previous brushed compressor lineup (CKMTA12) — existing brackets are not interchangeable. For the single-motor onboard brushless version, see CKBLA12.
