Description

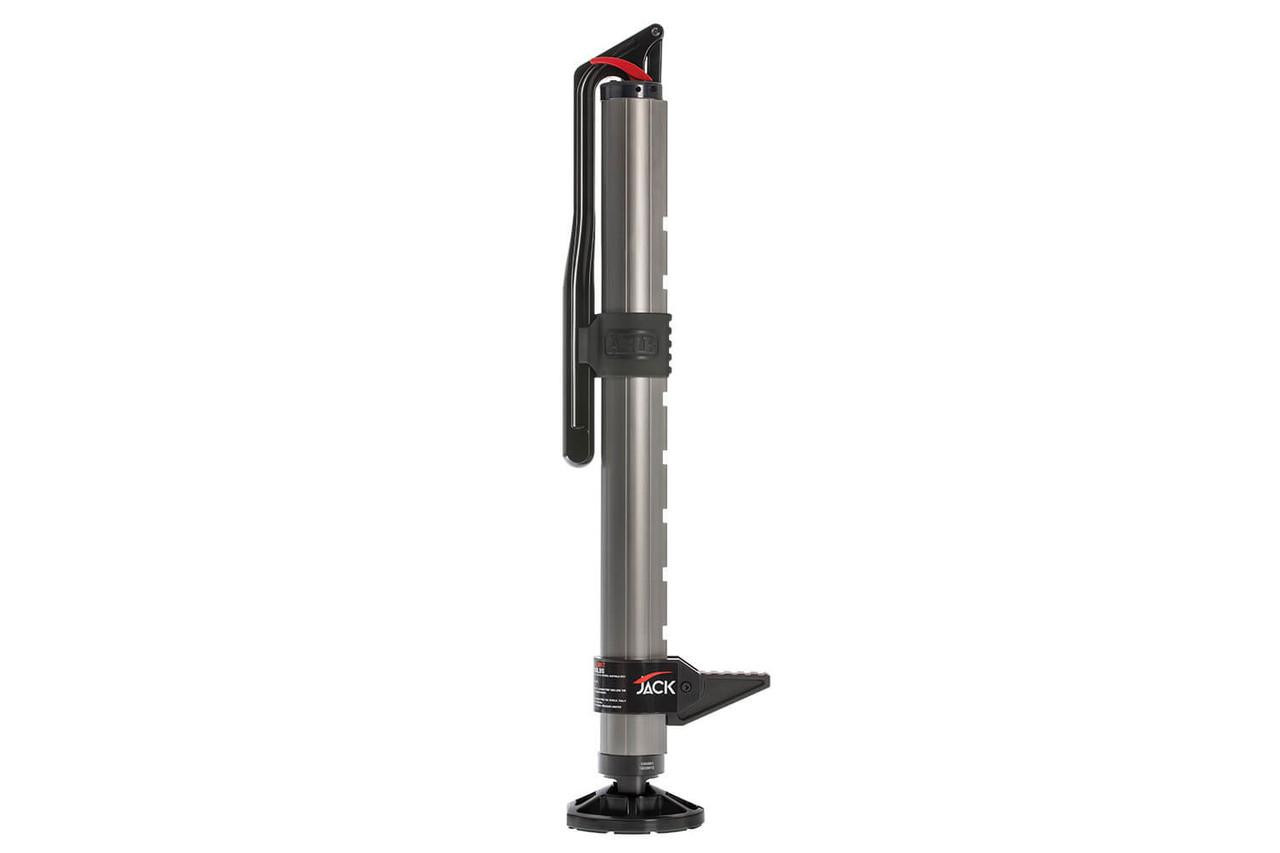

Part number 1060001, the ARB Hydraulic Recovery Jack (ARB JACK), is a long-travel hydraulic trail jack rated to 4,409 lbs with a 6–48 inch lifting range and 21–22 inches of travel, constructed from aircraft-grade 6061 T6 aluminum.
IMPORTANT: Buyers should confirm that their vehicle’s lift points fall within the jack’s 6–48 inch lifting range and 4,409 lb maximum capacity, and that frame rails, rocker panels, or designated recovery lift points are accessible and structurally suitable for hydraulic jack contact before purchase.
The ARB JACK was engineered as a direct answer to the well-documented hazards of the traditional farm jack. Conventional mechanical jacks are inherently unstable and present serious injury risk from rogue handles and pinch points. ARB’s engineers set out to build a safer, lighter, and more compact alternative that retained the versatility of a trail jack — capable of lifting a stuck vehicle, filling voids beneath tires, and functioning as a bead breaker — without the danger.

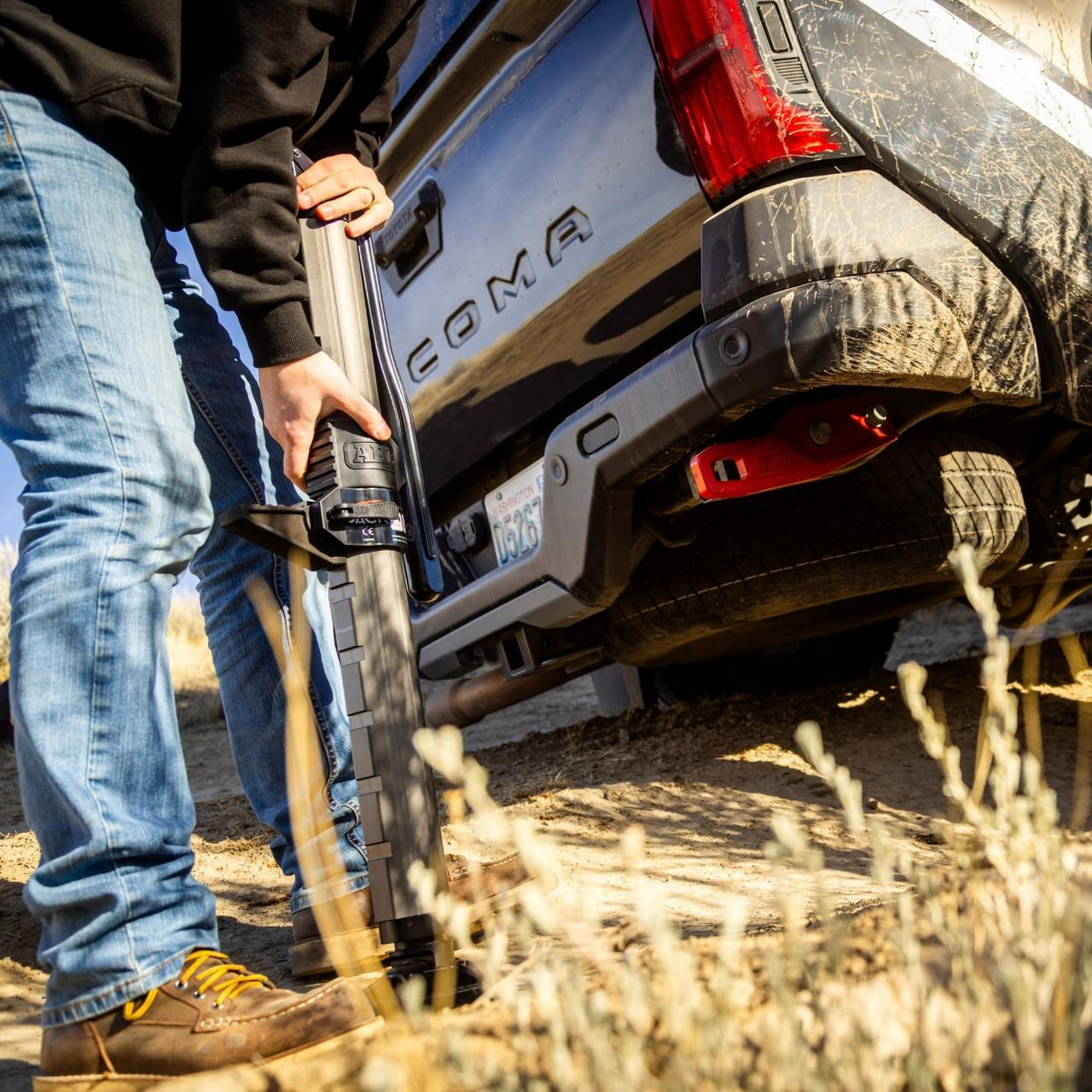

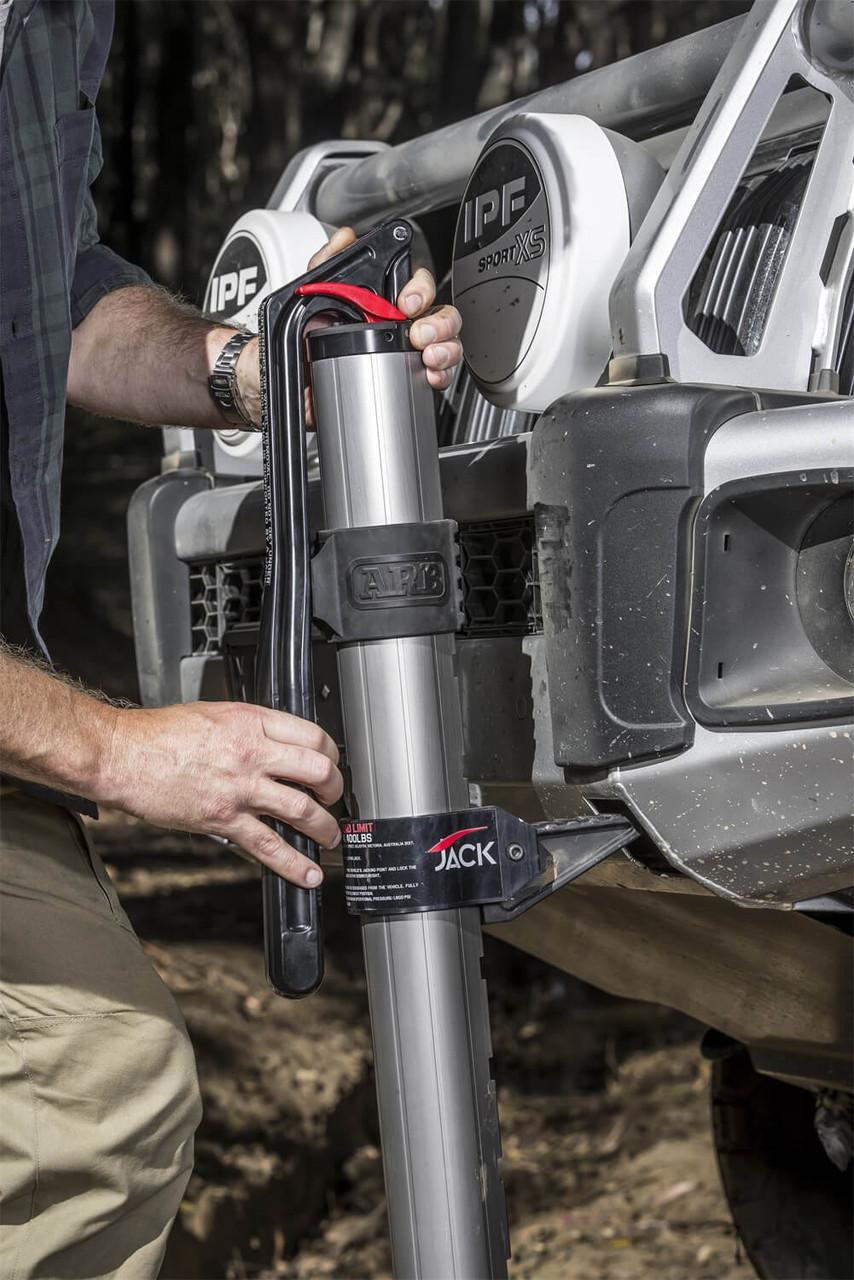

The ARB JACK operates on hydraulic technology rather than mechanical ratcheting. Each downward stroke of the handle delivers a precise 0.5-inch increment of lift, with the hydraulics activating under even the lightest applied force. The high-position handle and top-pivot design give the operator full control from a standing position, eliminating the need to kneel beside the vehicle during use. A black rubber body bumper contacts the vehicle during operation, shielding the bodywork from damage throughout the recovery.

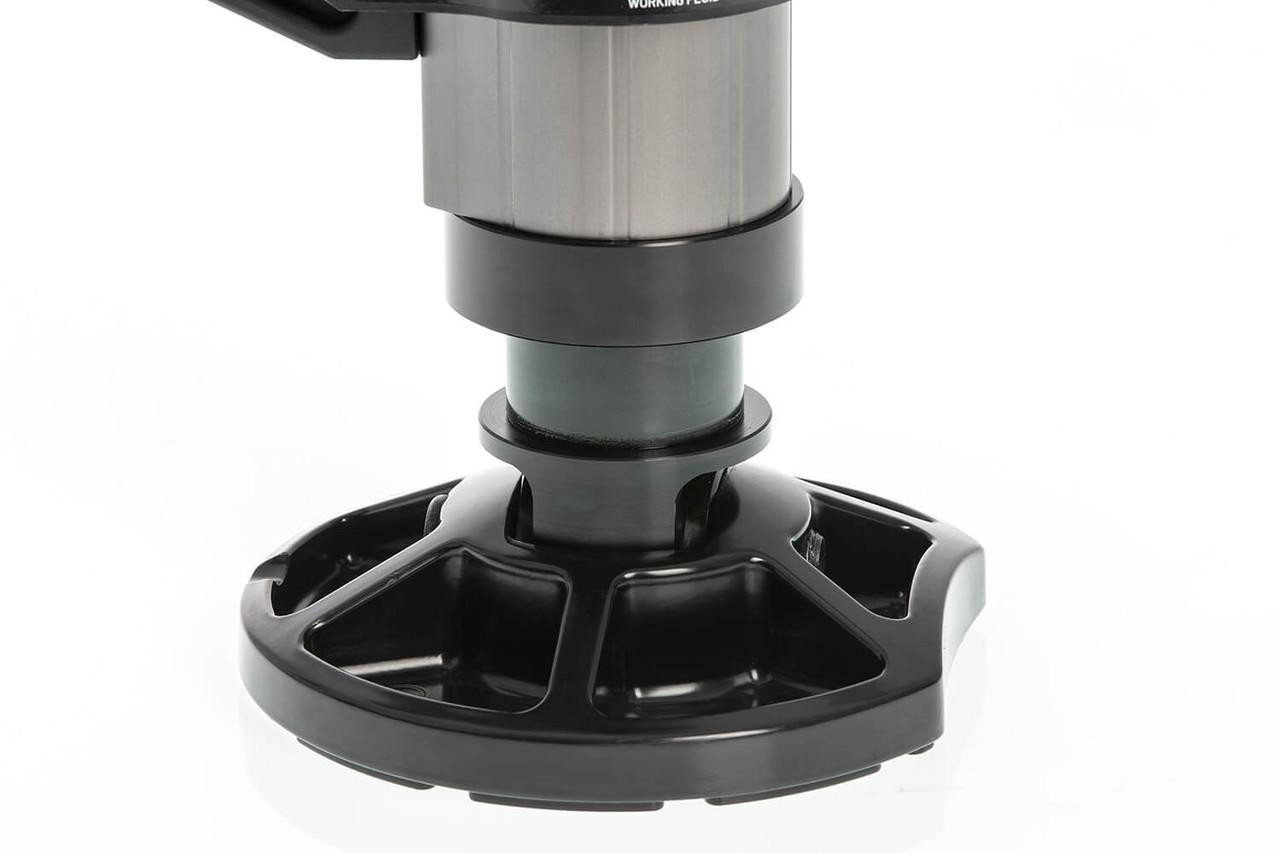

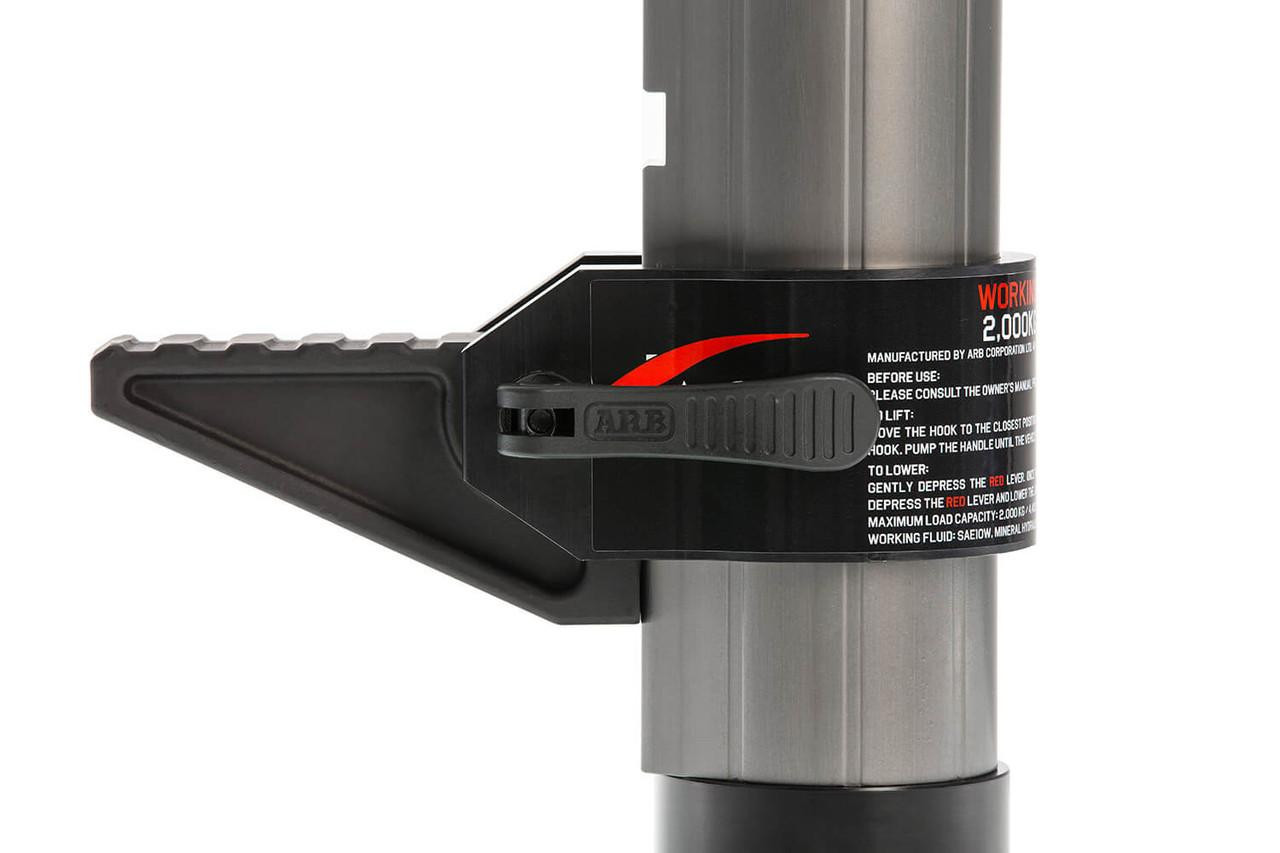

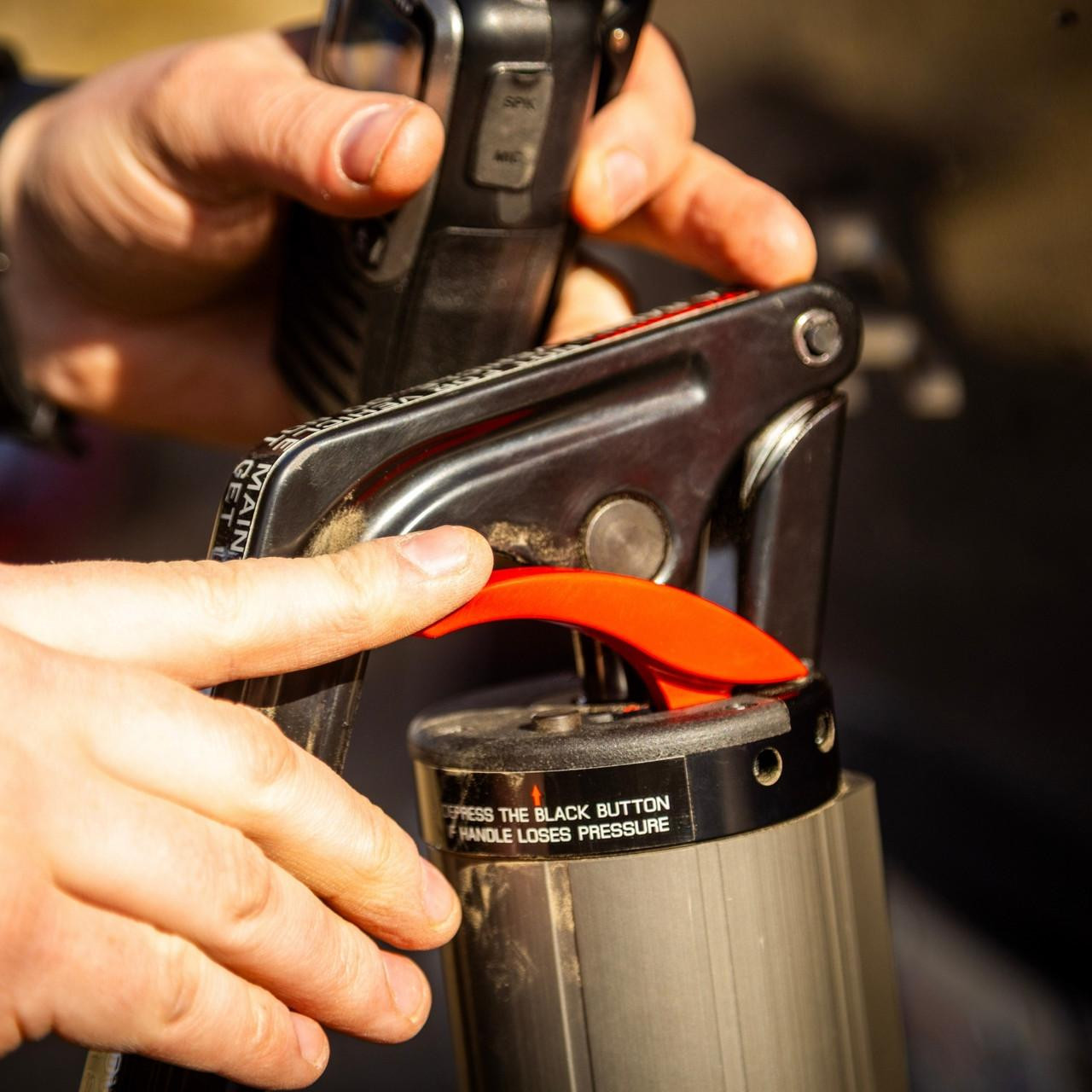

Lowering is controlled by an easy-to-access red lever that offers two distinct descent speeds — slow and rapid — selectable with a single press. A built-in safety stop prevents uncontrolled descent. The base features a 360-degree adjustable foot that rotates via the shaft to conform to uneven terrain, ensuring a stable, level connection between the jack and the ground. Nine locating points give the adjustable hook a wide range of engagement positions to suit different vehicle lift points and recovery scenarios.
The jack body is machined from aircraft-grade 6061 T6 aluminum for a combination of structural rigidity and reduced trail weight. The ARB JACK meets AS/NZ 2693–2007 and ASME B 30.1–2015 safety standards and is backed by a 3-year ARB warranty.
- Universal fitment — compatible with a wide range of off-road vehicles; verify your vehicle’s lift point clearance and recovery requirements before use

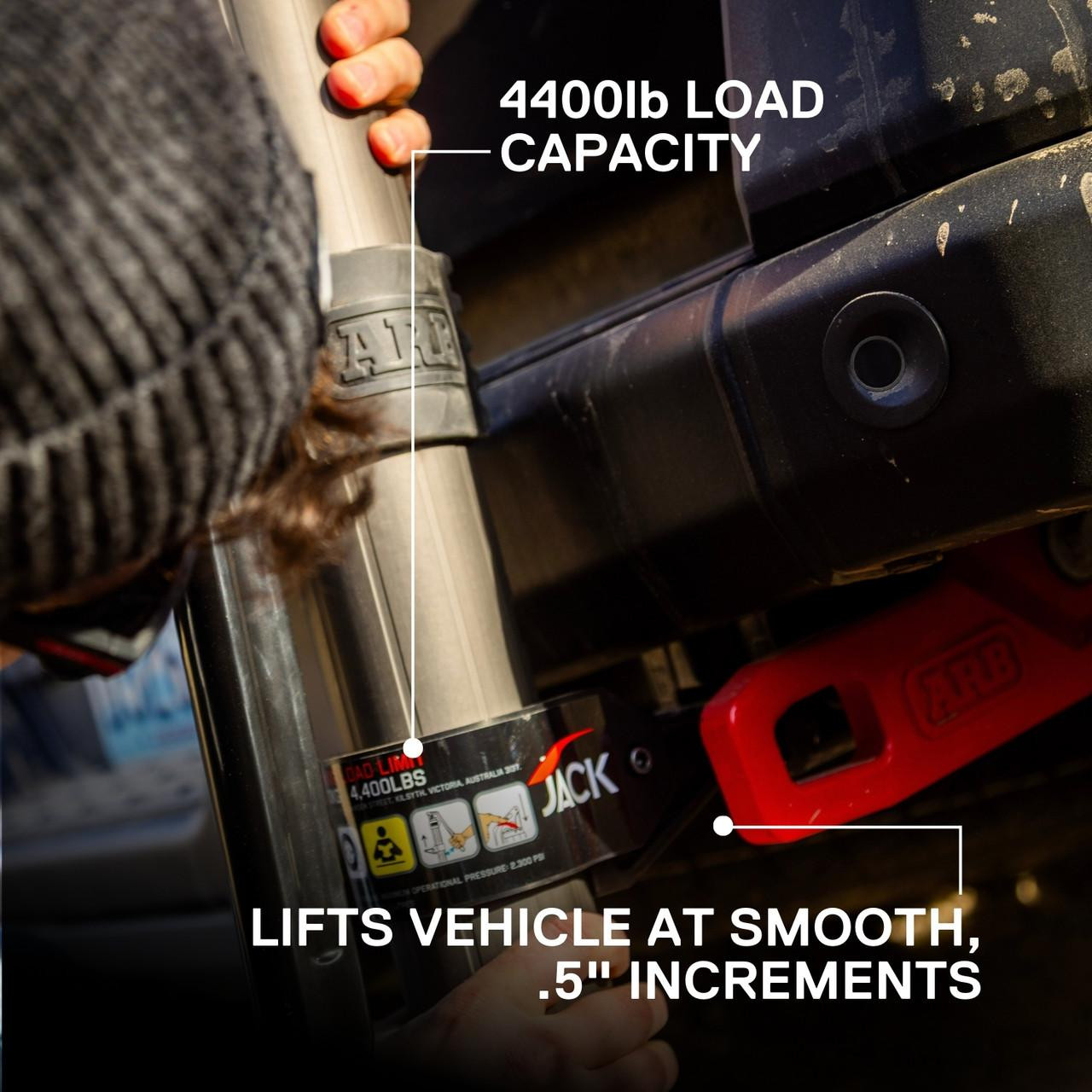

- Hydraulic operation: 0.5-inch lift per stroke; activates under minimal handle force
- Lifting range: 6 to 48 inches; 21–22 inches of total travel
- Maximum lifting capacity: 4,409 lbs
- Two-stage descent: slow and rapid speeds selectable via red lowering lever; integrated safety stop

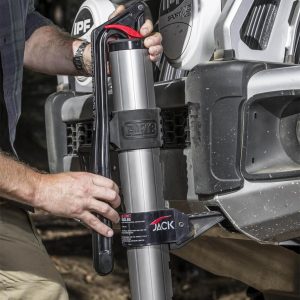

- High-position, top-pivot handle — operated from a standing position

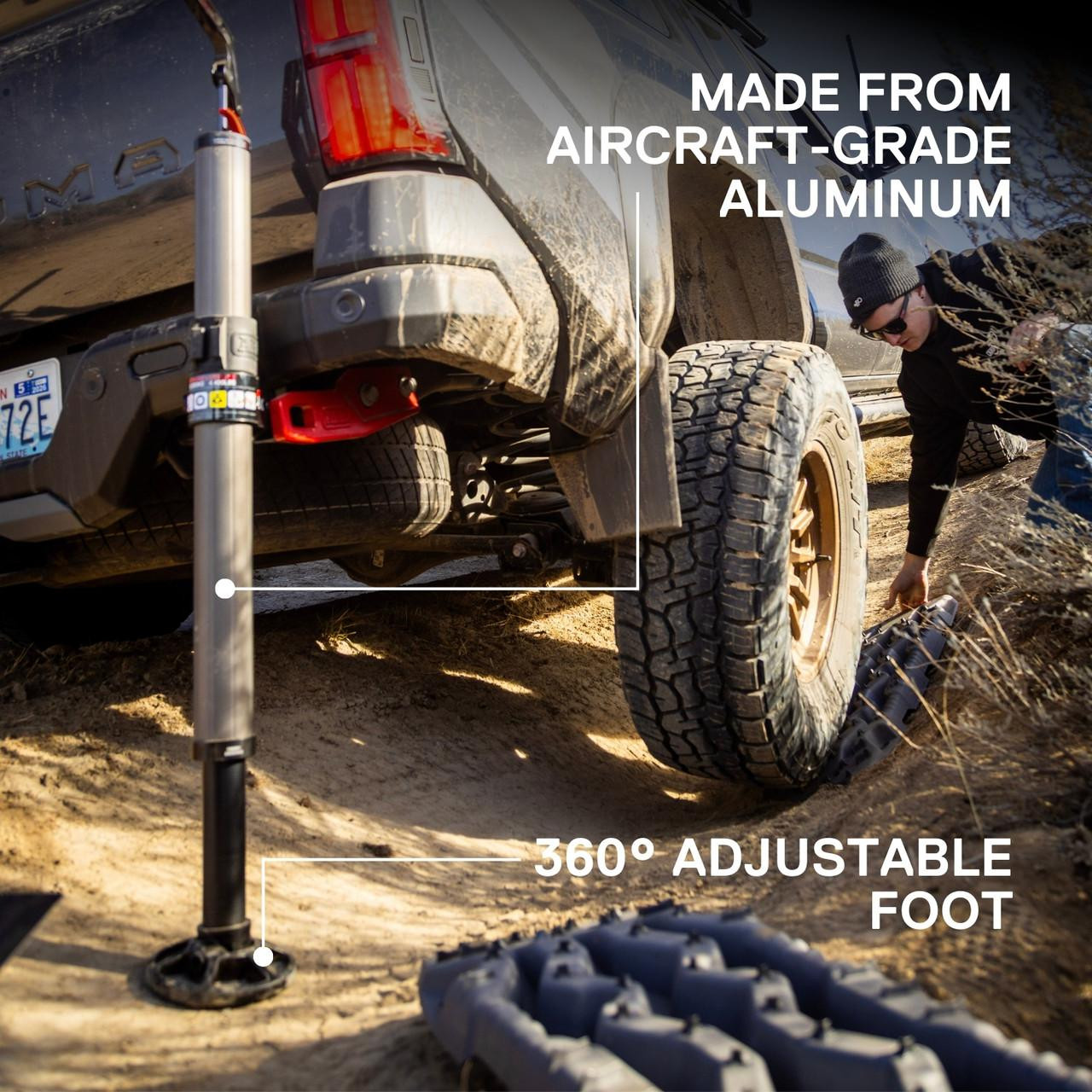

- 360-degree adjustable foot rotates via shaft to match terrain angle

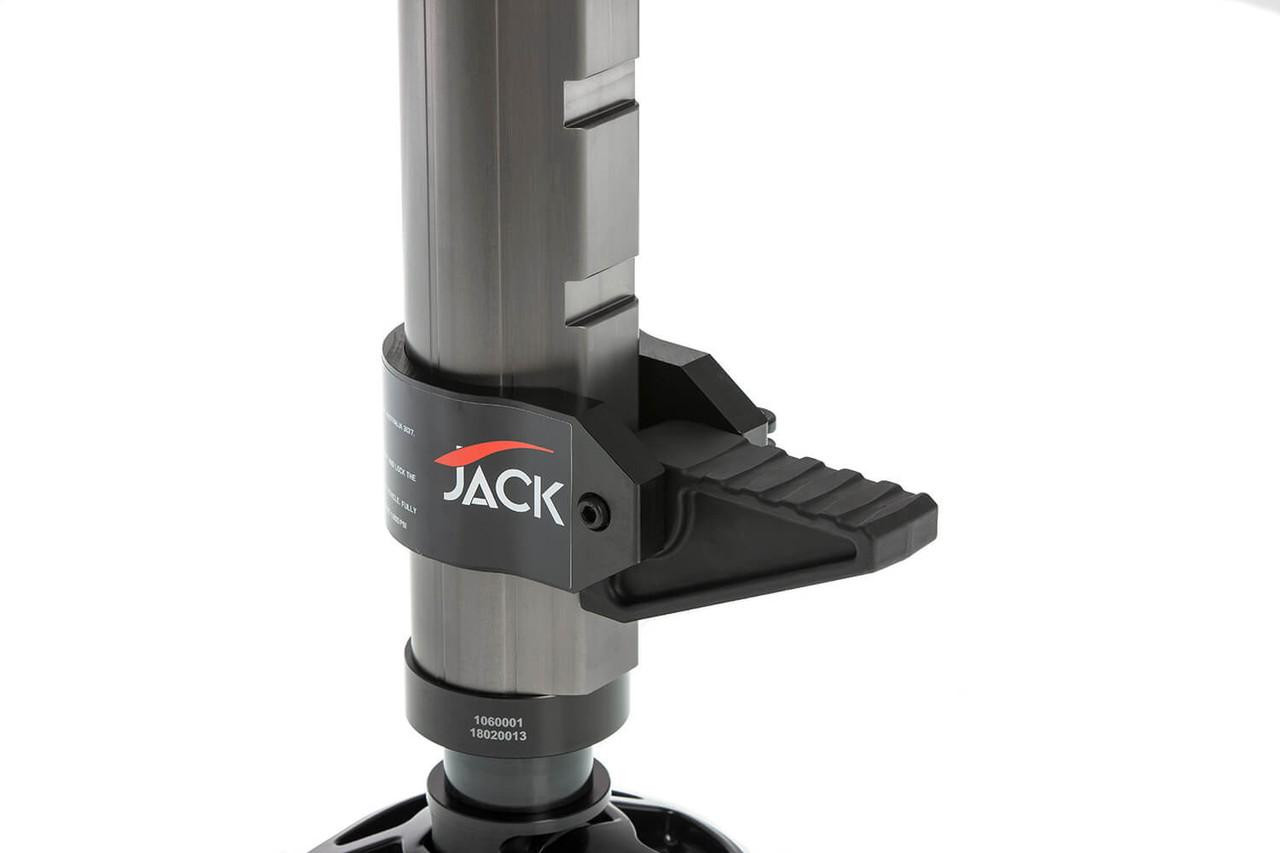

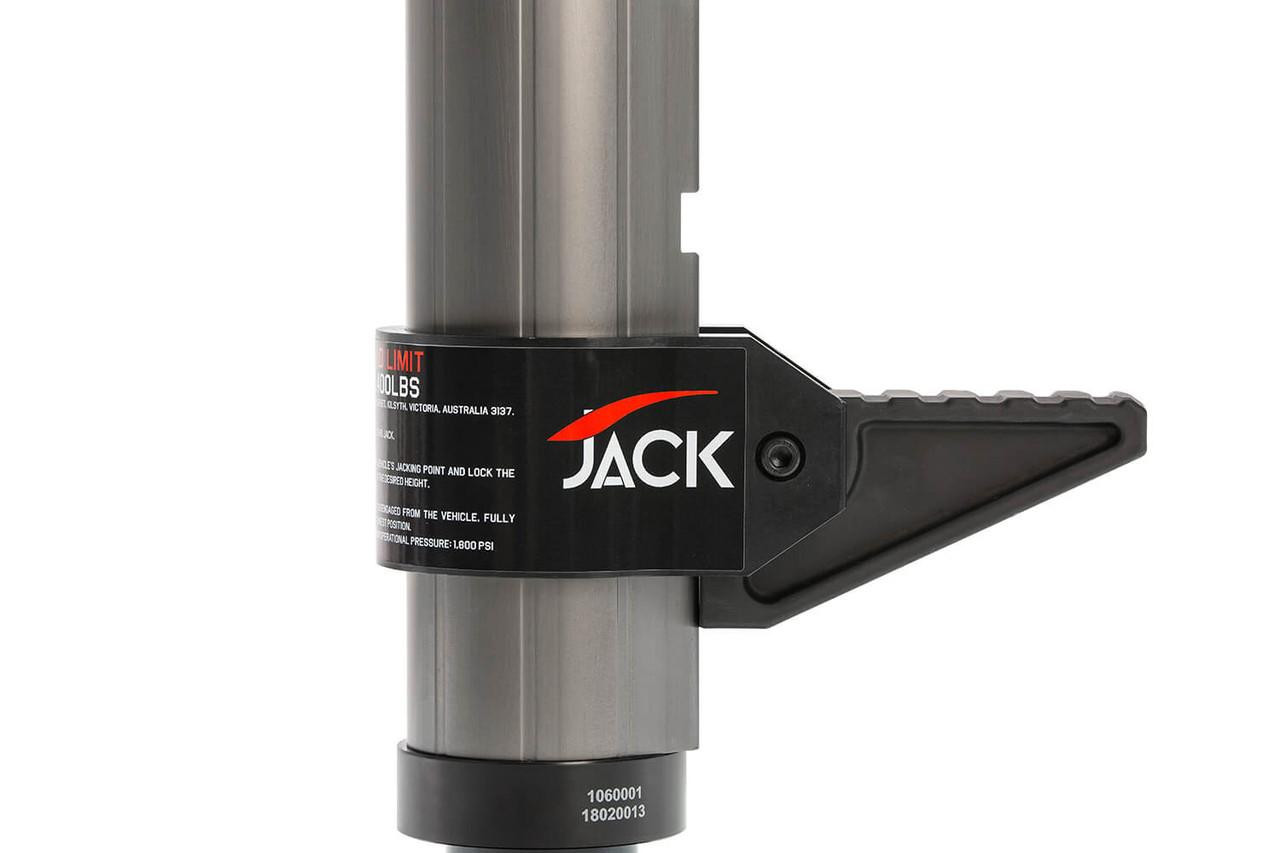

- 9 hook locating points for flexible vehicle engagement

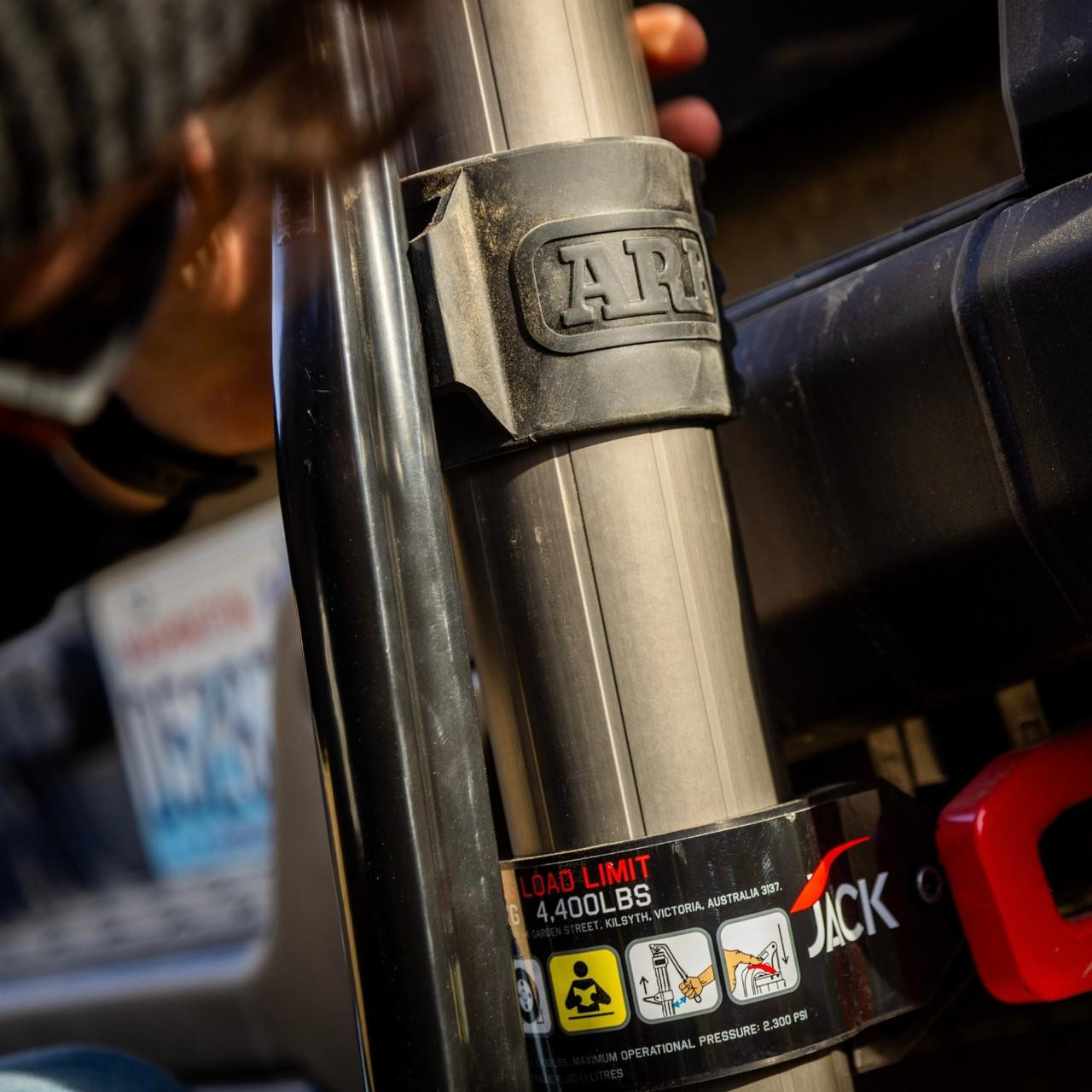

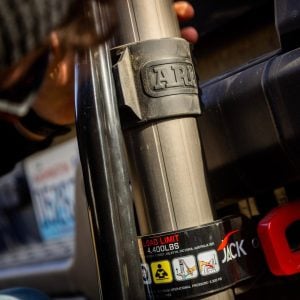

- Black rubber body bumper protects vehicle finish during use
- Aircraft-grade 6061 T6 aluminum construction
- Meets AS/NZ 2693–2007 and ASME B 30.1–2015 safety standards
- 3-year ARB warranty
- Sold individually
Specifications
| Part Number | 1060001 |
| Operating Mode | Hydraulic |
| Maximum Capacity | 4,409 lbs |
| Lifting Range | 6–48 inches |
| Travel | 21–22 inches |
| Stroke Extension | 0.5 inches per stroke |
| Compressed Height | 35 inches |
| Extended Height | 56 inches |
| Material | Aircraft Grade 6061 T6 Aluminum |
| Standards | AS/NZ 2693–2007; ASME B 30.1–2015 |
| Warranty | 3 Years |
Fitment
The ARB Hydraulic Recovery Jack (1060001) is a universal recovery tool with no vehicle-specific fitment restrictions. It is compatible with a broad range of trucks, SUVs, and off-road vehicles provided the vehicle’s lift points fall within the jack’s 6–48 inch lifting range and 4,409 lb maximum capacity. Buyers should confirm that their vehicle’s frame rails, rocker panels, or designated recovery lift points are accessible and structurally suitable for hydraulic jack contact before use.
