Description

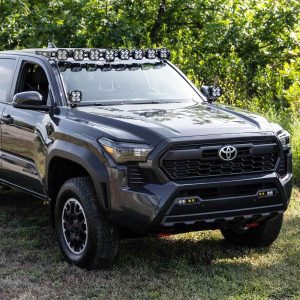

Baja Designs 8 XL Linkable Roof Mount Light Bar kit for 2024-Up Toyota Tacoma. 25,296 raw lumens of brightness. Power Draw: 208 Watts, 16 Amps.
Kit Includes:
(1x) 8XL Linkable Roof Bar Kit (Clear/Multi-Pattern)
(2x) Roof Brackets
(1x) Harness – 640115
(1x) Wire Hider Kit 3ft.
(1x) XL Linkable Pre-Load Kit
(8x) Snap on Black rock guards w/Baja Designs logo
All necessary mounting hardware

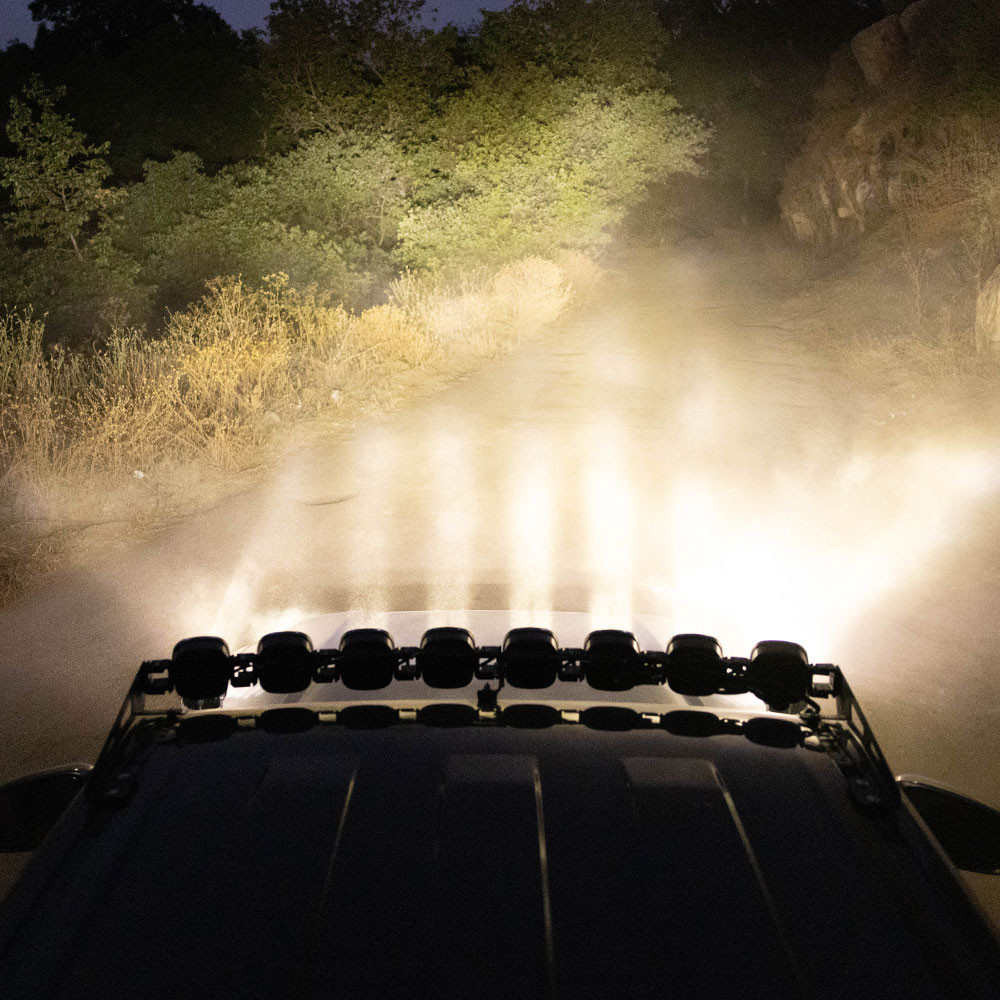

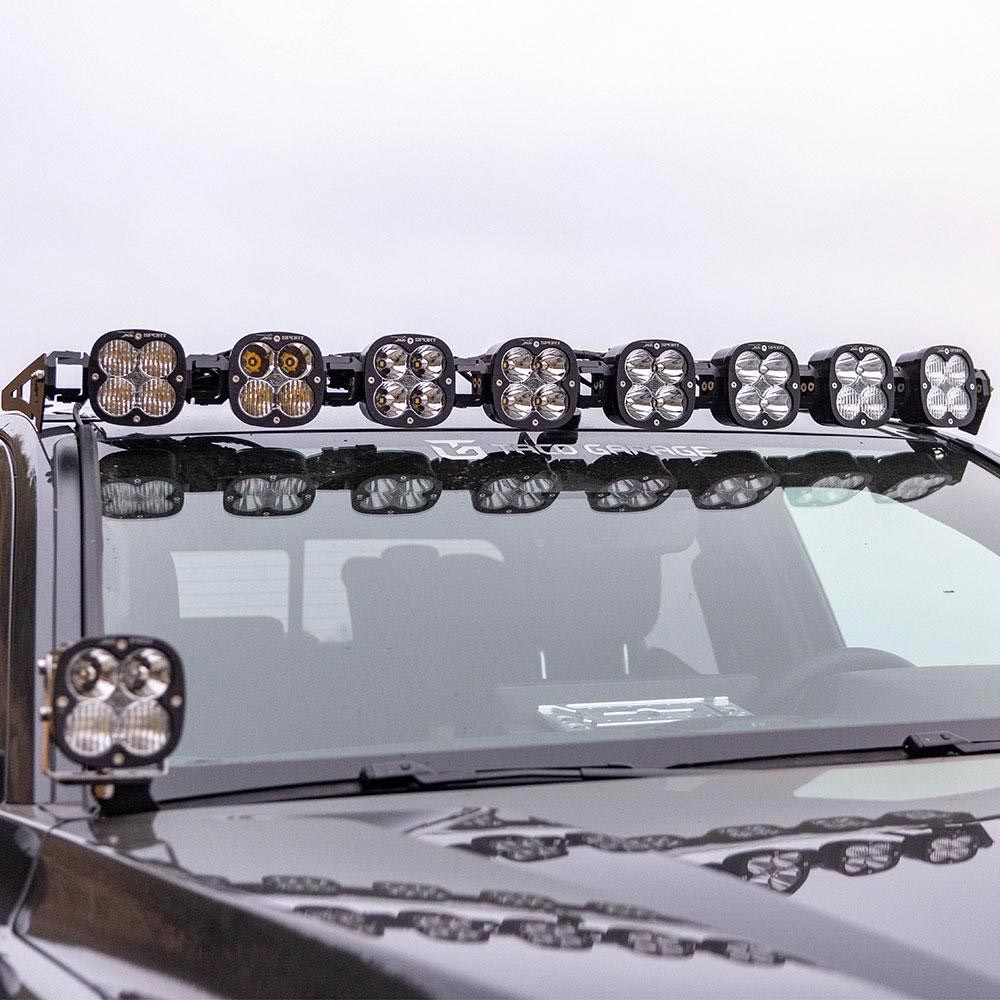

The Baja Designs 8XL Linkable Roof Bar Kit for the 2024 Toyota Tacoma has been designed for all outdoor enthusiasts who want a powerful lighting setup. If you are just taking it easy down a dirt road with your camper on the back or driving at high speeds through rutted roads, this roof kit has been developed and tested for you. Utilizing our 8XL Linkable this kit produces 25,296 total raw lumens of forward projected light that has a smooth blend due to the use of our spot, driving combo and wide cornering lenses illuminating zones 1, 2, 3 and 4 simultaneously. The XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your Toyota Tacoma. This kit comes with everything you need to hit the trail, with wiring fully crimped and trimmed allowing for an easy installation process. All Baja Designs lights are backed by our 30-day satisfaction guarantee and lifetime limited warranty for the ultimate in purchase protection.
Want to take advantage of the OEM auxiliary switches? Add our Upfitter harness (600101) for the 2024 Toyota Tacoma that will allow you to wire into the OEM auxiliary switches. This is the perfect solution for those that want a clean look while utilizing the stock switches to control your powered accessories.
Light Bar Specs:
Dimensions
Depth (in.) 2.8
Height (in.) 4.43
Length (in.) 51.52
Amperage Rating (A) 16
Average Rated Life (hr.) 49,930
Beam Pattern Multi-Pattern
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 25,296
Description 8XL Sport; Multi-Pattern; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 8
Lighting Modes Beam
Lighting Quantity 32
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Pre-Load Kit; Links; Rock Guards
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Linkable LED Light Bar
Universal or Specific Universal
Wattage (W) 208
Wiring Harness Included Yes
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
