Description
Baja Designs 40-inch OnX6+ Roof Mount Light Bar Kit for 2017-2024 Can-Am Maverick X3. This 40-inch curved OnX6+ produces 38,900 raw lumens in high beam mode, and 32,440 raw lumens in low beam mode.

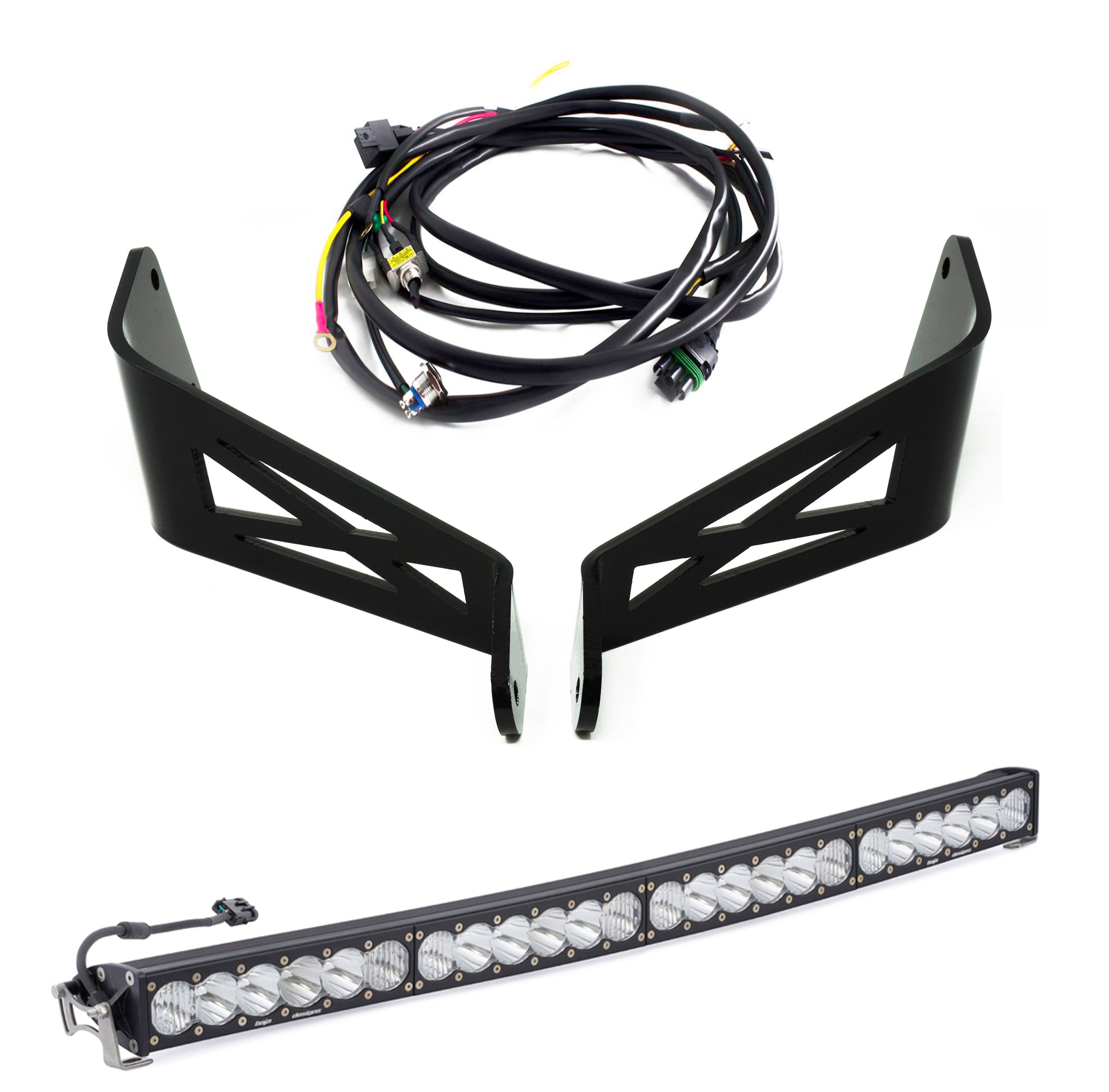

Included:
– 40″ OnX6 Driving/Combo Light Bar
– Mounting Brackets
– Wiring Harness
New for the Can-Am Maverick X3 is the robust roof mount kit for a 40” OnX6 Light Bar. This system allows for stable and secure mounting on the normal Maverick X3 or on the rock crawler variant.
Pattern: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
At an impressive 38,900 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
This bar is equipped with BMT – Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Lumens: (High) 38,900 (Low) 32,440 Utilizing 24 Cree LEDs
Wattage/Amps: (High) 346W / 26.8A (Low) 290W / 22.4A
Dimensions: 40″ x 4.29″ x 2.69″
Weight: 15.05 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
