Description
Baja Designs 413002 OnX6+ 30-inch Racer Edition LED light bar with mounting brackets and hardware. The popular 30-inch OnX6+ Racer Edition is a versatile and powerful lighting solution that is frequently mounted on truck & SUV front bumpers, Can-Am, and many other off-road vehicles. WIRING HARNESS NOT INCLUDED – WIRING HARNESS SOLD SEPARATELY.
Includes:
· OnX6+ 30” Racer Edition LED Light Bar (Clear, Racer Spot)
· Mounting Brackets
(Wiring Harness Sold Separately, Part 640119)
Description:
The biggest in our Racer Edition line, the 50-inch OnX6 Racer Edition Light Bar also packs the hardest punch. If you have enough room to mount it, the 30-inch OnX6 Racer Edition Light Bar delivers all the power you need for high-speed nighttime driving, either on-road or off. The OnX6 Racer Edition LED Light Bar is BRIGHTER, BOLDER, BETTER.
This bar is equipped with BMT – Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes
The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:

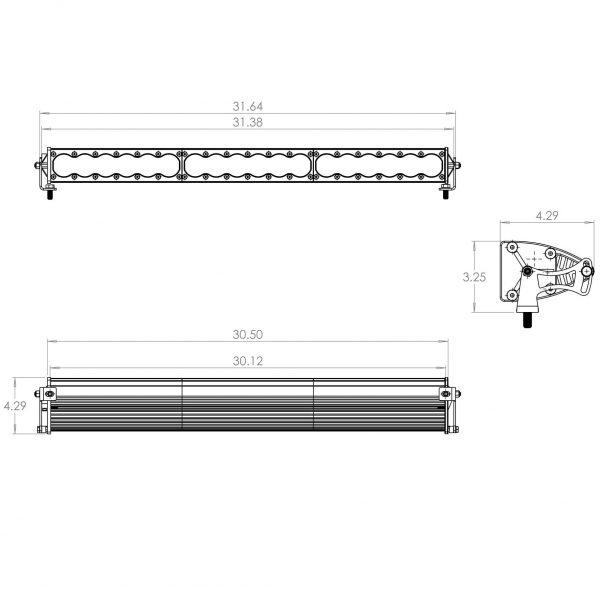

Dimensions
Depth (in.) 4.29
Height (in.) 2.69
Weight (lbs.) 11.45
Specifications
Amperage Rating (A) 15.75
Average Rated Life (hr.) 49,930
Beam Pattern Racer Spot
Bezel Material Billet Machined Aluminum
Description Straight; Racer Spot; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 18
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 30 Inch Racer Edition LED Light Bar
Universal or Specific Universal
Wattage (W) 189
Wiring Harness Included No
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
UPC 852156007071
