Description
Pair of DOT LP6 street approved LED light pods, with Reflex actuator motor kit for on-the-fly control of light pitch angle. White beam with white daytime running light/DRL. Includes toggle switch wiring harness and surface mount brackets with mounting hardware.
Kit Includes:
(2x) DOT LP6 – White DRL
(2x) Surface Mount Brackets w/Mounting Hardware
(1x) 3-way Toggle Switch Wiring Harness (w/open lead for backlight feature)
(1x) Reflex Actuator Rocker Switch Harness (built in actuator control switch)
(2x) Reflex Actuator Kit (0.14A/2.0W at 13.8V per actuator)
NOTE: The included wiring harness has a built-in toggle switch for controlling the low beam & high beam. It has a separate yellow wire for controlling the backlight feature with a separate switch or fuse. If you require the “upfitter” wiring harness with open leads (designed to connect to your own switches or switching system such as sPOD, Switch Pros, Auxbeam etc.), just let us know and we will ship you the upfitter instead; it is the same price as the toggle harness.
Reflex Actuator Features:
Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly.
Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages.
Reflex Actuator Harness, Single/Pair Light Configuration:
The Reflex Light Actuator rocker switch universal harness allows users the ability to control the up and down movement of the actuator at the touch of a button. Enthusiasts can select from a single harness or a harness pair that will power two actuators in sync. Harnesses are sold separately to provide flexibility for user’s existing lighting setups. NOTE: Actuator linking harnesses are power-only between individual light actuators. Lights will require separate harness for power.

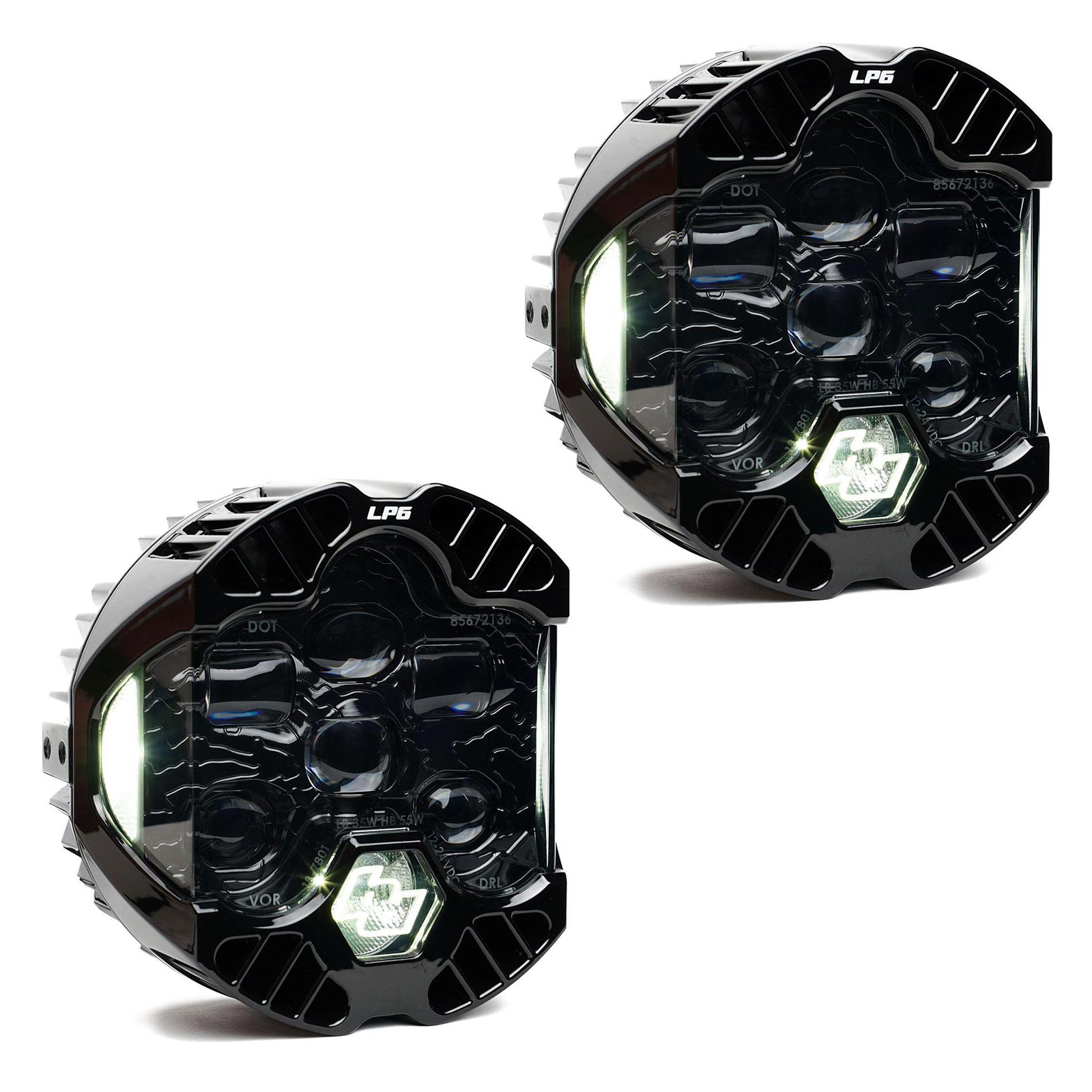

LP6 DOT Lights:
Upgrade your ride with the Baja Designs DOT LP6, our first-ever road-legal LED headlight replacement. Built on the foundation of the race-proven LP6 Pro off-road light, the DOT LP6 is engineered for on-road use and fully compliant with FMVSS 108 standards for both automotive and motorcycle applications. This premium LED headlight offers integrated high and low beam functions, delivering exceptional performance and reliability on any road. Choose between white or amber daytime running lights to customize your vehicle’s look. With universal and vehicle-specific mounting options, the DOT LP6 provides a perfect fit for your setup. Backed by Baja Designs’ Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and DOT road-legal usability. PLEASE NOTE: uService® is NOT a feature of DOT products. If tampered, it will void the warranty. Baja Designs’ Limited Lifetime Warranty is valid only if sent back for repairs.
Features:
Low and High Beam functionality
Daytime running lights for daytime safety
Low beam 3,480 raw lumens | 42,568.7 candela
High beam 5,280 raw lumens | 62,611.5 candela
High beam 40w / 2.8A
Low beam 26w / 1.8A
DRL: 5w / 0.4A
Limited Lifetime Warranty – Complete Purchase Protection
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specs:
Depth (in.) 3.2
Height (in.) 6.5
Length (in.) 6.5
Specifications
Description DRL Color: White; DRL: 5W; Candela: 42,568 (Low) 62,611 (High)
Voltage 10.5 to 32V
Wattage (W) Single Lamp at 13.8V; 26W (L) 40W (H)
Brightness (Lumens) 3,480 (Low) 5,280 (High)
Beam Pattern Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
Wiring Harness Included No
Amperage Rating (A) 1.8A (L) 2.8A (H)
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
