Description
Pair of DOT LP6 street approved LED light pods, with Reflex actuator motor kit for on-the-fly control of light pitch angle. White beam with white daytime running light/backlight. Includes toggle switch wiring harness, power management harness (for controlling Reflex actuators) and surface mount brackets with mounting hardware.

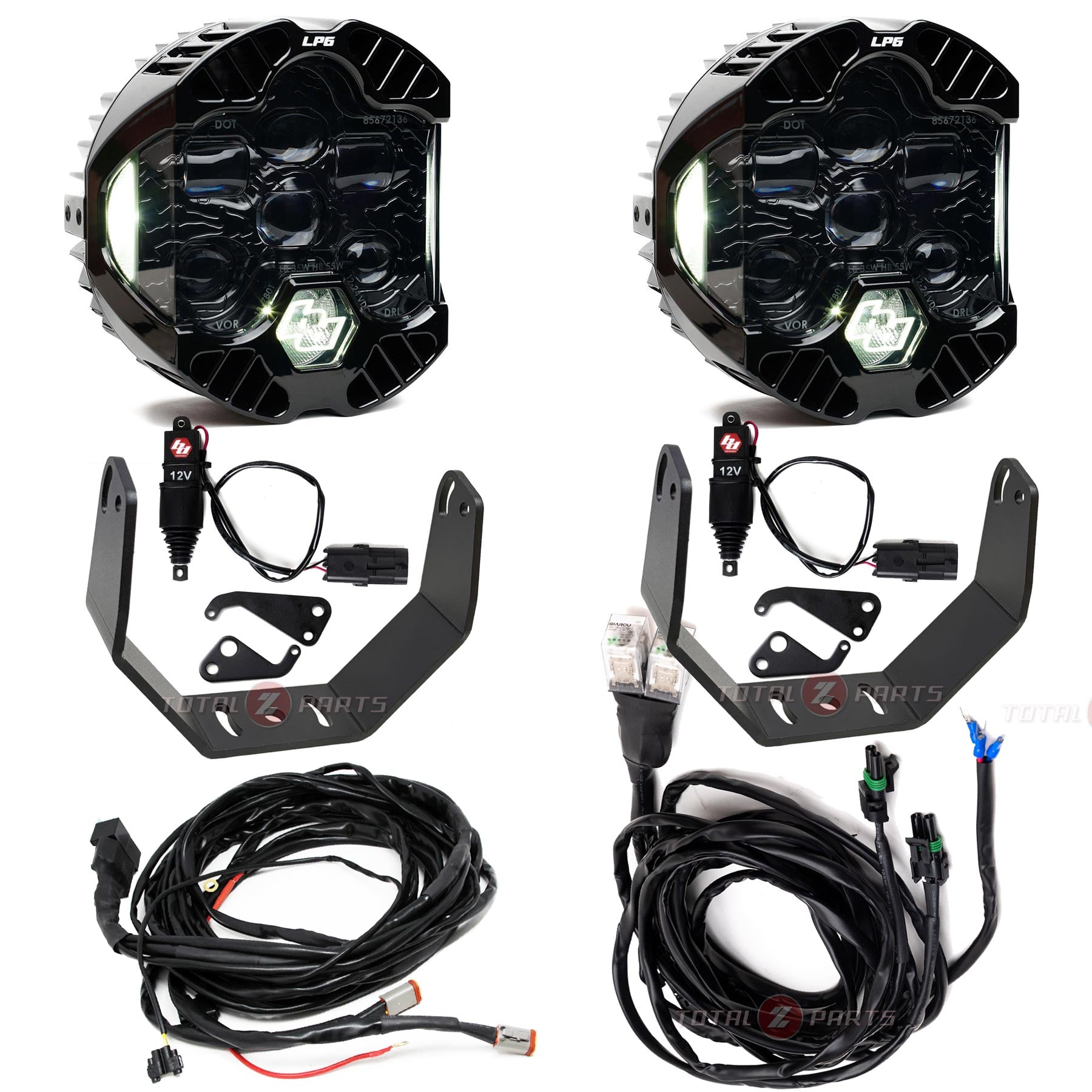

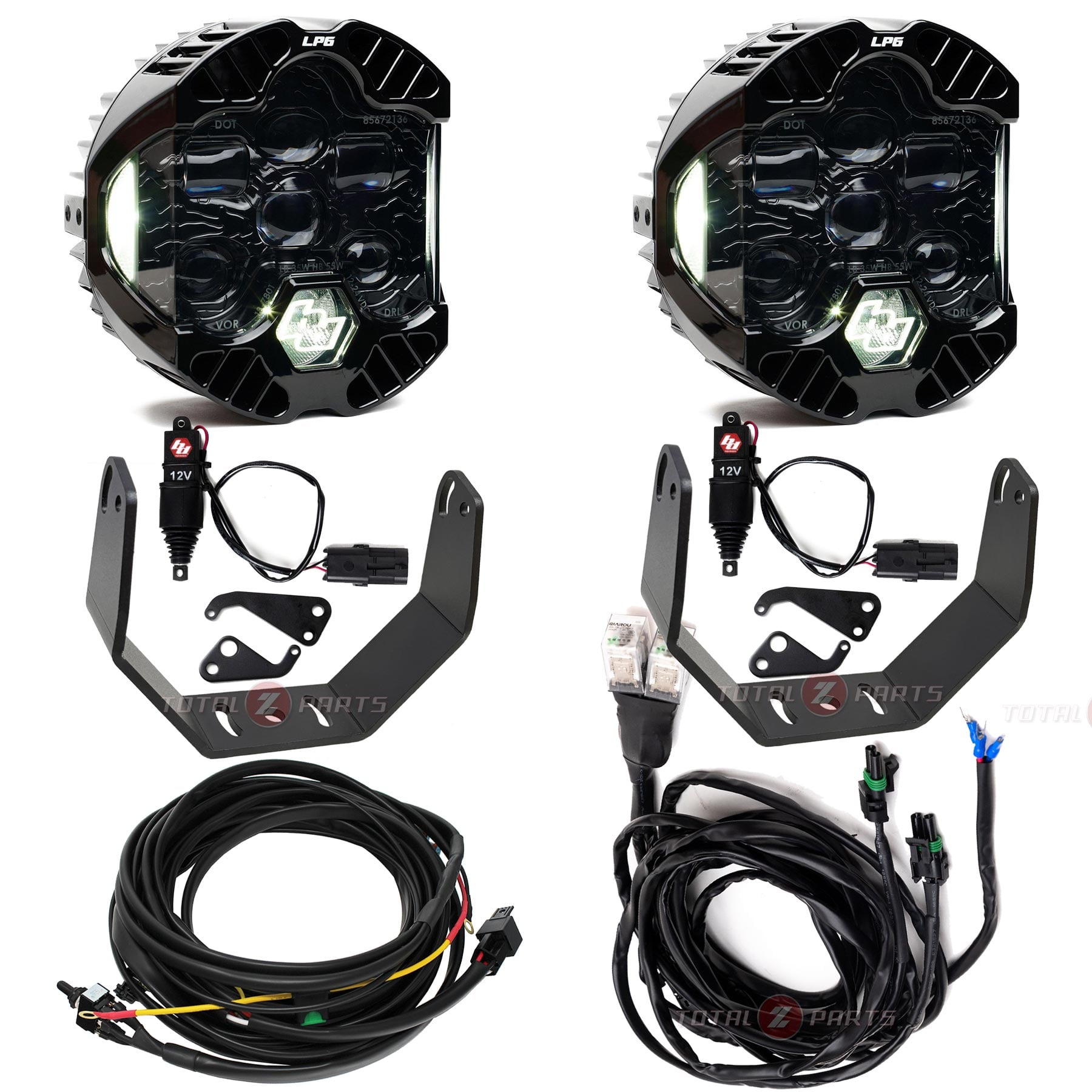

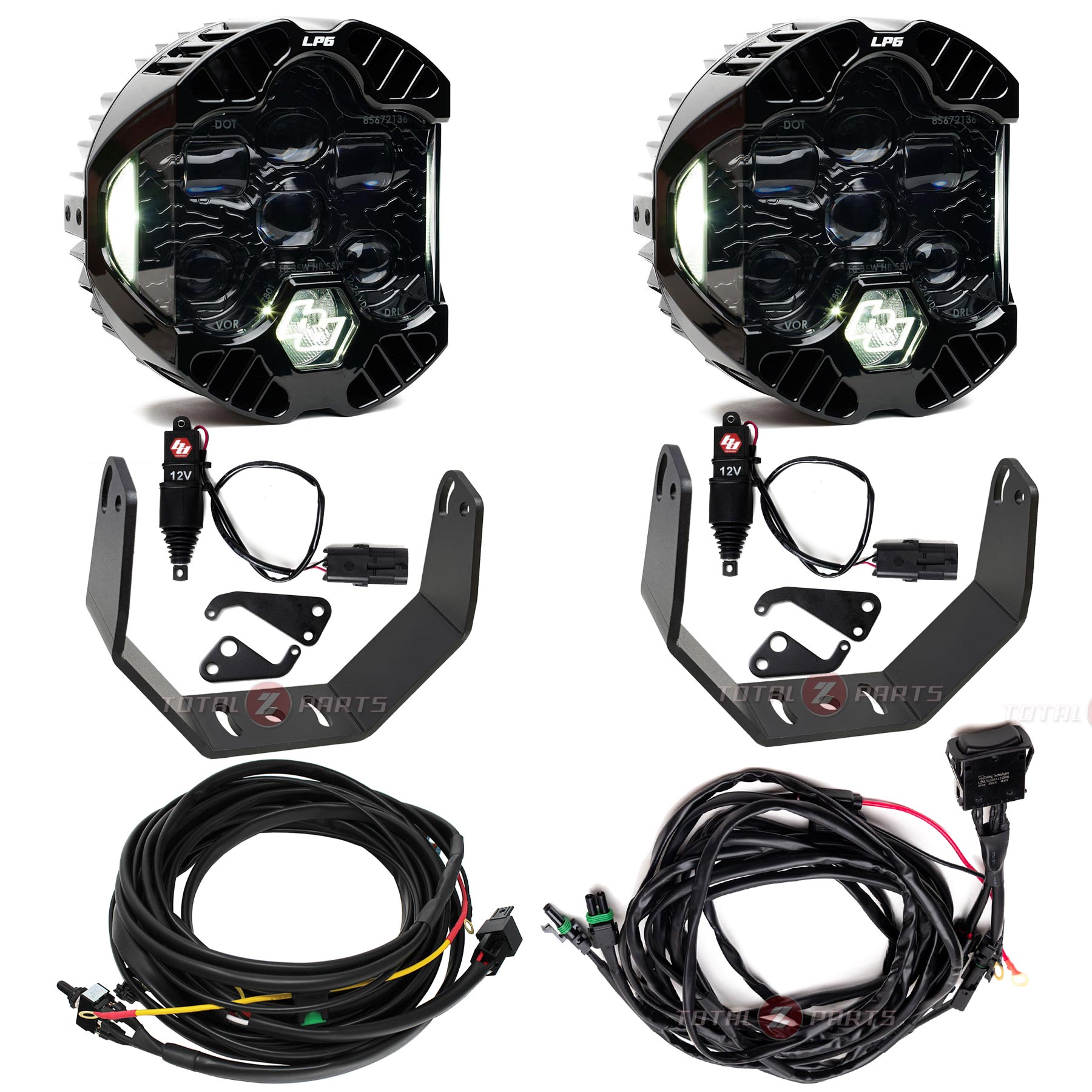

Kit Includes:
(2x) DOT LP6 – White DRL
(2x) Surface Mount Brackets w/Mounting Hardware
(1x) Toggle switch wiring harness (built in switch for low beam/high beam, and open yellow lead for controlling DRL)
(1x) Reflex Actuator Power Management Harness (for power management systems such as sPOD, Switch Pros)
(2x) Reflex Actuator Kit (0.14A/2.0W at 13.8V per actuator)
NOTE: The included toggle switch wiring harness has a built in switch for the low beam/high beam, and an open lead for controlling the DRL feature. If you prefer to connect to your own switches, we also stock the upfitter harness which has open leads and is designed to connect to your own switches or switching system (such as sPOD, Switch Pros, Auxbeam etc.). Please note your preference when ordering (there is no difference in price between the two harness versions).
Reflex Actuator Features:
Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly.
Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages.

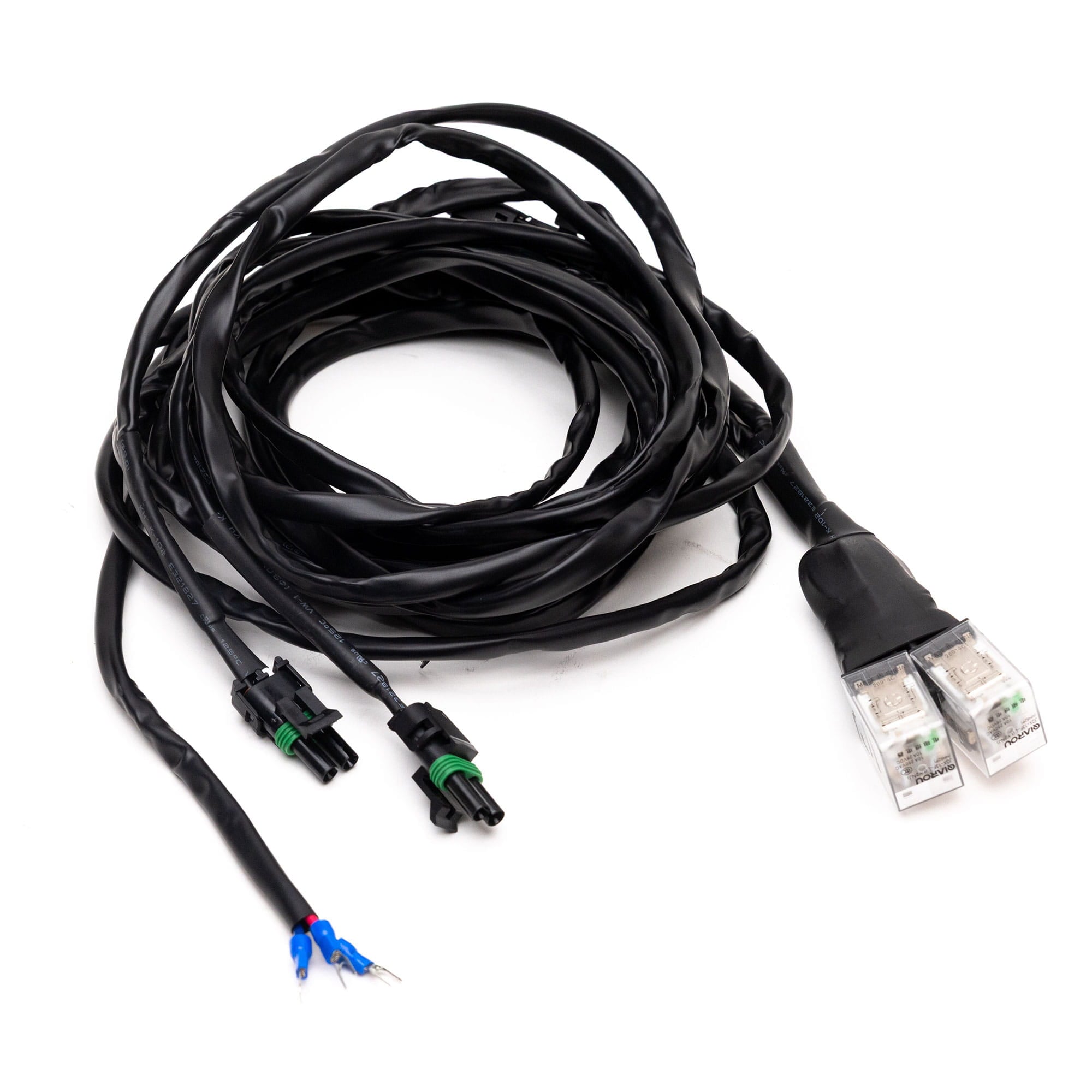

Reflex Power Management Actuator Harness, Single/Pair Light Configuration:
The Reflex Light Actuator wiring harness for power management systems such as sPOD, Switch Pros and others allow users the ability to wire and control the up and down movement of the actuators through their control module. Enthusiasts can select from a single harness, that when paired with an actuator linking harness can control three to eight actuators together, or the pair harness that will power one to two actuators in sync. Harnesses are sold separately to provide flexibility for user’s existing lighting setups.
LP6 DOT Lights:
Upgrade your ride with the Baja Designs DOT LP6, our first-ever road-legal LED headlight replacement. Built on the foundation of the race-proven LP6 Pro off-road light, the DOT LP6 is engineered for on-road use and fully compliant with FMVSS 108 standards for both automotive and motorcycle applications. This premium LED headlight offers integrated high and low beam functions, delivering exceptional performance and reliability on any road. Choose between white or amber daytime running lights to customize your vehicle’s look. With universal and vehicle-specific mounting options, the DOT LP6 provides a perfect fit for your setup. Backed by Baja Designs’ Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and DOT road-legal usability. PLEASE NOTE: uService® is NOT a feature of DOT products. If tampered, it will void the warranty. Baja Designs’ Limited Lifetime Warranty is valid only if sent back for repairs.
Features:
Low and High Beam functionality
Daytime running lights for daytime safety
Low beam 3,480 raw lumens | 42,568.7 candela
High beam 5,280 raw lumens | 62,611.5 candela
High beam 40w / 2.8A
Low beam 26w / 1.8A
DRL: 5w / 0.4A
Limited Lifetime Warranty – Complete Purchase Protection
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specs:
Depth (in.) 3.2
Height (in.) 6.5
Length (in.) 6.5
Specifications
Description DRL Color: White; DRL: 5W; Candela: 42,568 (Low) 62,611 (High)
Voltage 10.5 to 32V
Wattage (W) Single Lamp at 13.8V; 26W (L) 40W (H)
Brightness (Lumens) 3,480 (Low) 5,280 (High)
Beam Pattern Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
Wiring Harness Included No
Amperage Rating (A) 1.8A (L) 2.8A (H)
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
