Description
Includes:

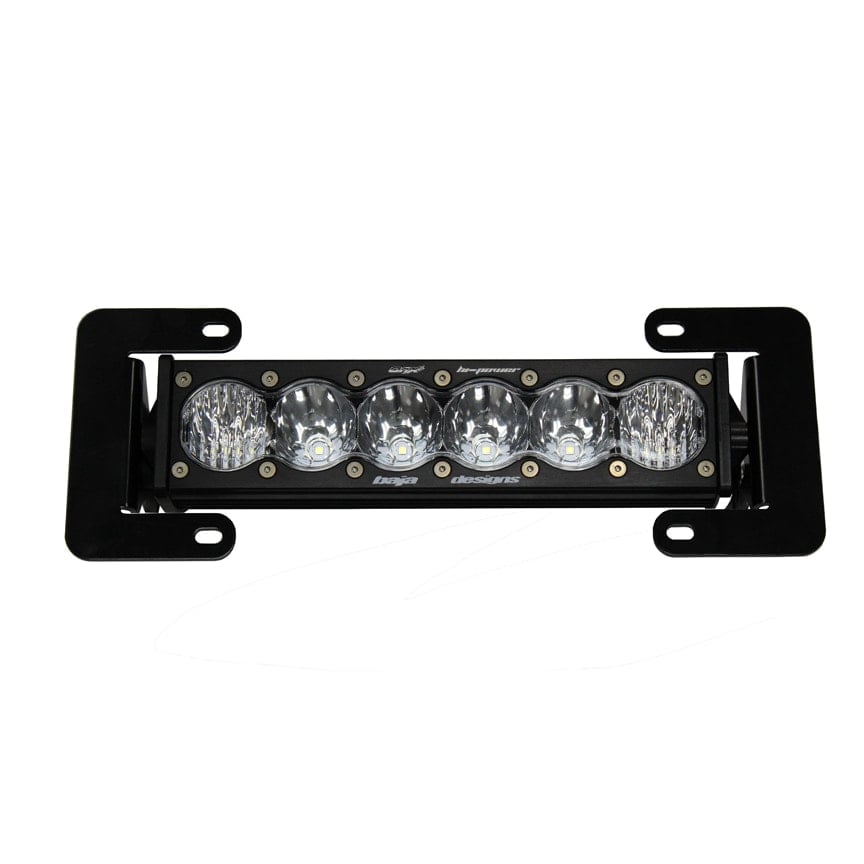

2017-2020 Raptor Mounting Brackets
Required Hardware
10″ OnX6+ Driving/Combo
Wiring Harness
This 10-inch light bar mounts in the center grille located in the middle of the Raptor’s front bumper.
The 10-inch OnX6+ has a high and low mode, producing 12,460 lumens, and 9,230 lumens, Utilizing 6 LEDs
(Note: you will need to remove your front factory license plate)
Baja Designs’ 2017-2020 Ford Raptor 10″ OnX6+ lower grille kit was designed with both functionality and visual appeal in mind. The kit is a quick and easy installed with minimal modifications required. Please note that this kit includes a 10″ OnX6+ in a driving combo beam pattern and the brackets will not accept any other light. The included harness will allow you to easily tap your lights into the factory up-fitter switches.
2017, 2018, 2019, 2020
447557
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Lumens: (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
Dimensions: 10″ x 4.29″ x 2.69″
Weight: 4.25 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
