Description
The Baja Designs 447757 OnX6+ LED Light Bar Roof Mount kit is a premium lighting upgrade for your new Ford Bronco. This version includes the Toggle Switch wiring harness, which has built in control switches. If you want the Upfitter wiring harness, which does not have built in switches and is meant to wire directly to existing auxiliary switches, purchase part number 447757UP (listed separately). The 50-inch OnX6+ Light Bar features a rugged and sturdy design. The ultra high output gives you unparalleled visibility in even the darkest off-road conditions. Along with the OnX6 Plus Light Bar, this kit includes custom vehicle specific brackets, a wiring harness, all required mounting hardware.
Note: This kit will only work if your Bronco DOESN’T have roof rails and crossbars.

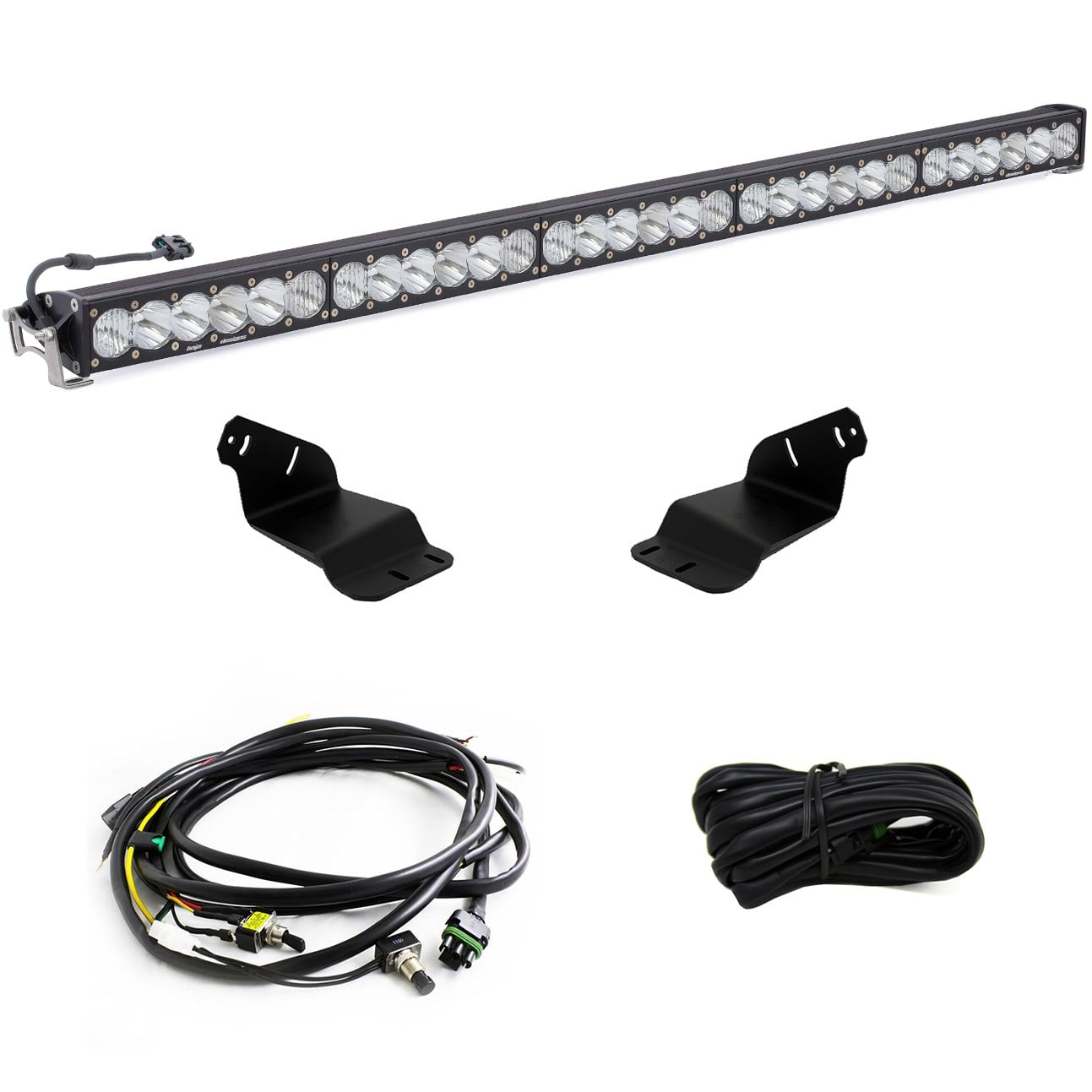

Kit Includes:
-
- OnX6+ 50” LED Light Bar
- Bronco Mounting Brackets
- Toggle Switch Wiring Harness
Carefully designed to be the ultimate roof mounted light bar kit for 2021 Ford Bronco. The 50” OnX6+ combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail.
This kit includes a 50” OnX6+ LED Light Bar, vehicle specific mounting brackets, hardware, and toggle switch wiring harness to make installation a breeze. No cutting, trimming, or drilling is required and all wiring is pre-sized for your vehicle.
Note: This kit will only work if your Bronco DOESN’T have roof rails and crossbars.
Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications(Per Light):
Lumens: 39,430 Utilizing 30 Cree LEDs
Wattage/Amps: 355W / 28.2A
Dimensions: 50″ x 4.29″ x 2.69″
Weight: 18.65 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Fits: Ford Bronco 2021, 2022
810031743841
