Description
Baja Designs LP6 Pro LED truck / motorcycle / UTV / ATV headlights with amber lenses in driving/combo pattern with Upfitter Lock Out Harness (for connecting to power module/switch systems such as sPod, Switch-Pros, and factory upfitter systems). Each LP6 Auxiliary light features a 6-inch billet aluminum housing, six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs, producing a 200 degree spread of usable light & 10,300 lumens of brightness (1 pair of lights produces 20,600 lumens in total). Lighting Modes: Amber day-time running light, low power, high power.
The LP6 is popular as a headlight for Harley Davidson motorcycles, including the Road Glide, Road King, and Street Glide bikes.
These are a great alternative to the larger LP9 if you prefer a lower profile look for use on your vehicle’s front bumper, roof, or A-Pillar.
The included harness has dual relays, and separate wire extensions for the independent backlight function, high beams, and low beams; this setup allows you to connect each function to a separate aux switch on your Jeep, Ford, Chevy, Toyota, or similar truck with built in auxiliary switches or a switching system such as sPOD.

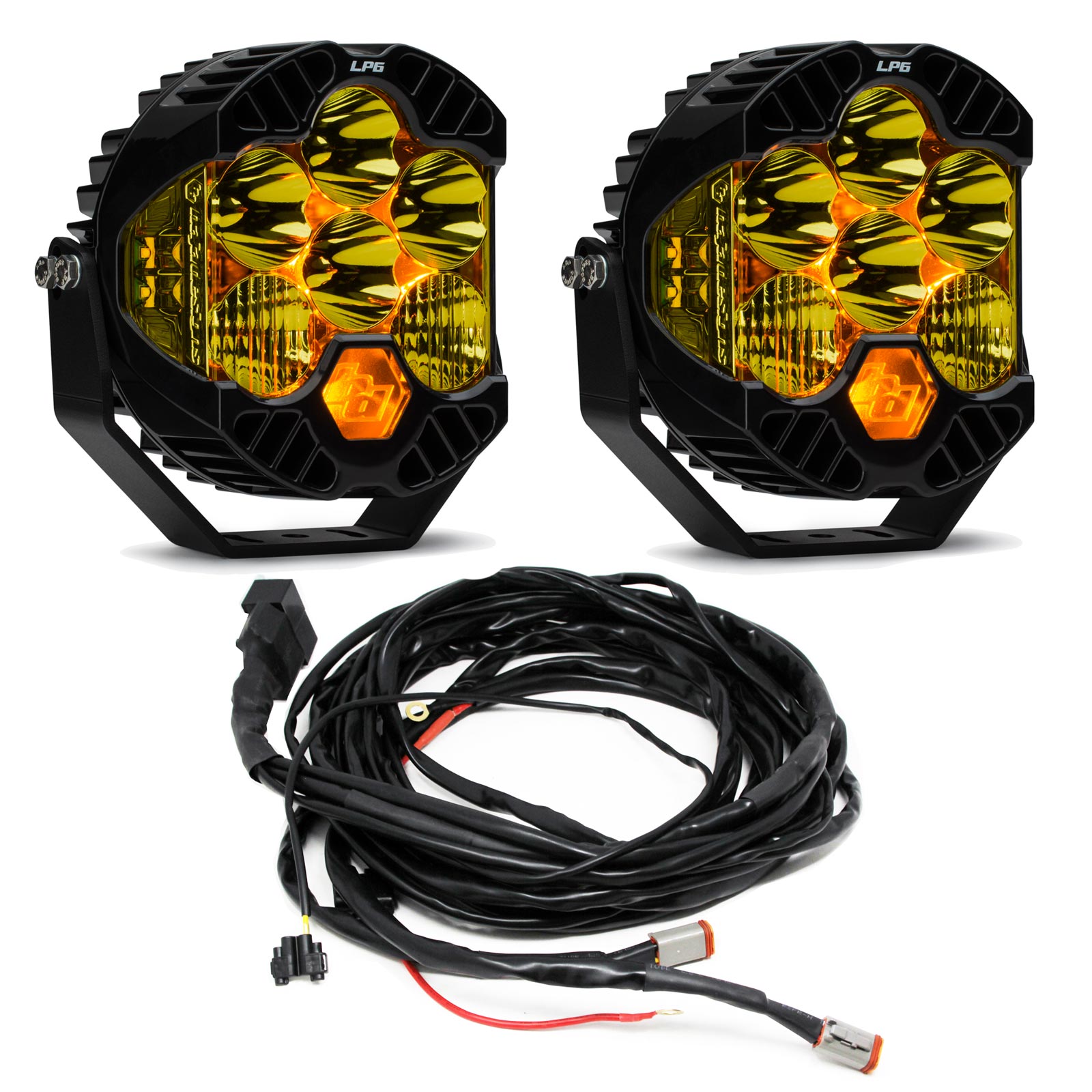

Package Includes:
2 x LP6 Pro Lights (Amber Lens, Driving/Combo Beam Pattern)
2 x Mounting Brackets with Hardware
1 x Upfitter Lock Out Wiring Harness (2 Light Max)
Wiring Harness Features:
This harness was designed with intention of being used in conjunction with power modules such as sPOD, Switch-Pros and factory upfitter systems. This harness will ensure that you don’t run power to both the high and low circuits at the same time when wiring your LP series lights. If you’re looking to take the guess work out of wiring your LP series lights this is the harness for you.
Wiring Inputs:
Ground Input ( – )
Battery Power Input (+)
Backlight Input Tap (+)
Low Beam Input Tap (+)
High Beam Input Tap (+)
Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Description:
The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
Forward Projecting Wattage/Amps: 90W / 6.5A
IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A
Backlight Wattage/Amps: 4.14W / 0.3A
Dimensions: 6.5″ Height / 6.5″ Width / 3.2″ Depth
Weight: 4.2lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
