Description

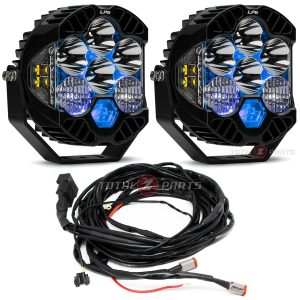

Pair of Baja Designs LP6 Pro LED truck / motorcycle / UTV / ATV headlights with clear driving/combo lenses & blue backlight. Includes upfitter lockout harness (has open leads for wiring to your own switch panel or switchign system; does not have built in switch). Each LP6 Auxiliary light features a 6-inch billet aluminum housing, six forward projecting LEDs, and 4 Integrated Peripheral Technology (IPT) LEDs, producing a 200 degree spread of usable light & 11,225 lumens of brightness (1 pair of lights produces 22,450 lumens in total). Lighting Modes: Blue day-time running light, low power, high power. These are a great alternative to the larger LP9 if you prefer a lower profile look for use on your vehicle’s front bumper, roof, or A-Pillar.
These are a great alternative to the larger LP9 if you prefer a lower profile look for use on your vehicle’s front bumper, roof, or A-Pillar.
Package Includes:
2 x LP6 Pro Lights (Clear Lens, Driving/Combo Beam Pattern, Blue Backlight)
2 x Mounting Brackets with Hardware
Upfitter Lockout Wiring Harness (2 Light Max)
Wiring Harness Features:
This harness was designed with intention of being used in conjunction with power modules such as sPOD, Switch-Pros and factory upfitter systems. This harness will ensure that you don’t run power to both the high and low circuits at the same time when wiring your LP series lights. If you’re looking to take the guess work out of wiring your LP series lights this is the harness for you.
Application LP9/LP6
Description Upfitter Lock-Out Harness
Switch Included No
Universal or Specific Universal
12 foot length for battery to instrument cluster
15 foot length for instrument cluster to light mounting location
Lighting Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Description:
The LP6 Pro is a 6-inch powerhouse featuring a total of 11,225 lumens and a 200° spread of useable LED light. The LP6 features 9,253 forward projecting lumens and 1,972 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance.
With a day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Amperage Rating (A) 7.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.300
Backlight Wattage (W) 4.140
Beam Pattern Driving/Combo
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 11225
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity 6
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type LP6 Pro LED Light Pod
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 103.500
