Description
Baja Designs Squadron Pro 3-inch LED pod lights pair (clear driving/combo lens) with KC Hillites ditch light brackets for 2021-2025 Gen 3 Ford F-150, F-150 Raptor, and F-150 Lightning. The included ditch light brackets are made from high-quality powder coated steel and easily attach to OE bolt locations without any cutting, drilling or modification.
4,095 raw lumens per light.
**DISCLAIMER: Ditch brackets may come into contact with the vehicle’s trim, potentially causing slight creasing. While minor trimming of the plastic trim can help prevent this, it is not required.

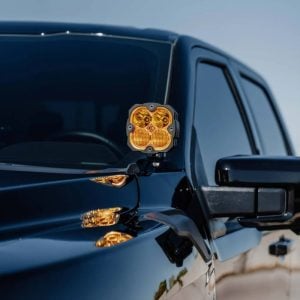

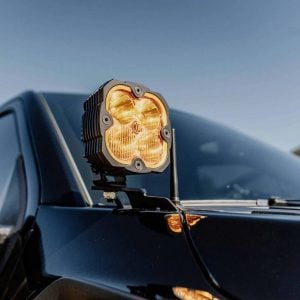

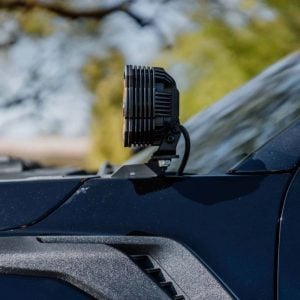

PLEASE NOTE: the photos of the F-150 with the ditch light brackets mounted are showing a different model of lights; the photos of the truck are to demonstrate the mounted position of the included ditch brackets. This kit includes a pair of 3-inch diameter Baja Designs Squadron Pro lights.

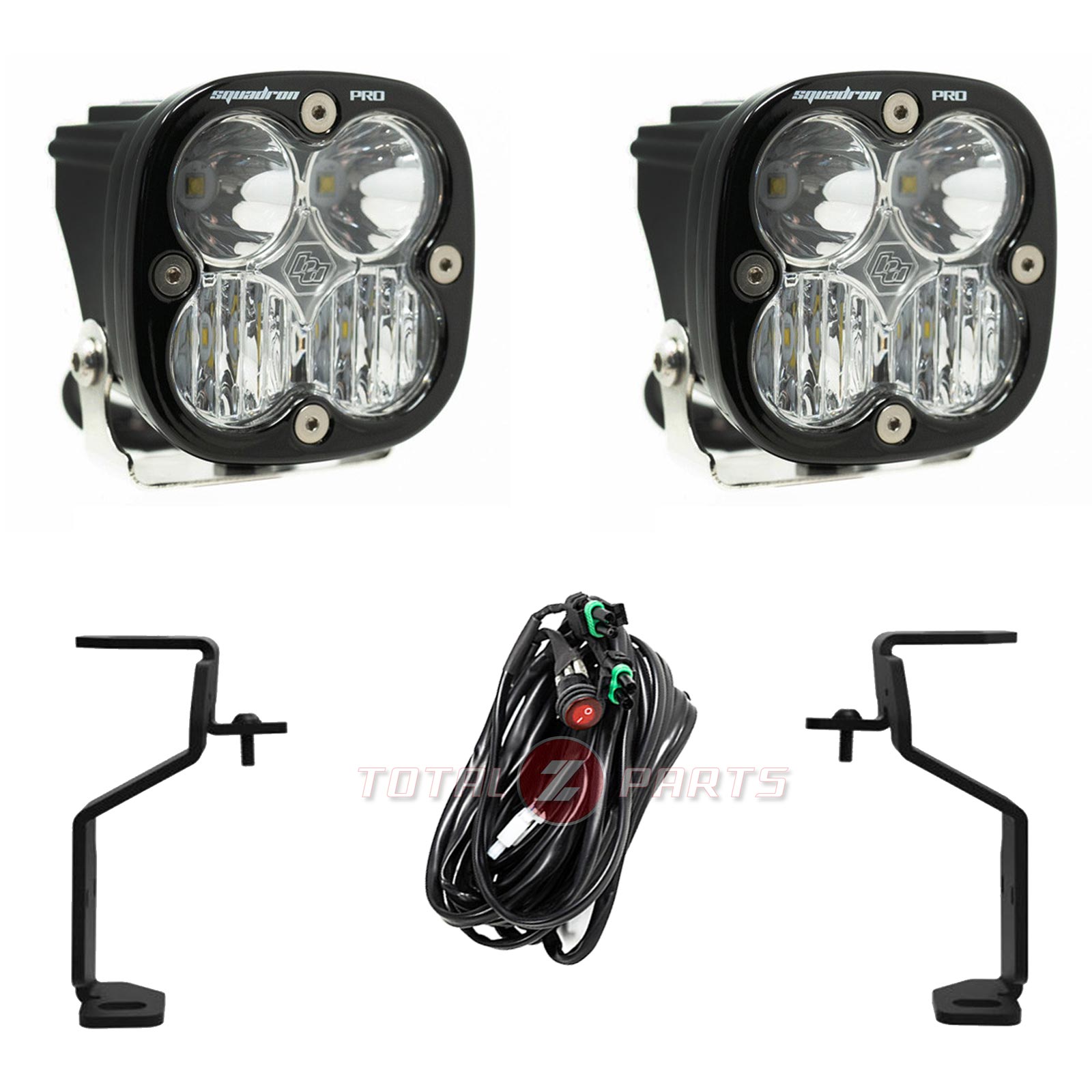

PARTS INCLUDED
(2) Baja Designs Squadron Pro LED Light
(1) On/Off Wiring Harness with illuminated rocker switch (supports 2 lights)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2) KC Hilites Black Powder-Coated Steel A-Pillar Mount Brackets (made from 3/16″ steel) w/Hardware for 21-Up Gen 3 Ford F-150
(2) M6-1.0 X 20mm Screw (for ditch brackets)
(2) M6 Flat Washer (for ditch brackets)
Lens Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Light up the night with Squadron Pro LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 4,095 lumens.
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lumens: 4,095 Utilizing 2 types of Cree LEDs
Wattage/Amps: 41.4W / 3A
Dimensions: 3.07″ x 2.77″ x 3.07″
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
