Description
Baja Designs Squadron Sport 3-inch LED pod lights pair (amber driving/combo lens) & rock guard covers, with KC Hillites ditch light brackets for 2018-2026 Jeep Wrangler JL/4XE and 2020-2026 Jeep Gladiator JT. The included ditch light brackets are made from high-quality powder coated steel and easily attach to OE bolt locations without any cutting, drilling or modification.
3,162 raw lumens per light.
PLEASE NOTE: The included ditch brackets do not fit Jeep Gladiator Mojave, 392, or Sand Runner Editions. We carry separate brackets for those models and have those kits listed separately.

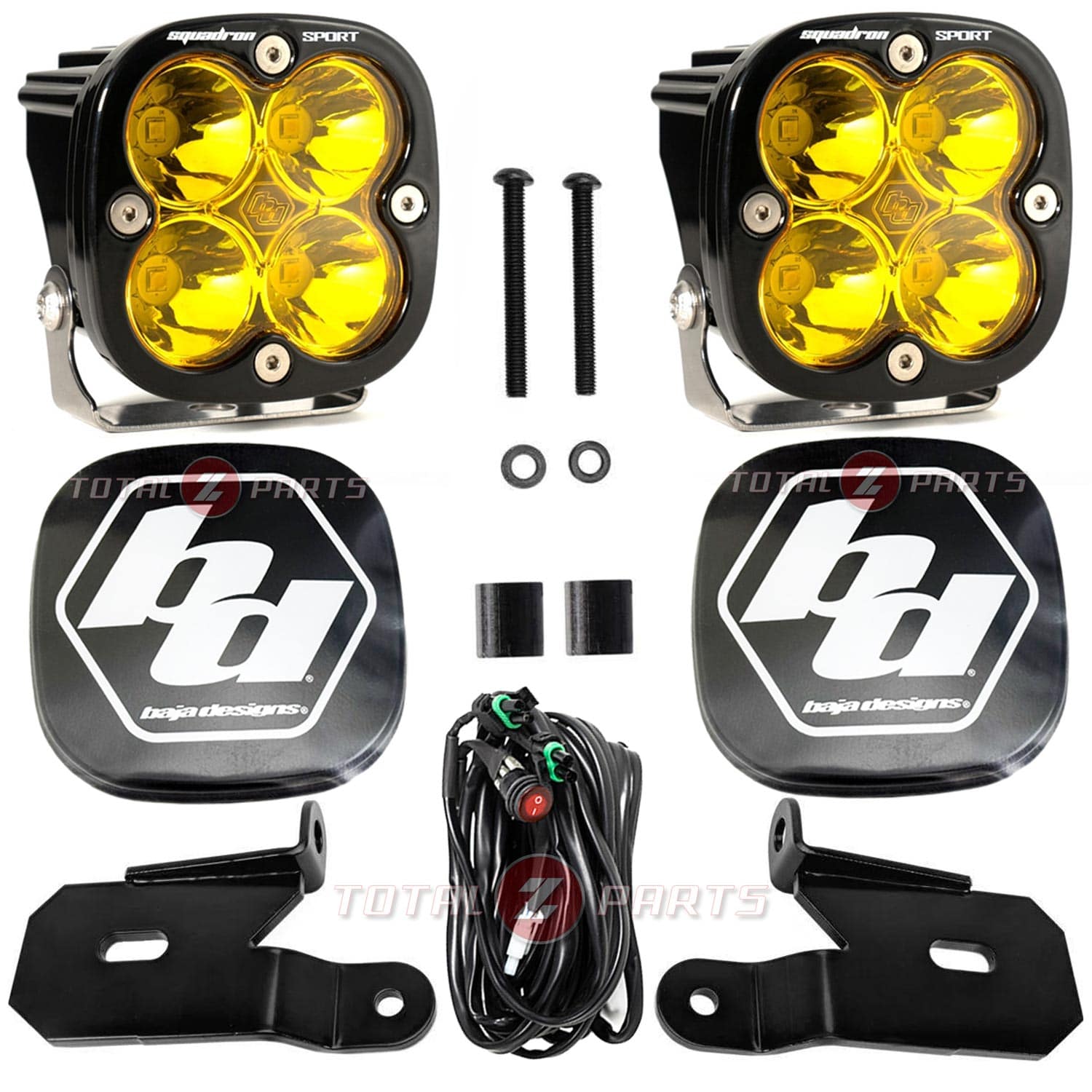

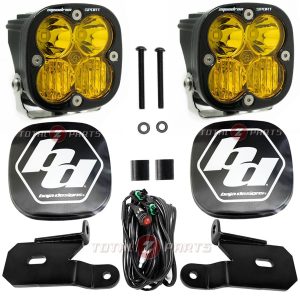

PARTS INCLUDED
(2) Squadron Sport LED Light
(2) Baja Designs snap-on black rock guards (with logo)
(1) On/Off Wiring Harness (supports 2 lights)
(2) Baja Designs Surface Mount Brackets w/Mounting Hardware
(2) 2018-Current Jeep Wrangler JL/4xe & Gladiator JT A-Pillar/Cowl Brackets
(2) Aluminum Spacers
(2) M6-1.0 X 55mm Button Head Cap Screws
(2) M6 Flat Washers
Lens Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod Pair w/ Wiring Harness
Wattage (W) 30.360
Wiring Harness Included Yes
Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Bezel Material Powder Coated Cast Aluminum
Brightness (Lumens) 3162
Description Spot; Amber; Pair
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Standards & Compliance
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Dimensions
Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750
