Description

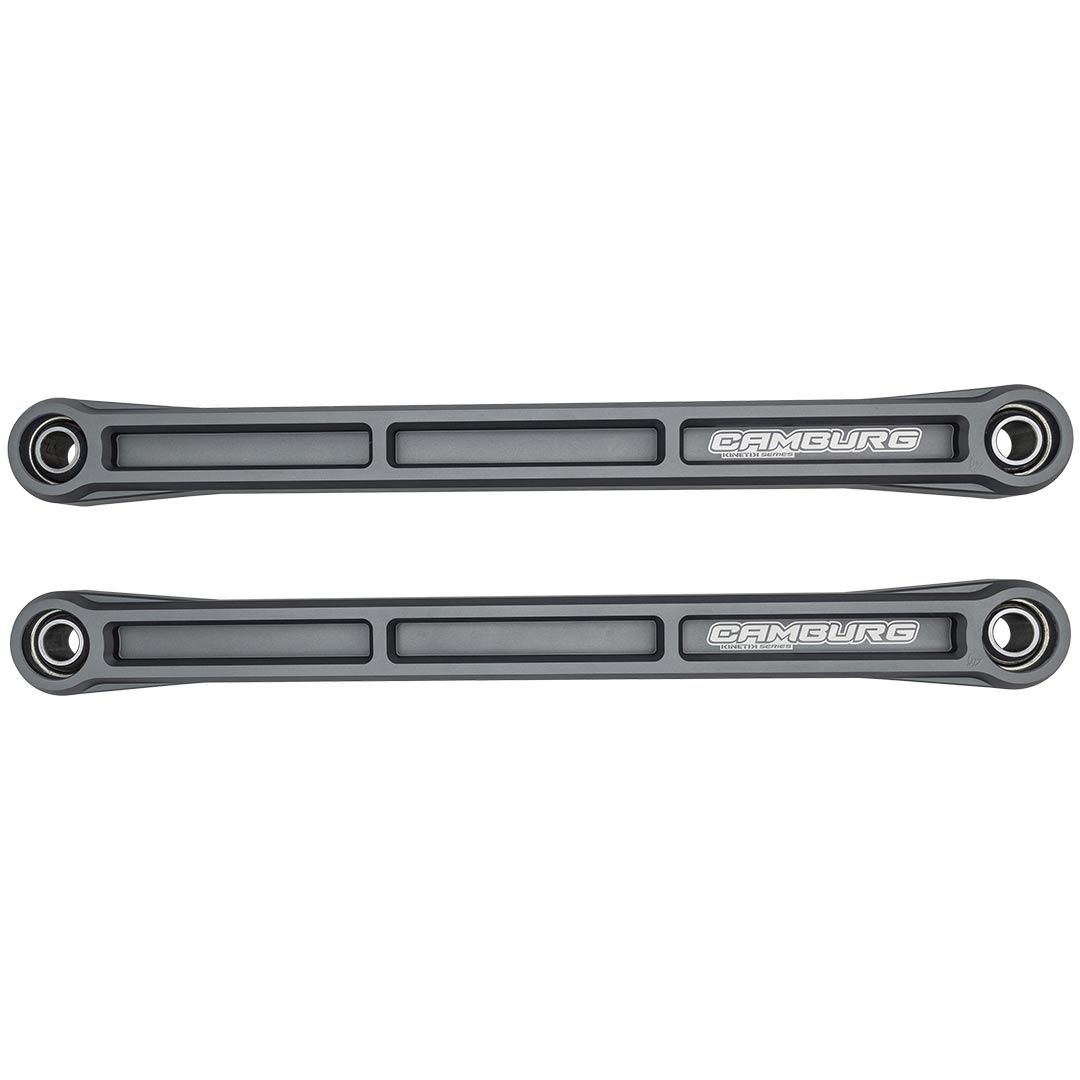

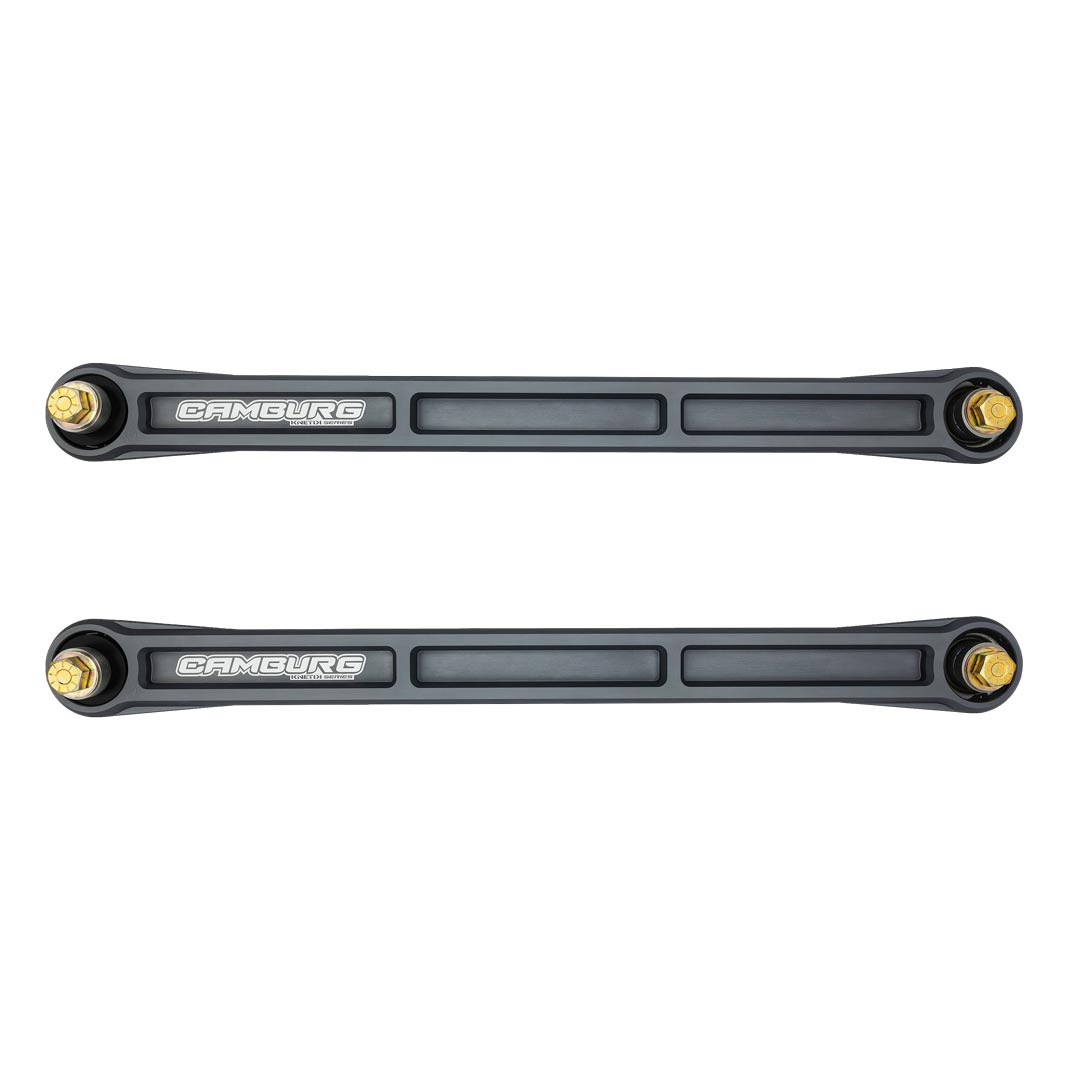

Camburg KINETIK series billet aluminum uniball trailing arms for 2021-2024 Ford Bronco (does not fit Raptor). These aerospace quality 6061-T6 aluminum arms are a worthwhile upgrade from OEM rear lower trailing arms which are prone to damage and have limited wheel travel/articulation.
WHAT’S INCLUDED:
Billet uniball lower trailing arms (2)
Stainless uniball spacers (8)
Delrin uniball pivot wobble stoppers (4)
Grade 9 hardware
INSTALL NOTES:
-You will need to cut the stock front driver-side bolt or drop the gas tank to remove the bolt due to the OEM bolt length and orientation. We recommend cutting the bolt. We supply stronger Grade 9 bolts to replace the OEM bolts and change the orientation for easy installation and removal if need be.
-Does not fit the Bronco Raptor
-These require offset lower shock spacers when running with King 2.5 coilovers.
Lift amounts, tire and wheel sizing, suspension specifications, etc. are generalized as they can vary slightly from vehicle to vehicle with so many production variables between manufactures, products and vehicle options/packages from the factory. We’re supplying you the best information at our disposable along with the information supplied to us from the brands we sell. With so many variables of wheel size, offset/backspacing, tire size, brands and styles, the amount of lift and specific suspension components installed, etc., you may need to trim plastic/sheet metal and/or modify the body mount behind the front tires to eliminate tire rubbing.
MANUFACTURER’S DESCRIPTION
We’ve got a ton of testing on the new Ford Bronco and one of the weak links we found is the OEM rear lower trailing arms. They’re prone to damage as well as limiting wheel travel and articulation. Our KINETIK series billet aluminum uniball trailing arms take your rig to the ultimate level. We machine these in-house from aerospace quality 6061-T6 aluminum and our pocketed design decreases weight without compromising strength. Then send them out to be bead blasted, Type II anodized our Camburg gray and have our Camburg logo laser etched white.

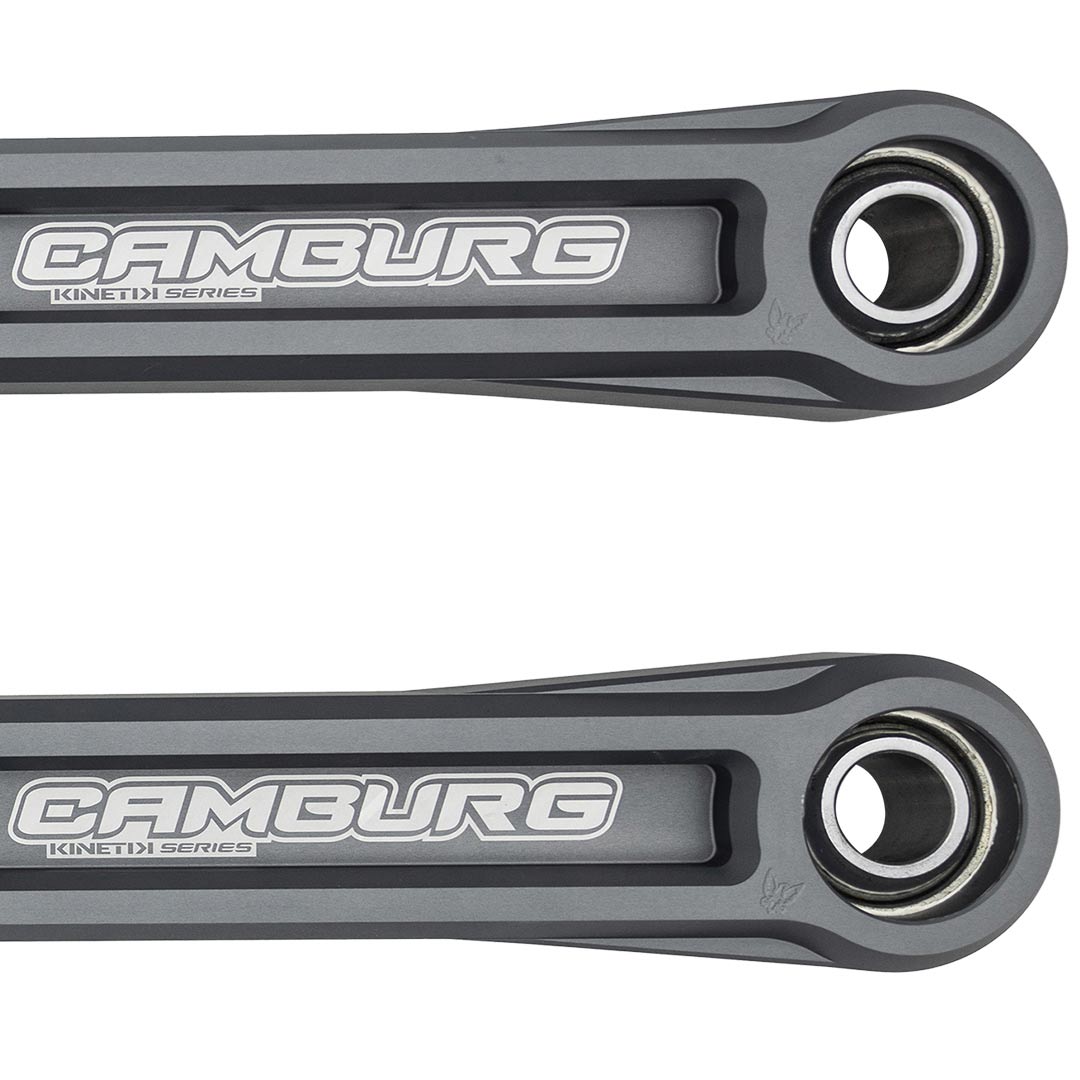

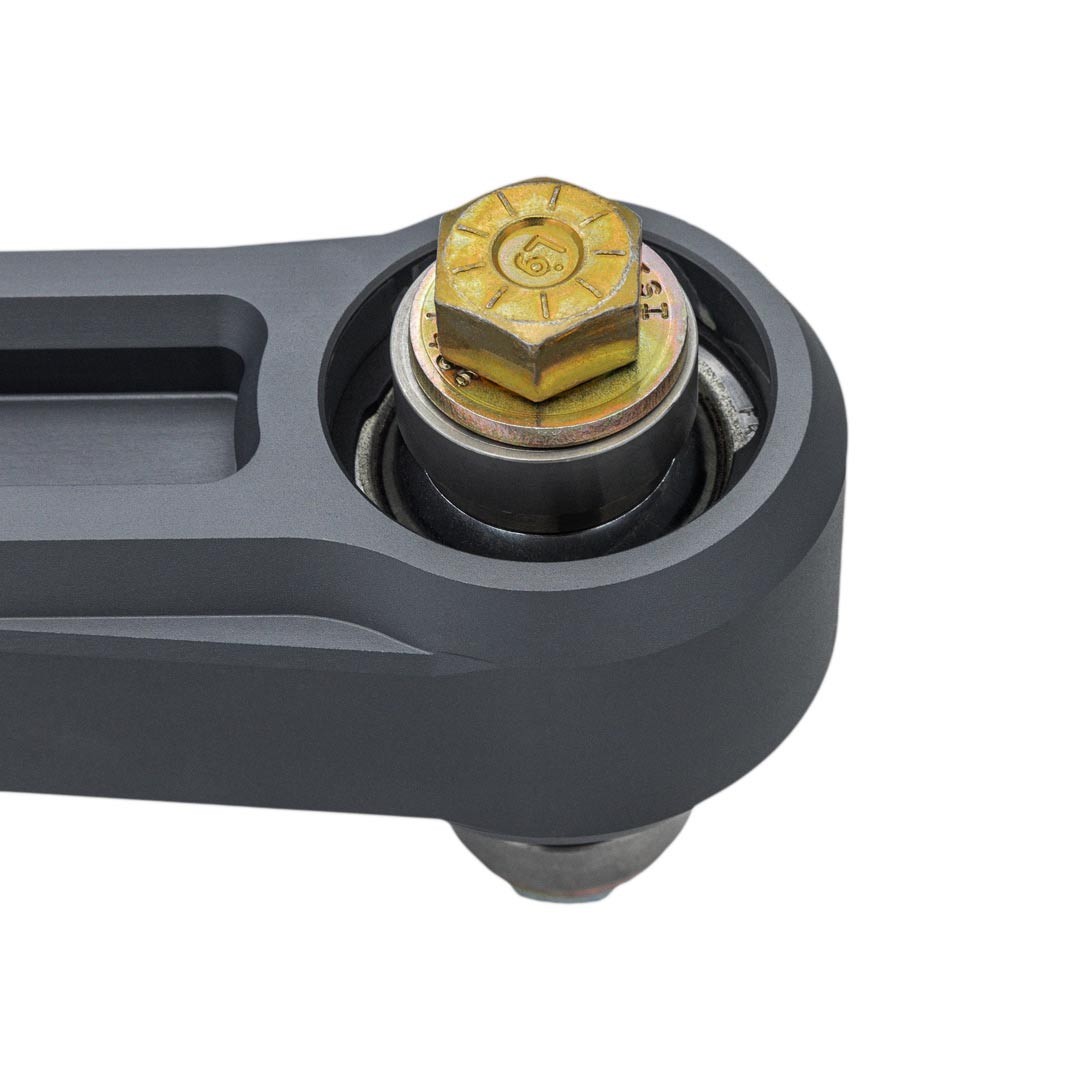

With FK 1″ uniball bearing pivots front and rear, these precision bearings allow for zero flex or binding with maximum articulation and wheel travel. Taken from our race link kits, we also supply delrin “wobble stoppers” for the front pivots that keep the lower arms positioned vertically throughout the suspension cycle. We supply stronger Grade 9 bolts and hardware for the pivots as well.

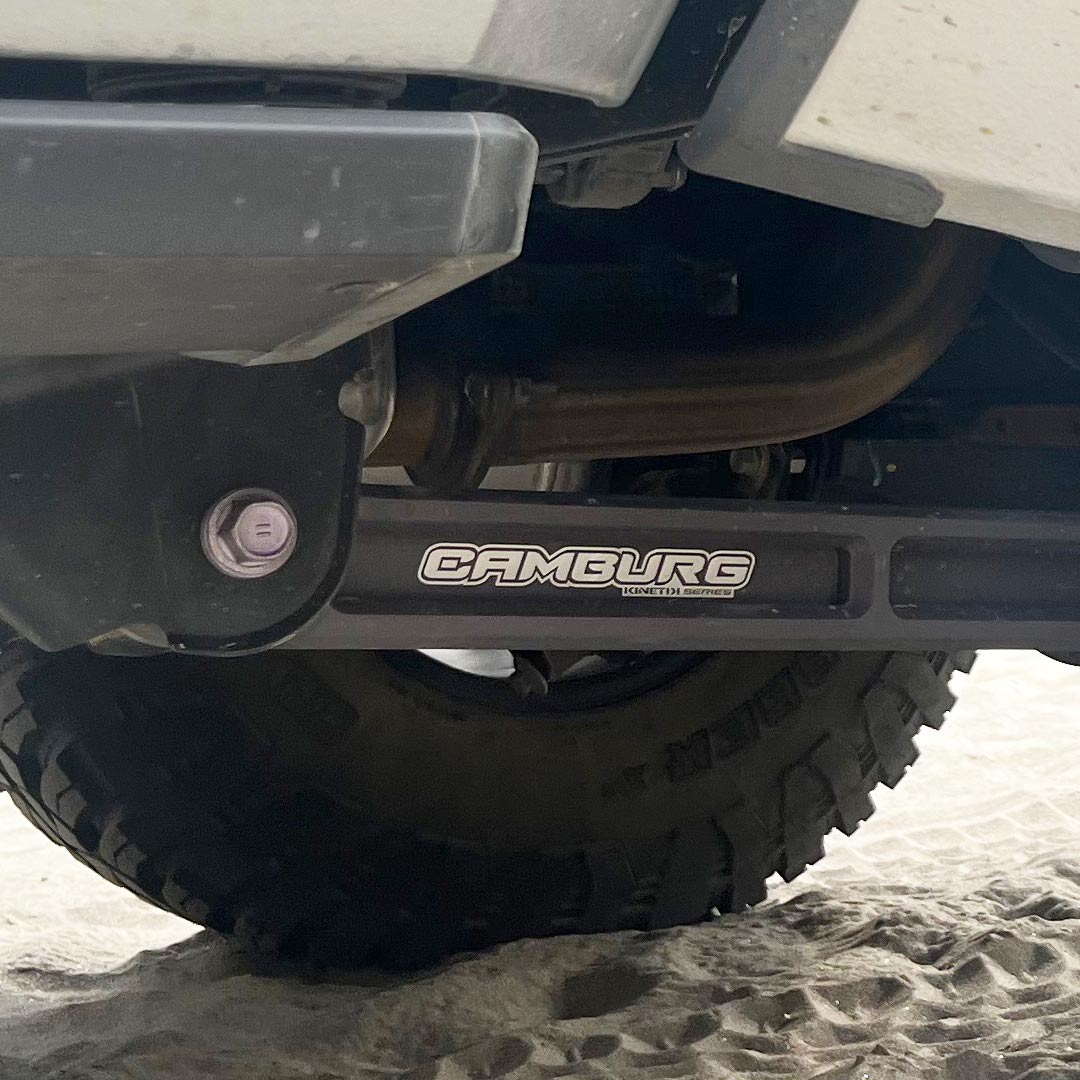

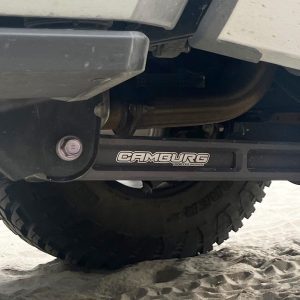

Adding our trailing arm kit to your Bronco is an easy bolt-on project that will make a significant improvement for off-road use and includes all the necessary hardware.
FK 1″ uniball bearing pivots
CNC machined from 6061 aluminum
Maximum articulation & wheel travel
Stronger Grade 9 hardware
Made in the USA
Does not fit the Bronco Raptor
These require offset lower shock spacers when running with King 2.5 coilovers.
