Description

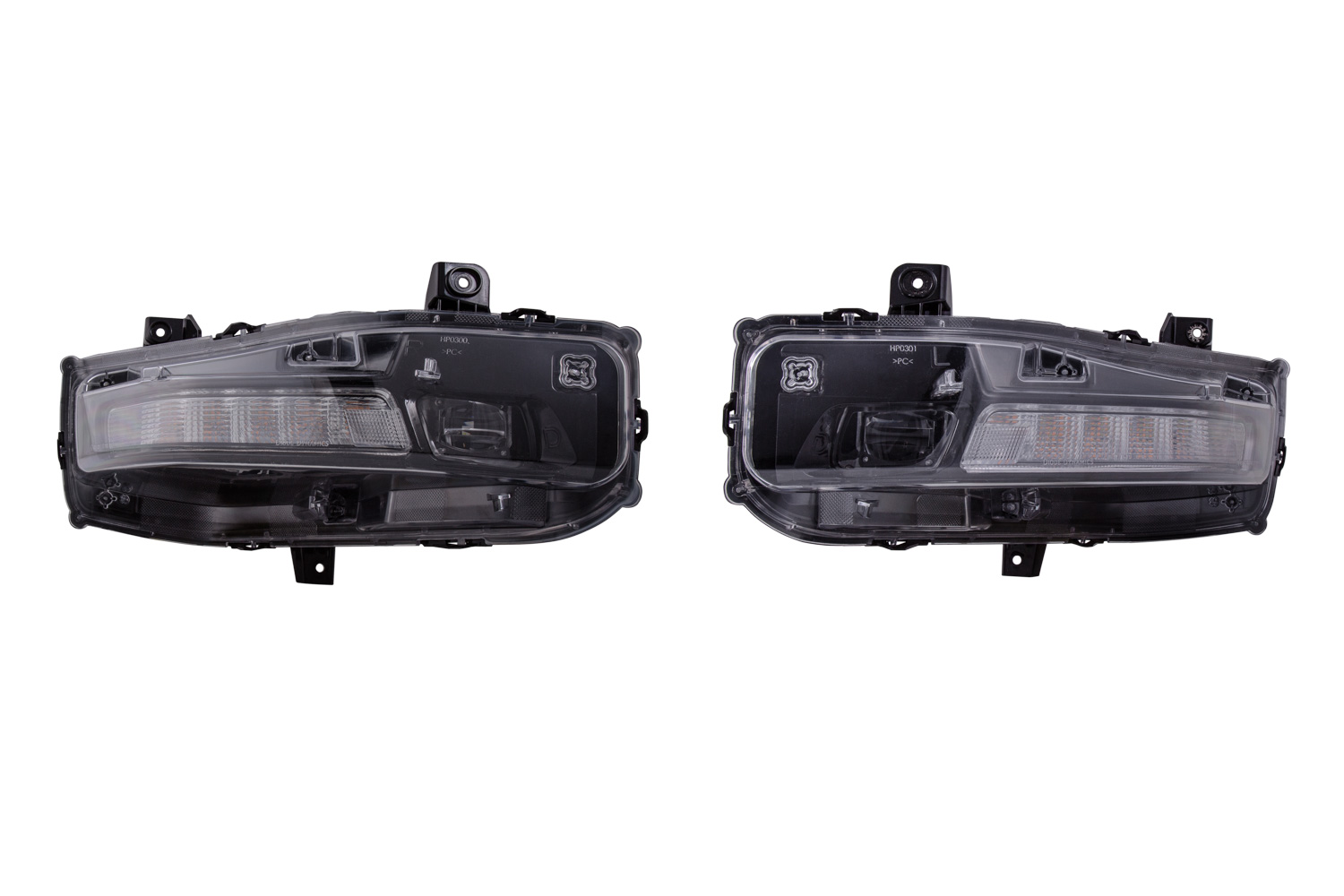

The Diode Dynamics™ DD5132 Elite Series Combination Turn/Fog Lamp set is a direct-fit replacement for the factory combination fog lamp housings on the 2018–2023 Ford Mustang (USDM), adding a sequential LED turn signal, a high-power LED daytime running light function, and a redesigned 6000K cool white fog beam in a gloss black housing; sold as a pair and includes the lamp assemblies with OEM-style connectors and DRL harness.
IMPORTANT: This lamp set is not compatible with Mustang GT350, GT350R, GT500, or Mach 1 models, and is not compatible with EU/AU-market Mustangs. Confirm your Mustang is a USDM 2018–2023 GT, EcoBoost, or V6 model before ordering. The DRL function requires connection to the included harness at the factory headlight connector; review the installation instructions before beginning the install. Diode Dynamics’ 8-Year Limited Warranty on this lamp assembly covers the housing and LED function only — it does not cover the wiring harness, lens covers, or other accessories used with the assembly.

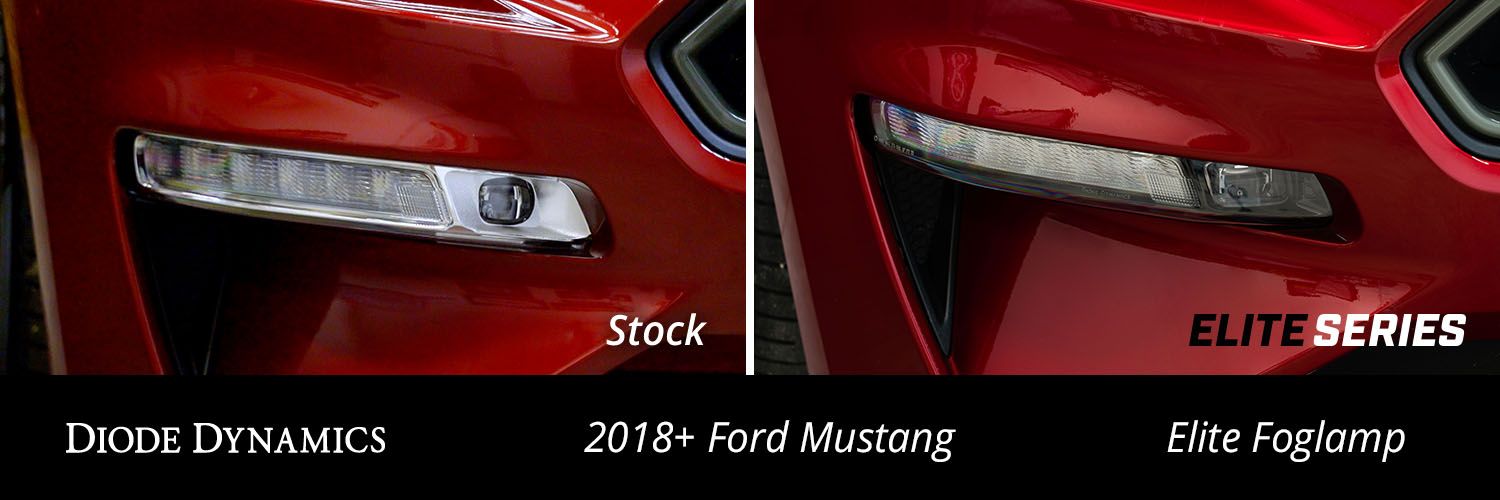

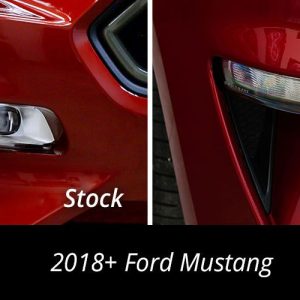

This is an Elite Series product from Diode Dynamics™, designed and assembled in the USA as a plug-and-play replacement for the OEM combination fog lamp housings. A gloss black bezel finish replaces the OEM chrome trim to match the blacked-out look of the factory headlights, and the housings are built from a 3D scan of the factory part for an exact OEM fitment using factory connectors.

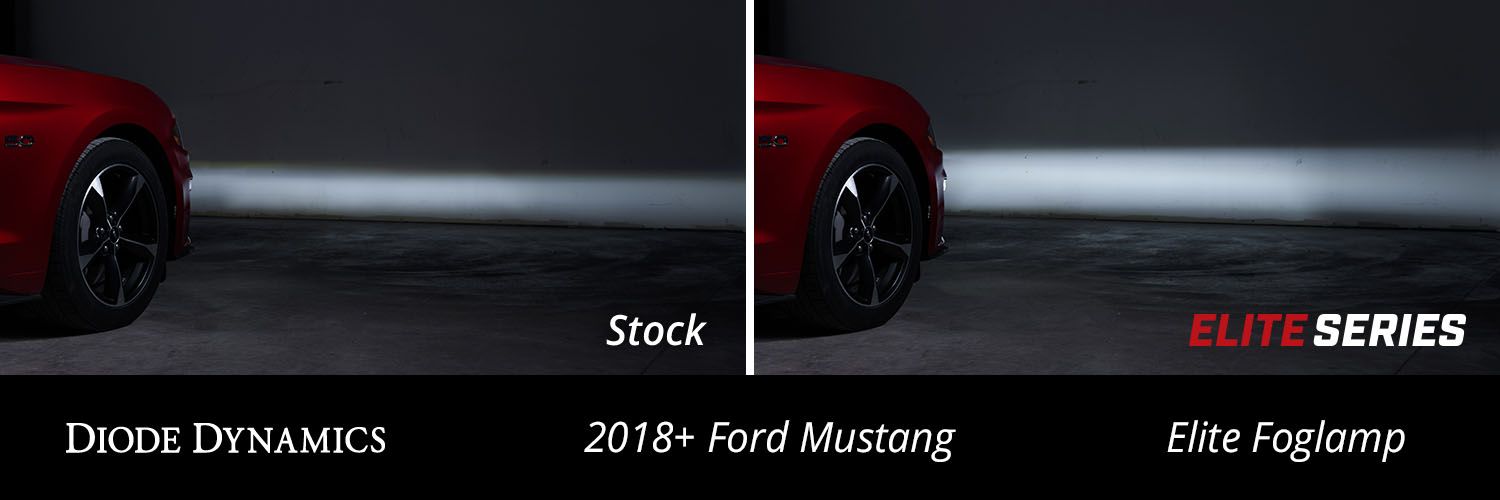

The fog light optic has been completely redesigned with a larger lens, sharper beam cutoff, and wider beam pattern, increasing output by 30% over the stock fog lamp. The fog function uses a 6000K cool white color temperature to match the factory headlights. Each lamp also operates as a high-power LED daytime running light when connected to the included harness, giving daytime visibility well beyond the stock setup.

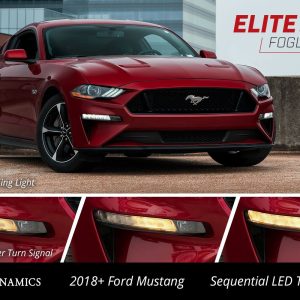

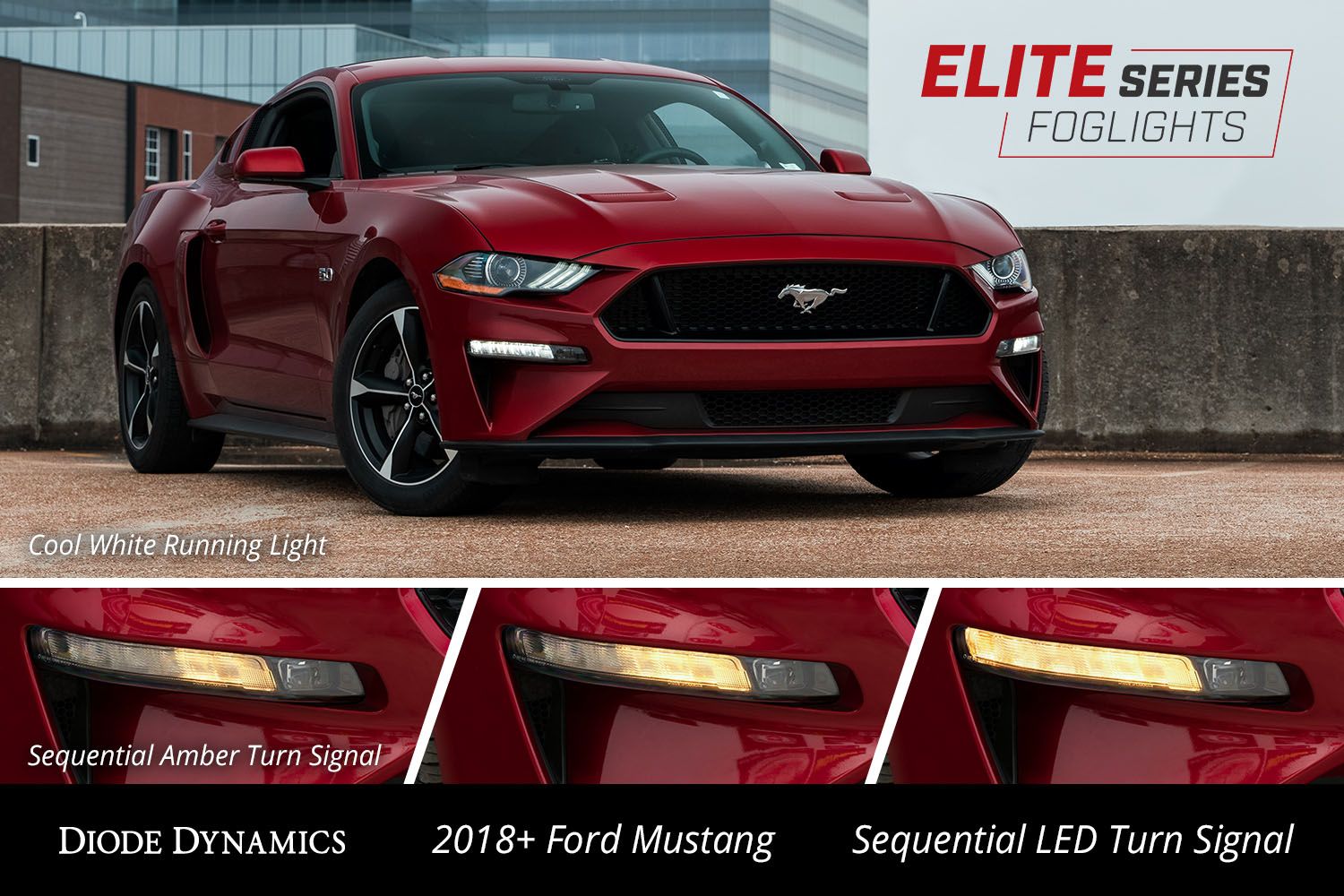

The turn signal function uses sequential LED segments with a programmable blink pattern, selectable via an integrated switch between U.S. sequential rate (matching the factory USDM tail lights), a faster E.U. sequential rate, and a static non-sequential mode. Unlocking, locking, or opening the doors also triggers a unique animated startup sequence as the lamps sweep on before settling to full brightness.
Diode Dynamics builds these lamps with constant-current circuitry and transient voltage protection for flicker-free, long-term reliability, and tests them to SAE/DOT standards across a -40°F to 185°F operating range along with vibration and corrosion testing. The lamp assembly carries Diode Dynamics’ 8-Year Limited Warranty (3-year replacement, plus 5 additional years against functional defects), in addition to the standard 3-Year Replacement Limited Warranty — full terms apply to the housing and LED function, not to wiring, harnesses, or lens covers.
- Direct fit for 2018–2023 Ford Mustang GT, EcoBoost, and V6 (USDM) — not compatible with GT350, GT350R, GT500, Mach 1, or EU/AU models
- 6000K cool white fog beam, redesigned optic with 30% more output, sharper cutoff, and wider pattern than stock
- Sequential amber LED turn signal with selectable U.S./E.U./static blink pattern
- Operates as a high-power LED daytime running light via included harness connection
- Unique animated startup sequence on lock, unlock, or door open
- Gloss black bezel housing matches factory headlight finish
- OEM-style connectors for plug-and-play installation, no cutting or splicing required
- Constant-current circuitry with transient voltage protection for flicker-free operation
- Engineered and assembled in the USA

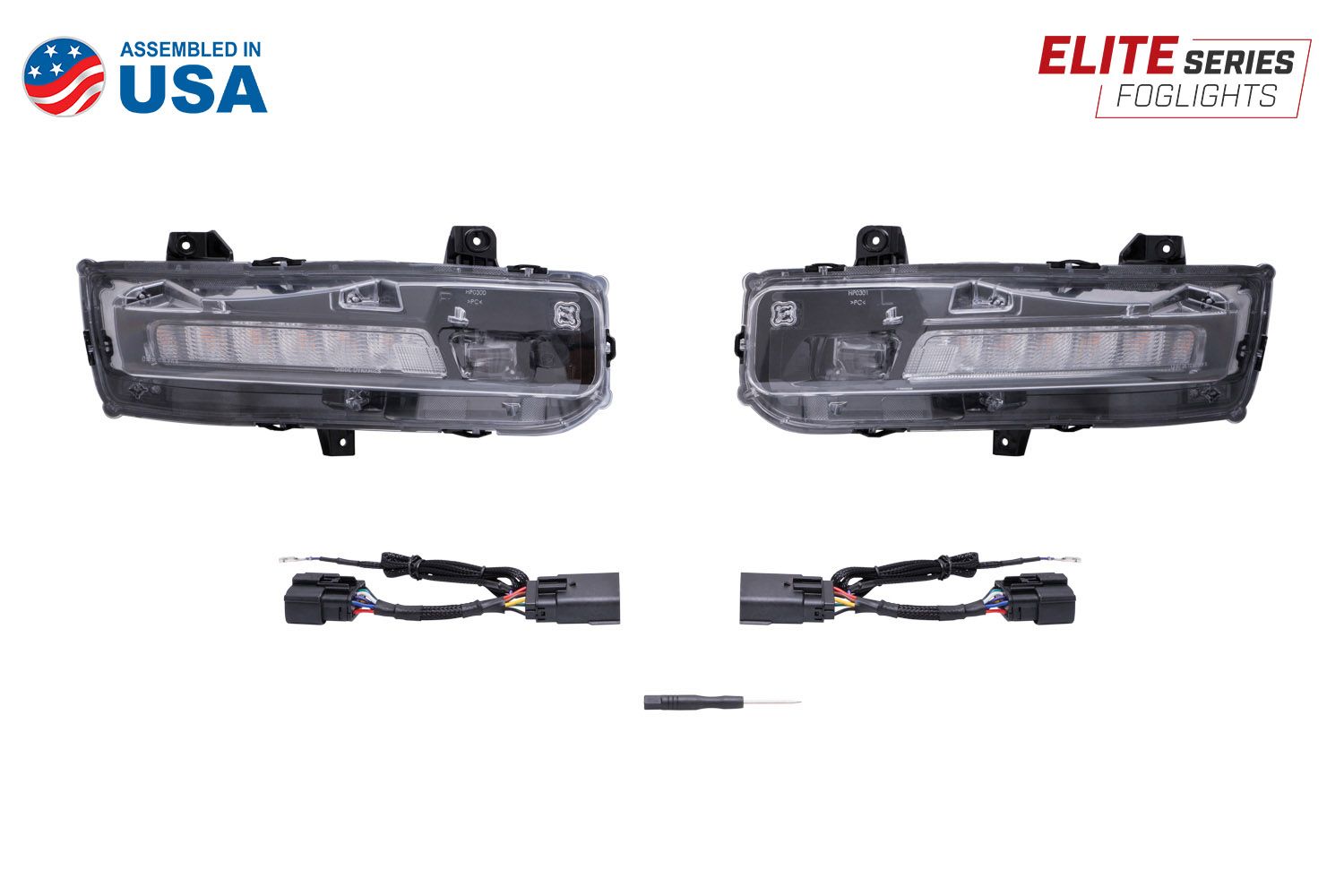

- What’s Included: (2) DD5132 combination fog/turn/DRL lamp assemblies with OEM-style connectors and DRL harness
- 8-Year Limited Warranty on lamp assembly (housing/LED function); standard 3-Year Replacement Limited Warranty on full product
- Sold as a pair
| Brand | Diode Dynamics |
| Part Number | DD5132 |
| Product Line | Elite Series Combination Turn/Fog Lamp |
| Color Temperature (Fog/DRL) | 6000K Cool White |
| Turn Signal Color | Amber, sequential LED |
| Turn Signal Modes | U.S. sequential, E.U. sequential, static (selectable) |
| Housing Finish | Gloss black bezel |
| Functions | Fog light, daytime running light, sequential turn signal, startup animation |
| Connector Type | OEM-style, plug-and-play |
| Circuitry | Constant-current with transient voltage protection |
| Operating Temperature Range | -40°F to 185°F |
| Testing Standards | SAE/DOT, vibration and corrosion tested |
| Country of Assembly | USA |
| What’s Included | (2) DD5132 lamp assemblies with OEM-style connectors and DRL harness |
| Warranty | 8-Year Limited Warranty (lamp assembly); 3-Year Replacement Limited Warranty (full product) |
| Sold As | Pair |
This lamp set fits 2018–2023 Ford Mustang GT, EcoBoost, and V6 models (USDM) as a direct replacement for the factory combination fog lamp housing — no cutting, splicing, or modification required. This lamp set is not compatible with Mustang GT350, GT350R, GT500, Mach 1, or EU/AU-market vehicles — verify your trim before ordering, as these excluded models use different housing configurations. Installation uses the factory mounting points and OEM-style connectors, with the included harness required for DRL function.
