Diode Dynamics™ Elite Series Type B Fog Lamps White Pair SAE J583 DD5134P

Description

Diode Dynamics part number DD5134P is the Elite Series Type B Fog Lamps in white (6000K), sold as a pair, featuring a custom-engineered toroidal lens, multi-die automotive emitters, an integrated amber backlight, and SAE J583-compliant output up to five times greater than standard halogen fog lamps — covering a wide range of Toyota, Lexus, and Subaru applications from 2006 through 2023.

IMPORTANT: DD5134P is the white (6000K) output variant. An identical selective yellow (3000K) version is also available from Diode Dynamics as DD5137P. Additionally, Diode Dynamics offers other Elite Series housing types (Type A, Type C, etc.) for vehicles that do not use the Type B profile. Verify that Type B in white is the correct fog lamp housing and color for your specific year, make, and model before purchasing. If your vehicle does not have factory-installed fog lamps, additional hardware and wiring may be required for installation.

Factory fog lights are built to satisfy minimum output requirements, and most aftermarket LED replacements simply replicate that same baseline performance in an LED package — the focus has been on LED appearance, not increased output. The Diode Dynamics Elite Series was the first OE-style fog lamp designed from the ground up for genuine performance. With a custom-engineered patent-pending optic, multi-die automotive emitters, and high-power full-copper circuit boards, the Elite Series delivers up to five times more output than halogen lamps while remaining a direct, plug-and-play replacement for the factory housing.

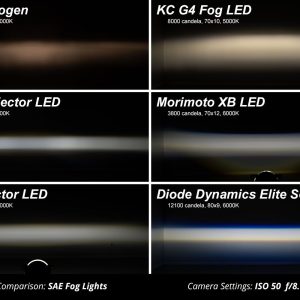

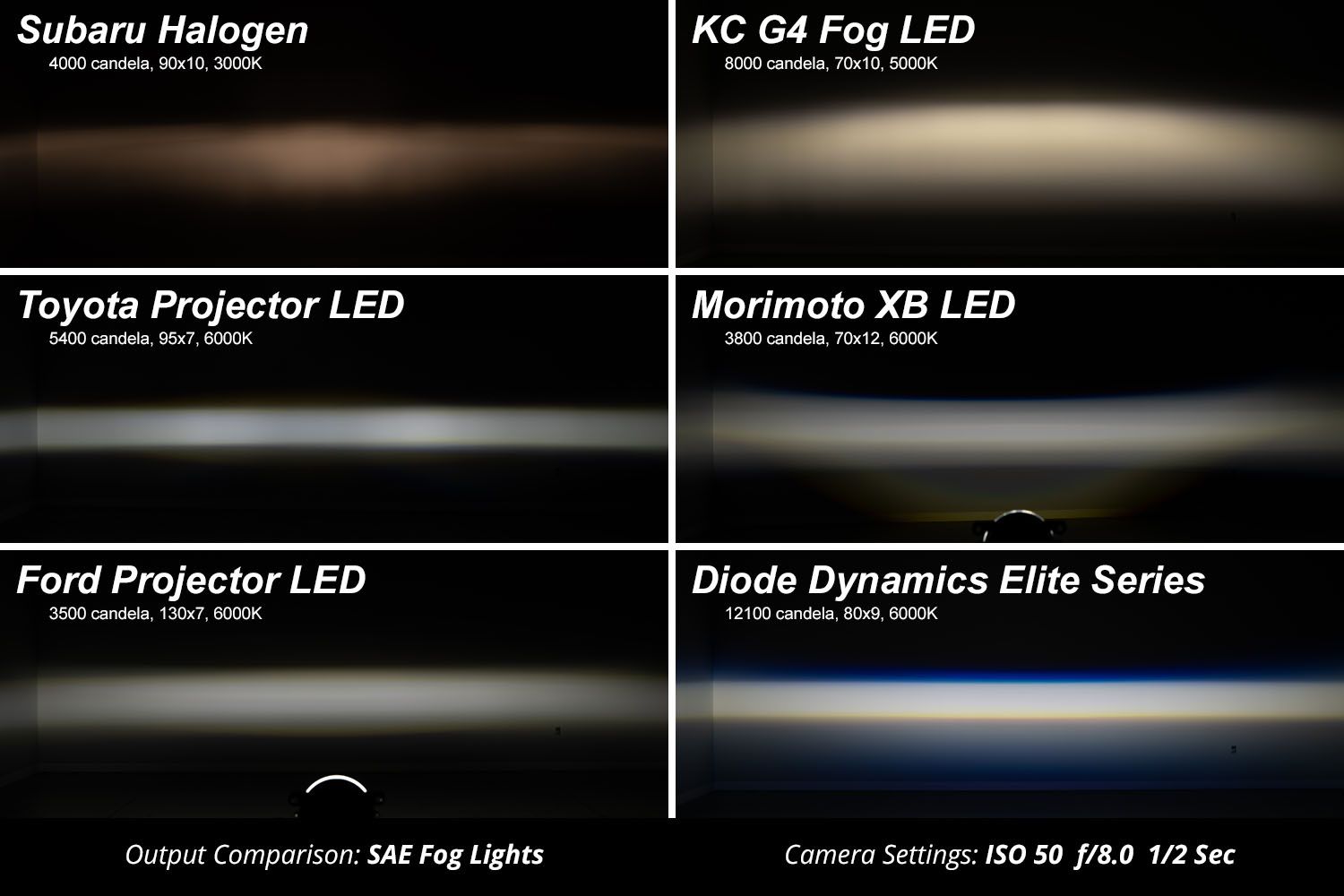

At the center of the Elite Series is a highly engineered single-piece toroidal lens, developed using advanced optical simulation software and housed in a precision aluminum casting with a UV-coated polycarbonate outer lens. The optic produces an 80-degree horizontal spread of highly intense light — wider than any competing aftermarket fog lamp — while maintaining a smooth, even distribution throughout the pattern. A sharp cutoff controls upper-beam scatter to prevent glare to oncoming drivers, with a characteristic BMW-style color gradation at the outer edge of the beam. The design meets SAE J583 foglamp beam pattern standards and SAE J575 durability requirements, making it road-legal. Check local laws and regulations for aiming, installation, and applicability. The white output (6000K) uses a cool white multi-die LED emitter for a true cool white that matches other LEDs on your vehicle such as DRLs or running lights, and includes a premium BMW-style color band at the very top of the beam pattern. A selective yellow (3000K) version is also available as DD5137P for buyers who prefer high contrast in inclement weather or a distinctive look.

All Elite Series fog lamps include an integrated amber accent backlight that fully illuminates the main lens housing with amber LEDs, intended to match position, sidemarker, or corner lights on your vehicle. The backlight wires to any constant 12-volt source using the included tap connector and deactivates automatically when the main beam is activated. Check local laws and regulations for acceptable use. Each lamp is assembled by Diode Dynamics in St. Louis, Missouri using OEM-grade materials, then robotically sealed with urethane epoxy for long-lasting moisture protection. The lamps have been extensively tested for operation from -40°F to 185°F, along with vibration, moisture intrusion, and corrosion testing to SAE standards. Integrated moisture-proof vents allow the housing to breathe with temperature changes while maintaining the seal, and built-in circuit protection guards against voltage spikes and reverse polarity. The Elite Series is backed by an industry-leading 8-year limited warranty.

• Fits 2006–2023 Toyota and Lexus models and 2015–2017 Subaru Legacy using the Type B fog lamp housing — see full fitment list below; sold as a left and right pair
• Custom-engineered patent-pending toroidal optic; 80° x 6° fog beam pattern; SAE J583 beam pattern compliant; SAE J575 durability tested
• White output: 1,850 lm raw, 10,200 cd intensity, 6,000K color temperature; yellow variant (DD5137P): 1,650 lm, 8,700 cd, 3,000K
• Main beam power: 17W (white) / 15W (yellow); backlight: 0.3W; operating voltage: 9–16V; IP68 waterproof rated

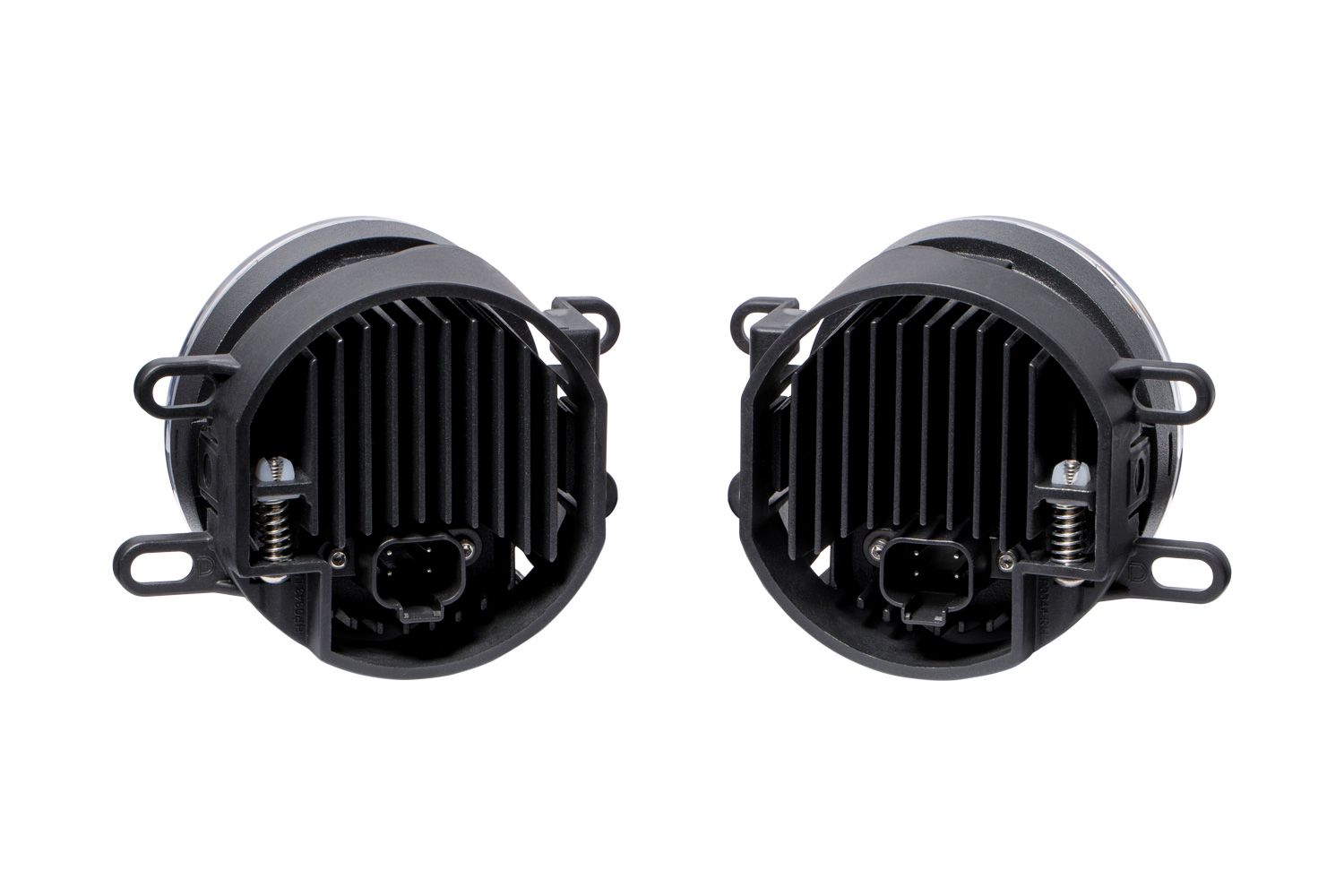

• Precision aluminum casting; UV-coated polycarbonate outer lens; full-copper circuit board; passive pin-fin heatsink cooling
• Integrated amber backlight wires to any constant 12V source via included tap connector; deactivates when main beam is on
• Plug-and-play main beam connection to factory bulb sockets; no wiring modification required
• Glass-fiber-reinforced mounting brackets; built-in aim adjustment after installation; robotically sealed with urethane epoxy
• Assembled in St. Louis, Missouri, USA; tested to SAE J575 durability standards including vibration, moisture, and corrosion
• This kit is a replacement for factory-equipped fog lamp assemblies. If your vehicle does not have factory fog lamps, additional hardware and wiring may be required.
• 8-year limited warranty

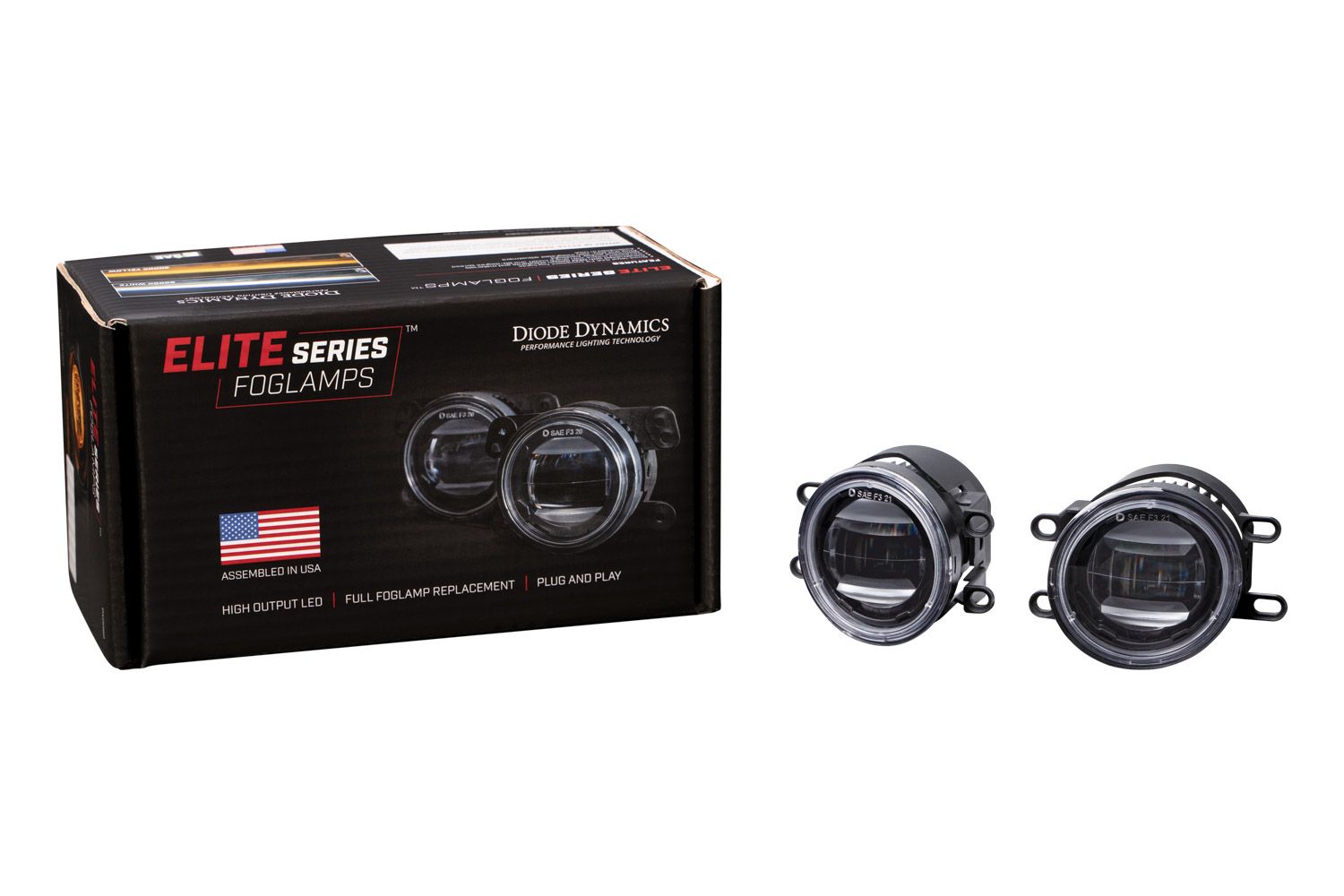

• Sold as a pair (left and right)

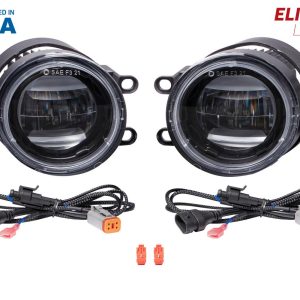

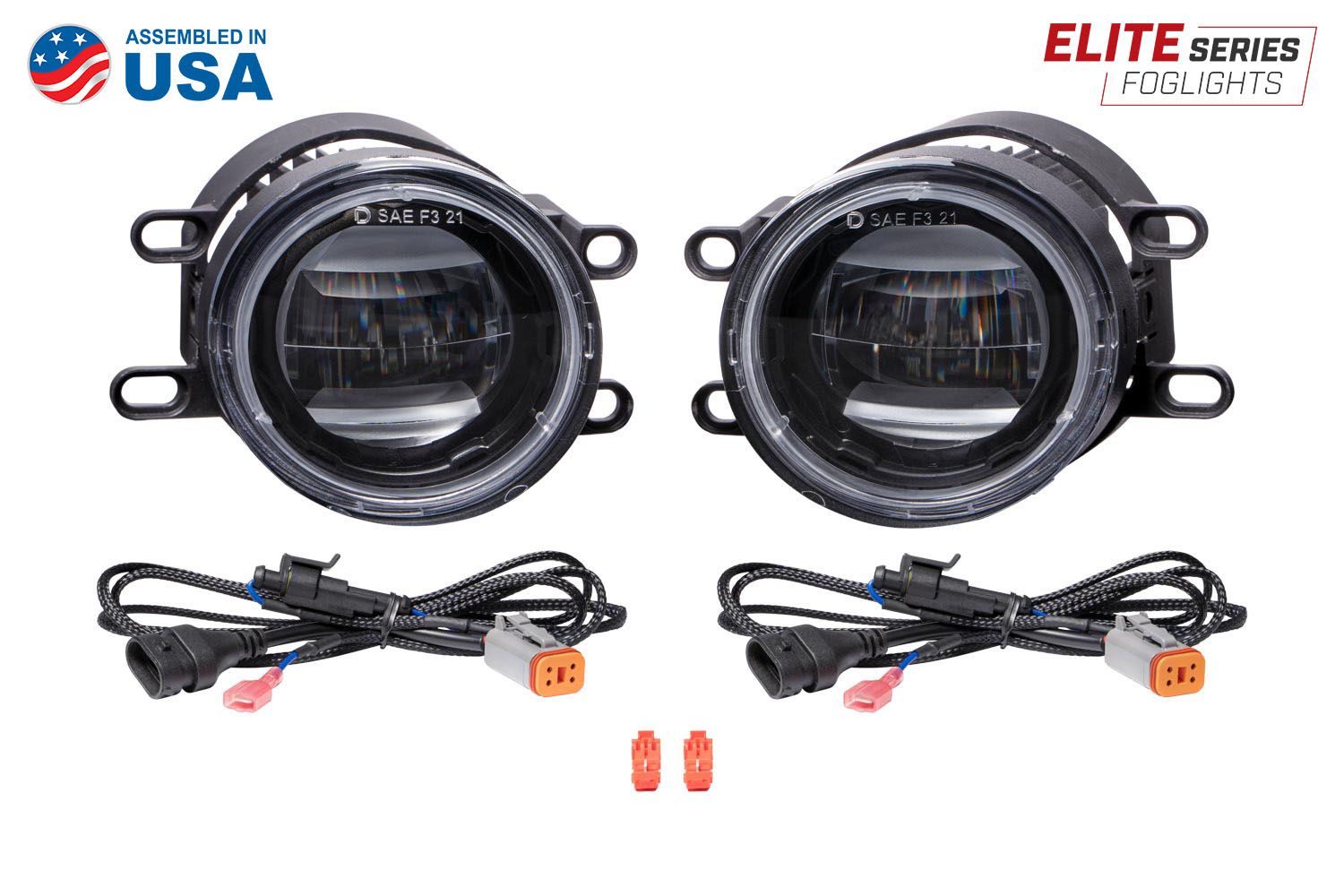

Kit Contents

• 2x Elite Series Type B fog lamps (white)
• 2x H11 4-pin DT backlight tap wires
• 2x T-tap connectors
• Mounting guide

Fitment

DD5134P fits the following vehicles as a direct OEM fog lamp replacement. All listed vehicles must have factory-installed fog lamps; vehicles without factory fog lamps may require additional hardware and wiring for installation.
