Description
The Diode Dynamics™ DD6893P is the SS3 Stage Series 3″ SAE Yellow Pro LED Pod, sold as a pair, delivering 5,796 raw lumens and 2,700 measured lumens per pod at 36 watts in a selective yellow 3000K output — designed for high-contrast illumination in fog, rain, dust, and low-visibility conditions; includes two pods (each with integrated 6-inch Deutsch-style pigtail and bare leads) and two adjustable mounting brackets with hardware; wiring harness sold separately.
IMPORTANT: DD6893P is the selective yellow (3000K) Combo/Driving beam pattern version of the SS3 Pro LED Pod pair with Amber Backlight. If you are looking for the cool white (6000K) Combo/Driving version, see DD6886P. Other beam patterns (SAE Driving, SAE Fog, Flood, Spot) and backlight colors are available as separate Diode Dynamics™ SS3 Pro SKUs. A compatible wiring harness (sold separately) is required for installation; see Diode Dynamics™ Light Duty or Heavy Duty Dual Output Harnesses.

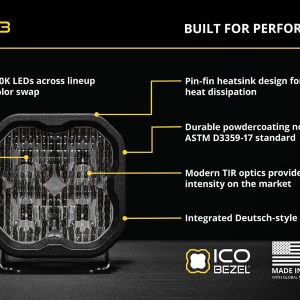

The SS3 is built around a custom-engineered Total Internal Reflection (TIR) optic that collects all emitted light from the LED source and directs it precisely on target, eliminating the internal losses and glare associated with traditional reflector or lens-based designs. Unlike competing pods that lose up to 10% of output through a separate outer lens, the SS3’s TIR optic functions as both the primary optic and outer lens simultaneously — a patent-pending design that maximizes delivered intensity from a compact 3-inch form factor.
The selective yellow 3000K output of the DD6893P is purpose-engineered for poor-weather driving. Yellow light scatters less in fog, rain, and dust than cool white, delivering higher perceived contrast and reduced glare back toward the driver. When installed as a pair and aimed to state regulations, the SAE Fog pattern meets SAE J583 standard as a legal on-road foglamp; the SAE Driving pattern meets SAE J581 as a Driving/Auxiliary High Beam Light. All beam patterns were developed using optical simulation modeling to produce functional, real-world-useful spread rather than raw lumen numbers optimized for spec sheets.

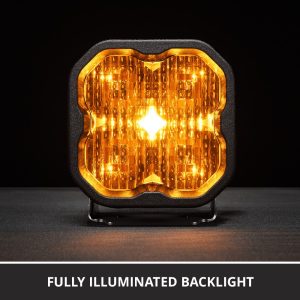

The SS3 Pro features a distinctive amber backlight that fully illuminates the TIR optic housing for a modern accent appearance independent of the main beam. Each pod ships with a 6-inch pigtail and integrated DT-type Deutsch-style connector for clean, secure wiring. The aluminum housing is powder-coated for corrosion resistance and rated IP69K — sealed against high-pressure water intrusion. Operating range is -40°F to 185°F (-40°C to 85°C), and all Stage Series products are assembled in the United States and backed by Diode Dynamics™ warranty coverage.
- Universal Fit: No vehicle-specific mounting — compatible with trucks, Jeeps, SUVs, and off-road vehicles using standard 1.5-inch or compatible pod brackets (sold separately)
- Output: 2,700 measured lumens | 33,406 candela per light | 5,796 raw lumens per light
- Color: Selective Yellow — 3000K color temperature for high-contrast fog, rain, and dust performance
- Power: 36W main beam + 0.4W amber backlight per pod | 9–30V operating voltage
- TIR Optics: Custom-engineered Total Internal Reflection optic serves as both primary optic and outer lens — eliminates up to 10% output loss caused by a separate outer lens (patent pending)

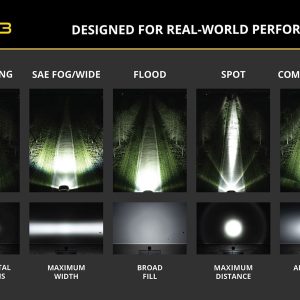

- Beam Pattern: Combo/Driving — 80°x30° spread combining focused driving optic for long-range illumination with flood optic for near-field fill
- SAE Compliance: SAE J575 Durability tested | SAE Fog pattern meets SAE J583 | SAE Driving pattern meets SAE J581 for legal on-road use (check local regulations)
- Backlight: Integrated amber accent backlight, powered via included harness pigtail
- Connector: Custom-molded DT-type Deutsch-style connector with 6-inch pigtail and bare leads
- Construction: Powder-coated aluminum housing | IP69K waterproof rating | -40°F to 185°F operating range
- Origin: Assembled in the United States with global materials

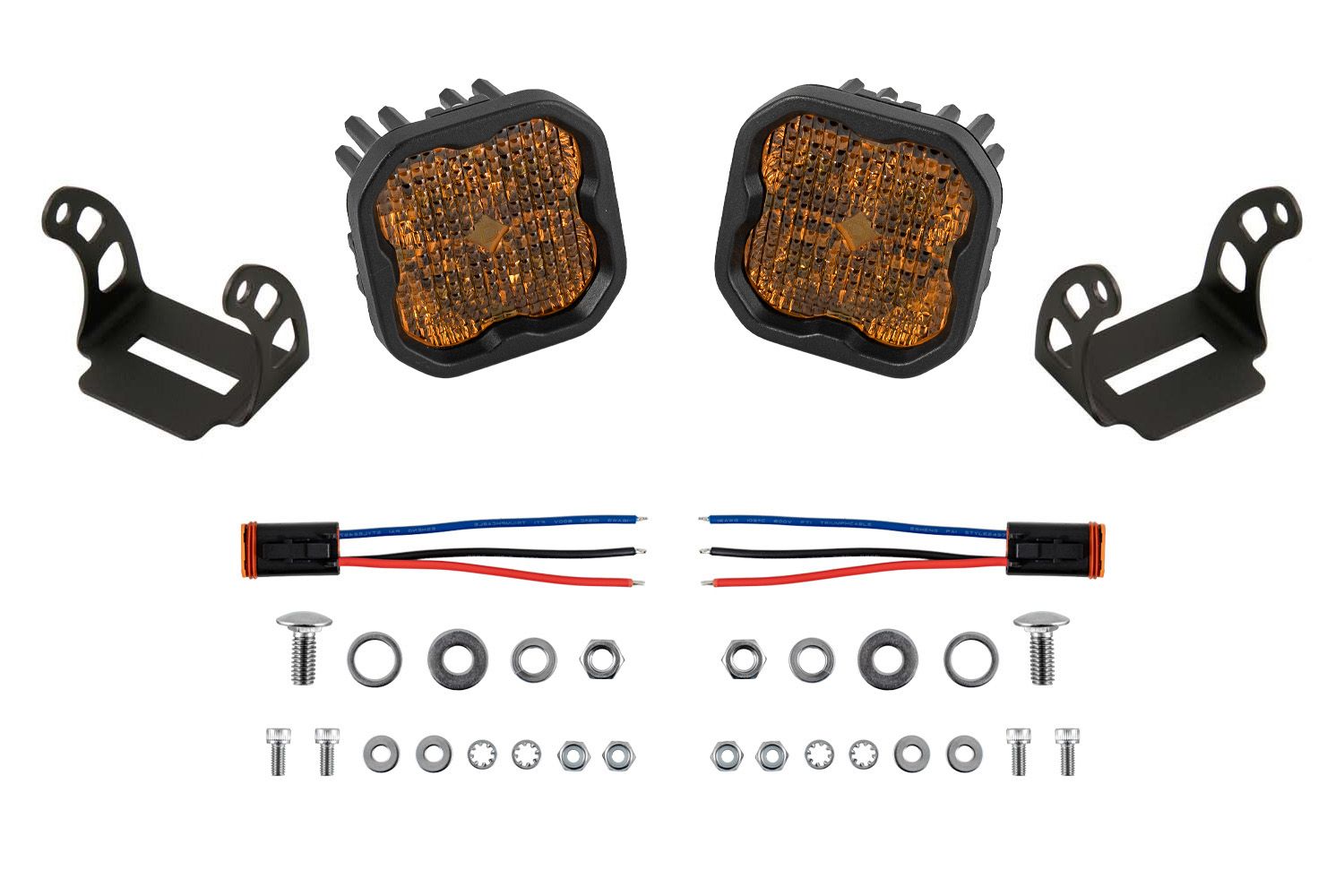

- Includes: 2 SS3 Pro LED pods (each with integrated 6-inch Deutsch-style pigtail and bare leads), 2 adjustable mounting brackets with hardware — wiring harness sold separately
- Harness: Wiring harness sold separately — Light Duty Dual Output Harness (up to 2 pods) or Heavy Duty Dual Output Harness with DT Splitter (3+ pods)
- Warranty: Lifetime Limited Warranty
- Sold as a pair (2 pods)
| Part Number | DD6893P |
| Product Line | Stage Series SS3 |
| Pod Size | 3 inches |
| Tier | Pro |
| Color Temperature | 3000K Selective Yellow |
| Backlight Color | Amber |
| Beam Pattern | Combo/Driving |
| Combo/Driving Beam Angle | 80°x30° |
| LEDs per Pod | 9 |
| Input Power — Main Beam | 36 watts |
| Input Power — Backlight | 0.4 watts |
| Operating Voltage | 9–30V |
| Raw Output (per pod) | 5,796 lumens |
| Measured Output (per pod) | 2,700 lumens |
| Intensity | 33,406 candela per light |
| SAE Compliance | SAE J575 Durability | SAE J583 Fog | SAE J581 Driving |
| Waterproof Rating | IP69K (high-pressure waterproof) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Connector | Integrated DT-type Deutsch-style, push-type |
| Pigtail Length | 6 inches with bare leads |
| Housing Material | Powder-coated aluminum |
| Housing Color | Matte Black |
| What’s Included | 2 SS3 Pro LED pods (each with integrated 6-inch Deutsch-style pigtail and bare leads), 2 adjustable mounting brackets with hardware |
| Wiring Harness | Sold separately — Light Duty Dual Output Harness (up to 2 pods) or Heavy Duty Dual Output Harness with DT Splitter (3+ pods) |
| Country of Assembly | USA (with global materials) |
| Warranty | Lifetime Limited |
| Quantity | Pair (2 pods) |
| Prop 65 | Yes |
The DD6893P SS3 Pro Yellow Combo/Driving LED Pod pair is a universal-fit auxiliary lighting product compatible with any vehicle that accepts standard pod-style auxiliary light brackets. No vehicle-specific fitment applies — mounting hardware and brackets are sold separately. This SKU is fixed in the Combo/Driving beam pattern with Amber Backlight. Other beam patterns and the white (6000K) equivalent (DD6886P) are available as separate Diode Dynamics™ SS3 Pro SKUs.
