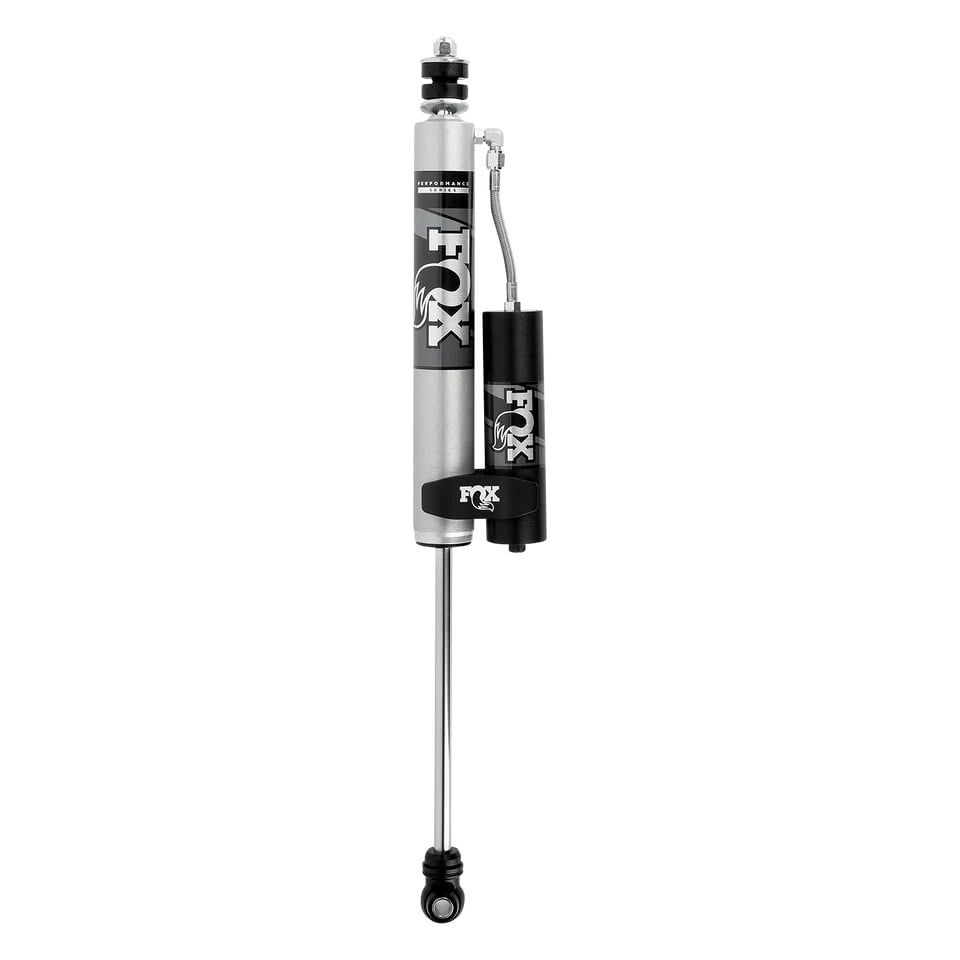

Part number 985-24-162 is the FOX® 2.0 Performance Series smooth body remote reservoir front shock for 2017-2026 Ford F-250 Super Duty and F-350 Super Duty 4WD trucks, with 9.25 inches of travel and a universal bracket included.
IMPORTANT: Lift height for this shock varies by model year and trim. On 2017-2019 trucks it fits 2.5 inch front lift; on 2020-2026 non-Tremor trucks it fits 2.5-3.5 inch front lift; on 2020-2026 Tremor package trucks it fits 1-1.5 inch front lift. FOX® also offers this same front position in two other lift heights for the same 2017-2026 platform: part number 985-24-161 (1-2 inch lift, 0 inch on Tremor) and part number 985-24-164 (6-7 inch lift, 5 inch on Tremor). Confirm your truck’s model year, trim, and actual front lift height before ordering.
The aluminum-bodied Performance Series 2.0 Reservoir shock delivers race-proven damping technology from FOX® in a bolt-on package. Its 2.0 inch impact-extruded 6061-T6 aluminum body dissipates heat faster than a conventional steel-bodied shock, helping maintain consistent damping performance during sustained off-road use or towing.
An external reservoir increases oil and nitrogen capacity beyond what a standard monotube shock can hold, further improving heat dissipation and fade resistance. The included universal mounting bracket and other components are CNC-machined from 6061-T6 aluminum for durability.
A race-developed high-flow damping piston paired with application-specific valving delivers predictable ride quality over rough terrain. The 5/8 inch shaft is hard chrome plated heat-treated alloy steel, sealed by a redundant sealing pack with main, wiper, and scraper seals, and the shock is backed by the FOX® Limited Lifetime Warranty.
- Fits 2017-2026 Ford F-250 Super Duty (4WD, all trims) and 2017-2026 Ford F-350 Super Duty (4WD, all trims), front position: 2.5 inch lift (2017-2019), 2.5-3.5 inch lift (2020-2026 non-Tremor), 1-1.5 inch lift (2020-2026 Tremor)
- Aluminum body dissipates heat faster than steel for consistent damping under load
- External reservoir increases oil and nitrogen capacity for improved fade resistance
- Includes universal mounting bracket, CNC-machined 6061-T6 aluminum
- Race-developed high-flow piston with application-specific valving
- Redundant sealing pack: main seal, wiper seal, scraper seal
- What’s Included: (1) FOX® 2.0 Performance Series front shock with universal bracket, part number 985-24-162
- Backed by the FOX® Limited Lifetime Warranty
- Sold individually
| Part Number | 985-24-162 |
| Series | Performance |
| Travel | 9.25 in |
| Position | Front |
| Lift Height | 2.5 in (2017-2019); 2.5-3.5 in (2020-2026 non-Tremor); 1-1.5 in (2020-2026 Tremor) |
| Body | 2.0″ impact extruded 6061-T6 aluminum |
| Body Plating | Clear-anodized for a durable finish |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system: main seal, wiper seal, scraper seal |
| Extended Length | 24 in |
| Compressed Length | 14.75 in |
| Top Mount | Stem Top |
| Bottom Mount | Eyelet |
| Fitment | 2017-2026 Ford F-250 Super Duty and F-350 Super Duty, 4WD, all trims, front, 2.5″ lift (17-19) / 2.5-3.5″ lift (20-26 non-Tremor) / 1-1.5″ lift (20-26 Tremor) |
| What’s Included | (1) FOX® 2.0 Performance Series front shock with universal bracket, part number 985-24-162 |
This shock is built for 2017-2026 Ford F-250 Super Duty and F-350 Super Duty trucks at the front lift height shown above for your specific model year and trim. Do not confuse this SKU with part number 985-24-161 (1-2 inch lift) or part number 985-24-164 (6-7 inch lift), the other FOX® front Performance Series shocks for the same platform and years, and select the shock matching your truck’s actual front lift height.
