Description

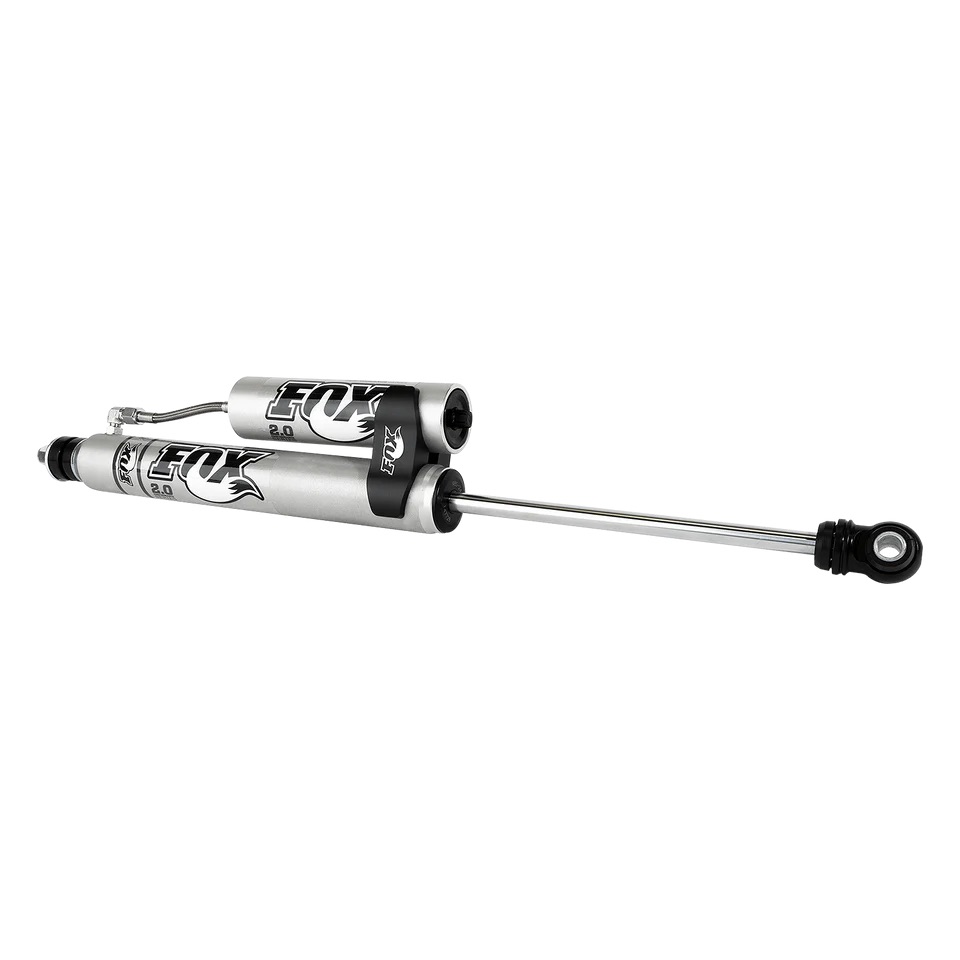

The FOX® 985-24-101 2.0 Performance Series shock is an 11.12-inch travel, smooth-body front shock with an external remote reservoir, fitting 2005-2016 Ford F-250, F-350, F-450, and F-550 Super Duty trucks at 5.5-7in of front lift.
IMPORTANT: This shock is built for 5.5-7in of front lift. Trucks running a lower or higher front lift height require a different FOX® part number — confirm your exact lift height before ordering. FOX® direct-replacement smooth body shocks should always be installed as a pair for consistent handling.
The aluminum-bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX’s race-developed damping performance in an affordable, hassle-free bolt-on package. Its heat-reducing design uses a metal-impacted, clear-anodized aluminum shock body that dissipates heat faster than a conventional steel-body shock.
The external reservoir adds oil and nitrogen capacity while giving the shock a distinct race look. The included black-anodized reservoir mounting clamp and other components are CNC-machined from 6061-T6 aluminum. A race-developed high-flow damping piston matched with application-specific valving delivers predictable ride quality capable of handling rough road conditions.
The shock body is 2.0″ impact-extruded 6061-T6 aluminum that resists rust over time, with a clear-anodized finish for durability. The shaft is 5/8″ hard chrome-plated, heat-treated alloy steel, sealed with a redundant sealing pack system (main seal, wiper seal, scraper seal). FOX® backs this shock with a Limited Lifetime Warranty.
- Front shock, 11.12in travel, fits 2005-2016 Ford F-250, F-350, F-450, and F-550 Super Duty at 5.5-7in of front lift
- 2.0″ impact-extruded 6061-T6 clear-anodized aluminum body resists rust
- External remote reservoir with included billet reservoir clamp increases oil and nitrogen capacity
- Race-developed high-flow piston with application-specific valving
- 5/8″ hard chrome-plated, heat-treated alloy steel shaft
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- Stem top mount, eyelet bottom mount
- Limited Lifetime Warranty
- Sold individually
| Part Number | 985-24-101 |
| Series | Performance |
| Position | Front |
| Travel | 11.12 in |
| Body | 2.0″ impact extruded 6061-T6 aluminum |
| Body Plating | Clear-anodized |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8″ hard chrome plated, heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving |
| Seals | Redundant sealing pack: main seal, wiper seal, scraper seal |
| Extended Length | 27.37 in |
| Compressed Length | 16.25 in |
| Top Mount | Stem Top |
| Bottom Mount | Eyelet |
| Warranty | Limited Lifetime |
| What’s Included | Front shock, billet reservoir clamp, mounting hardware |
This front shock covers 2005-2016 Ford F-250, F-350, F-450, and F-550 Super Duty trucks running 5.5-7in of front lift. Confirm your specific front lift height before ordering — a different lift height requires a different FOX® part number.
