Description

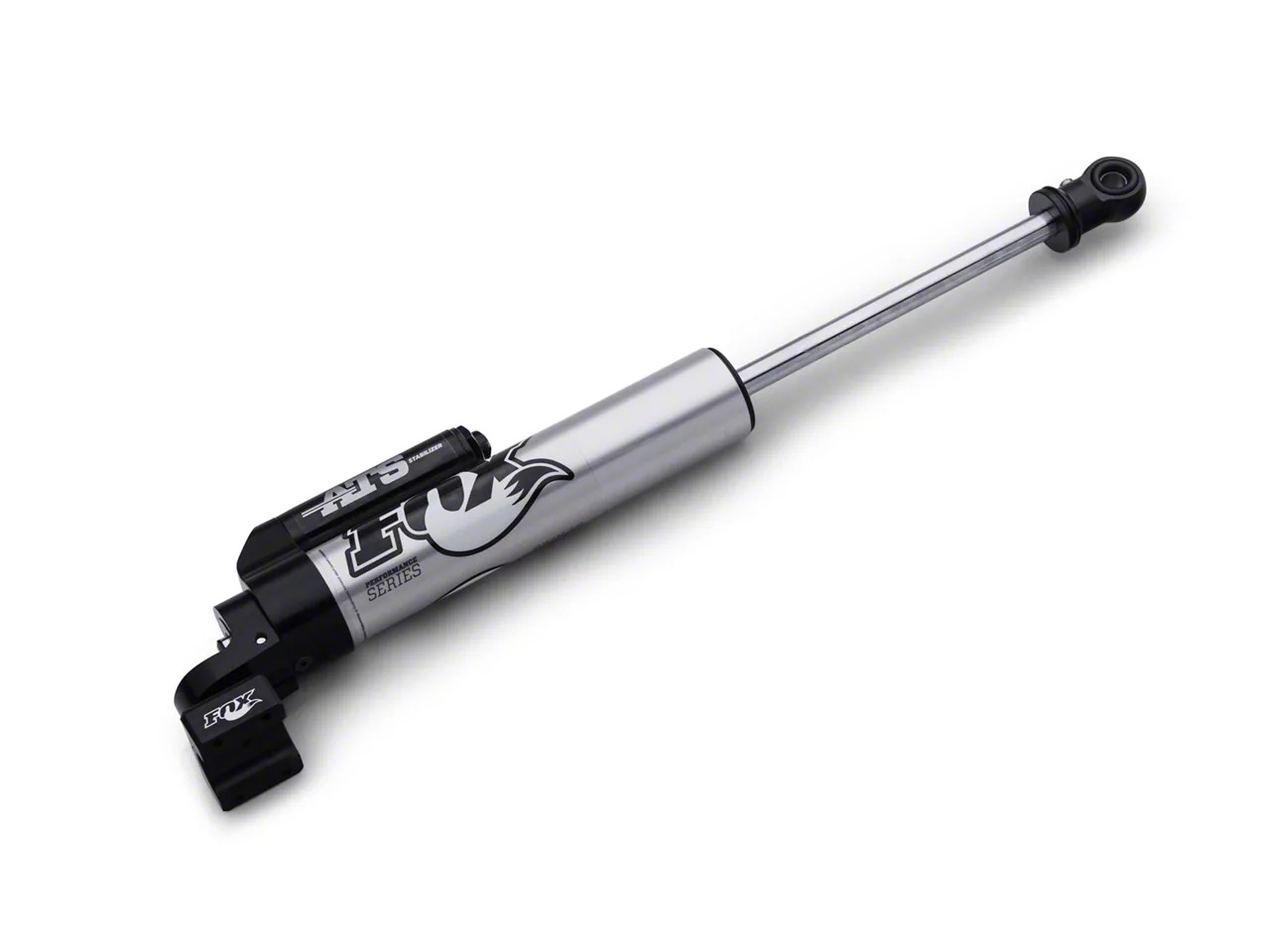

The FOX 983-02-070 2.0 Performance Series ATS Steering Stabilizer is a single-unit, Adjustable Through Shaft steering damper built for 2007-2018 Jeep Wrangler JK 2-Door and 4-Door models (2WD/4WD) running the stock 1-3/8″ tie rod, featuring 24 clicks of external compression adjustment and an integrated remote reservoir.
IMPORTANT: This stabilizer includes FOX’s relocating hardware — a track bar relocation bolt and a 1-3/8″ tie-rod mounting clamp — sized for the stock tie rod. Vehicles running an aftermarket 1-5/8″ tie rod require the optional larger mounting clamp, which is sold separately and not included in this kit. Shock boots, roost shields, and mounting plates are also sold separately.
The FOX Performance Series Adjustable Through Shaft (ATS) steering stabilizer replaces two conventional opposing stabilizers with a single unit, canceling unwanted steering feedback in both directions. This gives the Wrangler JK’s front end a more controlled, predictable feel, particularly with larger, more aggressive tires that amplify steering kickback.

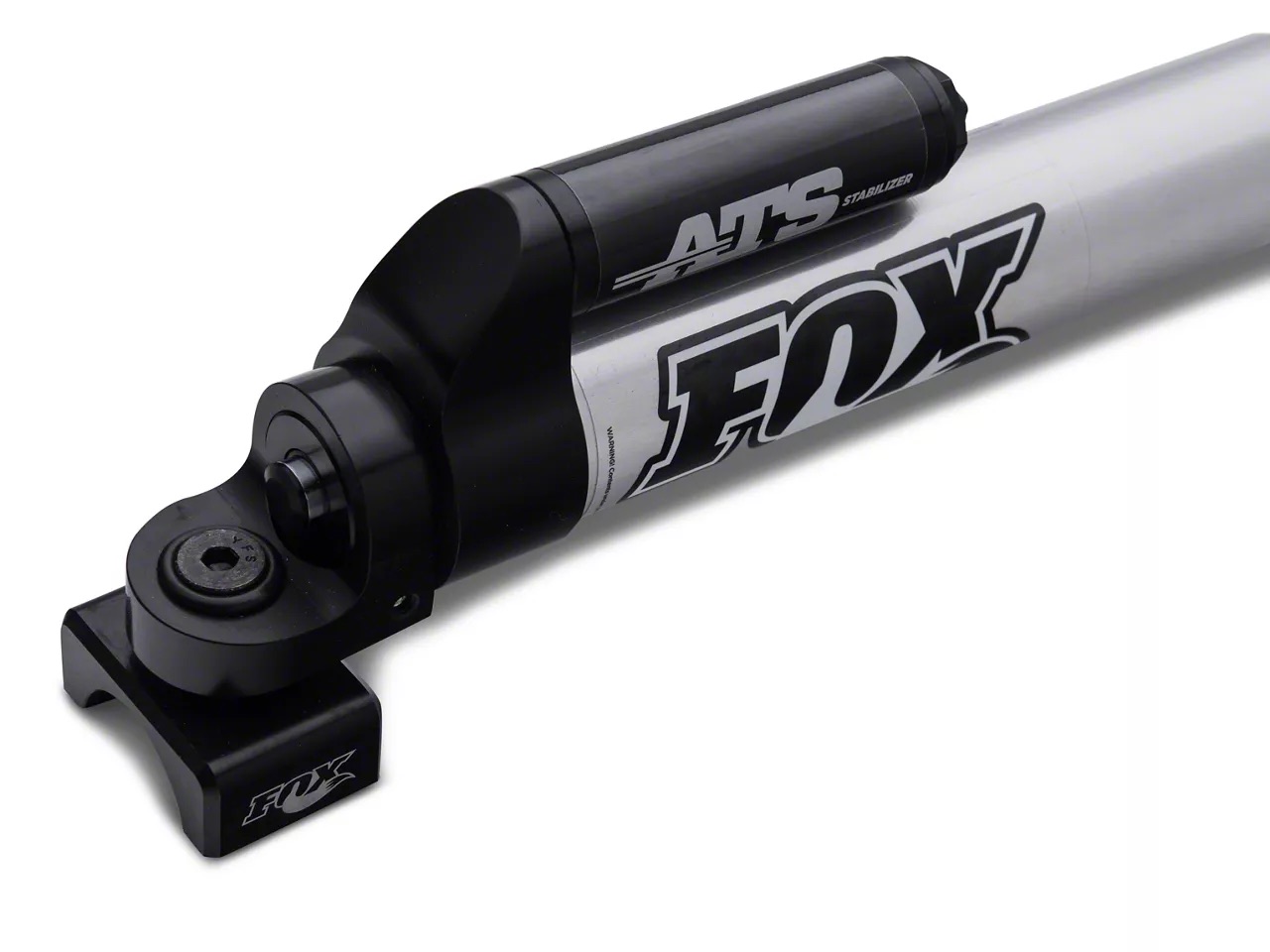

The ATS design routes damping through a shaft that resists motion in both directions of steering input rather than relying on a single-direction damper. An integrated remote reservoir increases fluid capacity and improves cooling during sustained or extreme use, helping the stabilizer maintain consistent damping performance on long trail runs.
External tuning is handled through 24 clicks of compression adjustment, allowing the stabilizer to be dialed in from a lighter on-road feel to a firmer setting for aggressive off-road use. The relocation hardware included with this kit repositions the stabilizer up and out of the way of the stock tie rod for improved ground clearance and component protection.
Construction consists of a one-piece, impact-extruded and CNC-machined 6061-T6 aluminum body with a clear-anodized finish for corrosion resistance, paired with black-anodized CNC-machined 6061-T6 billet aluminum components. The aluminum body dissipates heat faster than steel, and the unit is fully serviceable and tunable for extended service life. This stabilizer is backed by FOX’s one-year limited warranty covering defects in materials and workmanship.
- Fits 2007-2018 Jeep Wrangler JK 2-Door and 4-Door models (2WD/4WD) equipped with the stock 1-3/8″ tie rod
- Adjustable Through Shaft (ATS) design cancels steering feedback in both directions, replacing two opposing stabilizers
- 24 clicks of external compression adjustment for on-road to off-road tuning
- Integrated remote reservoir increases fluid capacity and improves cooling
- One-piece, impact-extruded and CNC-machined 6061-T6 clear-anodized aluminum body
- Black-anodized CNC-machined 6061-T6 billet aluminum components
- Includes FOX relocating hardware: track bar relocation bolt and 1-3/8″ tie-rod mounting clamp
- Factory installation hardware included (washers, bushings, reservoir clamps, nuts); factory shock mounting bolts are reused
- FOX one-year limited warranty against defects in materials and workmanship
- Sold individually
| Part Number | 983-02-070 |
| Series | 2.0 Performance Series ATS |
| Type | Steering Stabilizer |
| Quantity | 1 (Sold Individually) |
| Position | Front |
| Extended Length | 22.15″ |
| Compressed Length | 14.06″ |
| Travel | 8.1″ |
| Adjustment | 24-click external compression |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet / Tie-Rod Clamp |
| Tie Rod Size | 1-3/8″ (stock); optional 1-5/8″ clamp available for aftermarket tie rods, sold separately |
| Reservoir | Remote |
| Body Material | 6061-T6 Aluminum, Clear Anodized |
| Component Finish | Black Anodized CNC-Machined 6061-T6 Billet Aluminum |
| Color | Aluminum |

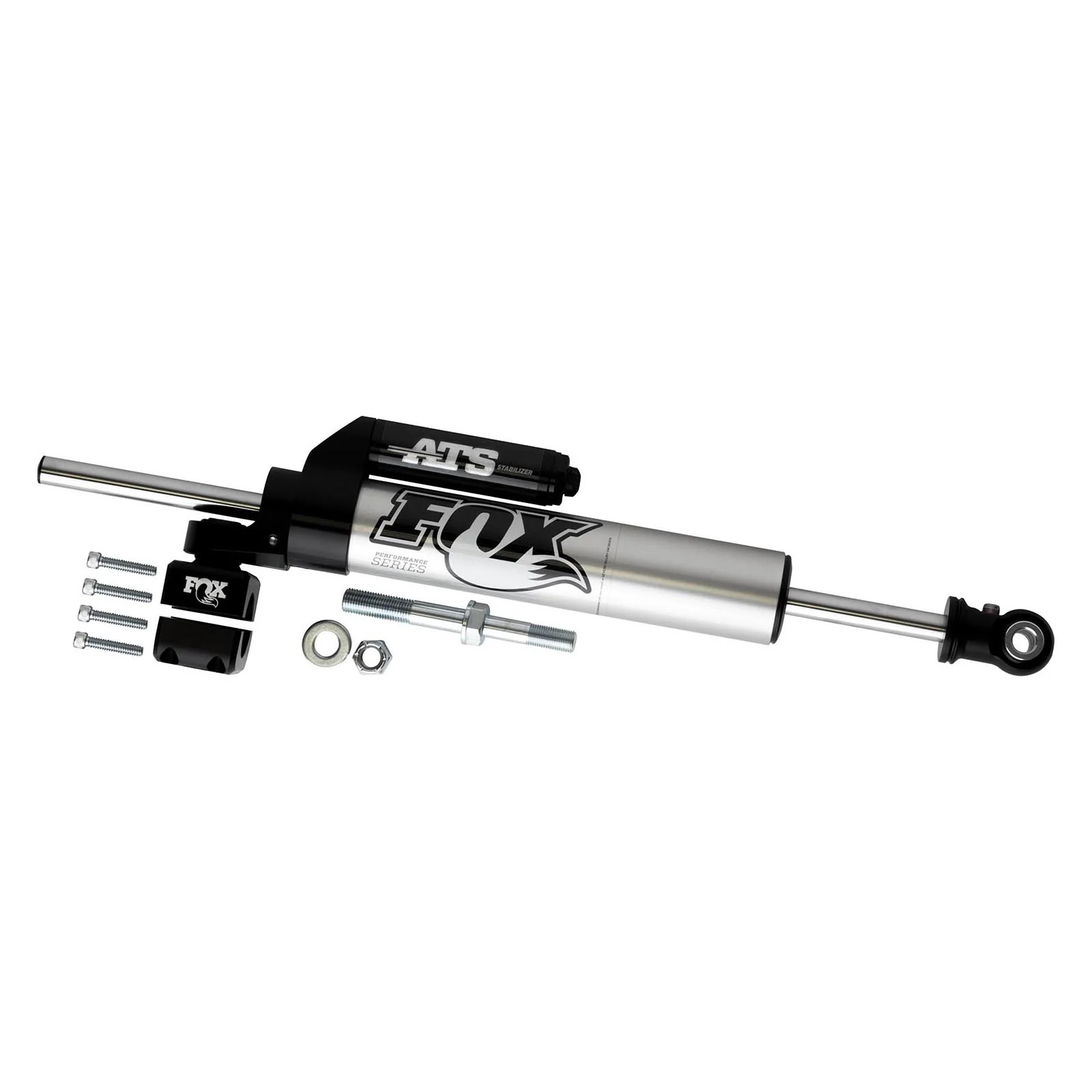

| What’s Included | 1 Steering Stabilizer, factory installation hardware (washers, bushings, reservoir clamps, nuts), track bar relocation bolt, 1-3/8″ tie-rod mounting clamp |
| Sold Separately | Shock boots, roost shields, mounting plates, optional 1-5/8″ tie-rod mounting clamp |
| Warranty | FOX One-Year Limited Warranty |
This FOX 2.0 Performance Series ATS Steering Stabilizer is built for 2007-2018 Jeep Wrangler JK 2-Door and 4-Door models, 2WD and 4WD, equipped with the stock 1-3/8″ tie rod, at ride heights from stock up to 2″ of lift. This kit’s mounting clamp is sized for the stock 1-3/8″ tie rod; vehicles running an aftermarket 1-5/8″ tie rod require the optional larger mounting clamp, sold separately, in place of the clamp included here.
