Description

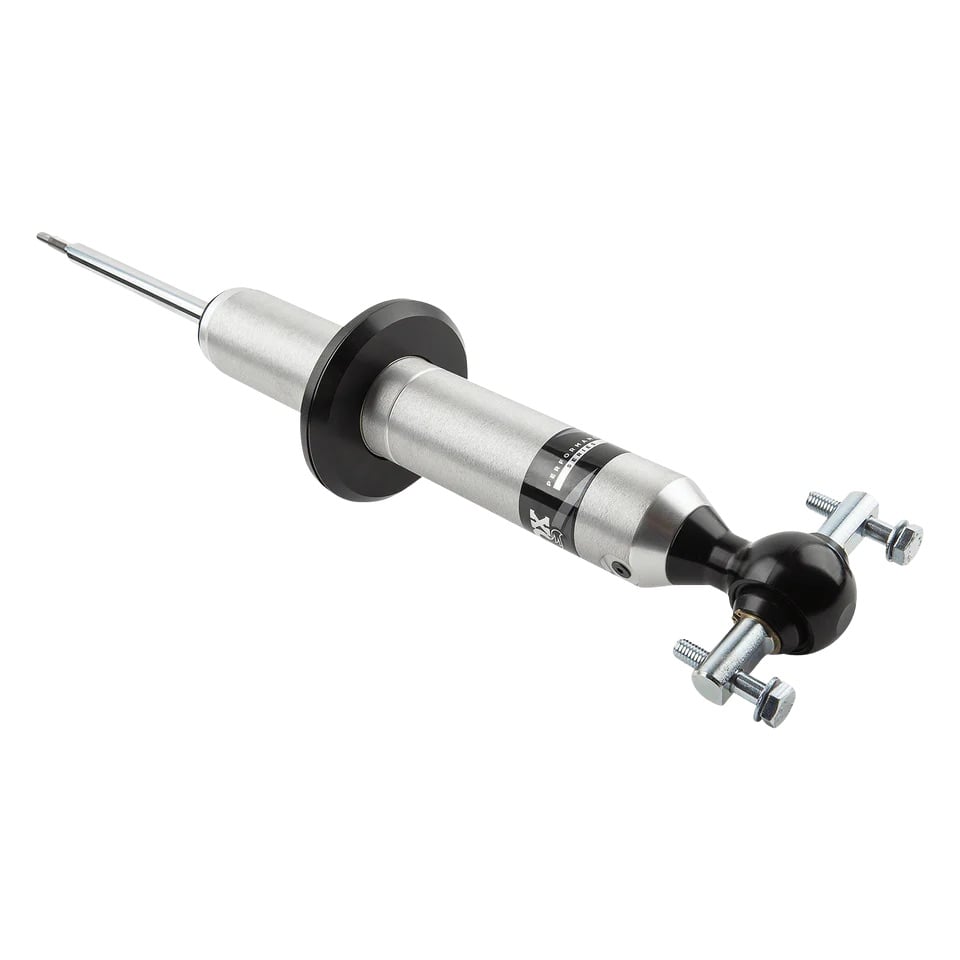

The FOX® 985-62-008 is a 2.0 Performance Series Front Coil-Over Snap Ring IFP Shock, a front-position, bolt-on unit for 0-2in of lift, fitting 2015-2020 Ford F-150 2WD models.
IMPORTANT: This listing is for the front, 2WD-specific application only — one (1) shock, sold individually. Rear shocks and 4WD-specific applications are sold separately. For the 4WD version of this same generation, see FOX® part number 985-62-009. 2015-2016 model years are covered across all trim levels; 2017-2020 coverage is trim-specific as listed below.
This Performance Series 2.0 Coil-Over Snap Ring IFP shock is a bolt-on solution built around a new custom-molded spring seat, letting you reuse your stock spring and mounting hardware while still delivering strong on- and off-road performance at a more affordable price point than a full coilover conversion. The precision, impact-extruded aluminum body keeps weight down while resisting rust.
Inside, an internal nitrogen-charged gas reservoir is contained by an Internal Floating Piston (IFP) that keeps the pressurized gas fully separated from the shock oil — preventing the oil aeration possible with a stock twin-tube shock and letting the factory-tuned, precision valving perform consistently.
Three predetermined preload settings give you a choice of 0in, 1in, or 2in of lift from the same shock. Every FOX® shock is fully serviceable and re-valveable, and this unit carries FOX®’s Limited Lifetime Warranty.
- Fits 2WD Ford F-150: All trims (2015-2016); King Ranch, Lariat, Limited, Platinum, SSV, XL, XLT (2017-2020) — Front position, 0-2in lift
- 2.0in impact-extruded aluminum body, lightweight and rust resistant

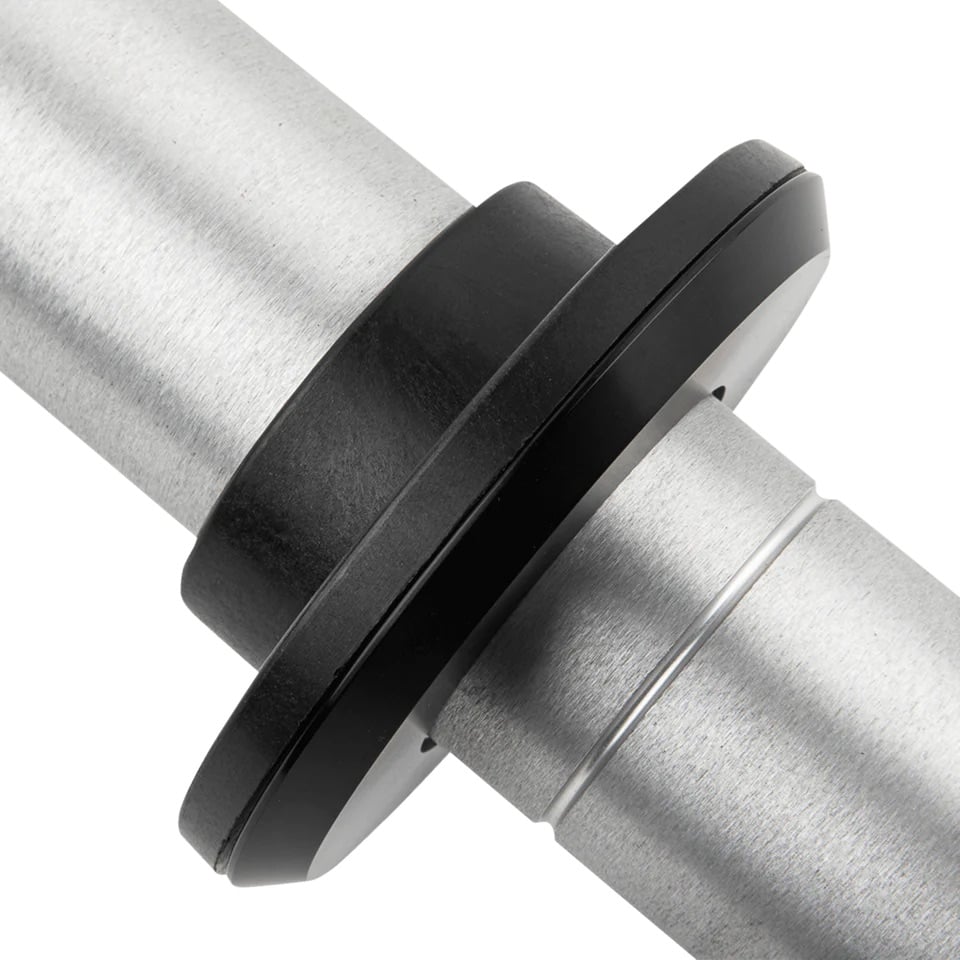

- Custom-molded spring seat reuses your stock spring and mounting hardware
- Internal Floating Piston (IFP) separates nitrogen-charged gas from shock oil
- Three predetermined preload settings: 0in, 1in, or 2in of lift

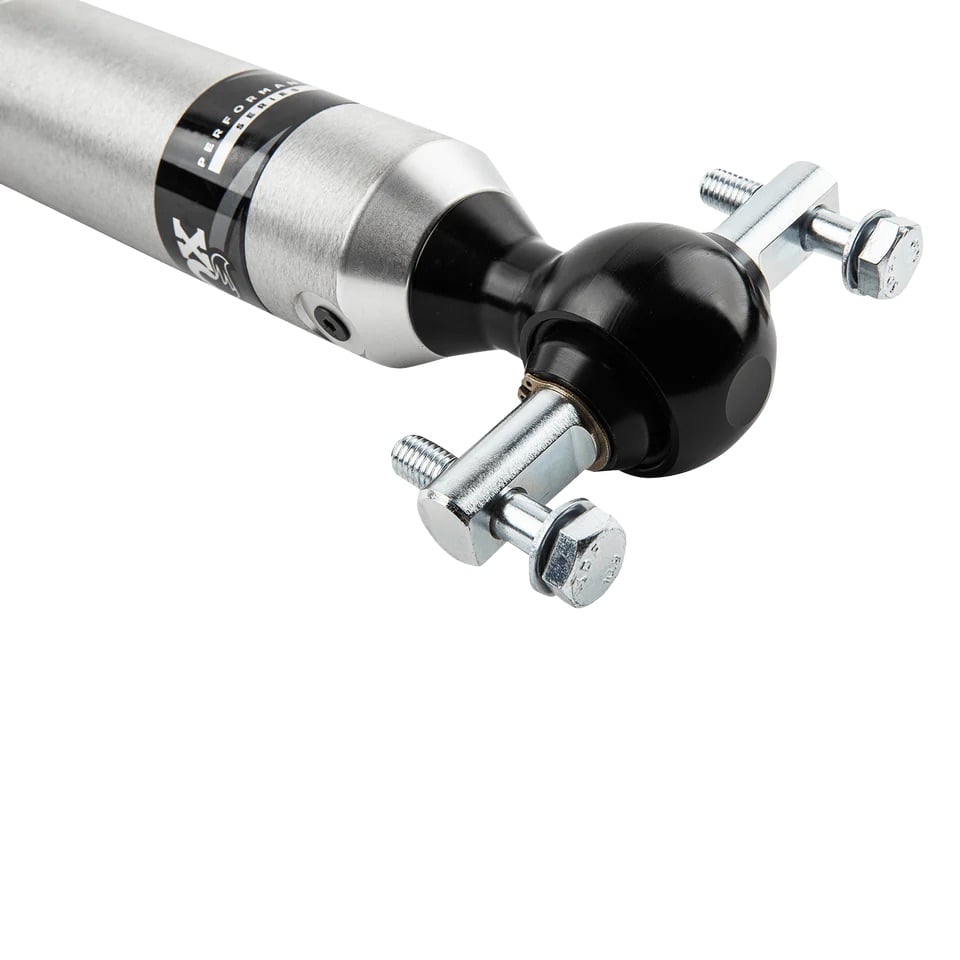

- Bar pin bottom mount
- Limited Lifetime Warranty
- Sold individually
| Part Number | 985-62-008 |
| Series | Performance |
| Travel | 5.37in |
| Body | 2.0in impact extruded and CNC machined 6061-T6 clear-anodized aluminum one-piece body |
| Body Plating | Clear-anodized for a durable finish |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8in hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving to maximize performance |
| Seals | Redundant sealing pack system: main seal, wiper seal, scraper seal |
| Bearings | Large diameter, heavy-duty spherical |
| Extended Length | 21.4in |
| Compressed Length | 16.03in |
| Top Mount | Reuses stock mounting hardware |
| Bottom Mount | Bar Pin |
| Warranty | Limited Lifetime |
| What’s Included | One (1) FOX® 2.0 Performance Series Snap Ring IFP Shock, front, sold individually |
This shock is built specifically for the front, 2WD application of the 2015-2020 Ford F-150 — all trims for 2015-2016, and King Ranch, Lariat, Limited, Platinum, SSV, XL, and XLT for 2017-2020 — at 0-2in of lift. This is the 2WD-specific Snap Ring shock — for 4WD trucks of the same generation, order FOX® part number 985-62-009 instead.
