Description

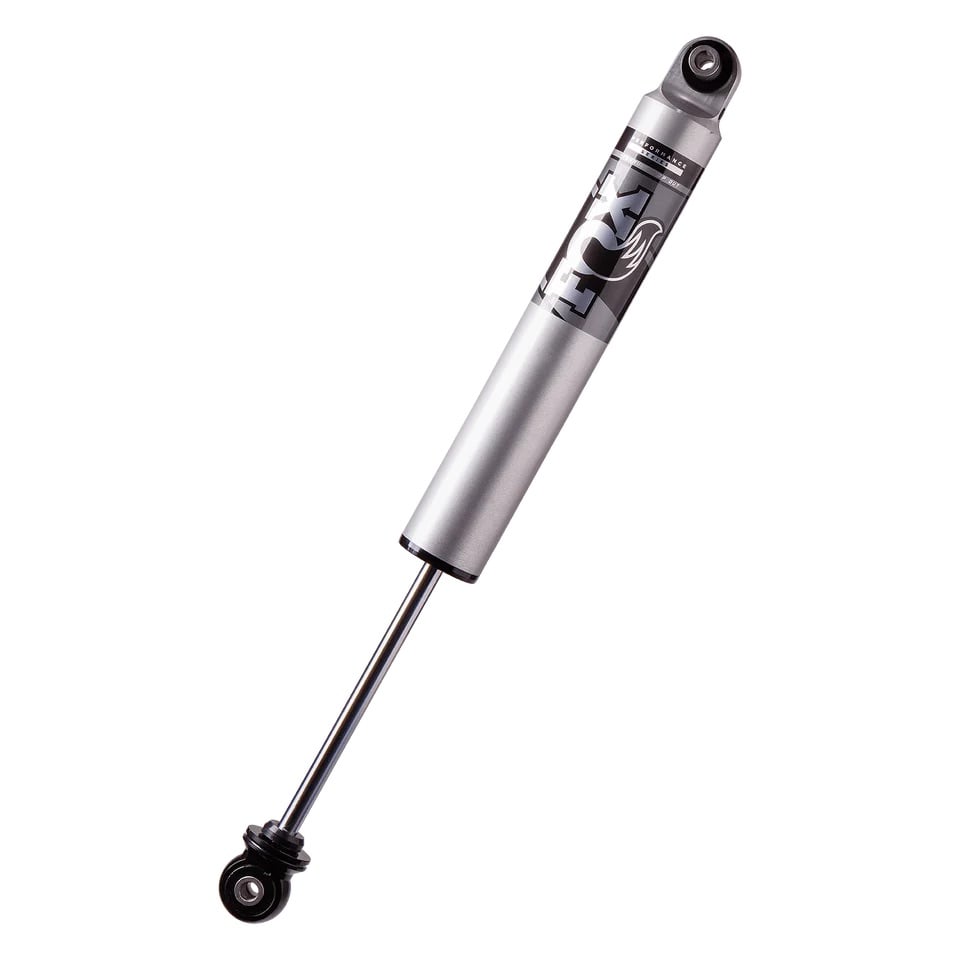

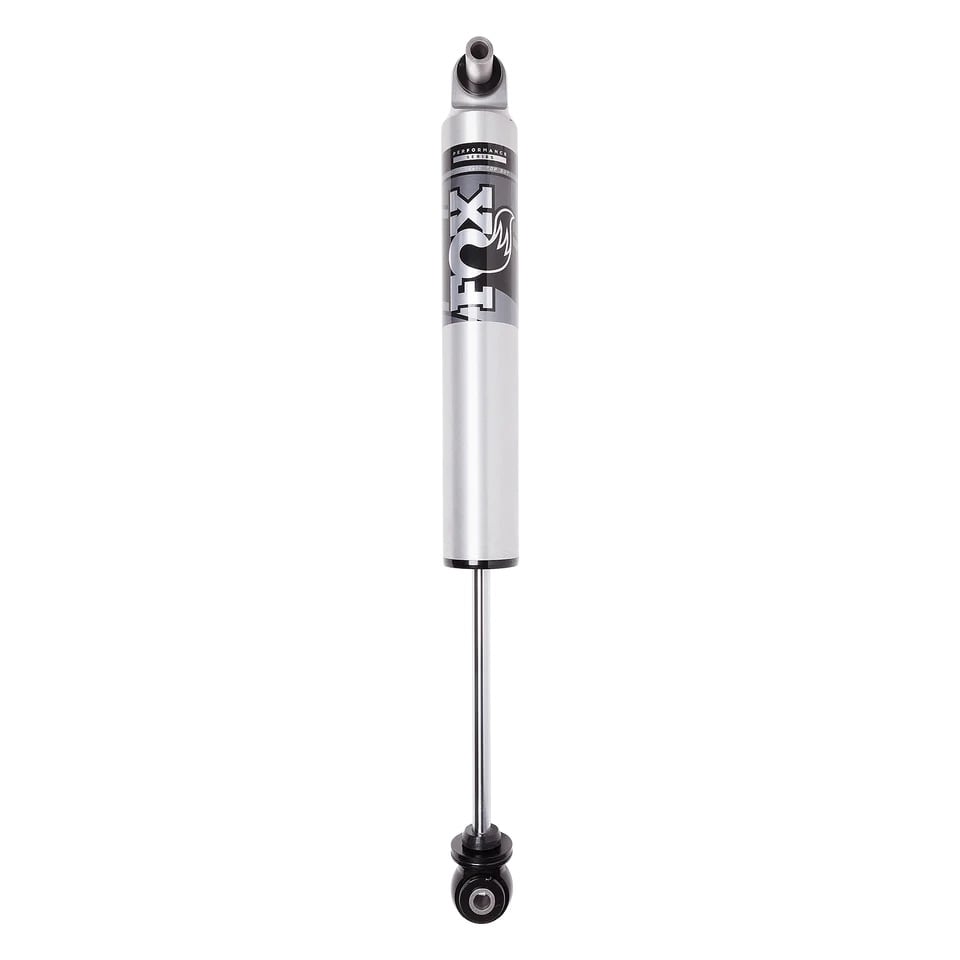

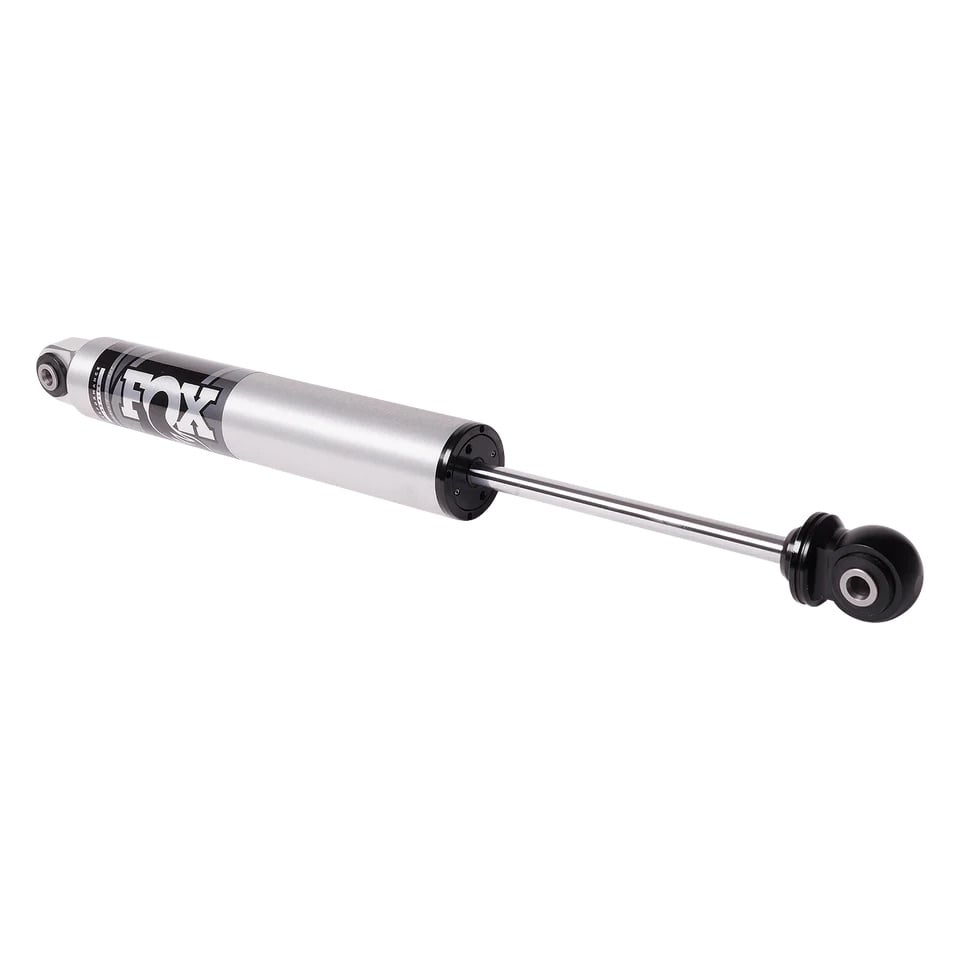

Part number 987-24-016 is the FOX® 2.5 Performance Series HTO front shock, sold individually, engineered for 2020-2026 Jeep Gladiator JT running 2-3 inches of lift.
IMPORTANT: This shock does not fit the Gladiator Mojave trim. This is FOX®’s 2.5 Performance Series IFP/HTO shock — a different product line from the 2.0 Performance Series reservoir shock offered at this same 2-3 inch lift height (part number 885-24-246, sold as a front pair). This 2.5 Series shock is sold individually; confirm your intended shock series before ordering.
FOX® 2.5 Performance Series shocks are engineered to deliver the benefits of a larger, 2.5-inch shock body without the complexity of a reservoir or compression adjusters — a bolt-on shock built for performance at a lower price point. A type II clear-anodized aluminum body efficiently dissipates heat and resists corrosion.
The 2.5-inch shock body features an internal floating piston (IFP) that separates shock oil from high-pressure nitrogen, optimizing damping consistency. Hydraulic Top Out (HTO) technology adds usable, position-sensitive rebound damping control on and off the pavement, reducing harsh top-outs and improving comfort by forcing shock oil through a secondary shim stack to slow shock shaft speed as it approaches full extension. HTO is particularly beneficial with heavier, more aggressive tires and lift heights above OEM specification.
The 5/8″ shaft is hard chrome plated over heat-treated alloy steel, and high-flow, velocity-sensitive damping is tuned for this specific application. FOX® backs this shock with a Limited Lifetime Warranty against defects in materials and workmanship.
- Front-position FOX® 2.5 Performance Series HTO shock for 2020-2026 Jeep Gladiator JT (excludes Mojave) running 2-3 inches of lift

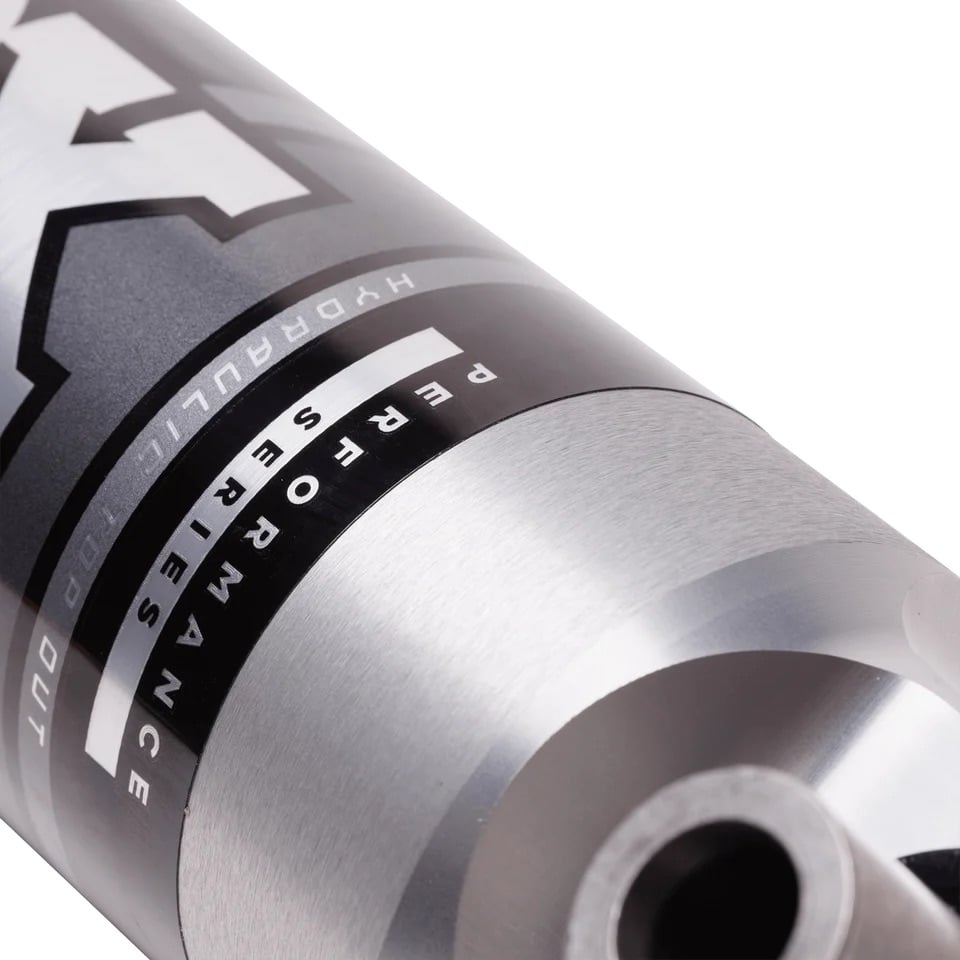

- 2.5″ impact-extruded 6061-T6 aluminum body, Type II clear-anodized plating
- Internal floating piston (IFP) separates shock oil from high-pressure nitrogen
- Hydraulic Top Out (HTO) piston delivers position-sensitive rebound damping control
- High-flow, velocity-sensitive damping tuned for this application
- 5/8″ hard chrome plated, heat-treated alloy steel shaft
- Backed by FOX®’s Limited Lifetime Warranty
- Sold individually
| Part Number | 987-24-016 |
| Brand | FOX® |
| Series | 2.5 Performance Series |
| Position | Front |
| Quantity | Individual |
| Front Lift Height | 2-3 inches |
| Travel | 9.29 inches |
| Extended Length | 26.82 inches |
| Compressed Length | 17.54 inches |
| Body | 2.5″ impact-extruded 6061-T6 aluminum, Type II clear-anodized |
| Shaft | 5/8″ hard chrome plated, heat-treated alloy steel |
| Piston | Internal Floating Piston (IFP) with Hydraulic Top Out (HTO) |
| Valving | High-flow, velocity-sensitive, application-specific |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| What’s Included | One FOX® 2.5 Performance Series HTO front shock with mounting hardware |
| Warranty | Limited Lifetime Warranty |
| Fitment | 2020-2026 Jeep Gladiator JT (excludes Mojave), 2-3 inch lift |
This shock is engineered specifically for 2020-2026 Jeep Gladiator JT applications running 2-3 inches of lift, with 9.29 inches of travel and eyelet top and bottom mounts. This SKU excludes the Mojave trim and is sold individually. It is FOX®’s 2.5 Performance Series IFP/HTO shock, distinct from the 2.0 Performance Series reservoir front pair offered at this same lift height under part number 885-24-246.
