Description
FOX® part number 883-26-087 is a Performance Elite Series 2.5 Reservoir rear shock pair with a DSC (Dual-Speed Compression) external adjuster, engineered to deliver 2.5 to 4 inches of rear lift on standard trims, or up to 1 inch of additional rear lift on the factory-lifted Trail Boss and AT4 trims, across 2019-2026 Chevrolet Silverado 1500, 2022 Chevrolet Silverado 1500 LTD, 2019-2026 GMC Sierra 1500, and 2022 GMC Sierra 1500 Limited applications.
IMPORTANT: On standard (non-Trail Boss/AT4) trims, this shock delivers 2.5 to 4 inches of rear lift and requires a minimum 2″ bump stop spacer and a 1″ lift block for proper installation — these are not included. Trail Boss and AT4 trims already sit higher from the factory, so this same shock delivers only up to 1 inch of additional rear lift on those trims and does not require the bump stop spacer or lift block. Vehicles running 0 to 2 inches of rear lift on non-Trail Boss/AT4 trims require FOX® part number 883-26-060 instead.
Performance Elite Series 2.5 Reservoir shocks bring FOX®’s off-road race-shock design to a smooth-body, reservoir-equipped platform built for trucks and SUVs. The external reservoir increases oil and nitrogen capacity over a standard shock, improving damping consistency and reducing fade during sustained off-road use while giving the shock a race-inspired appearance.
Each shock uses a 2.5″ impact-extruded and CNC-machined 6061-T6 hard-anodized aluminum body for corrosion resistance, paired with a 7/8″ hard chrome-plated, heat-treated alloy steel shaft. A race-developed high-flow piston and application-specific valving are tuned for this platform, and a redundant three-stage seal pack — main seal, wiper seal, and scraper seal — keeps contaminants out of the damping circuit. PTFE-lined, heat-treated alloy steel spherical bearings are used at the mounts.
The DSC external adjuster allows on-the-fly tuning of low-speed compression damping without disassembly, letting the driver dial in ride quality for towing, hauling, or trail conditions. FOX® suspension products carry a limited one (1) year warranty covering defects in materials and workmanship.
- Fitment: 2019-2026 Chevrolet Silverado 1500 and 2022 Silverado 1500 LTD; 2019-2026 GMC Sierra 1500 and 2022 Sierra 1500 Limited; rear position — 2.5-4″ lift on standard trims, up to 1″ additional lift on factory-lifted Trail Boss/AT4 trims
- 2.5″ impact-extruded, CNC-machined 6061-T6 hard-anodized aluminum body
- 7/8″ hard chrome-plated, heat-treated alloy steel shaft
- External reservoir for increased oil and nitrogen capacity

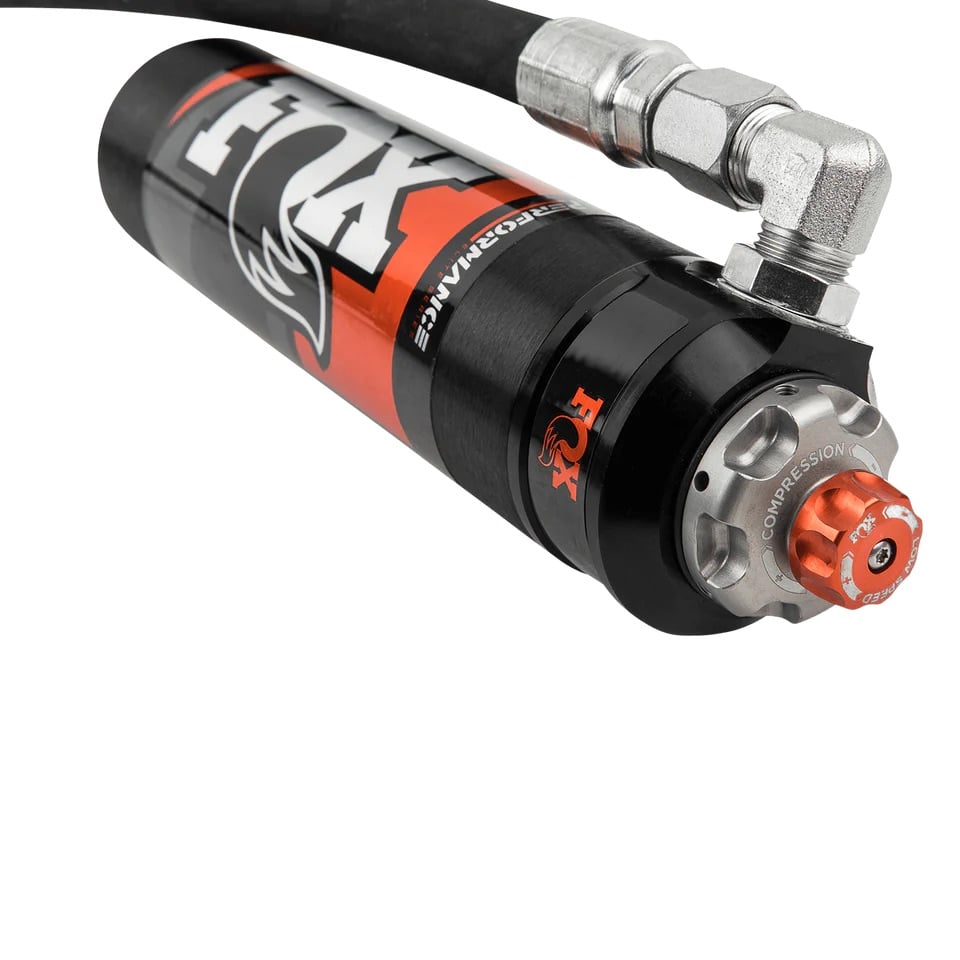

- DSC external adjuster for on-the-fly low-speed compression tuning
- Race-developed high-flow piston with application-specific valving
- Redundant three-stage seal pack: main seal, wiper seal, scraper seal
- PTFE-lined, heat-treated alloy steel spherical bearings
- Non-Trail Boss/AT4 trims require a minimum 2″ bump stop spacer and 1″ lift block (not included)
- FOX® limited one (1) year warranty on suspension products

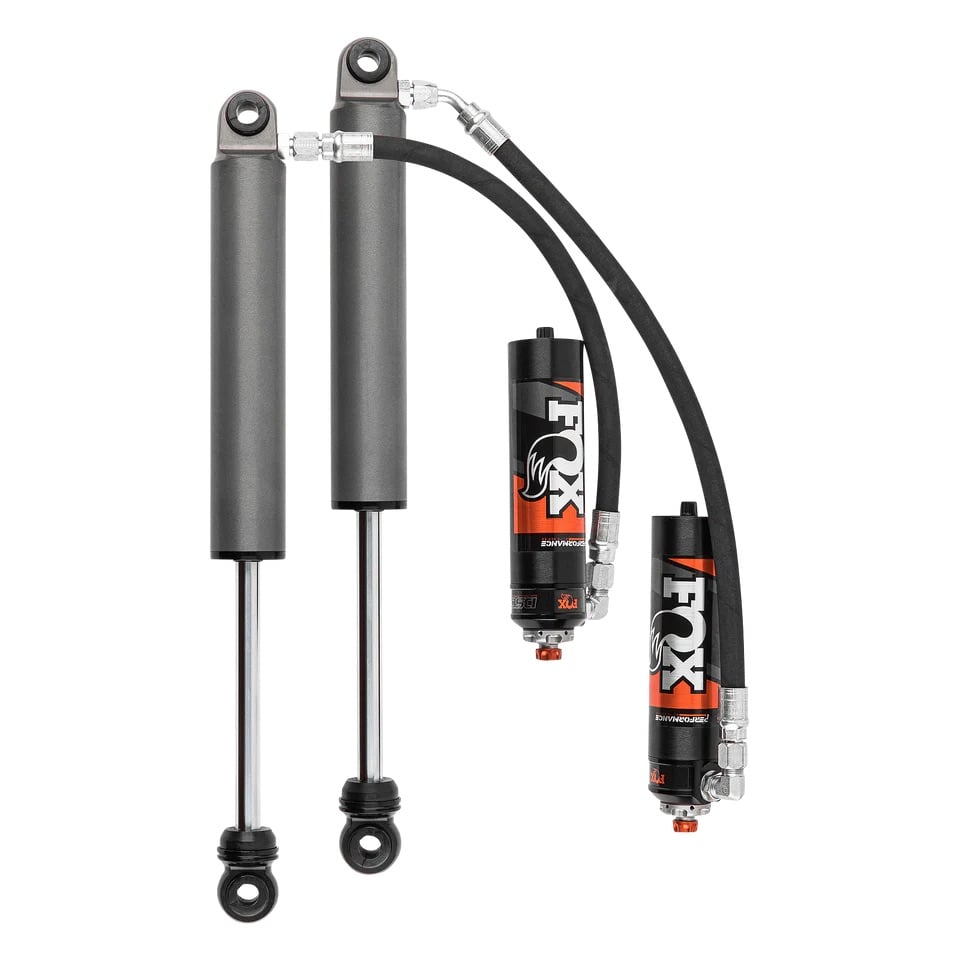

- Sold as a pair
| Part Number | 883-26-087 |
| Series | Performance Elite |
| Diameter | 2.5″ |
| Configuration | Reservoir, DSC Adjuster |
| Position | Rear |
| Lift Range | 2.5-4″ (standard trims); up to 1″ additional (Trail Boss/AT4, factory-lifted) |
| Travel | 10.47″ |
| Body | 2.5″ impact-extruded, CNC-machined 6061-T6 hard-anodized aluminum |
| Body Plating | Hard-anodized |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 7/8″ hard chrome-plated, heat-treated alloy steel |
| Piston | Race-developed high-flow design |
| Valving | Application-specific |
| Seals | Redundant sealing pack: main seal, wiper seal, scraper seal |
| Bearings | PTFE-lined, heat-treated alloy steel spherical |
| Extended Length | 27.88″ |
| Compressed Length | 17.41″ |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| What’s Included | Rear shock pair |
| Warranty | FOX® limited one (1) year warranty |
This shock pair covers the GM 1500 platform — 2019-2026 Chevrolet Silverado 1500, 2022 Silverado 1500 LTD, 2019-2026 GMC Sierra 1500, and 2022 GMC Sierra 1500 Limited — delivering 2.5 to 4 inches of rear lift on standard trims, or up to 1 inch of additional rear lift on the already-taller Trail Boss and AT4 trims. Standard trims require a 2″ bump stop spacer and 1″ lift block for proper installation, and vehicles running only 0 to 2 inches of rear lift on standard (non-Trail Boss/AT4) trims should order FOX® part number 883-26-060 instead. Confirm your exact trim level and current or planned lift height before ordering.
