Description

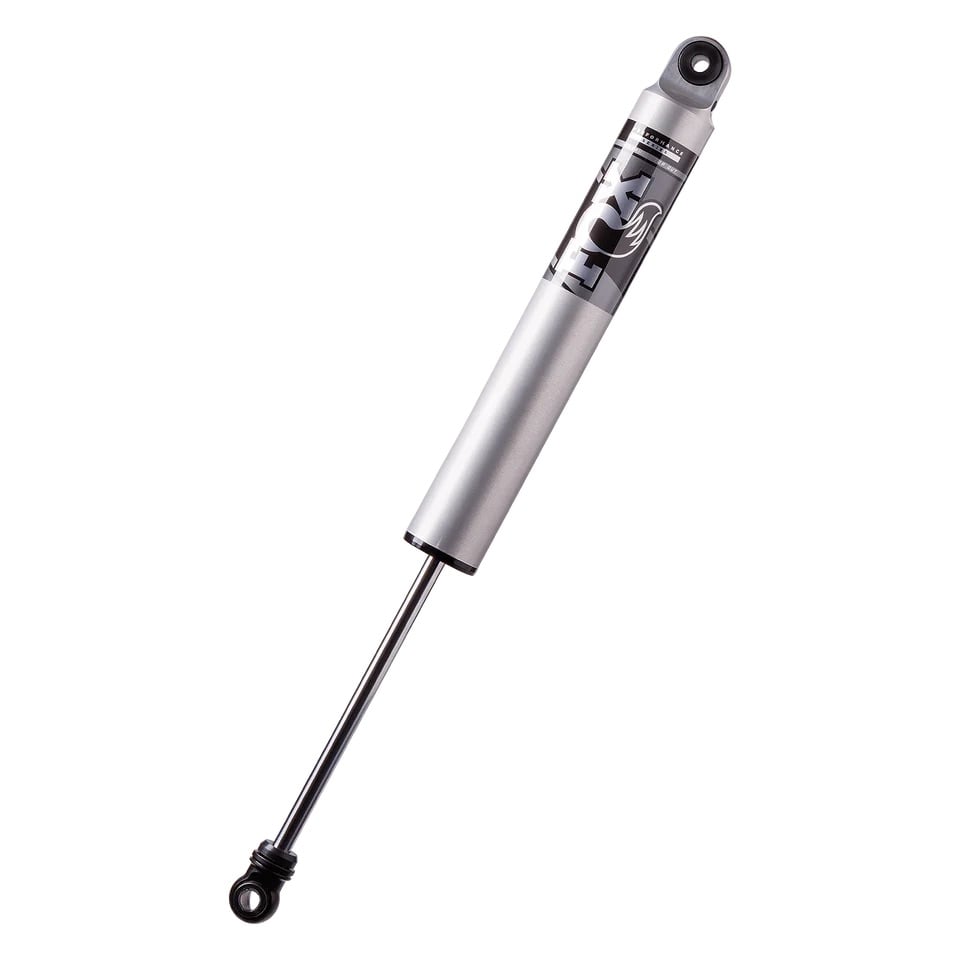

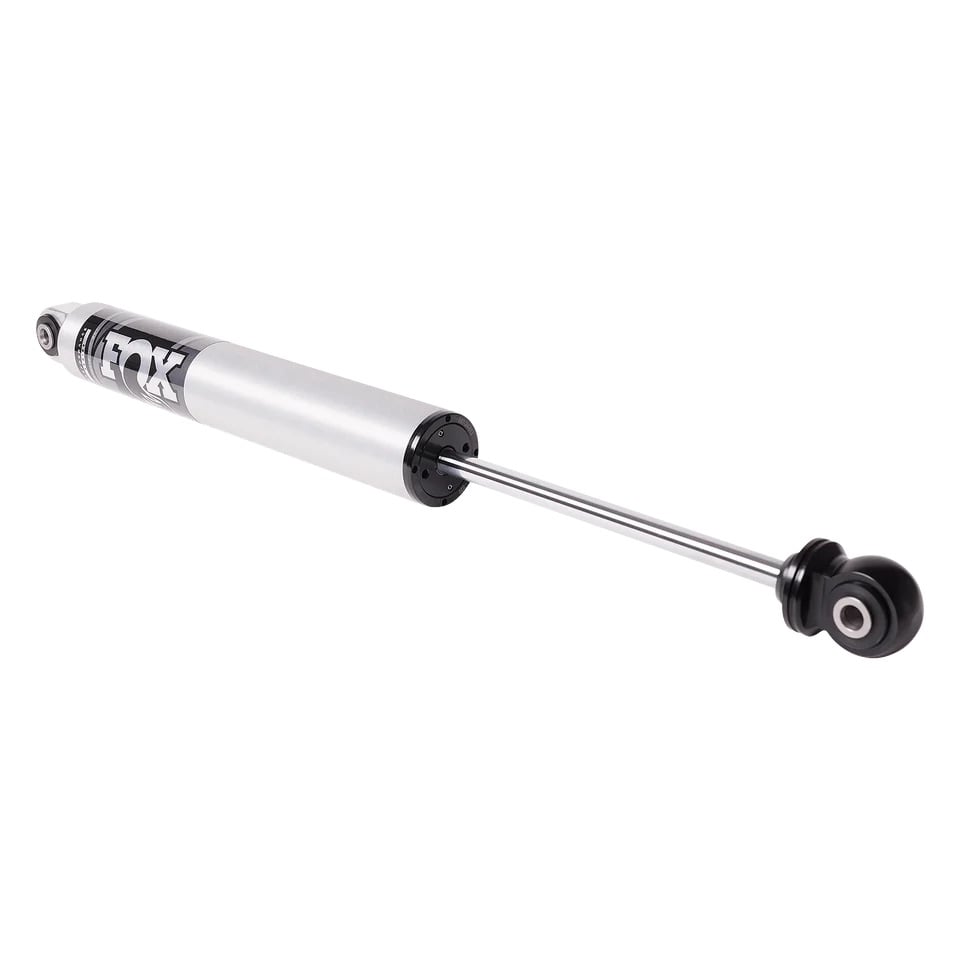

The FOX® 987-24-050 is a 2.5 Performance Series HTO (Hydraulic Top Out) rear shock, built for 2014-2026 Ram 3500 4WD trucks running a 2″-3.5″ rear lift, sold individually.
IMPORTANT: This part number fits Ram 3500 only. This is the higher of two rear lift-height options in FOX®’s 2.5 Performance Series HTO lineup for the Ram 3500 — FOX® 987-24-027 covers the same trucks at a 0″-1.5″ rear lift and is compatible with both single rear wheel (SRW) and dual rear wheel (DRW) trucks, including air-suspension-equipped trucks. Confirm your exact model and rear lift height before ordering.
This shock replaces the rear shock on 2014-2026 Ram 3500 4WD trucks with a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve both on-road and off-road performance over the stock shock.
The 2.5″ shock body is Type II anodized aluminum, which efficiently dissipates heat and resists corrosion, and houses an Internal Floating Piston (IFP) that separates the shock oil from the high-pressure nitrogen charge to optimize damping consistency.

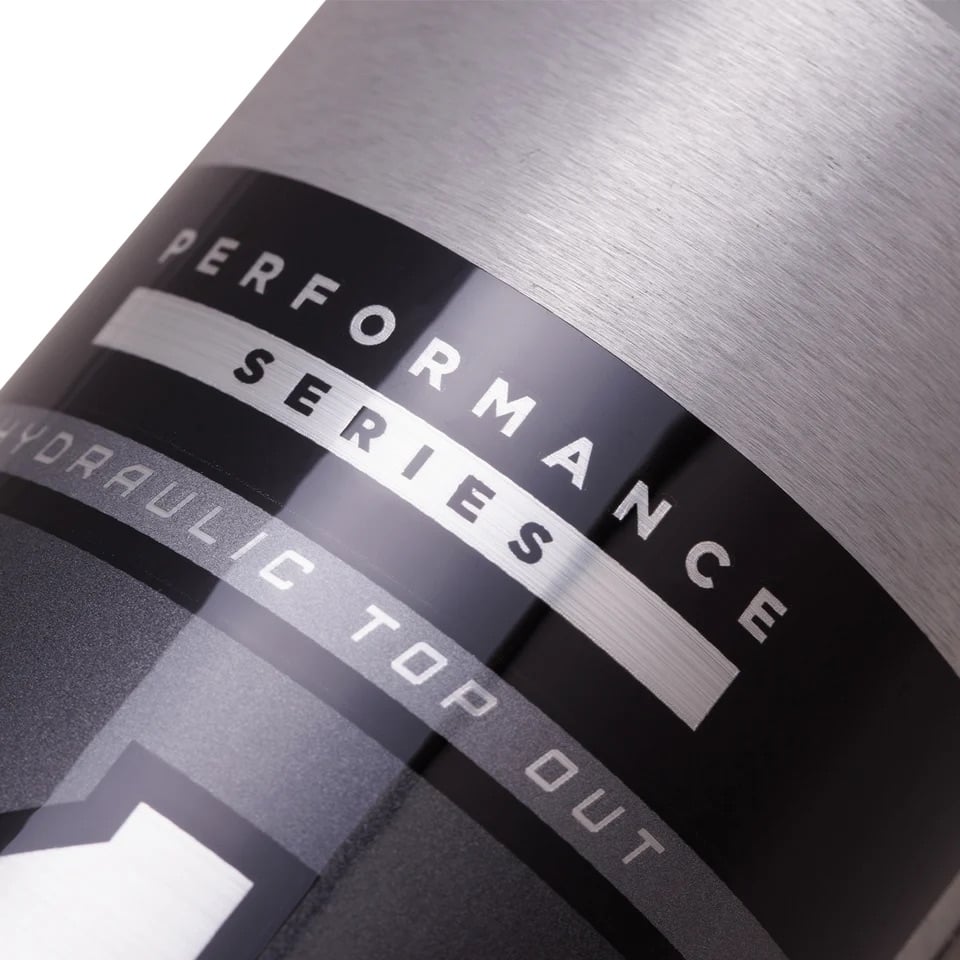

Hydraulic Top Out (HTO) technology gives this shock usable, position-sensitive rebound damping control both on and off the pavement. HTO reduces harsh top-outs and increases ride comfort by forcing shock oil through a secondary shim stack to slow shock shaft speed as it approaches full extension — particularly beneficial after installing heavier, more aggressive tires or lifting the truck above OEM ride height. The shock is built around a 5/8″ hard chrome-plated shaft and is backed by FOX®’s Limited Lifetime Warranty.
- Fits 2014-2026 Ram 3500 4WD trucks running a 2″-3.5″ rear lift; does not fit Ram 2500
- 2.5″ impact-extruded 6061-T6 aluminum body, Type II clear-anodized finish
- Internal Floating Piston (IFP) separates shock oil from high-pressure nitrogen charge
- Hydraulic Top Out (HTO) piston delivers position-sensitive rebound damping and reduces harsh top-outs
- High-flow, velocity-sensitive damping with vehicle-specific valving
- 5/8″ hard chrome-plated shaft
- Backed by FOX®’s Limited Lifetime Warranty
- Sold individually
| Part Number | 987-24-050 |
| Series | Performance |
| Position | Rear |
| Travel | 11.36″ |
| Rear Lift Height | 2″-3.5″ |
| Shaft | 5/8″ hard chrome-plated shaft |
| Extended Length | 30.36″ |
| Compressed Length | 19″ |
| Top Mount | Stem Top |
| Bottom Mount | Eyelet |
| What’s Included | (1) Rear shock, application-specific mounting hardware |
| Warranty | FOX® Limited Lifetime Warranty |
This shock covers 2014-2026 Ram 3500 4WD trucks (Ram 3500 only) at a 2″-3.5″ rear lift. FOX® also builds part number 987-24-027 for the same Ram 3500 trucks at a 0″-1.5″ rear lift (compatible with SRW, DRW, and air-suspension-equipped trucks) — confirm your rear lift height before ordering, as the two are not interchangeable.
