Description

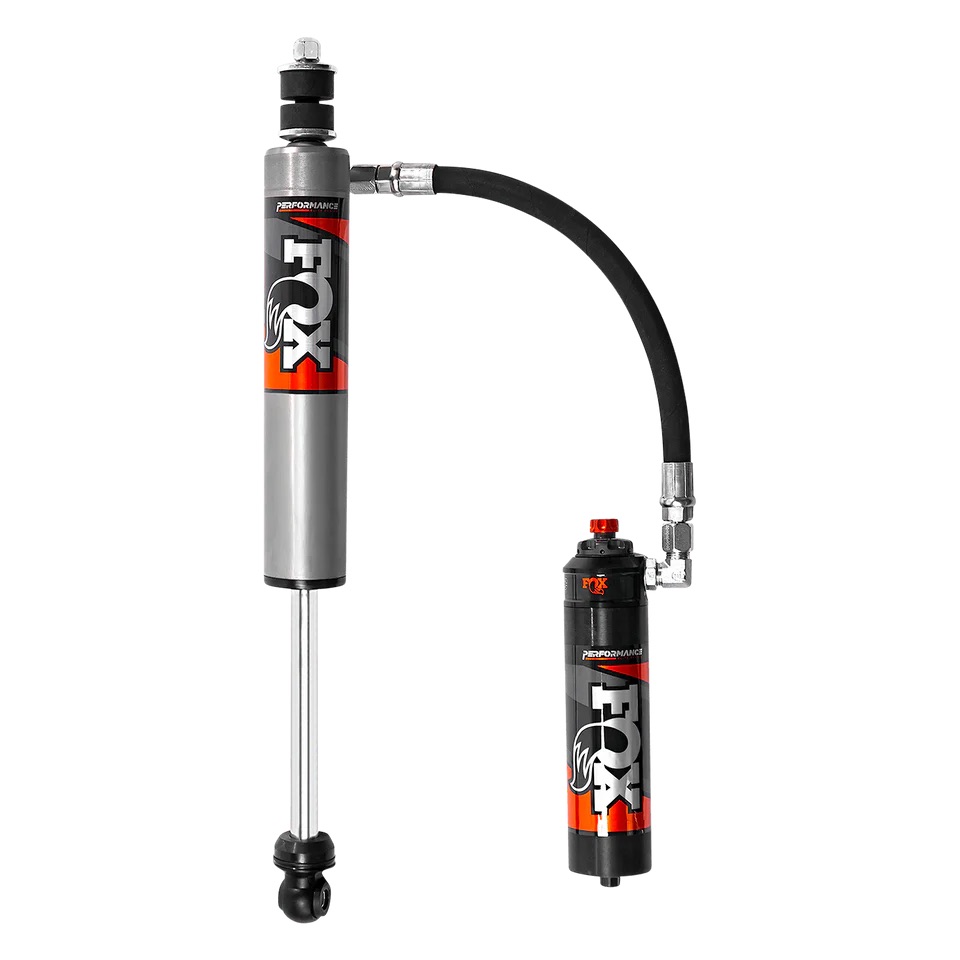

The FOX® 2.5 Performance Elite Series front shock (part number 883-26-097) is a remote reservoir coilover shock with Dual Speed Compression (DSC) adjustment, 8.78″ of travel, and a 2.5″–3.5″ front lift height, designed for 2017–2026 Ford F-250 Super Duty and 2017–2026 Ford F-350 Super Duty 4WD applications.
IMPORTANT: On 2026 Ford F-250 Super Duty applications, FOX recommends use with lift coil springs. Verify your specific model year, trim, and drive configuration against the fitment details below before ordering.
The FOX® 2.5 Performance Elite Series is a bolt-on front shock upgrade engineered to increase off-road capability while maintaining the composure and stability needed for daily driving and towing. The remote reservoir design expands oil volume over a standard monotube shock, which helps sustain consistent damping performance during extended off-road use or heavy-load hauling without the performance fade that occurs when shock fluid overheats. This unit is designed for trucks running 2.5″–3.5″ of front lift.
The 2.5″ impact-extruded, CNC-machined 6061-T6 Type III hard-anodized aluminum body paired with an aluminum external reservoir efficiently dissipates heat by increasing oil capacity. A 7/8″ hard chrome-plated steel shaft resists deflection under load, and a redundant sealing pack — consisting of a main seal, wiper seal, and scraper seal — protects internal components against contamination over the long term. The larger, high-flow piston increases bottom-out resistance and improves damping response across all terrain types. Vehicle-specific valving is calibrated for the F-250 and F-350 Super Duty platform, so the shock performs correctly from the factory without requiring revalving.
The 2.5″ smooth-bore, honed seamless alloy reservoir is equipped with FOX’s Dual Speed Compression (DSC) adjuster, which allows the driver to independently tune low-speed and high-speed compression damping. Low-speed compression affects body roll, dive, and squat during on-road and moderate-speed driving; high-speed compression controls damping response during sharp impacts, obstacles, and aggressive off-road terrain. The remote reservoir is positioned to clear aggressive tires at full steering lock. Shocks are backed by FOX’s Limited Lifetime Warranty on 2.0 & 2.5 Performance Series products purchased after 3/30/2025.
- Fitment: 2017–2026 Ford F-250 Super Duty (4WD) and 2017–2026 Ford F-350 Super Duty (4WD); front axle position; designed for 2.5″–3.5″ front lift
- 2.5 Performance Elite Series with remote reservoir and Dual Speed Compression (DSC) adjuster
- 2.5″ impact-extruded, CNC-machined 6061-T6 Type III hard-anodized aluminum shock body
- 2.5″ smooth-bore, honed seamless alloy reservoir with DSC adjuster for independent low-speed and high-speed compression tuning
- 7/8″ hard chrome-plated steel shaft
- Larger, high-flow piston for increased bottom-out resistance and improved damping
- Redundant sealing pack: main seal, wiper seal, and scraper seal
- Stem top mount / eyelet bottom mount
- Vehicle-specific valving calibrated for the Ford Super Duty platform
- Remote reservoir positioned to clear aggressive tires at full steering lock
- Extended length: 24.79″ | Compressed length: 16.01″ | Travel: 8.78″
- Limited Lifetime Warranty (FOX 2.0 & 2.5 Performance Series purchased after 3/30/2025)
- Sold as a pair — two shocks per listing
| Part Number | 883-26-097 |
| Series | Performance Elite |
| Position | Front |
| Front Lift Height | 2.5″–3.5″ |
| Travel | 8.78″ |
| Extended Length | 24.79″ |
| Compressed Length | 16.01″ |
| Body | 2.5″ impact-extruded, CNC-machined 6061-T6 Type III hard-anodized aluminum |
| Reservoir | 2.5″ smooth-bore, honed seamless alloy with DSC adjuster |
| Shaft | 7/8″ hard chrome-plated steel |
| Piston | Larger, high-flow piston |
| Valving | Vehicle-specific |
| Seals | Redundant sealing pack: main seal, wiper seal, scraper seal |
| Top Mount | Stem |
| Bottom Mount | Eyelet |
| Adjuster | Dual Speed Compression (DSC) |
| Warranty | Limited Lifetime (FOX 2.0 & 2.5 Performance Series, purchased after 3/30/2025) |
| Fitment | 2017–2026 Ford F-250 Super Duty (4WD); 2017–2026 Ford F-350 Super Duty (4WD) |
This shock is designed for the front axle of 2017–2026 Ford F-250 Super Duty (4WD) and 2017–2026 Ford F-350 Super Duty (4WD) with 2.5″–3.5″ of front lift. Note for 2026 F-250 Super Duty buyers: FOX recommends this shock be used with lift coil springs on that model year. Confirm your specific model year and trim against the fitment data above before purchasing.
