Description
HKS Super SQV (Sequential Blow Off Valve) Kit for 2009+ R35 Nissan GTR. This kit replaces the factory air bypass valve. Three spoke fins are included in the kit, which allows the valve to release the compressed air and create unique and sharp high frequency sound. HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure.

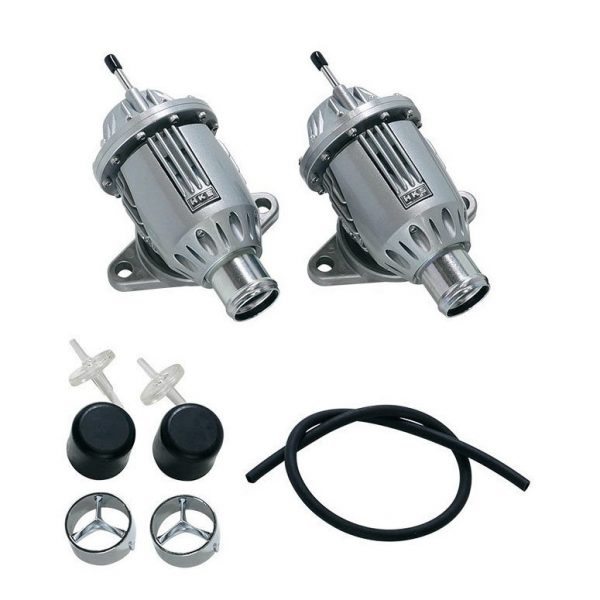

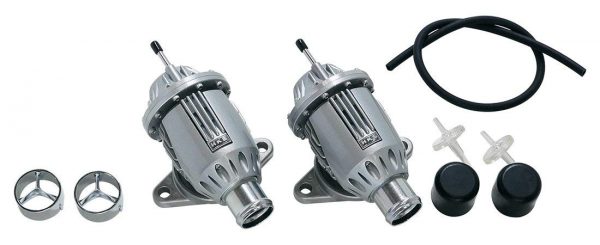

INCLUDED Parts:
(2) HKS SQV BOVs
(2) Triple Fin Sections
(2) Recirculation Fittings
(2) Block-Off Plugs
(2) Vacuum Line Filters
(1) Vacuum Hose
Construction:
High Quality Aluminum Die-Cast Body: Silver-coated aluminum die-cast body. Combines the ultimate in looks and durability in the engine compartment.
High Stiffness Metal Die-Cast Valve: Secondary valve main portion is made of die cast metal. Reliable operation with beautiful looking.
Triple Fin design produces “Super Sound”: Triple Fins set at the center of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.
Operation:
1.Pull-Type Relief Valve Operation: The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.
2.Primary Valve (Small): Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.
3.Secondary Valve (Large): This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.
Dual Valve Structure, Sequential System:
At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.
SUPER SQV4 VEHICLE SPECIFIC KIT:

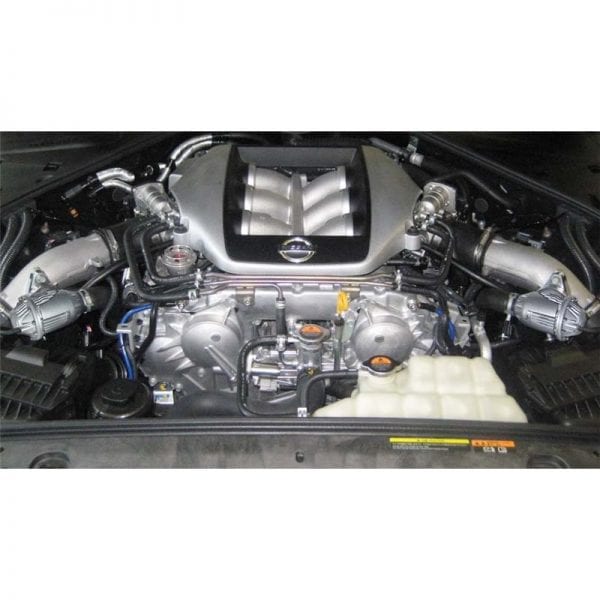

Parts necessary for installation are included. SSQV4 can be easily installed on a vehicle with this kit. Circulation Adapter is Included. A triple fin and replacing type circulation adapter are included for a vehicle to install. These parts are not included in the universal kit. Using this recirculation adapter allows suction return by fabricating the return piping.
Relative Sound Levels: HKS SSQV4 Kit vs. Stock
Revving in the cabin
Stock: No sound
Super SQV: Medium
Revving outside the cabin
Stock: No sound
Super SQV: Loud
Driving revving window closed
Stock No sound
Super SQV: Medium
Driving revving window open
Stock: No sound
Super SQV: Loud
2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
