Description
The Maxtrac Suspension 6.5-lift for the Toyota Tacoma is a cost-effective way to lift your 2WD wheel drive truck without breaking the budget. We do this by taking a factory height spindle and lowering the wheel hub position, which in turn raises the vehicle up while maintaining a factory-like ride and turning radius. We then replace the factory strut with a Fox fully adjustable Coil-over to complete the front lift. By doing this, you eliminate the need to install expensive crossmembers that are labor intensive and require factory frame cuts. The spindles come with extended, DOT compliant, stainless steel braided brake lines. The rear lift comes with Fox performance shocks, lift blocks and U-bolts. The end result, you achieve a lifted truck with a leveled stance for a fraction of the cost of a standard 4WD kit.
NOTES:
Spindles: +0.75″ Track Width increase
17″ Wheel w/ 4.5-4.75″ Backspacing
8-9 wide wheel
Will Clear up to a 35″ tire

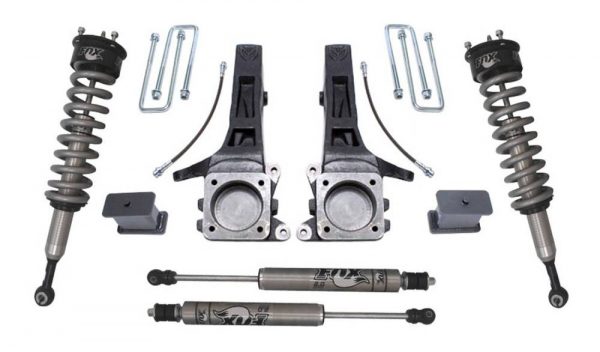

This kit comes with:
P/N: 706840 4″ Lift spindles with extended DOT Compliant brake lines
P/N: 876825F Fox 2.0 performance coil overs (2pcs)
P/N: 906840F 4″ Blocks, U-bolts, Carrier bearing/brake brackets, Fox Shocks
WARNING:
MAXTRAC SUSPENSION DOES NOT ADVISE USING WHEELS WIDER THAN 9″ OR WHEELS WITH LESS THAN 4.5″ BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
