Description
The Maxtrac Suspension 7-inch lift for the Dodge Ram 1500 is a cost-effective way to lift your 2WD wheel drive truck without breaking the budget. We do this by taking a factory height spindle and lowering the wheel hub position, which in turn raises the vehicle up while maintaining a factory-like ride and turning radius. We then replace the factory coil spring with a lifted coil spring and Fox 2.0 Monotube shocks to complete the front lift. By doing this, you eliminate the need to install expensive crossmembers that are labor intensive and require factory frame cuts. The spindles come with extended, DOT compliant, stainless steel braided brake lines. The rear lift comes with Fox 2.0 Monotube shocks, lift blocks and U-bolts. The end result, you achieve a lifted truck with a leveled stance for a fraction of the cost of a standard 4WD kit.
NOTES:
Track width increase of 1″ per side
17″ Wheel or larger w/ 4 1/2 – 5 3/4 ” Backspacing
Wheel width 8-9.5
Will Clear up to a 37″ x 12.50 tires

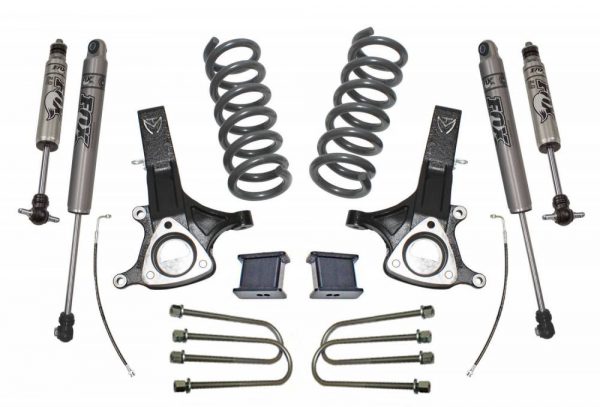

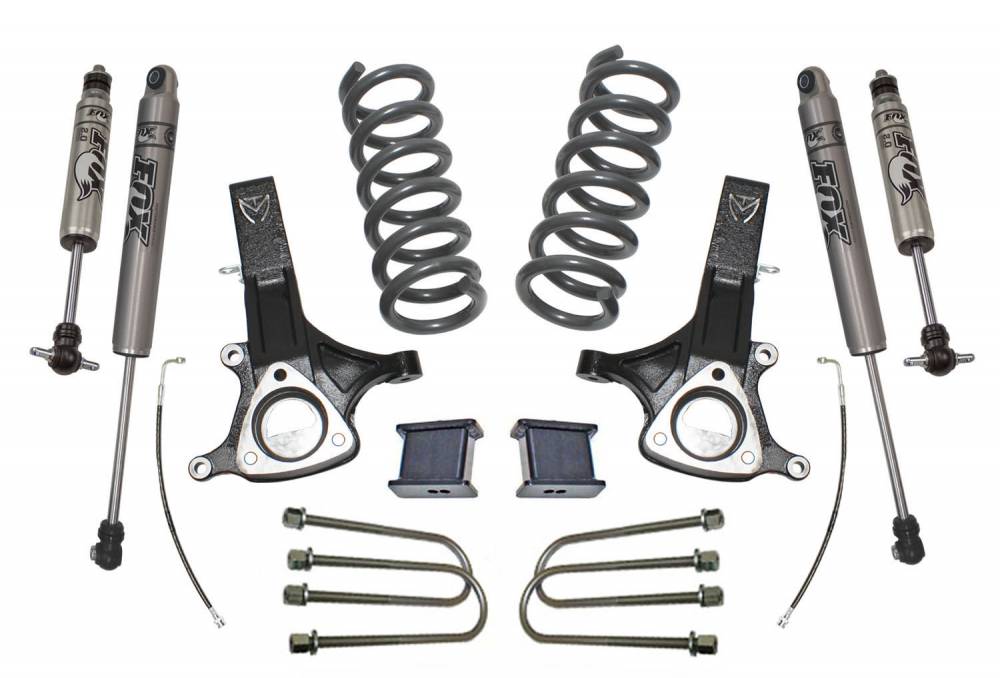

This kit comes with:
P/N: 702145 4.5″ LIFT SPINDLES W/ EXTENDED BRAKE LINES DOT COMPLIANT
P/N: 872171F 2.5″ FRONT LIFT COILS & FRONT FOX SHOCKS
P/N: 902140F 4″ LIFT BLOCKS, U-BOLTS, REAR FOX SHOCKS
WARNING:
MAXTRAC SUSPENSION DOES NOT ADVISE USING WHEELS WIDER THAN 9″ OR WHEELS WITH LESS THAN 4.5″ BACKSPACING. DOING SO WILL RESULT IN VOIDING ANY AND ALL MANUFACTURER WARRANTIES
