Description

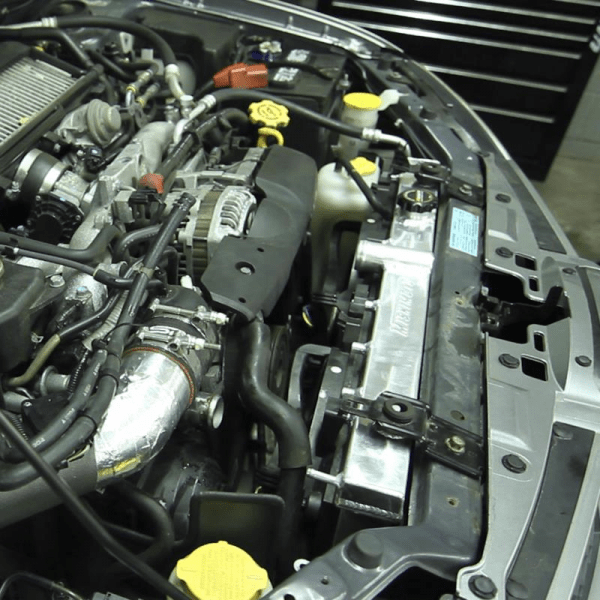

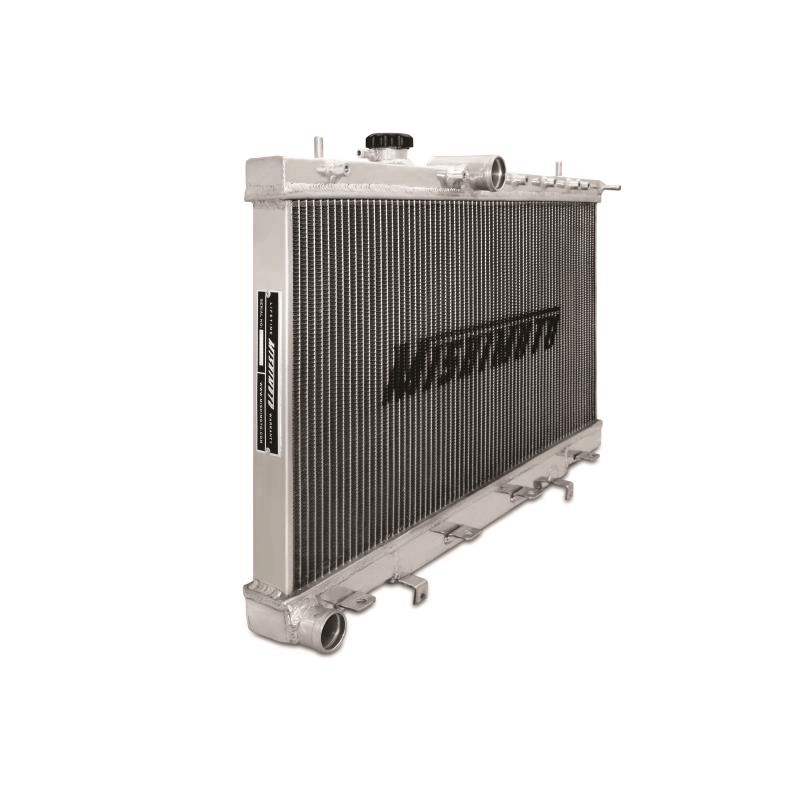

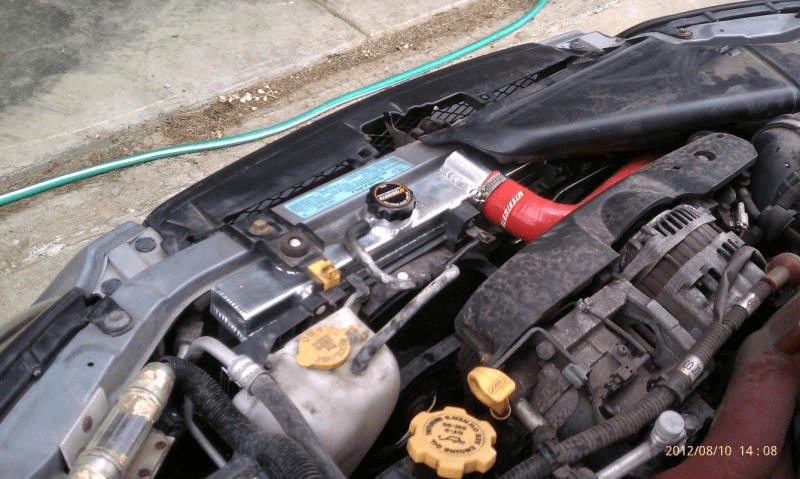

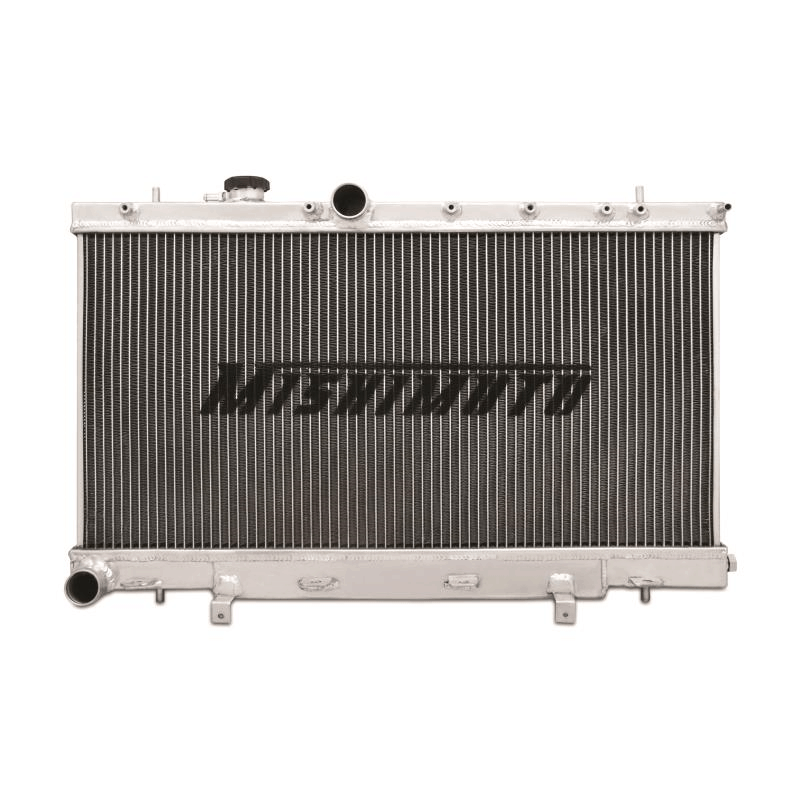

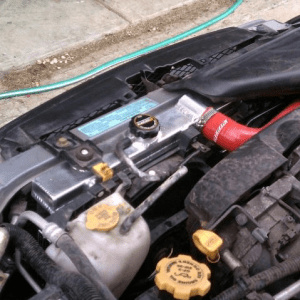

Mishimoto high performance aluminum radiator for a 2001-2007 Subaru Impreza WRX & STI. For MANUAL TRANSMISSION ONLY. Install this radiator to instantly lower engine temps while improving the performance and longevity of your engine. Made to fit directly in place of your OEM radiator. No modifications required.
For 2002-2003 Subaru WRX models built before 7/2002, remove fill neck overflow nipple and replace with 1/16″ NPT plug provided.
Features:
-Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
-Manufactured with robust TIG-welded end tanks for improved strength and extended service
-100% brazed aluminum core for maximum reliability
-Increased coolant capacity directly results in improved cooling efficiency

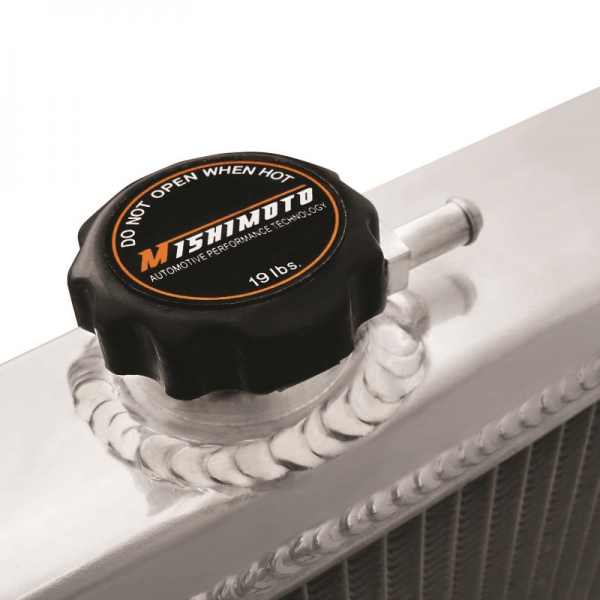

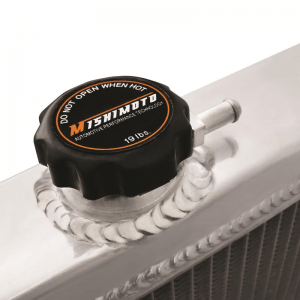

-Included 1.3 bar radiator cap raises the boiling point of engine coolant to provide a safer and more efficient system
-Designed to original equipment specifications for the 2001–2007 WRX and STI
-Mishimoto Lifetime Warranty ensures a premium product for the lifetime of ownership
OVERALL SIZE
28.4″ x 17.2″ x 2.15″
CORE SIZE
13.54″ x 27.24″
ROWS
2
INLET
1.5″
OUTLET
1.5″
CORE THICKNESS
1.65″
TANK WALL THICKNESS
.08″
FILL NECK
1.25″
DRAIN PLUG THREAD SIZE
(M16) .06″
DRAIN PLUG THREAD LENGTH
.047″
PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
1/16″ NPT Plug
Fan Mounting Hardware
Magnetic Drain Plug
Mishimoto Lifetime Warranty
ENGINE CODES
EJ205
EJ255
EJ257
CHASSIS CODES
GD
DPI
2703 NOTE
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
NOTE
For 2002-2003 Subaru WRX models built before 7/2002, remove fill neck overflow nipple and replace with 1/16″ NPT plug provided.
CAUTION
The provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur.
It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
Models:
2001 Subaru Impreza WRX 2.0L
2002 Subaru Impreza WRX 2.0L
2003 Subaru Impreza WRX 2.0L
2004 Subaru Impreza WRX/STI 2.0L, 2.5L
2005 Subaru Impreza WRX/STI 2.5L
2006 Subaru Impreza WRX/STI 2.5L
2007 Subaru Impreza WRX/STI 2.5L
EJ25
