Description

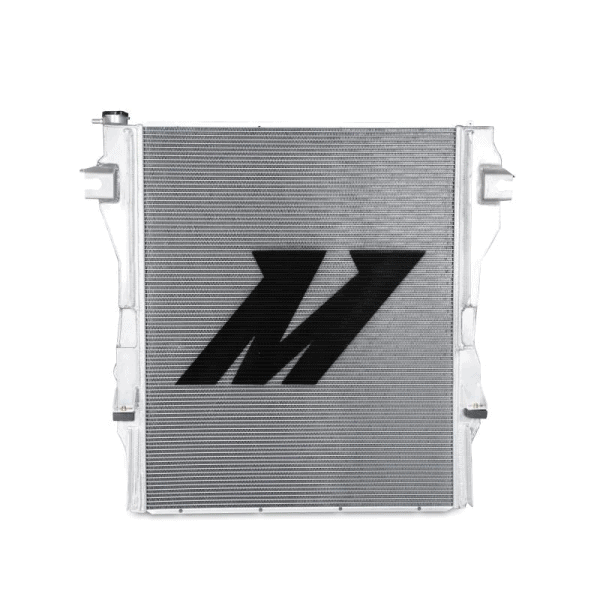

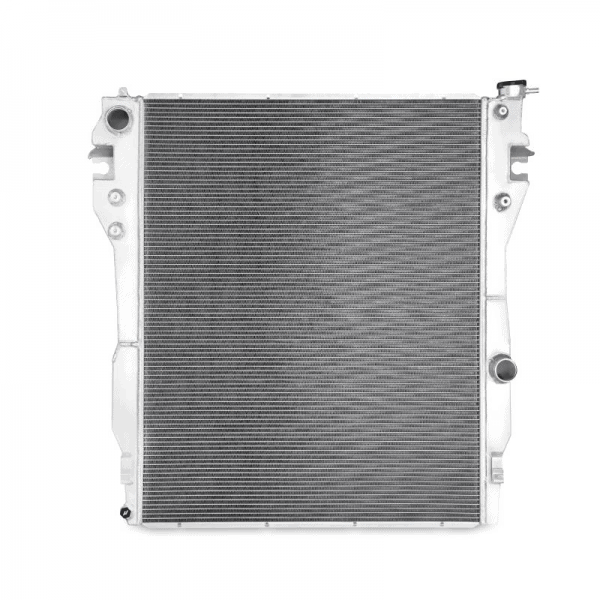

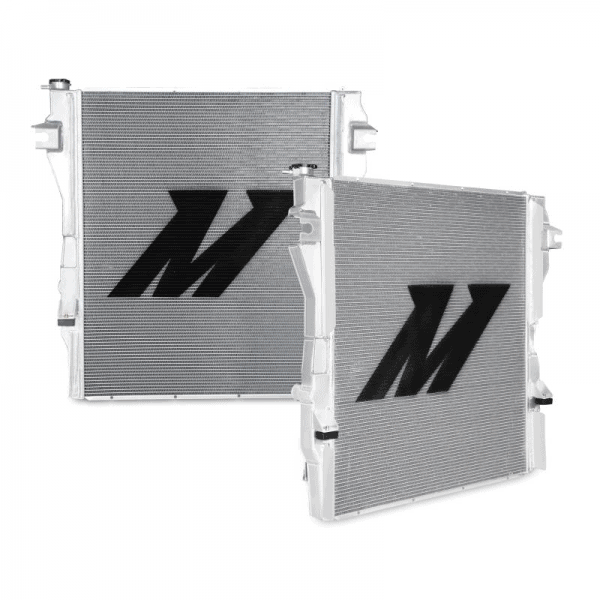

High performance Mishimoto aluminum radiator (MMRAD-RAM-10) for a 2010-2012 Dodge RAM 2500/3500 with 6.7L V8 Diesel Cummins. Install this radiator to instantly lower engine temps while improving the performance and longevity of your engine. Made to fit directly in place of your OEM radiator. No modifications required.
Direct fit 64% increased capacity over stock
100% brazed aluminum core is 19% thicker than factory radiator
Robotic TIG-welding and brushed aluminum finish

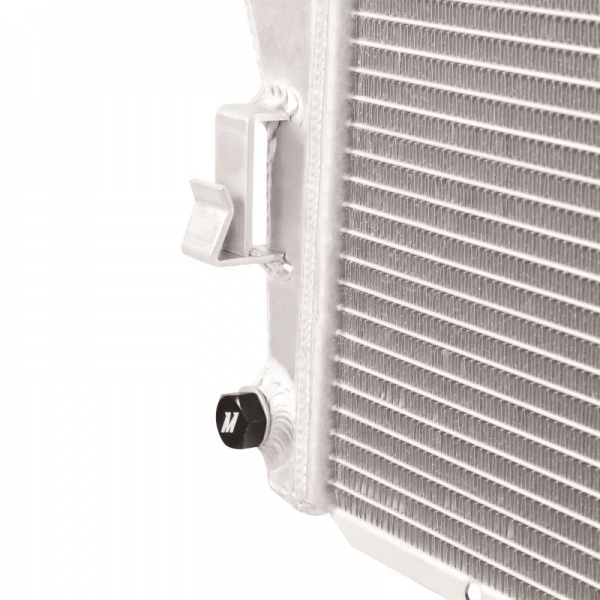

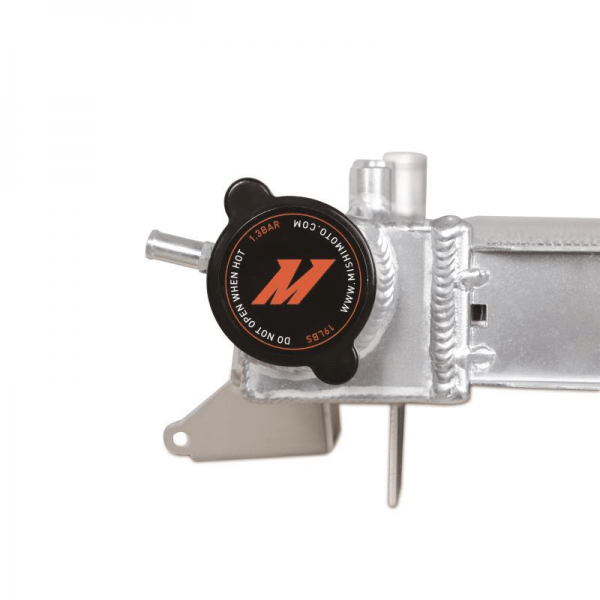

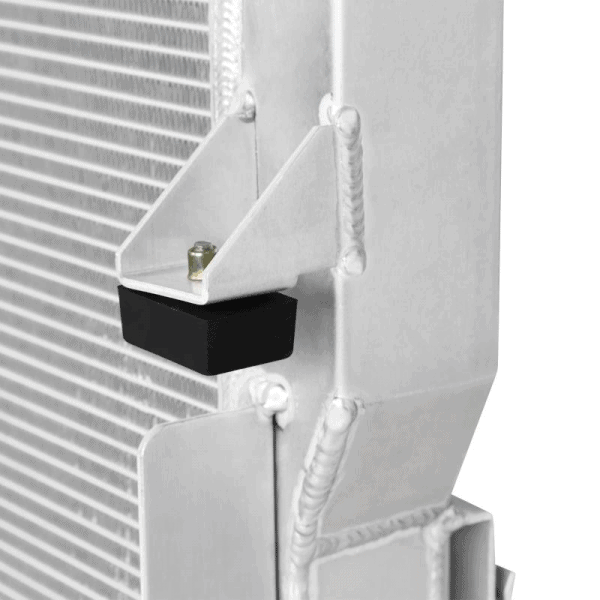

Includes two rubber mounting bushings, magnetic drain plug, and high-pressure radiator cap
Strategic side plates on the end tanks help divert air into the core
Mishimoto Lifetime Warranty
Fits
2010–2012 Dodge Ram 2500 w/ 6.7L Cummins Engine
2010–2012 Dodge Ram 3500 w/ 6.7L Cummins Engine
2010–2012 Dodge Chassis Cab w/ 6.7L Cummins Engine
Looking to upgrade your 6.7L Cummins radiator? Mishimoto has developed a performance aluminum radiator for the Dodge 6.7L Cummins Engine as an ideal upgrade for the factory radiator. This Cummins performance radiator was designed and engineered to maximize cooling efficiency, boost engine functions, and protect your truck from overheating. Whether you use your Dodge Ram for daily driving or as a powerhouse for hauling and towing, you don’t want to overlook the importance of installing an upgraded aluminum radiator for your engine. A factory radiator cannot handle the heat that comes along with the immense power and torque potential of your truck. The Mishimoto Cummins performance radiator features a lightweight two-row core made of 100% brazed aluminum that is 19% thicker than the factory radiator, and it features strong TIG-welded aluminum end tanks for superior durability and longevity.
Purchase includes two rubber mounting bushings and a Mishimoto M12 x 1.5mm Magnetic Drain Plug to keep metal fragments out of your coolant. Every Mishimoto performance aluminum radiator is a direct factory fit, making installation effortless with no cutting or modification required. Pair this Cummins performance radiator with the Mishimoto Dodge 6.7L Cummins Silicone Coolant Hose Kit for the ultimate Cummins cooling solution. As with every Mishimoto aluminum radiator, the Mishimoto Dodge 6.7L Cummins Aluminum Radiator comes with the unparalleled Mishimoto Lifetime Warranty. Whether your Cummins is stock or modified, trust Mishimoto and our line of Dodge Ram performance parts to keep your Dodge cool.
Material Aluminum
Overall Height 36.15″|
Drain Plug Thread Size (M12) x 1.5
Overall Length 34.15″
Tank Wall Thickness 0.08″
Outlet 1.75″
Rows 2
Inlet 1.75″
Coolant Capacity 6.39
Dual Pass False
Mishimoto Radiator Cap
Magnetic Drain Plug
Additional Mounting Hardware: (2) Rubber Mounting Bushings
Mishimoto Lifetime Warranty
Overall Width 6.25″ Core Length 26.7″
Core Height 32.9″
Core Thickness 1.96″
