Description
– Factory Location Mounting
– Durable Powder Coated Stainless Steel
– Includes XPR-9M Light Bar (1,365 feet of usable light)
– Triple Chrome Plated T304 Stainless Studs
– Light cover options available

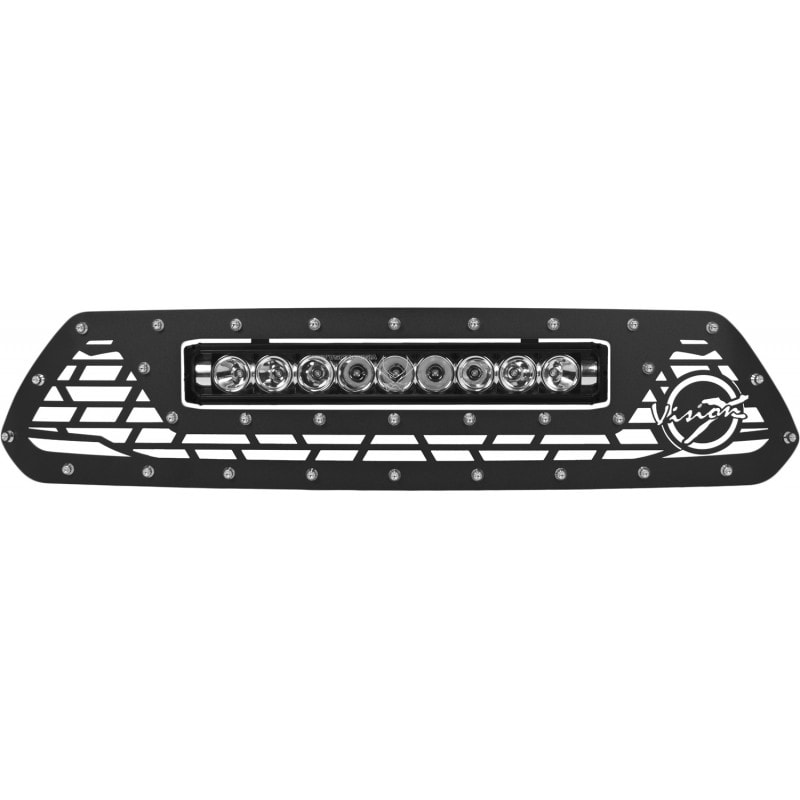

The Vision X XIL-OEGB12TTAXPR will transform the look of your truck while shining tremendous amounts of light on the road or trail with the all new VX Series Grilles, featuring a 19” XPR LED Light Bar. The VX Grilles have a unique style, and manufactured from Stainless Steel, with durable Satin black powder coating. Each is supplied with polished T-304 Stainless studs and black studs for personal customization. Utilizing top-binned 10-Watt LEDs and large proprietary 1.5” diameter IRIS Reflectors, the XPR-9M Light Bar is capable of reaching a staggering 1,365 feet of usable light. This unmatched long-distance projection is also accompanied by precisely tilted IRIS Reflectors that create a unique combination beam pattern to provide even more visibility at the road’s edge.
Part # 5360121
Item # XIL-OEGB12TTAXPR
LIGHT OUTPUT
BEAM PATTERN Mixed
RAW LUMENS 9,711 Lm
EFFECTIVE LUMENS 6,798 Lm
LED COLOR White
DIMENSIONS
LENGTH 25
WIDTH 65
HEIGHT 12
WEIGHT 38
FEATURES
PRIME DRIVE (DIMMABLE) ✓
COVERS AVAILABLE ✓
HOUSING MATERIAL 6061 Aluminum
LENS MATERIAL Polycarbonate
IP RATING IP68/69K
VIBRATION RATING 0
OPERATION TEMPERATURE -40 Celsius ~ +85 Celsius
LIFE SPAN 50,000 Hours
GORE® MOISTURE PROTECTION
REVERSE POLARITY PROTECTION ✓
POWER USAGE
WATTAGE 90
AMP DRAW 3.75A
VOLTAGE 9-32V DC
ADDITIONAL
BRACKET TYPE Vehicle Specific
CONNECTOR TYPE Deutch
INCLUDES HARNESS ✓
2012, 2013, 2014, 2015
Toyota Tacoma Trucks
