Description
– Factory Location Mounting
– Durable Powder Coated Stainless Steel
– Includes XPR-9M Light Bar (1,365 feet of usable light)
– Triple Chrome Plated T304 Stainless Studs

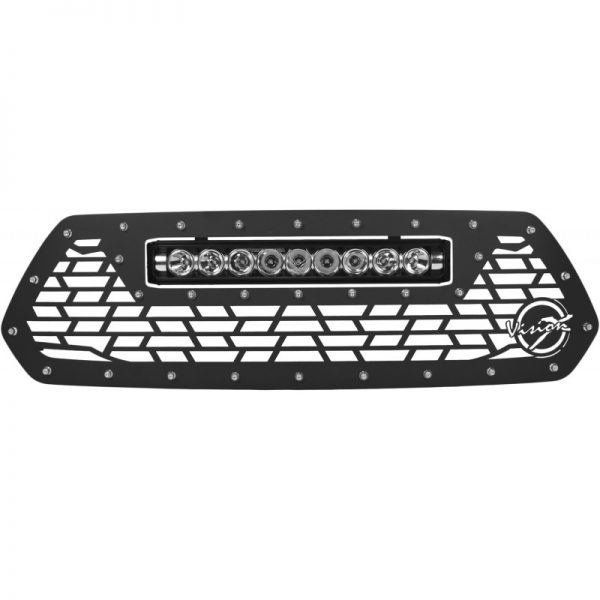

The Vision X XIL-OEGB16TTAXPR will transform the look of your truck while shining tremendous amounts of light on the road or trail with the all new VX Series Grilles, featuring a 19” XPR LED Light Bar. The VX Grilles have a unique style, and manufactured from Stainless Steel, with durable Satin black powder coating. Each is supplied with polished T-304 Stainless studs and black studs for personal customization. Utilizing top-binned 10-Watt LEDs and large proprietary 1.5” diameter IRIS Reflectors, the XPR-9M Light Bar is capable of reaching a staggering 1,365 feet of usable light. This unmatched long-distance projection is also accompanied by precisely tilted IRIS Reflectors that create a unique combination beam pattern to provide even more visibility at the road’s edge
Part # 5360161
Item # XIL-OEGB16TTAXPR
2016, 2017, 2018, 2019
Toyota Tacoma Trucks
LIGHT OUTPUT
BEAM PATTERN Mixed
RAW LUMENS 9,711 Lm
EFFECTIVE LUMENS 6,798 Lm
LED COLOR White
DIMENSIONS
LENGTH 25
WIDTH 65
HEIGHT 12
WEIGHT 38
FEATURES
PRIME DRIVE (DIMMABLE) ✓
COVERS AVAILABLE ✓
HOUSING MATERIAL 6061 Aluminum
LENS MATERIAL Polycarbonate
IP RATING IP68/69K
VIBRATION RATING 0
OPERATION TEMPERATURE -40 Celsius ~ +85 Celsius
LIFE SPAN 50,000 Hours
GORE® MOISTURE PROTECTION
REVERSE POLARITY PROTECTION ✓
POWER USAGE
WATTAGE 90
AMP DRAW 3.75A
VOLTAGE 9-32V DC
ADDITIONAL
BRACKET TYPE Vehicle Specific
CONNECTOR TYPE Deutch
INCLUDES HARNESS ✓
