Description

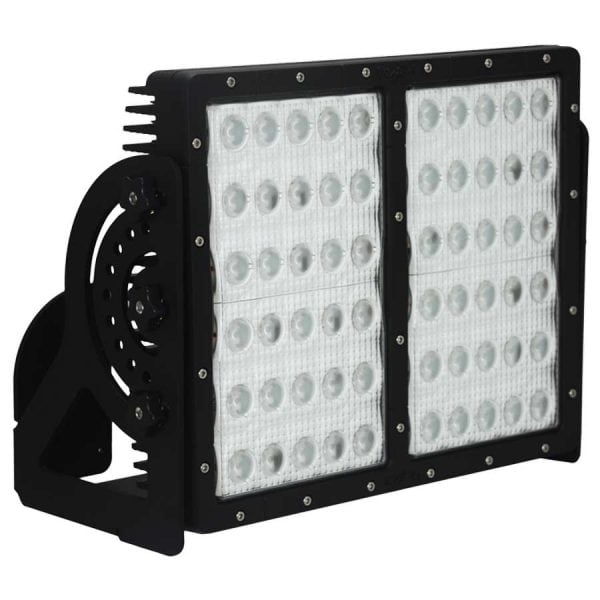

The Pit Master Industrial Heavy Duty LED Light series was designed for a variety of applications demanding reduced power consumption and increased light output. Direct 1 for 1 replacement for 400-500 Watt HPS lighting for 70% reduction in power consumption while increasing effective output by 30%.
- LEDs: 60 x 5W
- Housing Material: Aluminium
- Light Colour Temp: 5700 Kelvin
- EMC/EMI Approval: CISPR25-Class 3

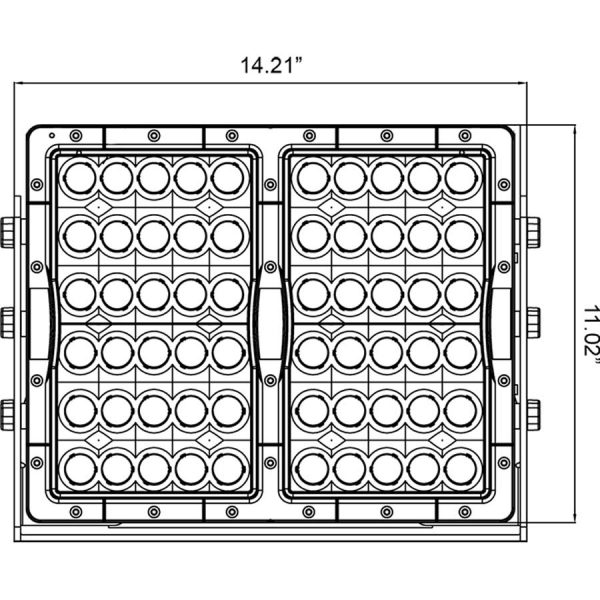

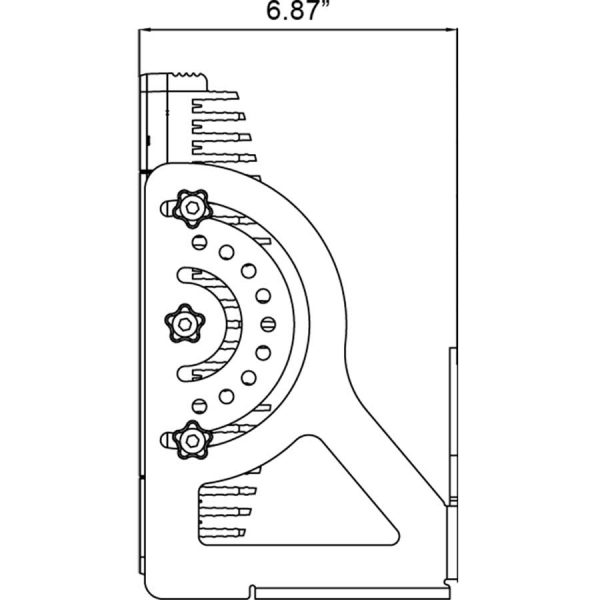

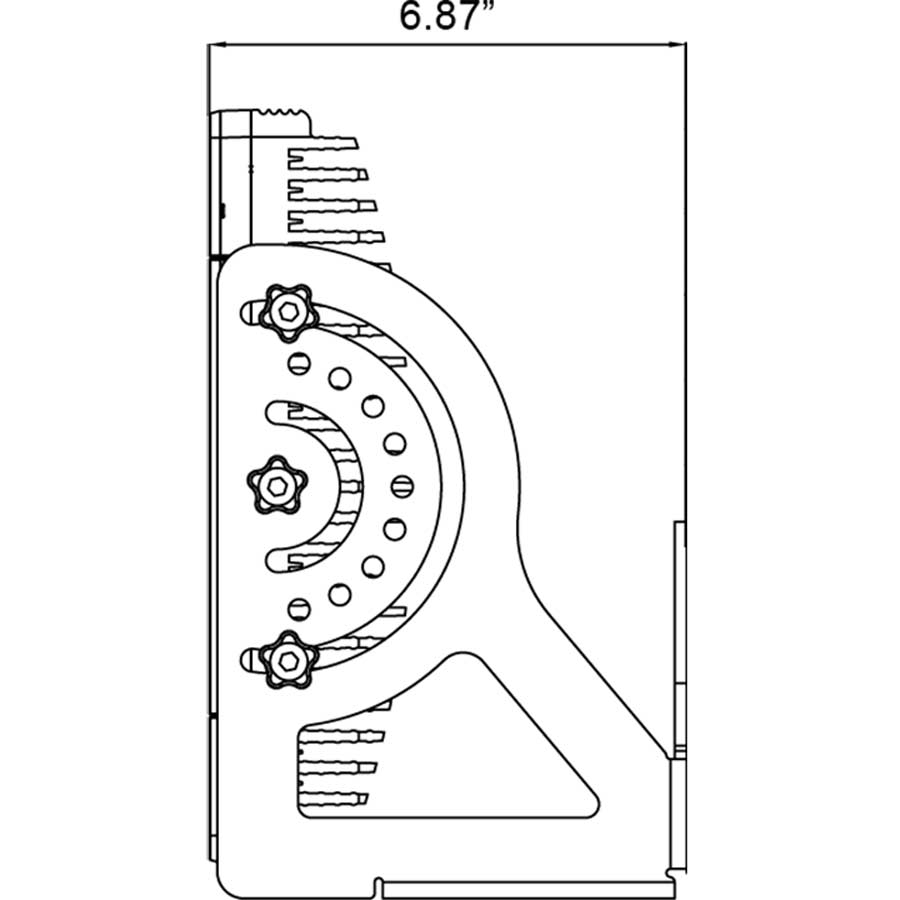

- Dimensions: 363 mm x 297 mm x 179 mm
- Weight: 12.23 kg
- Voltage: 18-65V DC
- Amperage: 12.5A@24V DC – 25A@12V DC
- Vibration Rating: 15.6 Grms
- Lens Material: Polycarbonate
- Certifications: CE, RoHS, IEC 62471
The Pit Master series was designed with many applications in mind, from drill rigs to light towers. Direct 1 for 1 replacement for 1000 Watt HPS lighting for 70% reduction in power consumption while increasing effective output by 30%.
Integrated Power Supply Mount (Power Supply Sold Separately) | Integrated Electronic Thermal Management | Reinforced Gasketed Bezel | Reverse Polarity Operation | Polycarbonate Lens | Integrated Deutsch Connector | Harnessing Unbeatable Power
Whether you choose the 30 LED or 60 LED Pitmaster, you can rest assured that the LEDs inside the Pitmaster are the best 5-Watt LEDs obtainable. Top-binned and perfectly constructed, these high powered LEDs are capable of outputting 528 raw lumens each.
Rugged and Durable Construction
The combination of a die-cast 6061 aluminum housing, unbreakable polycarbonate lens, integrated deutsch connector, reinforced gasketed bezel and a strengthened trunnion bracket create a one of a kind, high-powered light that will outshine and outlast the competition.
Prime Drive Technology
Prime Drive Technology from Vision X Lighting controls vital functions such as temperature control and dimming on your LED Light Bar. This advanced technology can increase or decrease the intervals at which the LEDs turn on and off in order to lower the bars overall temperature and maximize the lifespan.

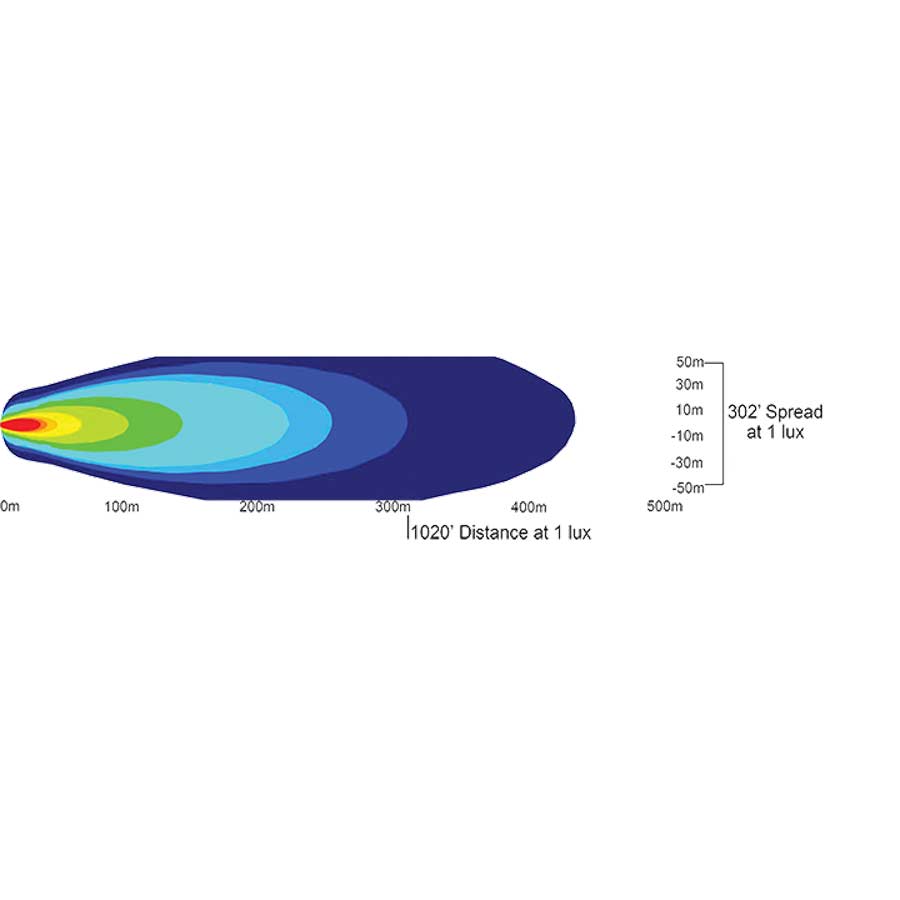

MIL-PMX6010, 10° Narrow, 31.660 lm(raw lumens) 22.688 lm(effective lumens) 300 Watt
MIL-PMX6040, 40° Wide, 31.660 lm(raw lumens) 22.688 lm(effective lumens) 300 Watt
MIL-PMX6060, 60° Flood, 31.660 lm(raw lumens) 22.688 lm(effective lumens) 300 Watt
MIL-PMX6090, 90° Extra Flood, 31.660 lm(raw lumens) 22.688 lm(effective lumens) 300 Watt
MIL-PMX60E3065, 30×65° Elliptical, 31.660 lm(raw lumens) 22.688 lm(effective lumens) 300 Watt
Category : Heavy Duty
Warranty : Extended
