Description

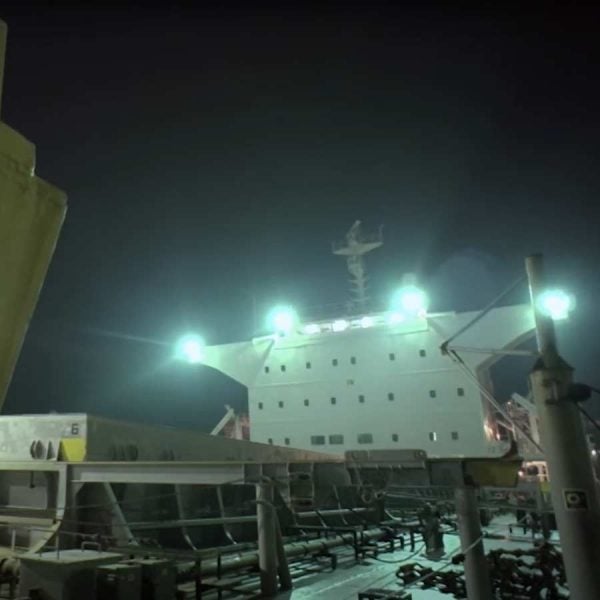

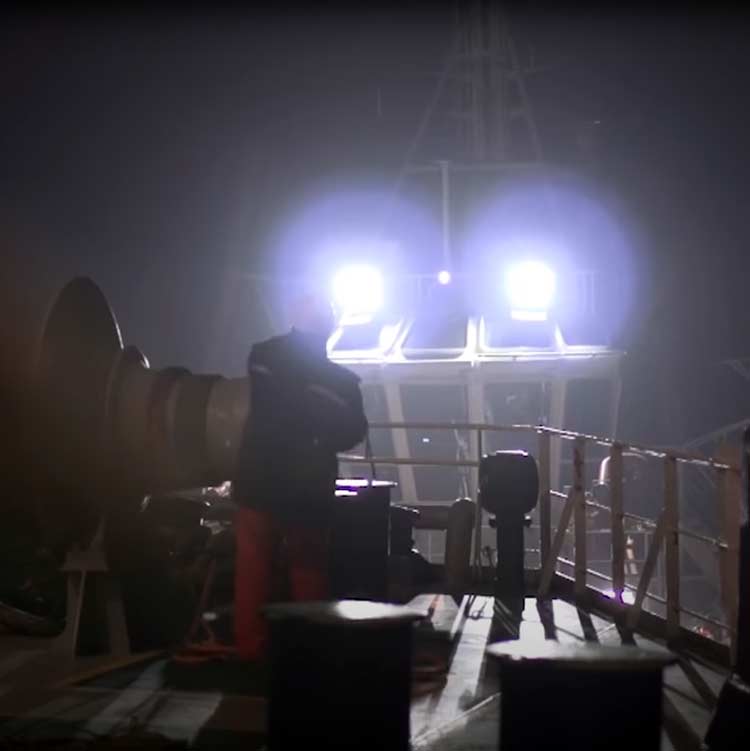

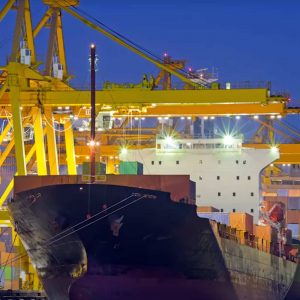

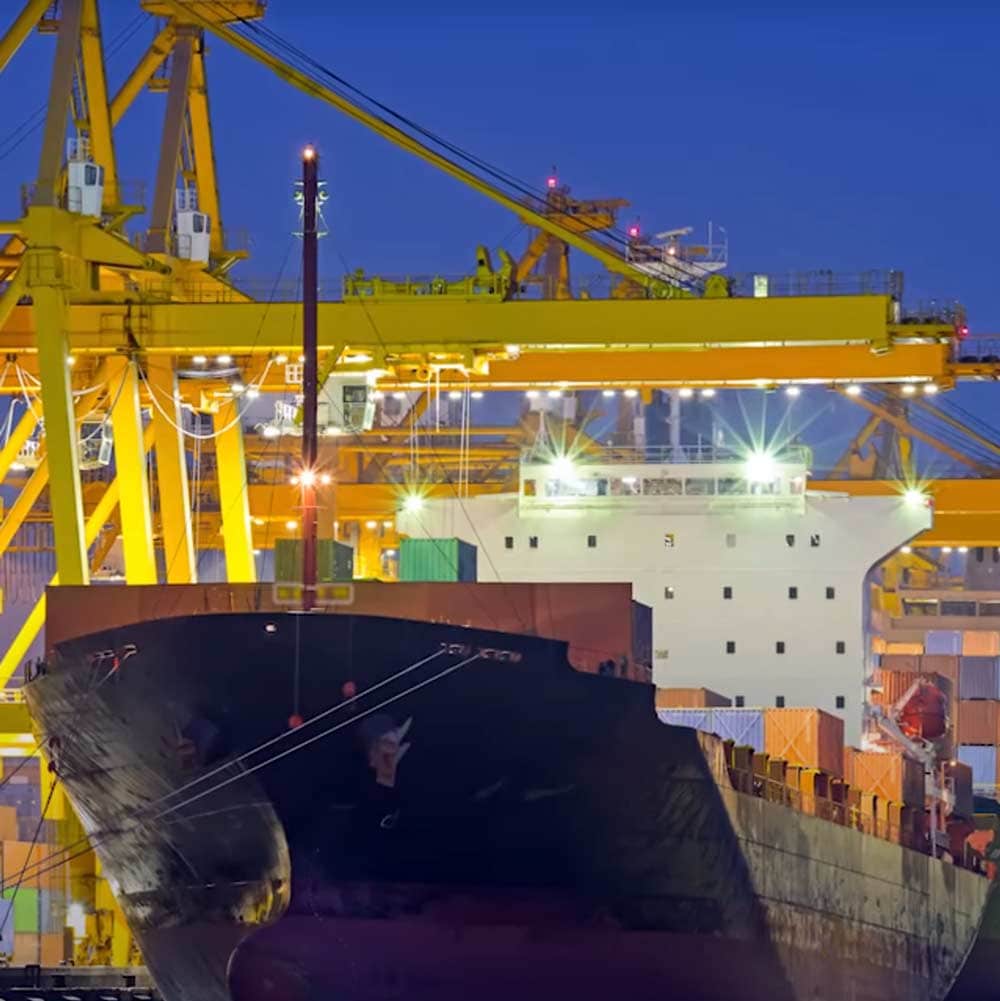

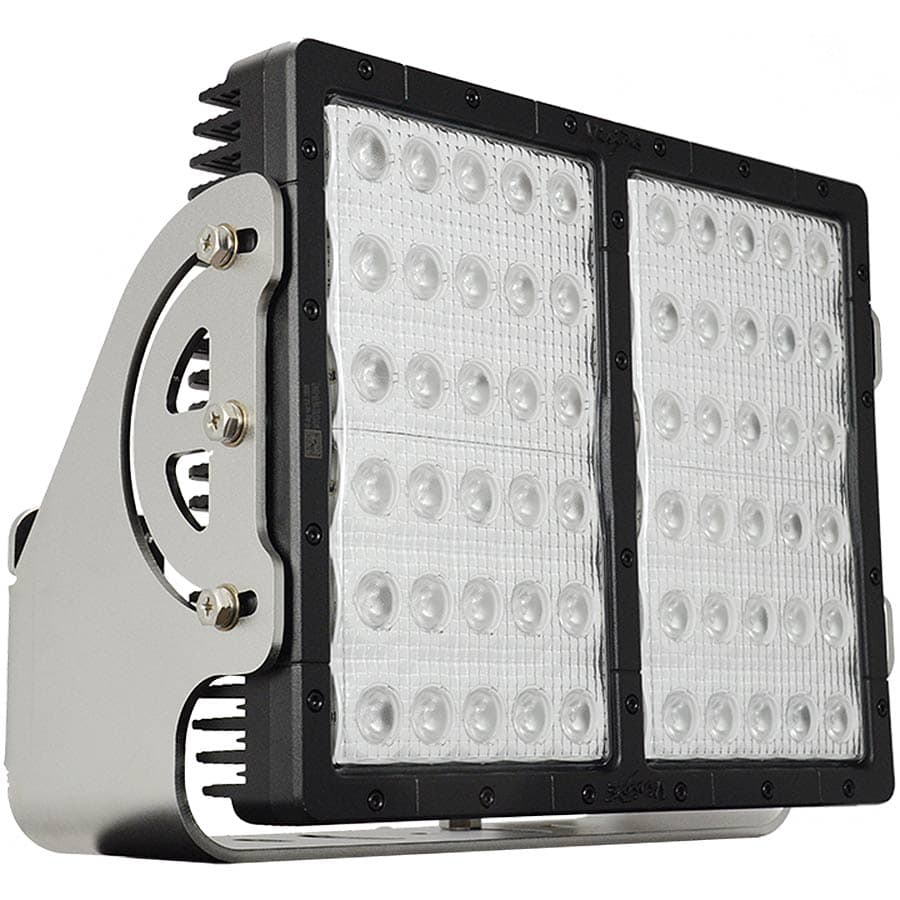

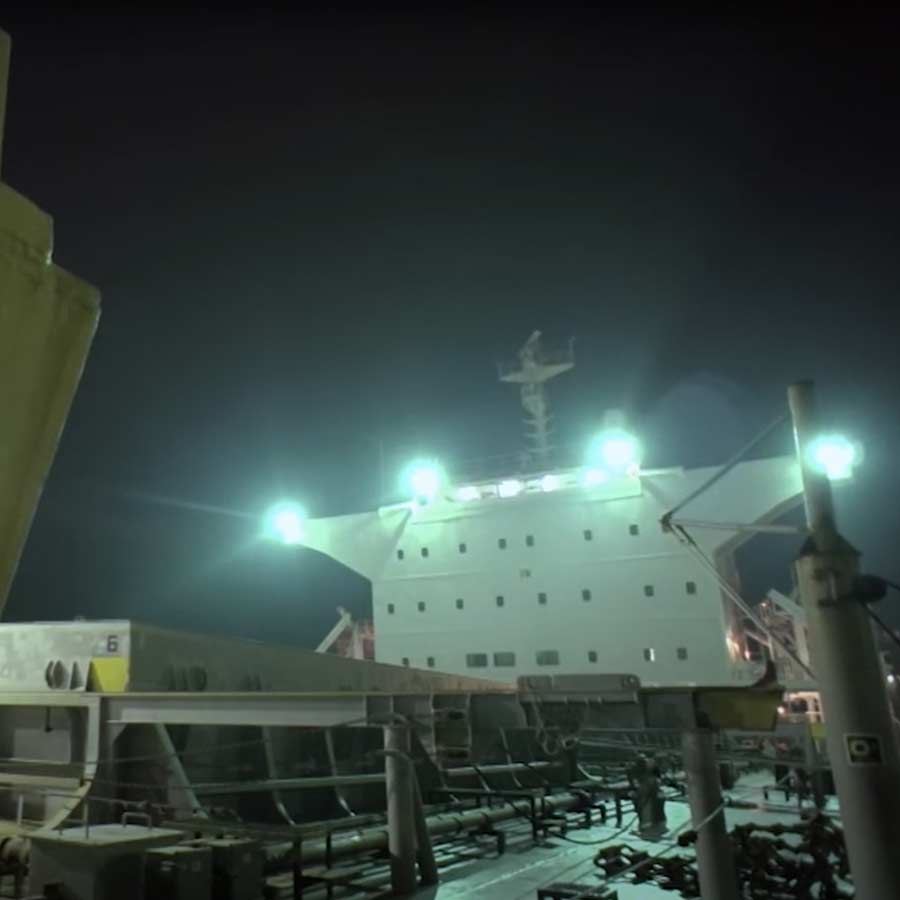

The Vision X Pit Master Maritime series was specially engineered for ocean freighters, large recreational watercraft, & commercial fishing vessels. This extremely powerful, durable, & weather resistant light can be used to illuminate the deck of a vessel or serve as a forward facing running light. Whether you’re purchasing this for your personal boat or an industrial application, you can be sure the Pitmaster will stand up to the elements and illuminate your surroundings with an outstanding brightness & efficiency.
- LEDs: 60 x 5W
- Interpon 810 Anti Corrosive Coating
- Support Brackets: Stainless steel 316
- Light Colour Temp: 5000 Kelvin (Available from 2.700k to 6.500k)
- EMC/EMI Approval: CISPR25-Class 3
- Dimensions: 363/297/179 mm
- Weight: 13.23 kg
- Voltage: 11-65V DC – 100-277V AC
- Amperage: 12.5A@24V DC – 2.5A@120V AC
- Vibration Rating: 60 Grms
- Lens Material: Polycarbonate
- Certifications: CE, RoHS, IEC 62471
The Vision X Marine line provides the ideal solution for watercraft of all sizes. From commercial freight ships to fishing vessels for hobbyists, we carry the perfect LED fixtures. Each electronics board used in the Maritime line is constructed from copper to remove corrosion issues typically common in saltwater applications.
Additionally, the gloss coating reduces wear from constant barrage of saltwater while at sea, ensuring the light performs day in and day out. The heavy duty stainless steel bracket combines maximum strength with a bracket that won’t deteriorate over time.
Maritime products operate at a 5000K color temperature, giving the light a warmer feel.
SALTWATER PROTECTION
The unique gloss coating used on Maritime products from Vision X greatly reduces the dramatic impact that saltwater has on traditional lighting fixture housings.
INCLUDED MOUNTING
The each fixture in the MAR Series from Vision X comes equipped with a high-strength stainless steel bracket that gives the light extra protection against saltwater corrosion.
Copper Plated Board
Anti-corrosion The Maritime products from Vision X feature a copper electronic board to eliminate any chance of corrosion. Additionally, the copper board helps reduce above-ground CISPR
Above Ground Maritime
Saltwater Protection The unique gloss coating used on Maritime products from Vision X Greatly reduces the dramatic impact that saltwater has on traditional lighting fixture housing
CISPR 25
Class 3 Rated To limit the RF noise that your work light introduces into electronics/radios, enabling better communication.
Long life – 50,000 hours
Using Pulse Width Modulation (PWM), the LEDs are being turned on and off at a frequency quicker than the human eye can detect. This technology allows the LEDs to be driven hard whilst still achieving a long life span of 50,000 hours.
Moulded DT connectors
Any product is only as good as its components and Deutsch’s moulded DT connectors are manufactured from high quality materials selected for their ability to withstand years of environmental exposure.
Electronic thermal management
In an extraordinary situation where the light is subjected to massive heat overload, a self protection protocol is engaged to reduce the light output, until such time as the heat overload retreats to normal parameters.
Reverse polarity protection
BT Series lights will not sustain accidental damage if the polarity to the light is reversed by incorrect installation.
Category : Maritime, View All Maritime Products
Warranty : Extended
MAR-PMX6040, 9892382, 40 degree beam
MAR-PMX6060, 9892078, 60 degree beam
MAR-PMX6090, 9893013, 9 degree beam
