Description

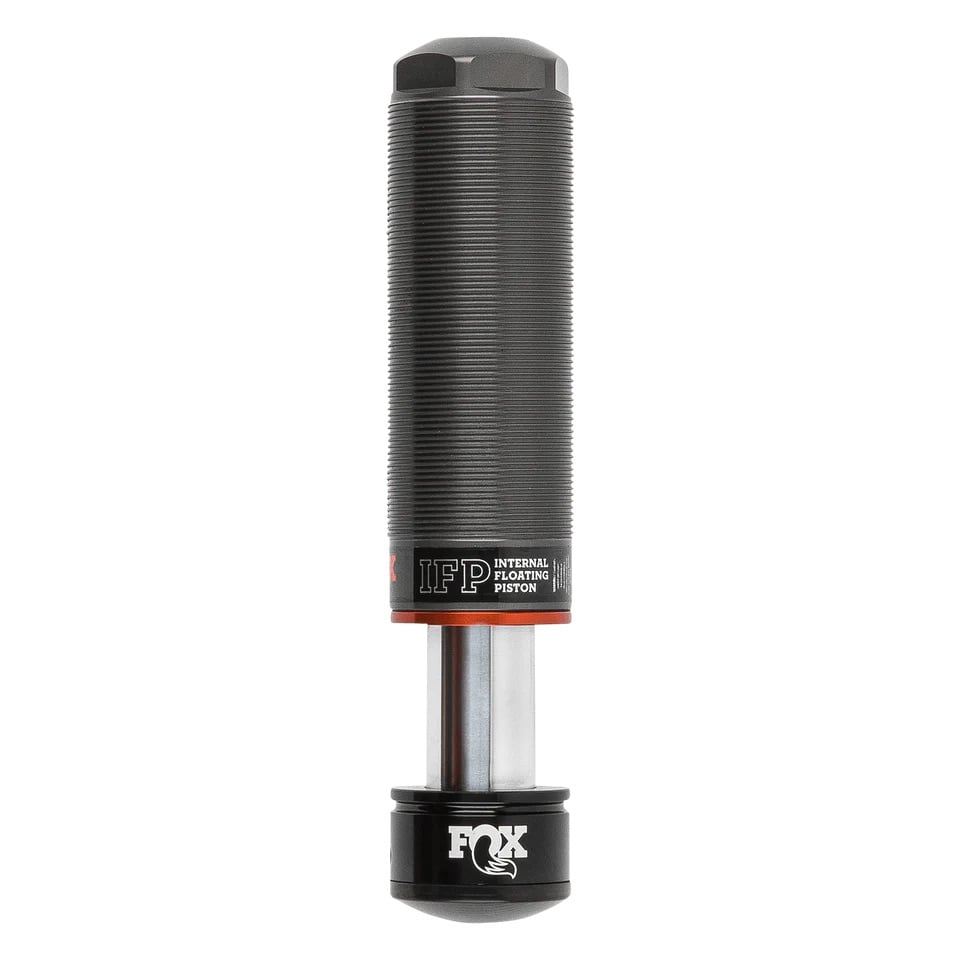

Part number 883-02-155 is the FOX® 2.0 Factory Series rear bump stop set with Internal Floating Piston (IFP), fitting 2007–2017 Jeep Wrangler and 2018 Jeep Wrangler JK models, sold as a pair for rear applications.
IMPORTANT: Modifications are required for installation, per FOX. This is the rear-position bump stop only — the matching front bump stop is sold separately under part number 883-02-154 and is not included in this kit.
FOX’s 2.0 Factory Series bump stop is designed to control the last few inches of suspension travel, preventing harsh bottom-outs while allowing the suspension to use its full available travel. The threaded body construction lets the mounting height be adjusted to fine-tune exactly when the bump stop engages during up-travel.
An Internal Floating Piston (IFP) inside the shaft separates the oil from the high-pressure nitrogen gas, preventing cavitation and bucking under repeated hits. A negative coil spring softens initial impact and harsh top-outs, and the integrated FOX Air Valve (FAV) is positioned at the bottom of the shaft for easy access, protected by a replaceable strike pad.
The body is threaded, impact-extruded, black-anodized, CNC-machined 6061-T6 billet aluminum, chosen for faster heat dissipation than steel. The shaft is hard chrome-plated 1-1/4″ 4130 steel. FOX backs this bump stop set with a 1-year limited warranty covering defects in materials and workmanship.
- Fits 2007–2017 Jeep Wrangler (all trims/sub-models) and 2018 Jeep Wrangler JK (all trims) — Rear position, all lift heights, sold as a pair
- Threaded, impact-extruded, black-anodized CNC-machined 6061-T6 billet aluminum body — adjustable mounting height
- Internal Floating Piston (IFP) separates oil from high-pressure nitrogen gas
- Integrated FOX Air Valve (FAV) with replaceable strike pad
- Hard chrome-plated 1-1/4″ 4130 steel shaft
- Tunable, velocity-sensitive deburred valve shims
- Redundant sealing pack system: main seal, wiper seal, scraper seal
- Modifications required for installation
- 1-Year FOX Limited Warranty
- Sold as a pair
| Part Number | 883-02-155 |
| Series | Factory Race |
| Position | Rear |
| Travel | 1.85″ |
| Rear Lift Height | All |
| Body | Threaded, impact-extruded, black-anodized, CNC-machined 6061-T6 billet aluminum |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | Hard chrome-plated 1-1/4″ 4130 steel with IFP |
| Piston | Heavy-duty powdered steel |
| Valving | Tunable, velocity-sensitive deburred valve shims |
| Seals | Redundant sealing pack system, main seal, wiper seal, scraper seal |
| Extended Length | 10.04″ |
| Compressed Length | 8.18″ |
| Top Mount | Threaded Body |
| Bottom Mount | None |
| Warranty | 1-Year FOX Limited |
| What’s Included | Pair of rear bump stops |
This bump stop is engineered for the rear of 2007–2017 Jeep Wrangler and 2018 Jeep Wrangler JK models at any lift height. This SKU covers the rear position only — the front bump stop for this same platform is a separate part number, 883-02-154, and is not included with this purchase.
