Description

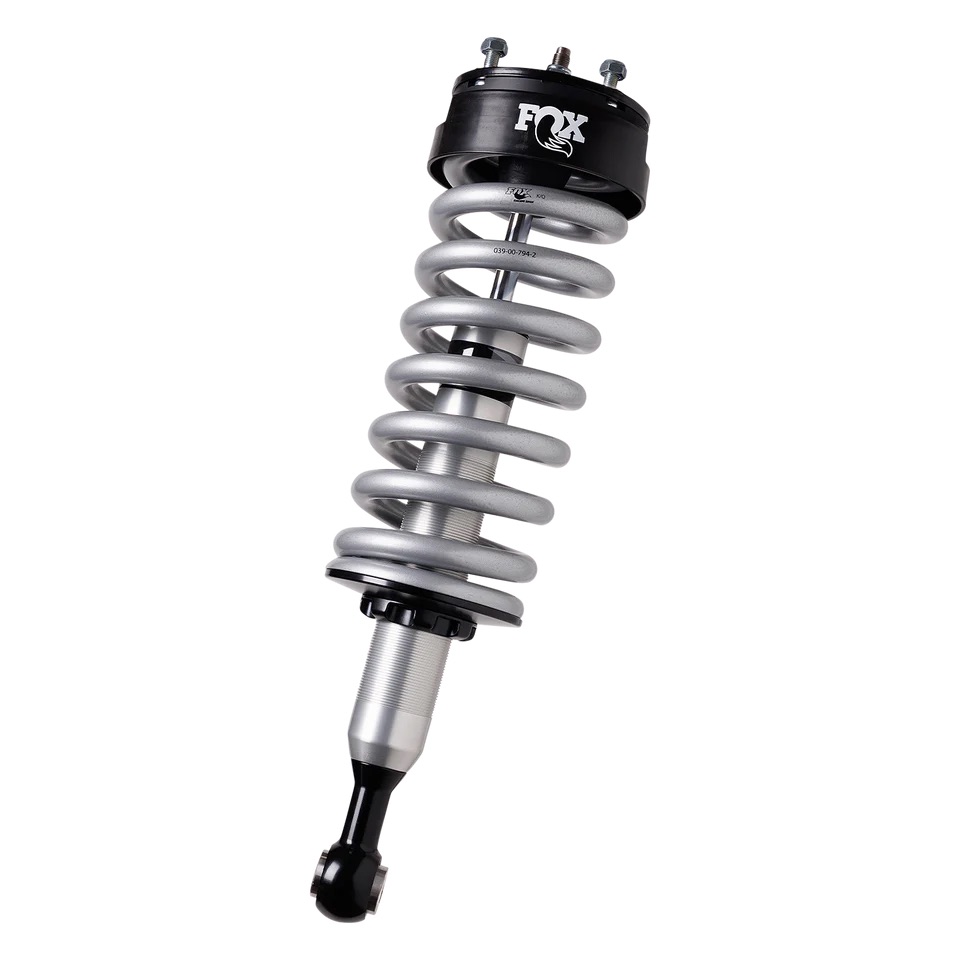

Part number 985-02-155 is a FOX® 2.0 Performance Series Coil-Over IFP front shock, sold individually, engineered as a direct bolt-on upgrade for 2024–2026 Toyota Tacoma trucks running 0–2.25 inches of front lift.
IMPORTANT: This shock does not fit leaf-spring Toyota Tacoma trucks. FOX® also offers part number 987-02-008, a 2.5 Performance Series IFP front shock, for the same 2024–2026 Tacoma generation — confirm which shock body diameter you want before ordering, as the two are not interchangeable.
This bolt-on Performance Series Coil-Over IFP shock features a precision, metal impact-extruded aluminum body that increases cooling capacity and resists rust over time. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration for a quieter, more controlled ride.
Locking, spring preload rings allow easy ride height and preload adjustment while retaining a top-quality racing coil selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level the truck front-to-rear, with applications available for both stock and lifted trucks that reuse the stock shock mount.
Inside, an Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber, eliminating oil aeration and delivering maximum performance from the factory-tuned, precision valving. FOX® backs this shock with a Limited Lifetime Warranty.
- Front IFP coilover; fits 2024–2026 Toyota Tacoma (non-leaf-spring trucks)
- 2.0″ impact-extruded, CNC-machined 6061-T6 clear-anodized aluminum body resists rust and improves cooling capacity
- Black-anodized, CNC-machined 6061-T6 billet aluminum components
- 5/8″ hard chrome-plated, heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Locking spring preload rings for easy ride-height and preload adjustment
- Limited Lifetime Warranty
- Sold individually
| Part Number | 985-02-155 |
| Series | Performance |
| Position | Front |
| Travel | 6.38 in |
| Body | 2.0″ impact extruded and CNC machined 6061-T6 clear anodized aluminum, one-piece body resists rust over time |
| Body Plating | Clear-anodized for a durable finish |
| Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Extended Length | 25 in |
| Compressed Length | 18.62 in |
| Top Mount | OEM |
| Bottom Mount | Eyelet |
| Warranty | Limited Lifetime Warranty |
| What’s Included | (1) FOX® 2.0 Performance Series Front IFP Coilover Shock |
This front IFP coilover is built for 2024–2026 Toyota Tacoma, providing 0–2.25 inches of front lift on non-leaf-spring applications. FOX® also lists part number 987-02-008 as a 2.5 Performance Series front shock for this same Tacoma generation — confirm the correct part number for your intended shock body diameter before ordering.
