Description

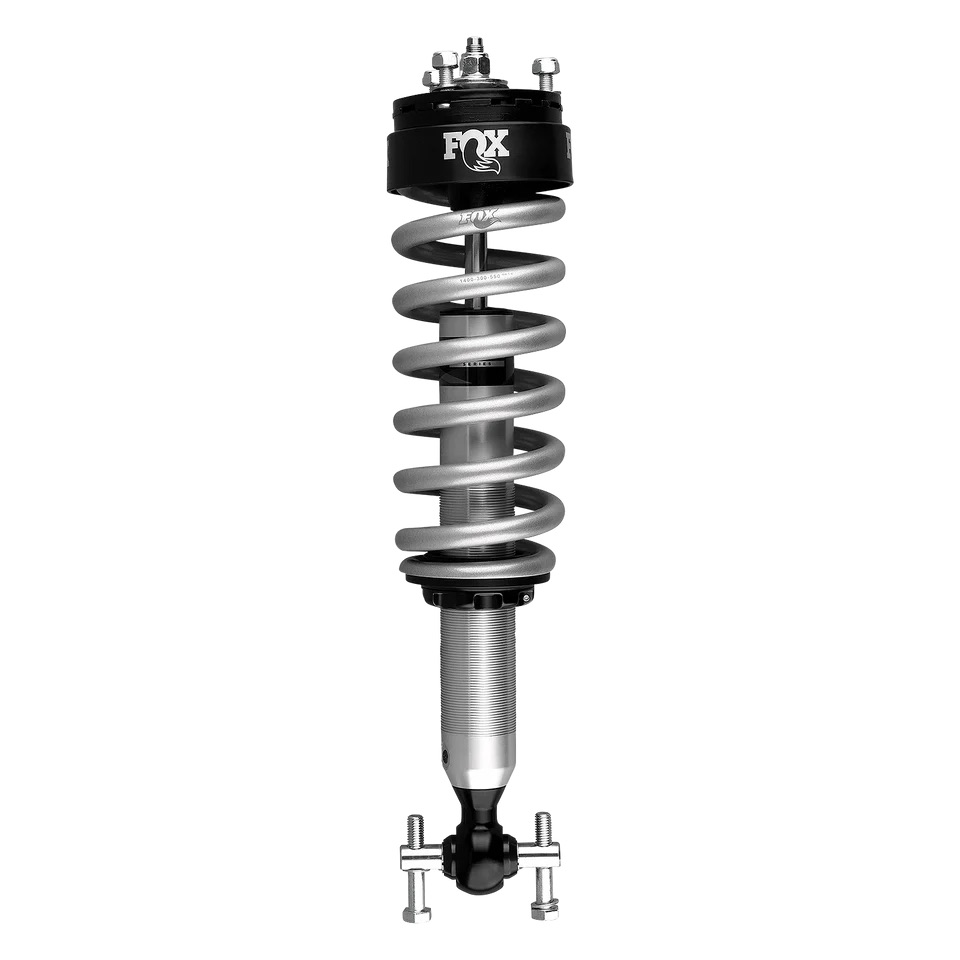

The FOX® 985-02-146 is a 2.0 Performance Series 4.9in IFP Coilover Shock, a front-position, bolt-on unit for 0-2in of lift, fitting 2021-2026 Ford F-150 4WD models.
IMPORTANT: FOX® does not recommend this shock for Hybrid or Tremor submodels — confirm your F-150 is not a Hybrid or Tremor build before ordering. This is the direct bolt-on coilover version of this application; a Snap Ring version that reuses your stock spring and mounting hardware is also available for the same trucks under FOX® part number 985-62-013. One (1) shock, sold individually; rear shocks sold separately.
Engineered for the 14th-generation F-150, this bolt-on coilover and IFP shock package is designed to level or raise the truck’s stance without adding strain to ball joints or other linkages that could compromise reliability or on-road behavior.
A 2.0in diameter monotube damper gives the shock significantly more capacity than the factory unit, with an Internal Floating Piston (IFP) keeping shock fluid and pressurized gas fully separated. That separation holds up to rough terrain without losing consistent damping, while application-specific valving delivers a connected, comfortable on-road ride with reduced body sway — including under towing loads, where the larger piston helps keep everything in check.
FOX® Performance Series shocks are impact-forged from aluminum, which FOX® states dissipates heat roughly four times faster than a factory-painted steel twin-tube shock while resisting corrosion far better. Every FOX® shock is fully serviceable and re-valveable, and this unit carries FOX®’s Limited Lifetime Warranty.
- Fits 4WD Ford F-150 (excludes Hybrid and Tremor submodels): King Ranch (2021-2026), Lariat (2021-2026), Limited (2021-2023), Platinum (2021-2026), Police Responder (2021-2025), SSV (2021-2026), STX (2024-2026), XL (2021-2026), XLT (2021-2026) — Front position, 0-2in lift
- 2.0in impact-extruded, CNC-machined 6061-T6 clear-anodized aluminum body
- Internal Floating Piston (IFP) mono-tube reservoir separates shock oil from nitrogen-charged gas
- OEM top mount, bar pin bottom mount for a direct bolt-on install
- 5/8in hard chrome-plated, heat-treated alloy steel shaft
- Race-developed high-flow piston with application-specific valving
- Redundant sealing pack: main seal, wiper seal, scraper seal
- Limited Lifetime Warranty
- Sold individually
| Part Number | 985-02-146 |
| Series | Performance |
| Travel | 4.89in |
| Body | 2.0in impact extruded and CNC machined 6061-T6 clear-anodized aluminum one-piece body |
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8in hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application-specific valving to maximize performance |
| Seals | Redundant sealing pack system: main seal, wiper seal, scraper seal |
| Extended Length | 23.21in |
| Compressed Length | 19.6in |
| Top Mount | OEM |
| Bottom Mount | Bar Pin |
| Fitment Notes | Excludes Hybrid and Tremor submodels |
| Warranty | Limited Lifetime |
| What’s Included | One (1) FOX® 2.0 Performance Series Coilover IFP Shock, front, sold individually |
This shock is built specifically for the front, 4WD application of the 2021-2026 Ford F-150, covering King Ranch, Lariat, Limited, Platinum, Police Responder, SSV, STX, XL, and XLT trims at 0-2in of lift, excluding Hybrid and Tremor submodels. This is the direct bolt-on coilover version — for the Snap Ring version that reuses your stock spring and mounting hardware, order FOX® part number 985-62-013 instead.
