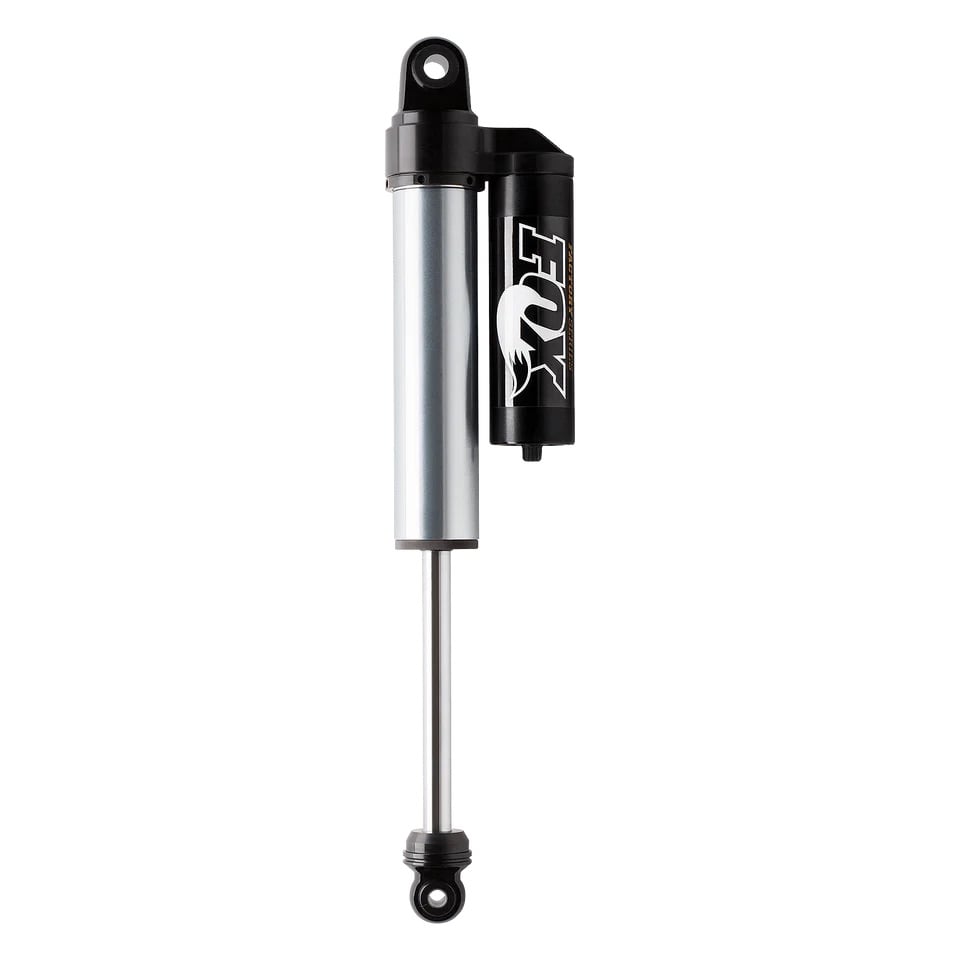

FOX® 2.5 Factory Race Rear Shock Pair for 2004-2020 Ford F150 883-24-002

Description

Part number 883-24-002 is the FOX® 2.5 Factory Race Series external reservoir rear shock pair for 2004-2020 Ford F-150 trucks running 0″-1.5″ of rear lift, built with a 2.5″ smooth-bore zinc-plated steel body and application-specific valving.

IMPORTANT: This shock does not have an external compression adjuster. If you want on-the-fly compression tuning via a Dual Speed Compression (DSC) adjuster on the reservoir, FOX offers that version under part number 883-26-002 at the same lift height and fitment. Confirm which version you need before ordering.

Factory Race Series 2.5 Reservoir shocks bring FOX’s off-road race shock design to a direct bolt-on application, delivering the ride quality and control needed once you leave pavement. The external reservoir increases oil and nitrogen capacity over a standard shock while giving the truck a distinct race-inspired stance.

The 2.5-inch smooth-bore body is zinc-plated and double clear-coated for a long-lasting finish, paired with black-anodized, CNC-machined 6061-T6 billet aluminum components. A race-developed high-flow piston and application-specific valving manage damping through the shock’s full range of travel.

A 7/8″ hard chrome-plated, heat-treated alloy steel shaft rides on PTFE-lined, heat-treated alloy steel spherical bearings. FOX uses a redundant sealing pack (main seal, wiper seal, scraper seal) to keep contaminants out and oil in. Eyelet top and bottom mounts are standard, and the shock is backed by FOX’s Truck & Motorsports product warranty.

• Fits 2004-2020 Ford F-150 (rear position) running 0″-1.5″ of rear lift; see fitment section for trim-specific year coverage
• 2.5″ smooth-bore, zinc-plated, double clear-coated steel body
• Black-anodized, CNC-machined 6061-T6 billet aluminum components
• 7/8″ hard chrome-plated, heat-treated alloy steel shaft
• PTFE-lined, heat-treated alloy steel spherical bearings
• Redundant sealing pack: main seal, wiper seal, scraper seal
• Eyelet top and bottom mounts
• Backed by the FOX® Truck & Motorsports product warranty
• Sold as a pair

This rear shock pair is built for 2004-2020 Ford F-150 trucks at 0″-1.5″ of rear lift, covering XL, XLT, STX, FX4, FX2, Lariat, King Ranch, Platinum, Limited, Harley-Davidson Edition, and SSV trims across the model years listed above. This is the non-adjustable version; the DSC adjustable version of this same application is sold under part number 883-26-002. Confirm your exact year and trim combination before purchase to ensure correct fitment.
