Description

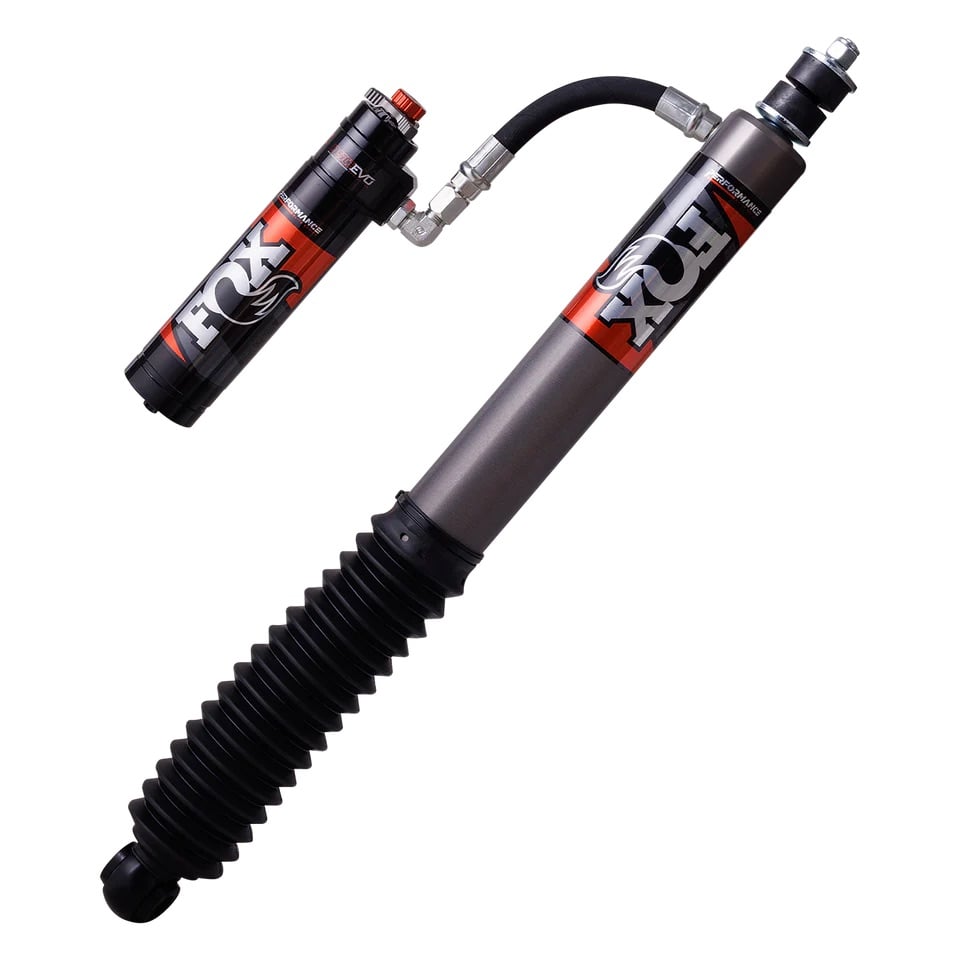

The FOX® 883-26-143 2.5 Performance Elite Rear Reservoir Shock Pair with DSC EVO provides 0-1in. of rear lift for 2024+ Toyota Tacoma trucks, using external reservoirs with Dual Speed Compression Evolution (DSC EVO) adjusters for independent high- and low-speed damping control. The set includes two complete rear shocks.
IMPORTANT: This shock does not fit leaf-spring-equipped Tacoma trucks.
FOX® Performance Elite Series shocks with DSC EVO improve the 4th-generation Toyota Tacoma platform by eliminating the vehicle’s forward rake, providing a level ride height, and increasing suspension articulation. Type III anodization on the 2.5″ aluminum body prevents corrosion and wear over time.

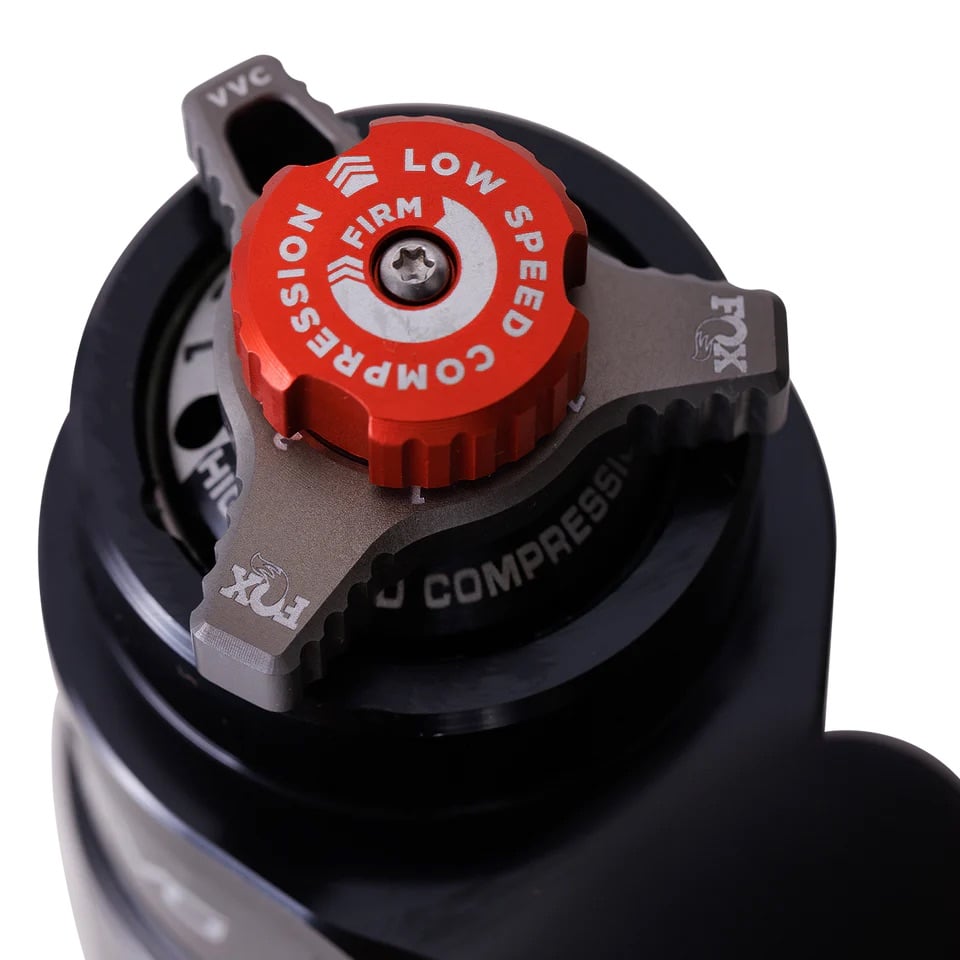

The external reservoir increases oil capacity and reduces the harshness associated with nitrogen ramp-up. Each reservoir’s Dual Speed Compression Evolution (DSC EVO) adjuster is strategically mounted to avoid interference with aggressive tires at full lock, and features Variable Valve Control (VVC) on the high-speed circuit — VVC adjusts high-speed damping without adding preload to the shim stack. The result is more comfort, independently tunable high- and low-speed circuits, and increased capacity for big hits, letting the driver add high-speed compression without sacrificing small-bump sensitivity.
Construction includes a 2.5″ impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body, black-anodized CNC-machined 6061-T6 billet aluminum components, a 7/8″ hard chrome-plated heat-treated alloy steel shaft, application-specific valving, and a redundant sealing pack system (main seal, wiper seal, scraper seal). FOX® backs this shock with a one-year limited warranty against defects in materials and workmanship.
- Fits 2024+ Toyota Tacoma (non-leaf-spring models); provides 0-1in. of rear lift
- 2.5″ impact-extruded, CNC-machined 6061-T6 Type III anodized aluminum body
- External reservoir with Dual Speed Compression Evolution (DSC EVO) adjuster
- Variable Valve Control (VVC) on the high-speed circuit for independent high/low-speed tuning
- Black-anodized CNC-machined 6061-T6 billet aluminum components
- 7/8″ hard chrome-plated heat-treated alloy steel shaft with race-developed high-flow piston
- Application-specific valving; redundant sealing pack system
- Backed by FOX®’s one-year limited warranty against defects in materials and workmanship

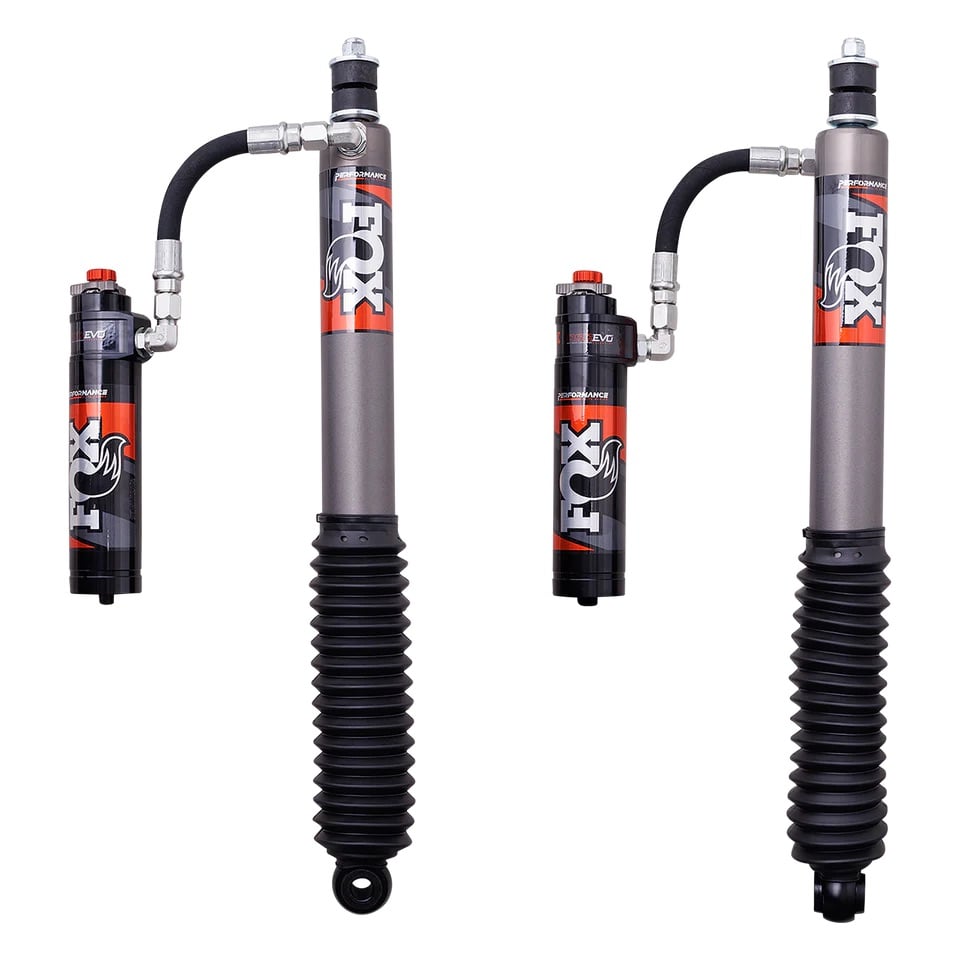

- Sold as a pair (2 complete rear shocks)
| Brand | FOX Racing Shox |
| Part Number | 883-26-143 |
| Series | Performance Elite |
| Body | 2.5″ impact-extruded, CNC-machined 6061-T6 Type III anodized aluminum |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 7/8″ hard chrome-plated heat-treated alloy steel |
| Piston | Race-developed high-flow design |
| Valving | Application-specific, with DSC EVO and Variable Valve Control (VVC) |
| Sealing | Redundant sealing pack: main seal, wiper seal, scraper seal |
| Travel | 9.98in. |
| Extended Length | 26.28in. |
| Compressed Length | 16.3in. |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Fitment Note | Does not fit leaf spring truck |
| Warranty | FOX one-year limited warranty |
| What’s Included | (2) Rear shocks with DSC EVO reservoir adjusters |
This shock pair fits the 2024+ Toyota Tacoma platform, providing 0-1in. of rear lift with DSC EVO reservoir adjusters. This pair is designed for non-leaf-spring Tacoma configurations. It is a distinct application from the 883-26-112 Performance Elite shock pair, which is built for the 2005-2023 Tacoma platform and does not include DSC EVO/VVC tuning.
