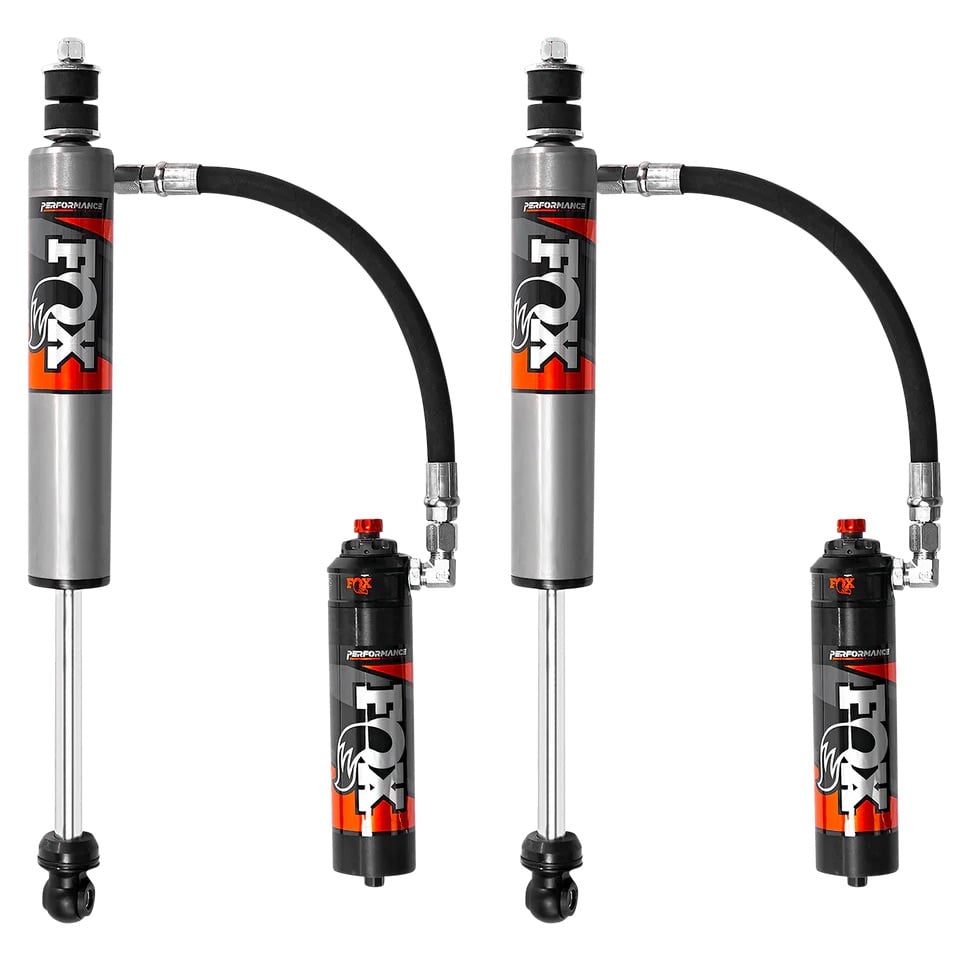

The FOX® 883-26-112 2.5 Performance Elite Rear Reservoir Shock Pair provides 0-1.5in. of rear lift for 2005-2023 Toyota Tacoma 4WD trucks equipped with 6-lug wheels, using external reservoirs with Dual Speed Compression (DSC) adjusters for on- and off-road tuning. The set includes two complete rear shocks.
IMPORTANT: This part number fits 6-lug Tacoma trucks only.
FOX® Performance Elite Series shocks improve the stock Tacoma platform by eliminating the vehicle’s forward rake, providing a level ride height without hindering droop travel, and increasing suspension articulation. Type III anodization on the 2.5″ aluminum body prevents corrosion and wear over time.
The external reservoir efficiently dissipates heat by increasing internal oil capacity, so the shock stays cooler and performs consistently longer. The reservoir’s Dual Speed Compression (DSC) adjuster is strategically mounted to avoid interference with aggressive tires at full lock, letting the driver quickly adapt damping for load, environment, and driving style using the high-flow piston design.
Construction includes a 2.5″ impact-extruded and CNC-machined 6061-T6 hard-anodized aluminum body, black-anodized CNC-machined 6061-T6 billet aluminum components, a 7/8″ hard chrome-plated heat-treated alloy steel shaft, application-specific valving, and PTFE-lined heat-treated spherical bearings. A redundant sealing pack system (main seal, wiper seal, scraper seal) protects internal components. FOX® backs this shock with a one-year limited warranty against defects in materials and workmanship.
- Fits 2005-2023 Toyota Tacoma 4WD models with 6-lug wheels only; provides 0-1.5in. of rear lift
- 2.5″ impact-extruded, CNC-machined 6061-T6 hard-anodized aluminum body resists corrosion
- External reservoir with Dual Speed Compression (DSC) adjuster for on-road and off-road tuning
- Black-anodized CNC-machined 6061-T6 billet aluminum components
- 7/8″ hard chrome-plated heat-treated alloy steel shaft with race-developed high-flow piston
- Application-specific valving tuned for the Tacoma platform
- PTFE-lined heat-treated spherical bearings; redundant sealing pack system
- Backed by FOX®’s one-year limited warranty against defects in materials and workmanship
- Sold as a pair (2 complete rear shocks)
| Brand | FOX Racing Shox |
| Part Number | 883-26-112 |
| Series | Performance Elite |
| Body | 2.5″ impact-extruded, CNC-machined 6061-T6 hard-anodized aluminum |
| Body Plating | Hard-anodized |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 7/8″ hard chrome-plated heat-treated alloy steel |
| Piston | Race-developed high-flow design |
| Valving | Application-specific |
| Bearings | PTFE-lined, heat-treated alloy steel spherical |
| Sealing | Redundant sealing pack: main seal, wiper seal, scraper seal |
| Travel | 8.55in. |
| Extended Length | 22.9in. |
| Compressed Length | 14.35in. |
| Top Mount | Stem Top |
| Bottom Mount | Eyelet |
| Rear Lift Height | 0-1.5in. |
| Wheel Fitment | 6-lug only |
| Warranty | FOX one-year limited warranty |
| What’s Included | (2) Rear shocks with DSC reservoir adjusters |
This shock pair fits 2005-2023 Toyota Tacoma 4WD trucks equipped with 6-lug wheels, providing 0-1.5in. of rear lift with external DSC reservoir adjusters. This part number fits 6-lug versions only and is sold as a pair. It is a distinct application from the DSC EVO-equipped 883-26-143, which is a pair built for the 2024+ Tacoma platform.
