Description

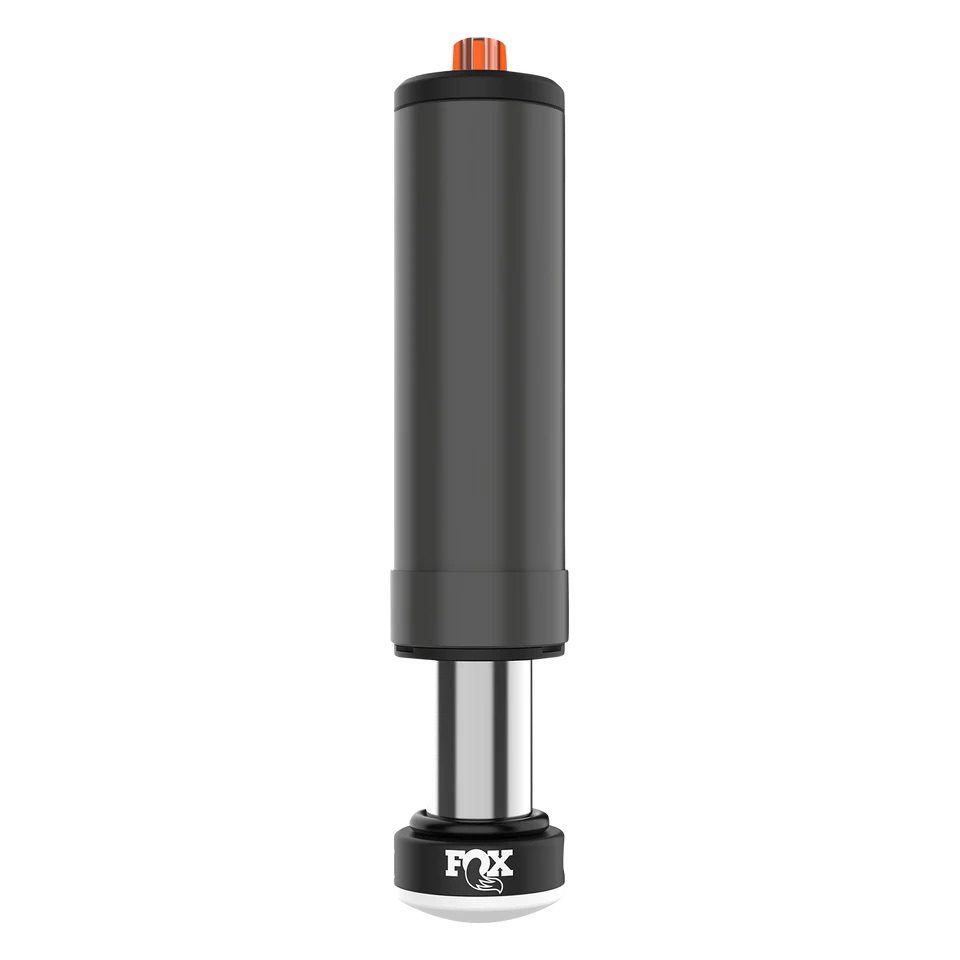

The FOX® 981-20-041 Factory Race 2.0 x 2.5 Bump Stop Pinch Mount is a stand-alone hydraulic bump stop measuring 2.0″ in body diameter with 2.5″ of travel, sold individually. This is a universal off-road component with no vehicle-specific fitment — it mounts via a pinch-bolt clamp and is suited to custom fabrication, prerunner, and race-truck applications.
IMPORTANT: This part number is one of several in the FOX 2.0 Factory Race pinch-mount bump stop family that differ only in travel length and mount style. Confirm you need 2.5″ of travel before ordering — the related SKUs are 981-20-040 (2.0 x 2.0 travel), 981-20-042 (2.0 x 3.0 travel), 981-20-043 (2.0 x 4.0 travel), and 981-20-044 (2.0 x 2.0 travel, stem mount instead of pinch mount).
FOX Off-Road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control over the last few inches of suspension travel. As a purpose-built, stand-alone component, this bump stop lets a vehicle use every bit of available suspension travel without harsh bottoming, rather than relying on the shock itself to absorb final impact.
A built-in FOX Air Valve (FAV), located at the bottom of the shaft and protected by the strike pad, allows the internal nitrogen charge to be adjusted for a wide range of bottoming control. The threaded body allows the mounting height to be adjusted to fine-tune exactly when the bump stop engages. An Internal Floating Piston (IFP) separates the oil and nitrogen to prevent cavitation and bucking, while tunable velocity-sensitive deburred valve shims allow the damping to be tuned to the application. A negative coil spring softens initial impact and prevents harsh top-outs.
The body is a threaded, impact-extruded, black-anodized CNC-machined 6061-T6 billet aluminum construction. The shaft is a hard chrome-plated 1-1/4″ 4130 steel shaft paired with a heavy-duty powdered steel piston. A redundant sealing pack system — main seal, wiper seal, and scraper seal — protects against leaks, and the strike pad is a replaceable Delrin® pad for quiet, long-lasting operation.
- Universal pinch-mount bump stop — no vehicle-specific fitment; suited to custom off-road, prerunner, and race-truck fabrication
- 2.0″ body diameter, 2.5″ travel, 1.25″ shaft diameter
- FOX Air Valve (FAV) for tunable nitrogen charge and adjustable bottoming control
- Threaded body allows adjustable mounting height to fine-tune engagement point
- Internal Floating Piston (IFP) prevents cavitation and bucking
- Negative coil spring softens initial impact and prevents harsh top-outs
- Tunable velocity-sensitive deburred valve shims for precise damping tuning
- Redundant sealing pack system: main seal, wiper seal, and scraper seal
- Replaceable Delrin® strike pad
- Sold individually
| Part Number | 981-20-041 |
| Series | Factory Race |
| Mount Type | Pinch Mount |
| Body Diameter | 2.0″ |
| Travel | 2.5″ |
| Extended Length | 11.36″ (not including nitrogen cap) |
| Collapsed Length | 8.85″ (not including nitrogen cap) |
| Shaft Diameter | 1.25″ |
| Shaft Material | Hard chrome-plated 4130 steel |
| Body Material | Black-anodized CNC-machined 6061-T6 billet aluminum |
| Piston | Heavy-duty powdered steel |
| Strike Pad | Replaceable Delrin® |
| Sold As | Individually |
This is a universal, stand-alone bump stop with no vehicle-specific fitment — it is not tied to a particular make or model and mounts via a pinch-bolt clamp to a custom or fabricated tab. Buyers should confirm travel length (2.5″) and mount style (pinch mount, not stem mount) match their build before ordering.
