Description
The FOX® 803-35-016 Billet Front Upper Control Arm kit is a direct-replacement pair, sold as driver and passenger side assemblies, machined from 6061 billet aluminum with 1.25″ hard chrome-plated uniballs and 3/4″ chromoly heim joints, engineered for Ram 1500 trucks without factory air ride suspension across the 2009-2026 model years (2025 coverage is trim-specific — see fitment details below).
IMPORTANT: This kit is designed for Ram 1500 trucks equipped without factory air ride suspension only and is not compatible with air ride-equipped trucks. For the 2025 model year, fitment is limited to RWD Big Horn, Laramie, Lone Star, Tradesman, and Tradesman HFE trims without air ride; other 2025 trims are not covered. FOX® direct-replacement upper control arms should always be installed as a matched set (both sides) for proper performance, and a professional installation followed by a full front-end alignment is required. Stock wheels and tires, or wheel/tire combinations wider than stock, may contact the billet control arm during turning or at full suspension travel — verify wheel backspacing and tire width clearance before installation. This part number, 803-35-016, is the Black finish; the identical kit is also available in Orange finish as part number 803-35-017.
The Upper Control Arm (UCA) is the foundational upgrade for building a mid-travel Ram 1500 suspension setup. It corrects suspension geometry when the vehicle is lifted, maintaining proper alignment while maximizing droop travel for increased off-road articulation. Additional caster built into the arm’s design helps reduce high-speed wander for more confidence behind the wheel and a more comfortable ride on rough roads and trails.

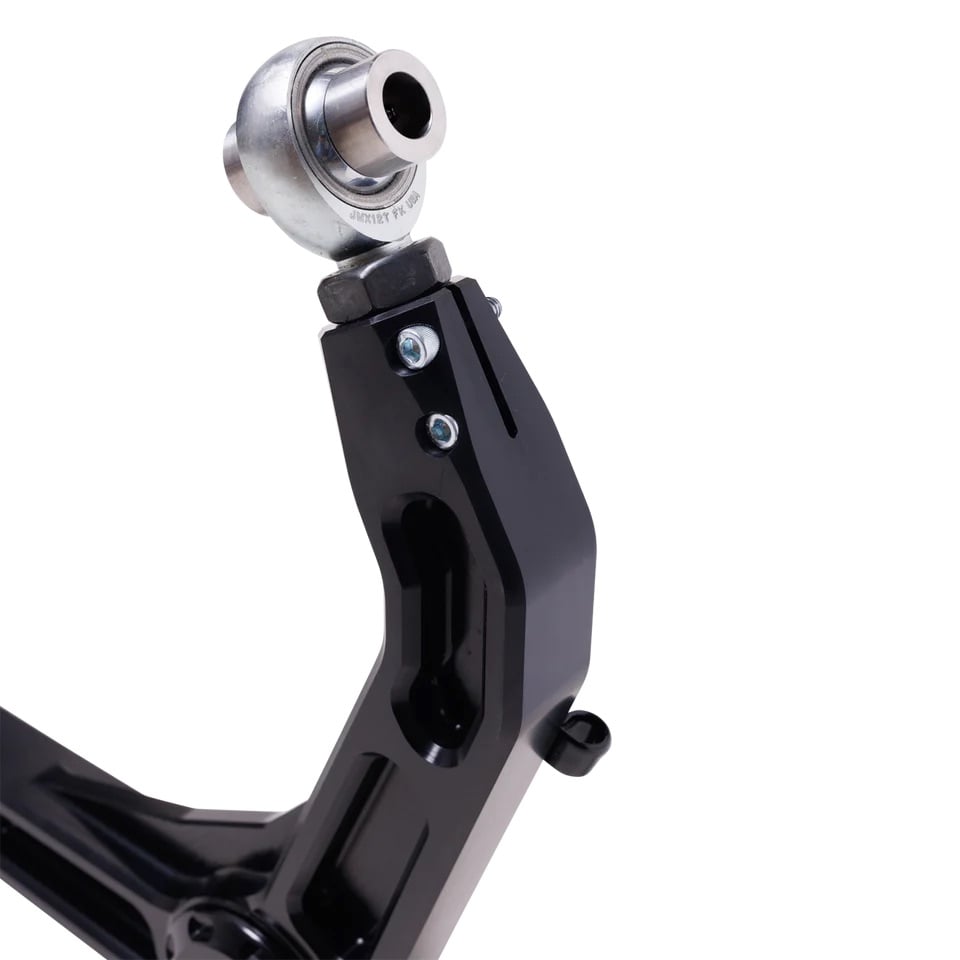

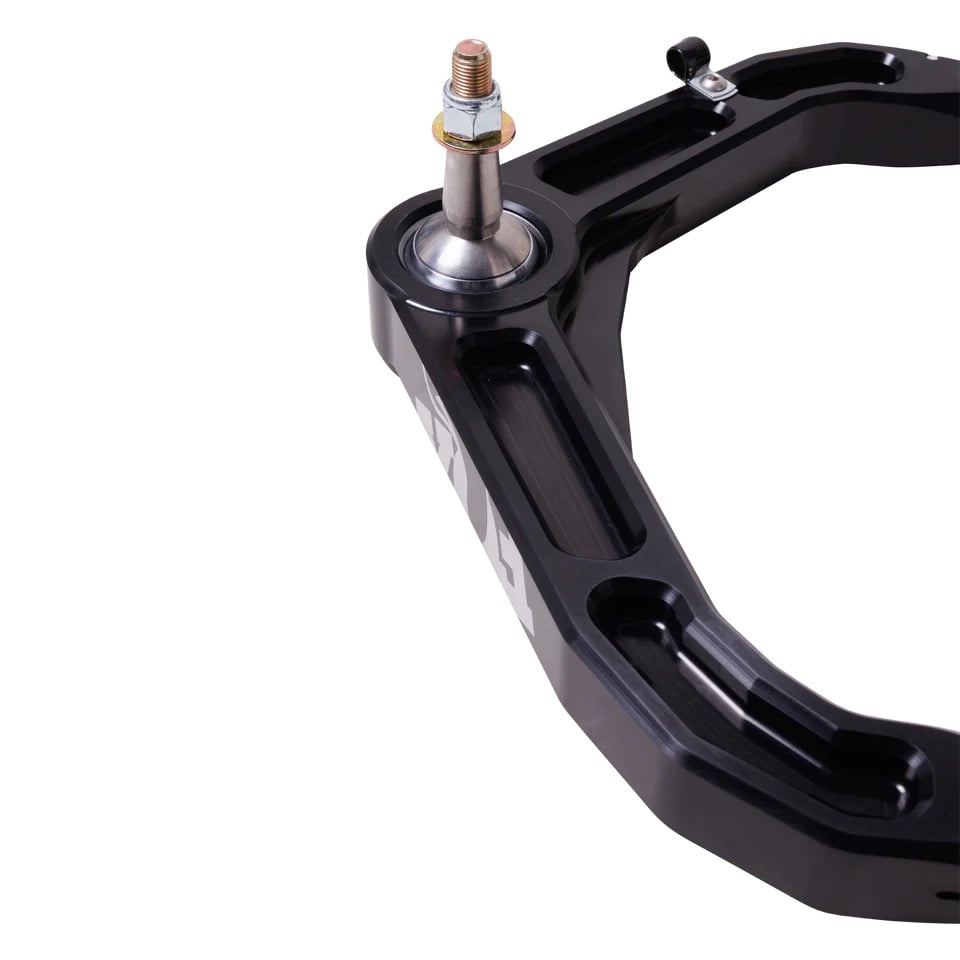

Each arm is machined from 6061 billet aluminum with laser-etched FOX® logos. The 1.25″ hard chrome-plated uniballs and 3/4″ chromoly heim joints provide the pivot and rod-end connection points, while stainless-steel taper misalignment spacers and 12-point bolts at the steering knuckle connection ensure a reliable, precise fit through the full range of suspension travel.
Construction is designed to hold up to sustained off-road use, and the kit includes all hardware needed for a direct-replacement installation. FOX® backs the serviceable components of the Billet Upper Control Arm — including spherical bearings, rod ends, and other fabricated hardware — along with appearance and finish workmanship, with a 12-month limited warranty against defects in materials or workmanship.
- Direct-replacement front upper control arm pair for 2009-2026 Ram 1500 trucks without factory air ride suspension (2025 model year limited to RWD Big Horn, Laramie, Lone Star, Tradesman, and Tradesman HFE trims)
- 6061 billet aluminum construction with laser-etched FOX® logos
- 1.25″ hard chrome-plated uniballs and 3/4″ chromoly heim joints
- Stainless-steel taper misalignment spacers and 12-point bolts at the steering knuckle for a reliable, precise fit
- Corrects suspension geometry for lifted applications and increases droop travel for greater off-road articulation
- Additional built-in caster reduces high-speed wander
- Professional installation and a full front-end alignment required after installation
- Backed by a 12-month FOX® limited warranty on serviceable components and finish workmanship
- Sold as a pair (driver and passenger side)
| Part Number | 803-35-016 |
| Finish | Black |
| Position | Front |
| Construction | 6061 Billet Aluminum |
| Bearing | 1.25″ Hard Chrome-Plated Uniball |
| Rod End | 3/4″ Chromoly Heim Joint |
| Knuckle Hardware | Stainless-Steel Taper Misalignment Spacers, 12-Point Bolts |
| Orange Finish Equivalent | 803-35-017 |
| Warranty | 12-Month FOX® Limited Warranty |
| What’s Included | Front Billet Upper Control Arms (Driver & Passenger), Supplied Hardware, Installation Guide |
This control arm is engineered specifically for Ram 1500 trucks without factory air ride suspension, covering model years 2009 through 2026 across all trims, with 2025 coverage limited to RWD Big Horn, Laramie, Lone Star, Tradesman, and Tradesman HFE trims. This listing is for the Black finish (803-35-016); the identical kit in Orange finish is listed separately as part number 803-35-017 — confirm finish and air ride equipment before ordering.
